Outline Images and Projection Models Camera Models Camera Intrinsic Parameters Image Formation and Camera Models Allen Y. Yang Berkeley EE 225b Feb 28th, 2007 Allen Y. Yang Image Formation and Camera Models Outline Images and Projection

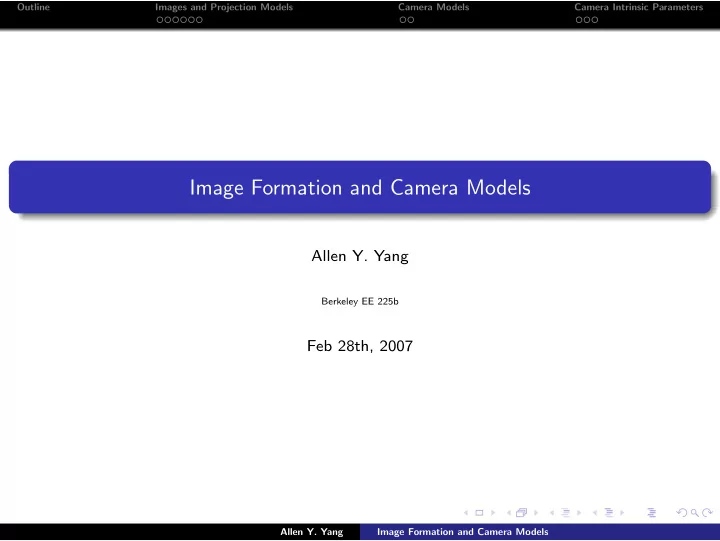

SLIDE 1

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Image Formation and Camera Models

Allen Y. Yang

Berkeley EE 225b

Feb 28th, 2007

Allen Y. Yang Image Formation and Camera Models

SLIDE 2

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters 1

Images and Projection Models Introduction Perspective Projection Orthographic Projection

Camera Models Imaging through a Pinhole

Camera Intrinsic Parameters Lense Distortions Modeling Camera Parameters

Allen Y. Yang Image Formation and Camera Models

SLIDE 3

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Representation of Images

I : Σ ⊂ R2 → R+; (x, y) → I(x, y). This Lecture

How are images captured from 3-D world to 2-D?

Camera projection model?

Image formation?

Allen Y. Yang Image Formation and Camera Models

SLIDE 4

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Perspective Projection

A modern camera projects 3-D world into 2-D image plane through perspective projection: Properties of perspective projection: Foreshortening: Distance objects are smaller.

Allen Y. Yang Image Formation and Camera Models

SLIDE 5

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Perspective Projection

Horizon line: Vanishing points: Parallel lines in 3-D intersect at a point in the image plane. How many vanishing points in these images?

Allen Y. Yang Image Formation and Camera Models

SLIDE 6

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Correct perspective projections are visible in paintings.

(a) 1st Century B.C., Pompeii (b) “School of Athens”, Raphael, 1518

Perspective Projection and Illusions

(c) Necker cube (d) Escher waterfall (e) Ames room

Allen Y. Yang Image Formation and Camera Models

SLIDE 8

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Orthographic Projection Model

Orthographic projection: The difference between perspective and orthographic was illustrated in Christian artwork:

(f) Perugino Fresco, Vatican (g) Birth of the Virgin, Ukraine

Allen Y. Yang Image Formation and Camera Models

SLIDE 9

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Pinhole camera model (Camera Obscura)

Mo-Zi (5th century BC) − → Aristotle (300 BC) − → Da Vinci (1490) − → Kepler (17th century)

Figure: Pinhole camera model.

Let p = [X, Y , Z]T ∈ R3, and its image x = [x, y]T ∈ R2: x : X = y : Y = −f : Z Hence, x = −f X

Z ,

y = −f Y

Z .

Question: What is the projection model for orthographic projection?

Allen Y. Yang Image Formation and Camera Models

SLIDE 10

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Frontal Camera Model

The pinhole camera model is inconvenience that the focal length f is negative.

Figure: Frontal pinhole camera model.

x = x

y

Z X

Y

In homogeneous coordinates: Z   x y 1   =   f f 1       X Y Z 1     .

Allen Y. Yang Image Formation and Camera Models

SLIDE 11

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Distortions from Physical Lenses

Pinhole camera model assumes

Perfect pinhole camera lenses.

Image x = I(p) ∈ R2 be measured in infinite accuracy.

Principal point is at the center of the image. Physical camera lenses give us

Distorted imaging projections.

(a) Fish- eye (b) Nor- mal/Portrait (c) Tele- photo

Finite resolutions defined by the sensing devices in digital cameras.

Offset between image center and optical center.

Allen Y. Yang Image Formation and Camera Models

SLIDE 12

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

Camera Intrinsic Parameters

Figure: Transformation from image coordinates to pixel coordinates.

Modeling the camera distortion

Transform from image coordinates (e.g., in metric units) to pixel coordinates. xs

ys

sx 0

0 sy

x

y

Translate the image origin. x′ = xs + ox; y′ = ys + oy.

Allen Y. Yang Image Formation and Camera Models

SLIDE 13

Outline Images and Projection Models Camera Models Camera Intrinsic Parameters

In homogeneous coordinates: x′ =   x′ y′ 1   =   sx

sy

1     x y 1   . Camera Intrinsic Matrix: K . =   sx

sy

1   . Complete transformation from 3-D to 2-D pixel coordinates: Z   x′ y′ 1   =   sx

sy

1     f f 1       X Y Z 1     =   fsx

fsy

1     1 1 1       X Y Z 1     . In short hand, λx′ = KΠ0X. K is called calibration matrix, Π0 is called (perspective) projection matrix.

Allen Y. Yang Image Formation and Camera Models

Image Formation and Camera Models

Allen Y. Yang

Feb 28th, 2007

Images and Projection Models Introduction Perspective Projection Orthographic Projection

Camera Models Imaging through a Pinhole

Camera Intrinsic Parameters Lense Distortions Modeling Camera Parameters

Representation of Images

I : Σ ⊂ R2 → R+; (x, y) → I(x, y). This Lecture

How are images captured from 3-D world to 2-D?

Camera projection model?

Image formation?

Perspective Projection

A modern camera projects 3-D world into 2-D image plane through perspective projection: Properties of perspective projection: Foreshortening: Distance objects are smaller.

Perspective Projection

Horizon line: Vanishing points: Parallel lines in 3-D intersect at a point in the image plane. How many vanishing points in these images?

Correct perspective projections are visible in paintings.

(a) 1st Century B.C., Pompeii (b) “School of Athens”, Raphael, 1518

More reading: “Perspective” in wikipedia.com.

Perspective Projection and Illusions

(c) Necker cube (d) Escher waterfall (e) Ames room

Orthographic Projection Model

Orthographic projection: The difference between perspective and orthographic was illustrated in Christian artwork:

(f) Perugino Fresco, Vatican (g) Birth of the Virgin, Ukraine

Pinhole camera model (Camera Obscura)

Mo-Zi (5th century BC) − → Aristotle (300 BC) − → Da Vinci (1490) − → Kepler (17th century)

Figure: Pinhole camera model.

Let p = [X, Y , Z]T ∈ R3, and its image x = [x, y]T ∈ R2: x : X = y : Y = −f : Z Hence, x = −f X

Z ,

y = −f Y

Z .

Question: What is the projection model for orthographic projection?

Frontal Camera Model

The pinhole camera model is inconvenience that the focal length f is negative.

Figure: Frontal pinhole camera model.

x = x

y

Z X

Y

In homogeneous coordinates: Z   x y 1   =   f f 1       X Y Z 1     .

Distortions from Physical Lenses

Pinhole camera model assumes

Perfect pinhole camera lenses.

Image x = I(p) ∈ R2 be measured in infinite accuracy.

Principal point is at the center of the image. Physical camera lenses give us

Distorted imaging projections.

(a) Fish- eye (b) Nor- mal/Portrait (c) Tele- photo

Finite resolutions defined by the sensing devices in digital cameras.

Offset between image center and optical center.

Camera Intrinsic Parameters

Figure: Transformation from image coordinates to pixel coordinates.

Modeling the camera distortion

Transform from image coordinates (e.g., in metric units) to pixel coordinates. xs

ys

sx 0

0 sy

x

y

Translate the image origin. x′ = xs + ox; y′ = ys + oy.

In homogeneous coordinates: x′ =   x′ y′ 1   =   sx

sy

1     x y 1   . Camera Intrinsic Matrix: K . =   sx

sy

1   . Complete transformation from 3-D to 2-D pixel coordinates: Z   x′ y′ 1   =   sx

sy

1     f f 1       X Y Z 1     =   fsx

fsy

1     1 1 1       X Y Z 1     . In short hand, λx′ = KΠ0X. K is called calibration matrix, Π0 is called (perspective) projection matrix.
