iHealth PT3 Non Contact Forehead Thermometer with distance sensor - PowerPoint PPT Presentation

iHealth PT3 Non Contact Forehead Thermometer with distance sensor iHealth PT3 is a IR Forehead Thermometer, fast, simple and non-contact. 1 second to get the reading High accuracy sensor from Heimann Pass CE and FDA certification Distance

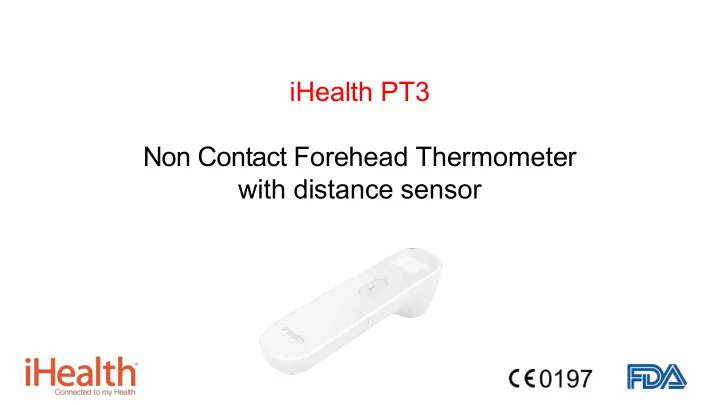

  1. iHealth PT3 Non Contact Forehead Thermometer with distance sensor

  2. iHealth PT3 is a IR Forehead Thermometer, fast, simple and non-contact.

  3. 1 second to get the reading High accuracy sensor from Heimann Pass CE and FDA certification

  4. Distance sensor Thermopile sensor LED Display Measurement button

  5. 1 button to start a measurement 1. Focus between eyebrows 2. Hit button 3. Measure in 1 second That’s all!

  6. How to use iHealth PT3 Focus between eyebrows Reading will be displayed 3 1 2 Hit button to start measurement within 3cm in less than 1 second

  7. Specifications Size 137mm*39mm*34mm Weight 90g Display 25.7mm*19.1mm Segment screen w/ white LED Memory NA Battery AAA*2, 3V (300 times measurement) 32-42.9 ℃ (89.6-109.3 ℉ ) Measurement Range Measurement Distance <=3cm to middle of the eyebrows 35-42 ℃ (95-107.6 ℉ ):±0.2 ℃ /0.4 ℉ Others:±0.3 ℃ /0.5 ℉ Lab Uncertainty ±0.3 ℃ /0.5 ℉ Repeatability ±0.3 ℃ /0.5 ℉ Clinical Std. Dev <=0.1 ℃ / ℉ Resolution Temperature:5-40 ℃ (41-104 ℉ ) Humidity:15%-85% Operating Environment Temperature:-20-55 ℃ (-4-131 ℉ ) Humidity:<90% Storage and Transport Environment
