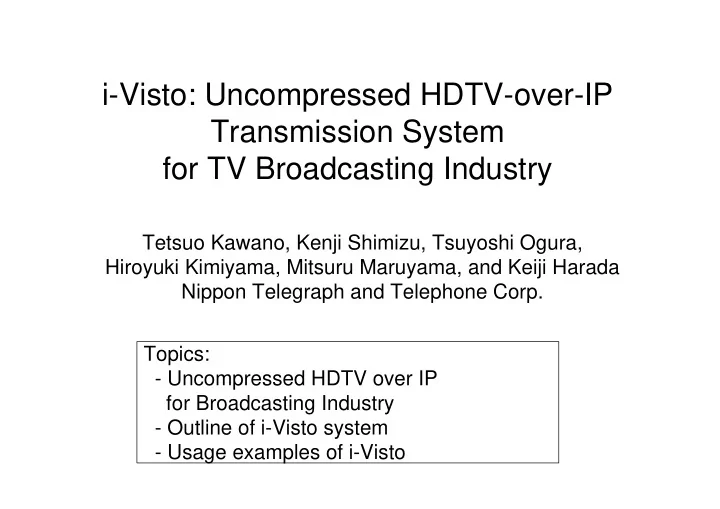

i-Visto: Uncompressed HDTV-over-IP Transmission System for TV Broadcasting Industry Tetsuo Kawano, Kenji Shimizu, Tsuyoshi Ogura, Hiroyuki Kimiyama, Mitsuru Maruyama, and Keiji Harada Nippon Telegraph and Telephone Corp. Topics: -


  1. i-Visto: Uncompressed HDTV-over-IP Transmission System for TV Broadcasting Industry Tetsuo Kawano, Kenji Shimizu, Tsuyoshi Ogura, Hiroyuki Kimiyama, Mitsuru Maruyama, and Keiji Harada Nippon Telegraph and Telephone Corp. Topics: - Uncompressed HDTV over IP for Broadcasting Industry - Outline of i-Visto system - Usage examples of i-Visto

  2. Uncompressed HDTV over IP for Broadcasting Industy • Why uncompressed ? – High quality – Low latency • Why use IP ? – Low cost (equipment, WAN service, short- term use) – Multi-format – Data multiplexing (control, metadata) – Connectivity with NLE

  3. Necessary Bandwidth for HDTV Transmission 10M 100M 1G 10G HD-SDI 1.5 G 10bit-Active 1.3 G 8bit-Active 1 G HDCAM 140 M DVCproHD 100 M MPEG-2 50 - 150 M Digital TV 15 - 20 M WM9 3 - 6 M Ethernet FE GbE 10GbE OC-48

  4. Transmission Delay • From the standpoint of the broadcasting operation – 0 frames: ideal – 1 frame: possible to operate as almost zero delay by a deliberate design – 3 frames: limit for appearing as zero frame delay to human senses • Factor of delay – Propagation delay • Tokyo ~ Osaka (500 km): 0.08 frames • Japan ~ USA (10,000 km): 1.5 frames • Satellite: 15 frames – Compression and expansion delay • MPEG-2: 6 ~ 15 frames

  5. i-Visto gateway • i-Visto gateway performs conversion between digital video signal (HD-SDI/SD-SDI) and IP packet streams IP network I/F HD-SDI i-Visto IN / OUT gateway – Features: • PC-based system • Two HD-SDI streams, 0.5 frames delay • 10GbE, 10G POS, 2.4G POS, GbE x 2 support • IPv4/v6, unicast and multicast support • Video sync. clock transmission support

  6. Video transmission using i-Visto gateway GW GW IP network IP IP HD-SDI HD-SDI (SD-SDI) (SD-SDI) Unicast (single or bi-directional) GW GW GW IP network GW IP multicast

  7. Low-latency Transmission Technology • Conventional HD-SDI cards have a big delay due to their frame buffer feature. • New low-latency HD-SDI I/O card – Design change in our 2.4G POS NIC • Change in PHY interface (SONET -> SDI) – Packet processing scheme • one video line = one packet

  8. Video Sync. Clock Transmission • Objective: transmit video sync. signal in the broadcasting station to remote site to achieve video transmission without frame dropping. – Conventional (e.g., MPEG-2 TS): • Re-generate source video clock at receiver side (from sender to receiver) – In i-Visto: • Re-generate receiver side clock at sender side. Cameras at sender side use the re-generated receiver side clock.

  9. i-Visto eXmedia server: Integration with Storage System – Network attached high-speed storage – PC cluster-based system – Up to 10 uncompressed HDTV streams

  10. Network Computing GW GW IP network HD-SDI IP IP SD-SDI IP i-Visto HD-SDI over IP to Media SD-SDI over IP converter conversion • i-Visto media converter – PC-based networked video processing • E.g., down converting from HDTV to SDTV

  11. Usage examples of i-Visto

  12. NAB 2004 (April 2004) GW GW GW SW SW GW GW GW GW Pacific OC-48c line GW Tokyo Las Vegas • Uncompressed HDTV and two SDTV signals were transmitted in two directions over pacific OC-48c line • Delay below three frames was achieved – Two-way communication was performed without any sense of incompatibility.

  13. Koushien 2004 (Aug. 2004) (Japanese high-school baseball) IPv4 IPv4 GW GW SW SW GW GW JGNII 10GbE IPv6 IPv6 Osaka Tokyo • Using JGNII 10GbE between Tokyo and Osaka • Three uncompressed HDTV streams on 10GbE • IPv4 and IPv6 streams at the same time (JGNII: Japan Gigabit Network II)

  14. InterBEE 2004 (Nov. 2004) Tokyo GW SW Osaka GW GW GW SW GW SW Otemachi(Tokyo) GW Makuhari(Chiba) GW Roppoigi(Tokyo) • 4 points in Japan ware connected with 10GbE • 5 uncompressed HDTV streams on a 10GbE • Video clock synchronization

  15. EXPO 2005 Aichi Japan (Mar. 2005 ~) broadcasting GW GW Remote control system camera GbE WAN service (MPLS) Camera controller Expo. vision Broadcasting Station (ABC at Osaka) EXPO (Aichi) • Using MPLS GbE WAN service • Remote camera control • Used for actual broadcasting programs

  16. N+I 2005 Japan (June 2005) Makuhari(Chiba) GW GW Remote control camera Camera GbE WAN service controller (MPLS) Expo. vision GW IPv6 GW EXPO (Aichi) GW network GW • MPLS path change • Connectivity test with various routers • Uncompressed HDTV over IPv6 multicast

  17. Summary • i-Visto for broadcasting industry – Low latency (0.5-frame delay) – Two concatenated GbE mode support – Video synchronization clock transmission – Multiplexing control and metadata • Future work on i-Visto – High-speed storage ( i-Visto eXmedia server) • Increase to 100 uncompressed HDTV access capability – Network computing • Up-conversion, transitions, video synthesis, etc.
