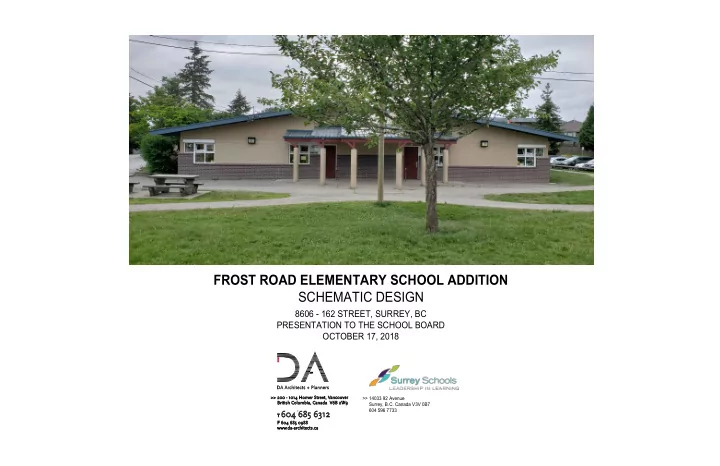

FROST ROAD ELEMENTARY SCHOOL ADDITION SCHEMATIC DESIGN

8606 - 162 STREET, SURREY, BC PRESENTATION TO THE SCHOOL BOARD OCTOBER 17, 2018

>> 14033 92 Avenue Surrey, B.C. Canada V3V 0B7 604 596 7733

6m SIDE YARD 15m REAR YARD NEW 10m FRONT YARD MOD.

1 6 2 S T R E E T EXIST. PLAYFIELD

FIRE LANE 6m SIDE YARD

• EXIST. PROPANE TANK
• EXIST. IRRIGATION KIOSK

REFER TO CIVIL FOR OFF-SITE UPGRADES FIRE LANE

• EXIST. PROPANE TANK

EXIST. PORT. PLAY GROUND

• EXIST. DROP-OFF: 8 STALLS
• EXIST. PARKING: 23 STALLS
• EXIST. PARKING: 30 STALLS

PLAY GROUND MOD. EXIST. PORT. EXIST. PORT. EXIST. PORT.

• EXIST. GARBAGE
• EXIST. PROPANE TANK

1:750 2018.10.11

FROST ROAD ELEMENTARY SCHOOL ADDITION EXISTING SITE PLAN

N

15m REAR YARD NEW 10m FRONT YARD

1 6 2 S T R E E T

FIRE LANE NEW FIRE LANE PATCH AND MAKE GOOD ASPHALT DAMAGED BY CONSTRUCTION RELOCATED GATE

• EXIST. PARKING: 37 STALLS

6m SIDE YARD MOD.

EXIST. PLAYFIELD

REMOVE PROPANE TANK

• EXIST. IRRIGATION KIOSK

PLAY GROUND PLAY GROUND MOD. REMOVE PORTABLES REMOVE PORTABLE FIREWALL BETWEEN ADDITION AND EXIST. SCHOOL REMOVE PORTABLE

• EXIST. GARBAGE

FENCED CONST. ZONE REUSE GATE DROP OFF SHIFTED WEST ±810mm NEW PARKING: 16 STALLS REFER TO CIVIL FOR OFF-SITE UPGRADES PAVED PARKING: 37 EXIST. STALLS + 16 NEW STALLS = 53 STALLS DROP OFF: 8 EXIST. STALLS + 1 NEW STALL = 9 STALLS K NEW ASPHALT PLAY AREA CR CR K K K SE SE SR

• PROJ. AREA

CR CR 1:750 2018.10.11

FROST ROAD ELEMENTARY SCHOOL ADDITION SITE PLAN

N

6 5 . 1 E L . 6 4 . 4 3 64.36 6 4 . 9 7 6 4 . 8 5 6 4 . 3 3 EXISTING LOCATION OF CURB

810

FENCED CONSTRUCTION ZONE

3900 MIN. 3148 4960 4205

FENCED CONSTRUCTION ZONE 6 4 . 9 8 64.98 64.98 6 4 . 9 8

EXISTING BLDG

INFILL OPENINGS IN WALL AND MAKE GOOD FINISHES KINDERGARTEN TURNED INTO CLASSROOM KINDERGARTEN TURNED INTO CLASSROOM INFILL OPENINGS AND MAKE GOOD FINISHES DEMOLISH KITCHEN, WASHROOMS, AND STORAGE TO MAKE NEW CORRIDOR TO ADDITION NEW DOUBLE FIRE DOOR PROVIDE 50mm SEISMIC GAP INFILL OPENINGS AND MAKE GOOD FINISHES

EXISTING PARKING: 37 STALLS 10m FRONT YARD SET BACK 6m SIDE YARD SET BACK SIDEWALK FIRE LANE NEW DROP-OFF ZONE MOVED 810mm WEST FROM EXISTING AND 1 NEW STALL ADDED TO EXISTING 8 STALLS

REMOVE PORTABLE REMOVE PORTABLE

1 6 2 S T R E E T

UP UP 10% SLOPE RAMP BUILD NEW STAIR AND RAMP UP TO ADDITION NEW SIDEWALK EXISTING GARBAGE RELOCATED GATE

NEW PARKING: 16 STALLS 6m SIDE YARD SET BACK

NEW BOLLARDS NEW FENCE NEW FENCE NEW FENCE NEW BOLLARDS NEW FENCE

NEW FIRE LANE

DEMOLISH BRICK PLANTER TO CREATE SPACE FOR NEW DOOR RELOCATED GATE

• EX. GATE

FH FH NEW SIDEWALK NEW DOOR AND WINDOW NEW DOOR AND WINDOW GAS ENCLOSURE

KINDERGARTEN 4 KINDERGARTEN 3 KINDERGARTEN 2 KINDERGARTEN 1 CLASSROOM 2 CLASSROOM 1

NEW ASPHALT PLAY AREA

SENSORY ROOM SPECIAL ED. SPECIAL ED. PROJECT AREA PROJECT AREA

KINDERGARTEN TURNED INTO CLASSROOM KINDERGARTEN TURNED INTO CLASSROOM

• EXIST. ASPHALT

NEW ASPHALT NEW ASPHALT

• EXIST. ASPHALT

6 5 . 3 65.03 NEW FENCE NEW ASPHALT

• EXIST. SIDEWALK

NEW ASPHALT

• EXIST. SIDEWALK

NEW ASPHALT

• EXIST. SIDEWALK
• EXIST. SIDEWALK

NEW IN-GROUND GARBAGE BIN

1:250 2018.10.11

FROST ROAD ELEMENTARY SCHOOL ADDITION ENLARGED SITE PLAN

N

ADDITION AREA: 747m2

CLASSROOM

205

CLASSROOM

204 INFILL OPENINGS IN WALL AND MAKE GOOD FINISHES KINDERGARTEN TURNED INTO CLASSROOM INFILL OPENINGS AND MAKE GOOD FINISHES DEMOLISH EXIST. KITCHEN, WASHROOMS, AND STORAGE TO MAKE NEW CORRIDOR TO ADDITION NEW DOUBLE FIRE DOOR WITH HOLD OPEN DEVICES PROVIDE 50mm SEISMIC GAP INFILL OPENINGS AND MAKE GOOD FINISHES

• EL. 64.43

UP RAMP UP - 10% SLOPE BUILD NEW STAIR AND RAMP UP TO ADDITION KINDERGARTEN TURNED INTO CLASSROOM NEW DOOR AND WINDOWS

• EL. 65.03

W/C

• W/C
• W/C
• W/C
• KINDERGARTEN
• WB

TB TB

KINDERGARTEN

• KINDERGARTEN
• TC

TC TB TB TB WB TB WB

KINDERGARTEN

• TC

TB WB TB

CLASSROOM

• WB

WB TB TC TB

CLASSROOM

• TC

WB WB TB TB

SPECIAL ED.

• WB

WB

SENSORY ROOM

• W/C
• W/C
• PROJECT AREA
• PROJECT AREA
• SPECIAL ED.
• TC

TC WB TB TB TB TB 10200 1900 8150 8150 1900 8150 38450 8200 10200 2150 8200 2150 8150 2050 20800 4200 6150 18050 4200 2400 1900 3700 1800 1800 4550 3450 2400

WET CUST.

• DRY

CUST.

• COMMUNICATION CLOSET

NEW DOOR AND WINDOWS

• EXIST. GAS ENCLOSURE

G

COAT COAT COAT COAT

A A B B

DOUBLE FIRE WALL E L . 6 5 . 3 COAT COAT COAT COAT NEW ELECTRICAL SHAFT NEW MECHANICAL SHAFT COAT COAT TC COAT COAT TB TB TB 915 MIN.

LEVEL 01 FLOOR PLAN FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11 1:150

N

ADDITION AREA: 747m2 DESIGN SPACE SERVICE SPACE SPECIAL EDUCATION GENERAL INSTRUCTION LEGEND KINDERGARTEN PROJECT AREA MAXIMUM AREA: 750m2

2585 2585 CLASSROOM 38450 CLASSROOM PROJECT AREA PROJECT AREA 10200 1900 8150 8150 1900 8150 3200 3600

BUILDING SECTION A FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

SOUTH ELEVATION FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

WEST ELEVATION FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

PERSPECTIVE FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11

PERSPECTIVE FROST ROAD ELEMENTARY SCHOOL ADDITION

2018.10.11
