COYOTE CREEK ELEMENTARY SCHOOL ADDITION SCHEMATIC DESIGN 8131 - 156 STREET, SURREY, BC PRESENTATION TO THE SCHOOL BOARD OCTOBER 17, 2018 >> 14033 92 Avenue Surrey, B.C. Canada V3V 0B7 604 596 7733 6m SIDE YARD SETBACK PARKING: 52

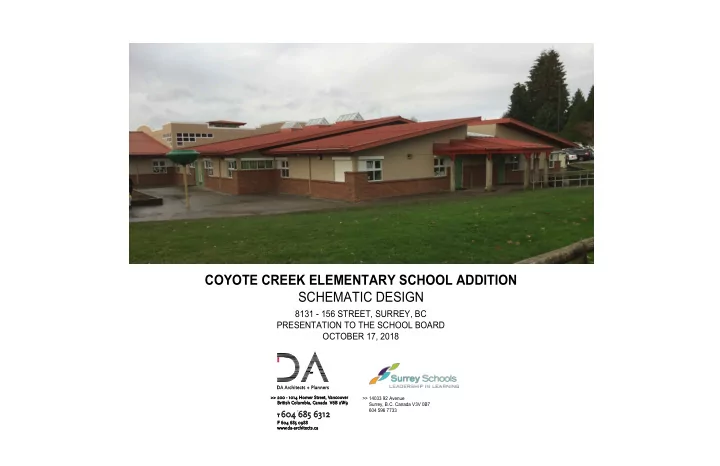

SLIDE 1

COYOTE CREEK ELEMENTARY SCHOOL ADDITION SCHEMATIC DESIGN

8131 - 156 STREET, SURREY, BC PRESENTATION TO THE SCHOOL BOARD OCTOBER 17, 2018

>> 14033 92 Avenue Surrey, B.C. Canada V3V 0B7 604 596 7733

SLIDE 2

1 5 6 t h S T R E E T

MODULAR BLDG 15m FRONT YARD SETBACK 6m SIDE YARD SETBACK 7.5m REAR YARD SETBACK 6m SIDE YARD SETBACK PARKING: 52 EXISTING STALLS DROP OFF: 10 EXISTING STALLS PLAYGROUND PLAY GROUND PLAY GROUND PLAY GROUND PLAYFIELD

EXIST. FIRE LANE
EXIST. FIRE LANE

PORTABLE PORTABLE

SITE PLAN COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:750

N

SLIDE 3

1 5 6 t h S T R E E T

MODULAR BLDG FIREWALL HATCH DENOTES EXTENT OF NEW ASPHALT PAVING WITH STORM DRAINAGE SYSTEM 15m FRONT YARD SETBACK 6m SIDE YARD SETBACK (LOWER GRADE) 7.5m REAR YARD SETBACK REFER TO CIVIL FOR OFF-SITE UPGRADES FENCED CONST. ZONE FENCE TO BE SHIFTED WEST

APPROX. 1m

EXISTING PORTABLES TO BE REMOVED AFTER CONSTRUCTION OF ADDITION 6m SIDE YARD SETBACK PARKING: 52 EXISTING STALLS + 20 NEW STALLS = 72 STALLS DROP OFF: 10 EXISTING STALLS REQ'D = 9 STALLS PLAYGROUND PLAY GROUND PLAY GROUND PLAY GROUND PLAYFIELD

EXIST. FIRE LANE
EXIST. FIRE LANE

HATCH DENOTES NEW ASPHALT PAVING NEW STAIRS NEW FIRE LANE NEW STAIRS GARBAGE NEW GATE NEW FENCE NEW RAMP WITH 5% SLOPE CR3 CR4 CR1 CR2 SE SE PROJ PROJ O O K NEW FIRE LANE

SITE PLAN COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:750

N

SLIDE 4

GRASS PLAY FIELD MODULAR BUILDING

PORTABLES 67.5 67.2 67.8 69.3 69.6 69.3 69.0 68.7 68.4 68.1 67.8 67.5 67.2 69.6 69.0 68.7 68.4 68.1

EXISTING ENLARGED SITE PLAN WITH CONTOURS COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.07.24 1:300

N

SLIDE 5

GRASS PLAY FIELD

FENCE TO BE SHIFTED WEST APPROX. 1m FENCE CONSTRUCTION ZONE NEW STAIRS

MODULAR BUILDING

NEW FIRE LANE PORTABLES TO BE REMOVED FIREWALL BETWEEN ADDITION AND EXISTING BUILDING 3200 NEW STAIRS

6 7 . 4

6 7 . 8 5 67.5 67.2 67.8 69.3 69.6 69.3 69.0 68.7 68.4 68.1 67.8 67.5 67.2 69.6 69.0 68.7 68.4 68.1 5 % D N 3% DN 69.60

CLASSROOM CUST. SPECIAL ED. OFFICE PROJECT AREA W/C OFFICE

SHIPPING CONTAINER

W/C PROJECT AREA SPECIAL ED. CLASSROOM CLASSROOM CLASSROOM

NEW ASPHALT EXIST. ASPHALT

EXIST. ASPHALT

GRAVEL 6 7 . 9 2 3% DN 5% DN 6 9 . 9

6 9 . 9

T / O W A L L 6 9 . 9 GRAVEL EXIST. ASPHALT 15% SLOPE DOWN 6 9 . 9 T/O WALL 6 9 . 9 T/O WALL 15% SLOPE DOWN T / O B E N C H 6 7 . 7 1 67.22 T / O B E N C H 2.4% SLOPE DOWN 3% SLOPE DOWN 15% SLOPE DOWN DN DN

EXIST. ASPHALT

NEW ASHALT NEW IN-GROUND GARBAGE BIN NEW IN-GROUND GARBAGE BIN

ENLARGED SITE PLAN W/ NEW CONTOURS COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:300

N

SLIDE 6

CLASSROOM

403

CLASSROOM

409

CLASSROOM

410

CLASSROOM

404

SPECIAL ED.

407

SPECIAL ED.

408

CLASSROOM

CLASSROOM
CLASSROOM
CLASSROOM
8200

OFFICE

SPECIAL ED.
SPECIAL ED.
OFFICE
INFILL OPENINGS IN WALL AND PROVIDE

NEW FINISHES TO MATCH EXISTING INFILL OPENINGS IN WALL AND PROVIDE NEW FINISHES TO MATCH EXISTING INSTALL NEW WINDOW AND DOOR INSTALL NEW WINDOW AND DOOR PROVIDE 50mm SEISMIC GAP DEMOLISH WALL TO PROVIDE ACCESS TO ADDITION DEMOLISH WALL AND DOOR TO PROVIDE ACCESS TO ADDITION 13R DN INSTALL DOUBLE CONCRETE BLOCK FIRE WALL 8200 10200 5600 34000 2400 5600 10200 16400 WB WB TB TB TC TC TB TB WB WB TB TB TB TB 1500 CLEAR 1500 CLEAR 8.0 x 10.0 8.0 x 10.0 8.0 x 10.0 4.5 x 5.4 8.0 x 10.0 4.5 x 5.4 2.6 X 4.5 3.4 x 4.5

PROJECT AREA

5.4 x 6.8

PROJECT AREA

5.4 x 6.8

CUSTODIAN

2.6 X 4.5

2400 2800 2800 TC 2000 3600 WB WB WB WB

W/C

W/C
CORRIDOR
TC

TC WB WB WB WB TC 6 9 . 9 5 6 7 . 6 7 6 9 . 9 5 6 9 . 9 5 6 7 . 6 5 6 9 . 9 6 9 . 9 WB WB TB TB COMMUNICATIONS CLOSET COAT COAT COAT COAT COAT COAT COAT COAT DEMOLISH WALLS TO WIDEN CORRIDOR TO ALLOW FOR DOUBLE FIRE DOORS

A B A

NEW MECHANICAL & ELECTRICAL SHAFT CUT END OF STRUCTURAL TRUSS TO ACCOMMODATE NEW FIREWALL RELOCATED EX. ELECTRICAL KILN

LEVEL 01 FLOOR PLAN COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:150

N

ADDITION AREA: 561m2 DESIGN SPACE SERVICE SPACE SPECIAL EDUCATION GENERAL INSTRUCTION LEGEND ADMINISTRATION PROJECT AREA MAXIMUM AREA: 562.38m2

SLIDE 7

3600 2585 2585 PROJECT AREA CLASSROOM 10200 5600 2400 5600 10200 34000 2585 3250 PROJECT AREA CLASSROOM

BUILDING SECTION A COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

SLIDE 8

SOUTH ELEVATION COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

SLIDE 9

WEST ELEVATION COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11 1:100

SLIDE 10

PERSPECTIVE COYOTE CREEK ELEMENTARY SCHOOL ADDITION

2018.10.11
