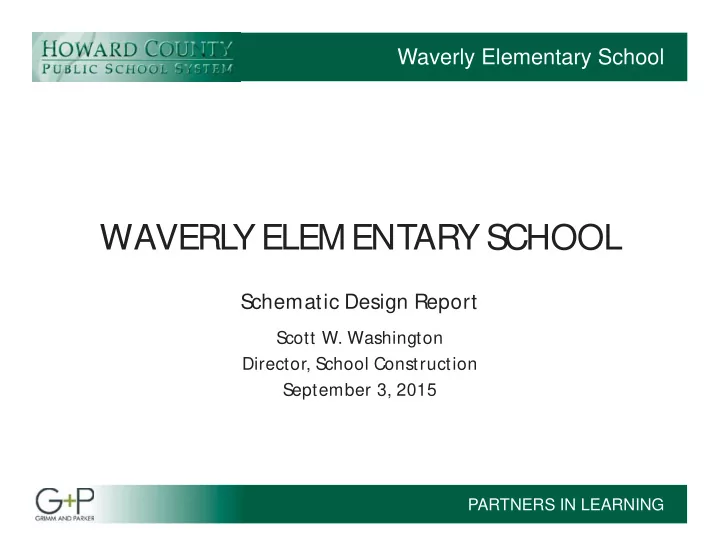

Waverly Elementary School WAVERL Y ELEMENTARY SCHOOL Schematic Design Report Scott W. Washington Director, School Construction September 3, 2015 PARTNERS IN LEARNING Waverly Elementary School Project Overview A complete systemic


slide-1
SLIDE 1

Waverly Elementary School

PARTNERS IN LEARNING

WAVERL Y ELEMENTARY SCHOOL

Schematic Design Report

Scott W. Washington Director, School Construction September 3, 2015

slide-2
SLIDE 2

Waverly Elementary School

PARTNERS IN LEARNING

Project Overview

  • A complete systemic renovation of the existing

building, including new mechanical, electrical, and IT systems

  • Grade cluster teaching stations reconfigured into

self-contained classrooms

  • Construction of an addition for the administration

area providing a security vestibule and a COMAR compliant health suite

  • Construction of classroom additions to address

current and projected enrollment

slide-3
SLIDE 3

Waverly Elementary School

PARTNERS IN LEARNING

Project Overview

  • Interior spaces reconfigured to increase the

standard classroom size, given new finishes, address acoustics, and provide improved accessibility

  • Replacement of existing modular construction
  • Another LEED ‘Certified’ project
  • Project includes add-alternates:
  • Expansion of the southwest parking lot
  • Reconfiguration of the site access
  • Reconfigure parallel parking along bus loop
  • Expansion of the staff lounge
slide-4
SLIDE 4

Waverly Elementary School

PARTNERS IN LEARNING

Aerial Site Photograph

slide-5
SLIDE 5

Waverly Elementary School

PARTNERS IN LEARNING

Aerial Building Photograph

PORTABLE CLASSROOM UNITS M ODULAR CONS TRUCTION 2007 ADDITIONS

slide-6
SLIDE 6

Waverly Elementary School

PARTNERS IN LEARNING

Proposed Site Plan

  • 1. Existing bus loop
  • 2. Reconfigured drop-off lane
  • 3. New administration and secure entry addition
  • 4. New two-story classroom addition
  • 5. Existing building to be renovated
  • 6. Existing courtyard
  • 7. Existing service area
  • 8. Existing RECC and Pre-K play area with playground equipment
  • 9. Existing hard play area, basketball courts
  • 10. Existing play area with playground equipment
  • 11. Existing multipurpose field
  • 12. Relocated ball field
  • 13. Building restriction line (side yard setback)
  • 14. Property Line
  • 15. Old Frederick Road / Route 99
  • 16. Wetherburn Road
  • 17. New fire lane
slide-7
SLIDE 7

Waverly Elementary School

PARTNERS IN LEARNING

Existing Floor Plan

ENTRY

  • 1. Modular construction classrooms to be demolished
  • 2. Typical classroom pod layout. Inadequate acoustic separation with use of operable and/or partial walls
  • 3. Administration Suite: Cannot adequately monitor school entrance and cannot be modified to establish secure entry condition
  • 4. Health Suite: Size and layout do not meet current state standards
  • 5. Music Rooms: Insufficient quantity for increased capacity
  • 6. Media Center not enclosed at corridors encourages cross traffic and lack acoustic separation
slide-8
SLIDE 8

Waverly Elementary School

PARTNERS IN LEARNING

Proposed First Floor Plan

  • 1. Two-story addition
  • 2. Administration and secure entry addition
  • 3. New Health Suite
  • 4. Recovered mechanical space for music room
  • 5. Classrooms reconfigured for General Music Classrooms
  • 6. Enclose Media Center
  • 7. Existing computer and work rooms reconfigured as standard classrooms.
  • 8. Classrooms reconfigured for computer and technology rooms
  • 9. Existing administration and health suites reorganized
  • 10. Second floor includes four classrooms, satellite work room, toilets & utilities
  • 11. Cafetorium expansion
slide-9
SLIDE 9

Waverly Elementary School

PARTNERS IN LEARNING

Proposed Second Floor Plan

slide-10
SLIDE 10

Waverly Elementary School

PARTNERS IN LEARNING

Summary

  • Schedule
  • Design Development (DD) report November 5, 2015
  • Construction Documents (CD) report April 14, 2016
  • Construction starts September, 2016
  • Completion August, 2018
  • Request approval to move into Design

Development
