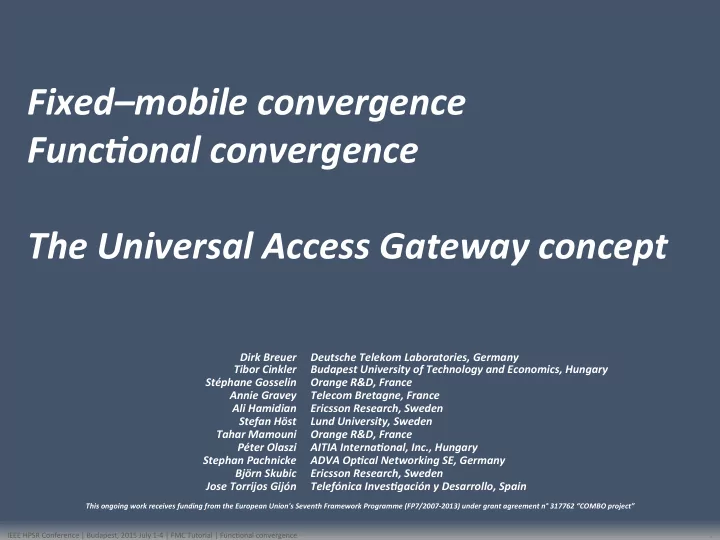

Fixed–mobile convergence FuncRonal convergence The Universal Access Gateway concept

Dirk Breuer Tibor Cinkler Stéphane Gosselin Annie Gravey Ali Hamidian Stefan Höst Tahar Mamouni Péter Olaszi Stephan Pachnicke Björn Skubic Jose Torrijos Gijón Deutsche Telekom Laboratories, Germany Budapest University of Technology and Economics, Hungary Orange R&D, France Telecom Bretagne, France Ericsson Research, Sweden Lund University, Sweden Orange R&D, France AITIA InternaRonal, Inc., Hungary ADVA OpRcal Networking SE, Germany Ericsson Research, Sweden Telefónica InvesRgación y Desarrollo, Spain

IEEE HPSR Conference | Budapest, 2015 July 1-4 | FMC Tutorial | FuncEonal convergence 2 2 2

DefiniRon of a “Universal Access Gateway”

UAG’s data plane is IP edge for all access networks

• it includes a SGW/PGW for mobile traffic
• It includes the BNG for fixed traffic
• it may include a MPE (with MPTCP)
• it may interface with content caches

UAG’s control plane

• Interfaces with the uAUT
• Includes the MME
• Includes security and policy control
• May interface with content

distribuEon funcEons

UAG

Application Services UAG interfaces Wi-Fi AN Fixed AN Mobile AN Subscriber Equipment (CPE or UE) Control interfaces Network interfaces Subscriber interfaces UAG CONTROL PLANE UAG DATA PLANE UAG Universal Access Gateway AN Access Node AAA Authentication Authorization Accouting CPE Customer Premises Equipment UE User Equipment uAUT Universal Authentication uDPM Universal Data Path Management AAA Services

uDPM uDPM uAUT uAUT uDPM uAUT

IEEE HPSR Conference | Budapest, 2015 July 1-4 | FMC Tutorial | FuncEonal convergence 3 3 3

ImplementaRon opRons for the UAG

Cabinet Distribution Trunk CO Main CO Core CO Customer Premises Network Core Network Feeder Access Network Aggregation Network

UAG Several opEons for locaEng: data plane UAG, control plane UAG Enablers are SDN and NFV

Standalone UAG (i.e., without CP/DP separation)

IP network

Access & Aggregation Fixed AN Wi-Fi AN Mobile AN UAG CP&DP Application Services

Local Application Services

AAA Services Core CO Main CO Aggre gation Access & Aggregation

IP network

AN AN AN AN AN Centralzed standalone UAG Application Services UAG CP&DP

Appli. Services

Aggreg Node AAA Services Core CO Main CO Aggre gation Access & Aggregation

IP network

AN AN AN AN AN Distributed standalone UAG Application Services Edge Router UAG CP&DP

Appli. Services Appli. Services

AAA Services Splitted UAG (i.e., with CP/DP separation)

IP network

Access & Aggregation Fixed AN Wi-Fi AN Mobile AN UAG DP Application Services

Local Application Services

UAG CP AAA Services

IEEE HPSR Conference | Budapest, 2015 July 1-4 | FMC Tutorial | FuncEonal convergence 4 4

FuncRonal Convergence Summary

• FMC: global control of mulEple data paths
• MulEplicity of access modes
• MulEplicity due to mobility
• MulEplicity due to replicaEon of content within the network
• Two funcEonal blocks provide a holisEc control for FMC
• uAUT allows to bind mulEple traffic flows to a given user,
• ver all available accesses
• uDPM allows to control how the user’s traffic flows are

dispatched over the available data paths

• The UAG is a funcEonal element that (parEally) implements

uAUT and uDPM

• There are mulEple implementaEon opEons for the UAG
• Standalone equipment versus split data/control plane (SDN)
• Distributed versus centralised implementaEons
