FERODO Brake Grease Ferodo Brake Grease (FBG001) is a copper free mounting paste based on high viscosity silicon oil, containing also pure natural graphite. Main features: long durability, high damping, rubber compatibility. 1 Purpose of Brake

slide-1
SLIDE 1

1

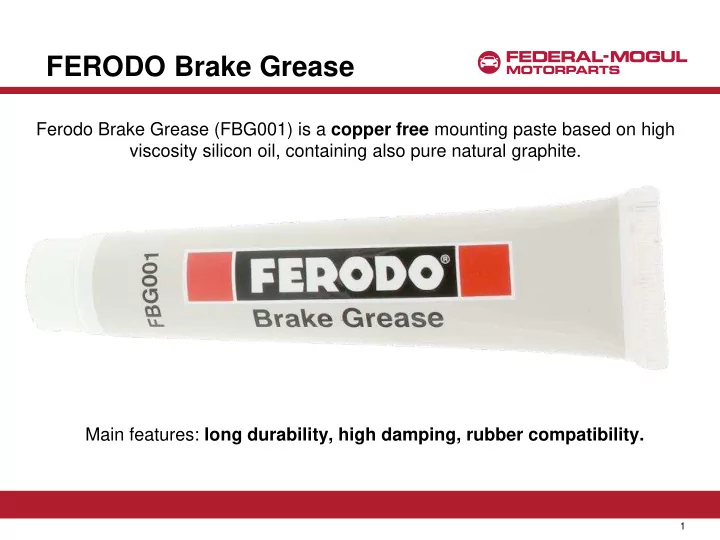

FERODO Brake Grease

Ferodo Brake Grease (FBG001) is a copper free mounting paste based on high viscosity silicon oil, containing also pure natural graphite. Main features: long durability, high damping, rubber compatibility.

slide-2
SLIDE 2

2

Vibration Pad dragging (Elevated pad & disc wear) Malfunction (uneven contact) Squeal & Noise

Purpose of Brake Grease

Brake Grease can help reduce:

slide-3
SLIDE 3

3

Brake squeal

Friction vibration between pad and rotor Resonance of sound waves Amplification effect through other brake parts Reach audible range of frequency Squeal

Rotor Pad Caliper Piston

slide-4
SLIDE 4

4

Grease Applied here

Fixing disc brake squeal

Ferodo Brake Grease has excellent lubricity and high damping properties; Applying to back side of brake pad, can reduce resonance by damping effect and cut off the transmission

  • f friction vibration from the pad to

piston by lubrication effect. Thus, you can prevent brake noise and squeal.

slide-5
SLIDE 5

5

Ferodo brake grease helps the pad slide properly in the

  • caliper. This reduces

residual drag*.

*Under normal conditions, clearance between rotor and pad is less than 0.1mm; If pads do not retract properly there is friction generated even when the brake is not applied. This reduces fuel consumption and increases pad and disc wear.

Grease

Fixing pad dragging

slide-6
SLIDE 6

6

  • Brake pads are replaced
  • Brake system is overhauled
  • Vehicle has not been used for a long period
  • Frequently riding in mud and dirt (off-road)

When to use Brake Grease

  • Squeaking or squealing noises present
  • Vibrations can be felt during braking
  • Pad wear high for style of riding

Application of Grease is recommended when: Signs Grease is needed :

slide-7
SLIDE 7

7

Brake Grease Application

Back side of pad Back side of shim Piston side Back side of shim Clipper side (cylinder body side)

slide-8
SLIDE 8

8

Caliper guide line Pad Clip

Brake Grease Application

Pad guide / Abutment

slide-9
SLIDE 9

9

Durability

  • To evaluate the grease durability, evaporation loss

under 200 ℃ for 500hrs is one of the main conditions, certified using standard tests.

  • Low evaporation loss is a main indication of a high

performance grease.
