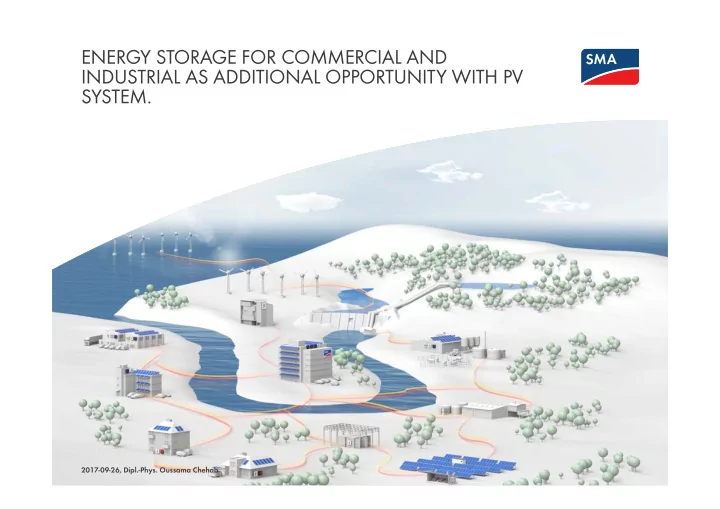

ENERGY STORAGE FOR COMMERCIAL AND INDUSTRIAL AS ADDITIONAL OPPORTUNITY WITH PV SYSTEM. 2017-09-26, Dipl.-Phys. Oussama Chehab ..AND WHY STORAGE SYSTEM? Fast power response (0 to 100% in ~100msec) Comprehensive provision of ancillary
2017-09-26, Dipl.-Phys. Oussama Chehab
According to the system requirements and characteristics the storage business case is given ..and by combining different use cases with the same device it can be improved
(0 to 100% in ~100msec)
ancillary services, all in one device
Scalability
2
3
Paybacks will be similar to Solar today, within a few years
4
Battery Costs Reductions (85kWh battery systems for cars will require very low battery costs to compete)
5
Batteries are tracking the history of a technology we know well…
6 Brisa Ortiz
according to Navigant Research, the annual global market for the deployment of DSES (distributed solar PV plus energy storage) is expected to reach 27.4 GW and $49.1 billion by 2026…
7
Primary control Secondary Tertiary control Power Quality Power Management Hybrid Micro Grid Application Substitution Must-Run Grid Support Energy Management Self- consumption Energy market Dispatchability Grid Support Smoothing Ramping Local
Energy shifting System
High Power, dynamic Power (Energy) Power +Energy Power + Energy Requirement storage Conventional Power plants Energy Energy Peakers Pumped hydro Curtailment Demand Side Management Curtailment Demand Side Management Gas turbine, Pumped hydro Diesel Genset Storage Technology Segment Industrial (Pool: Comm./Res.) Industrial (Pool: Comm./Res.) Industrial Commercial Residential Residential Commercial Industrial Commercial Industrial Commercial Residential Lithium–Ion-Battery Lead Acid Battery High Temperature battery (NaS, NaNiCl) Flow-Battery Battery- technology
ENERGY STORAGE …
is the logical next step to make Renewables reliable and dispatchable – we reached the age of maturity!
8
SMA …
has been developing solutions for energy storage applications for more than 30 years
SMA’S CONTRIBUTION TO DEVELOP THE ENERGY STORAGE MARKET …
is a comprehensive portfolio for residential, commercial, utility scale and hybrid applications
BU Offgrid & Storage
9
COMMERCIAL HYBRID UTILITY new applications in PV-Segment require storage RESIDENTIAL
profiles
consumption and diesel providing ancillary services at best costs
BU Offgrid & Storage
Sven Schreiber, Executive Vice President BU Residential
9TH SEPTEMBER 2016 SMA Solar Technology AG
17:05.2017 BU Offgrid & Storage
1.
GRID SUPPORT > Ancillary services > Congestion relief (grid and generation capacity improvement)
11
3.
INDUSTRIAL BEHIND-THE-METER
> Peak load shaving > Peak/Energy shifting > Power Quality (reactive power supply, backup)
2.
INTEGRATION OF RENEWABLES > Ancillary services > PV ramp rate control > Energy shifting
BU Offgrid & Storage
Primary Reserve / Frequency control > Under frequency is an indicator for shortage, power is needed discharge > Over frequency is an indicator for over production, power shall be withdrawn charge > Over production as well as shortage in the grid shall be compensated
12
Power quality > Keep the grid voltage stable with true 4 quadrant operation > Feed in reactive power > Absorb reactive power Ramp Rate Control > Compensation of power fluctuations > Smoothing of steep power ramps > Increasing the system and grid efficiency
BU Offgrid & Storage
SMA offers key system components to enable PV + Storage Solution
13 BU Offgrid & Storage
14
The proven SMA Sunny Central platform has more than 15 GW power installed world wide
High power density
lower specific costs (per watt)
with less system complexity
Wide battery voltage range
545 V up to 1500 V
battery types and technology Perfectly fits SMA system solutions
SMA Medium Voltage Power Station, Medium Voltage switchgear and Hybrid Plant Controller Ready for global deployment
and commissioning
to certified global standards
environment conditions
BU Offgrid & Storage
10.05.2017, Brisa Ortiz SMA Solar Technology AG
BU Offgrid & Storage
16
System Solutions from 60 kW to over 1 MW Commercial and Utility applications
Peak Demand Charge Reduction– Cost Savings/Bill Management > Peak Shaving, Peak Shifting, Energy Shifting > Time of Use > Self Consumption Ancillary Services - Grid Quality and higher renewable penetration > P, Q Set points (local or remote) > Ramp Rate Control > Voltage and reactive power control Hybrid systems – diesel cost reduction > Integration into diesel based grid to minimize the energy costs and allow penetration by renewables Exclusively at SMA: Commercial storage solutions for any application
BU Offgrid & Storage
Power Measurement Router Remote Service Sunny Portal LCS-Tool FS-Control DC Box (optional) SUNNY TRIPOWER STORAGE HIGH VOLTAGE BATTERY SCADA Grid INVERTER MANAGER STORAGE Modular and scalable System Solutions Remote power and energy management Local power and energy management
main components
Name, Position – April 10, 2014
19
SMA system solutions for hybrid applications
SMA System Technology
Plant information
991 kWp
4 MVA
1600 MWh
Project
Malindi, Kenya
December 2016
Co-generation with generators and grid Costal conditions Krystalline Salt’s factory is supplied by 25% of solar energy in grid parallel and in Diesel mode. Following their ambitious energy management, the company took solar to a professional scale and safes expenditures for electricity supply. SMA Sunbelt Energy GmbH in cooperation with its local construction partner Harmonic Systems built and commissioned the project within 5,5 months.
SMA system solutions for hybrid applications
Plant information
Project
System Technology
SMA successfully completed its first fuel save project in Lahore, Pakistan, within 4 month time from the order entry in August 2016 up to the
An essential precondition for the project success was the collaboration and expertise in a multicultural team which overcame time differences and distances. Nishat Mills is a jeans factory located at the suburban area of Pakistan’s capital Lahore.
SMA system solutions for hybrid applications
System Technology
Plant information (3 projects)
Project
2 projects in Marsa Alam and 1 project in El Esseila, Egypt
Three more PV installations provide people in Egypt with free solar power now. They all include a SMA Fuel Save
Commissioning was conducted by the customer himself in close contact with an experienced service technician via remote support. Precondition had been his participation in a “Commissioning of Hybrid Energy Systems with the SMA Fuel Save Controller 2.0” training at the SMA headquarter in Germany.
22
SMA system solutions for hybrid applications
System Technology
Plant information
196 kWp
Project
Isla Bastimentos, Panama
February 2016
9°20’25“N, 82°10‘44“W Located at the border of the Isla Bastimentos National Marine Park, the resort pledged early
With the integration of a 196 kWp PV system, controlled by the SMA Fuel Saver, the emissions are reduced by approx. 50 % and the dependence on diesel costs is minimized. The system integration was done while the resort was in full operation, causing almost no impact to the
23
SMA system solutions for hybrid applications
System Technology
Plant information
1.89 MWp
> 850,000 liters
Project
hurricanes, fast cloud movement Today, solar energy covers 23% of St. Eustatius’ total electricity need. To stabilize the grid, which is influenced by fast power fluctuation related to cloud movement, a Li-Ion storage facility has been integrated to absorb the fluctuations, provide energy shifting and frequency stability functionality also at night. Thanks to the SMA Fuel Solution about 2,240 tons CO2 per year can be
implemented by the SMA Sunbelt Energy GmbH.
24
SMA system solutions for hybrid applications
SMA System Technology
SMA Fuel Save Controller
Plant information
1 MW
Project
Thabazimbi, Limpopo Province, South Africa
November 2012 The first megawatt-class photovoltaic diesel hybrid system was commissioned in November 2012. The existing diesel generators at the chrome ore mine in Thabazimbi (South Africa) were complemented with a photovoltaic system. The SMA Fuel Save Solution saves up to 450,000 l diesel per year.
25
SMA system solutions for hybrid applications
SMA System Technology
SMA Fuel Save Controller
Plant information
1 MW
Project
Palladam, India
June 2013 The first Indian megawatt-class photovoltaic diesel hybrid system with the SMA Fuel Save Solution was commissioned for the spinning mill operator Alpine Knits in June 2013 in Palladam, in the state of Tamil Nadu in India. The SMA Fuel Save Solution meets approximately 60% of the mill’s total energy demand during peak periods.
26
SMA system solutions for hybrid applications
SMA System Technology
SMA Fuel Save Controller
Plant information
5,2 MW
7,500 MWh
Project
Cobija, Bolivia
December 2014 The world’s largest PV-diesel hybrid power plant system with battery storage was commissioned in December 2014, in the Bolivian province of Pando. Thanks to the SMA Fuel Save Solution a reduction in fuel consumption of approx. 1.9 Mio liters per year can be reached.
Conventional Power Plants Various Loads
Ancillary Services
Primary Reserve P(f)
Large Commercial Loads
Peak Shifting Peak Shaving
Renewable Power Plants Renewable Integration
Industrial Hybrid (off-Grid)
Generation Side Grid Side Consumer Side
1.
GRID SUPPORT > Ancillary services > Congestion relief (grid and generation capacity improvement)
28
Solutions can be tailored to meet individual customer requirements.
3.
INDUSTRIAL BEHIND-THE-METER
> Peak load shaving > Peak/Energy shifting > Power Quality (reactive power supply, backup)
2.
INTEGRATION OF RENEWABLES > Ancillary services > PV ramp rate control > Energy shifting
29
30
31
32
SMA system solutions for hybrid applications
SMA System Technology
different battery technology interface and operation sequence
Plant information
sub-plant 1.25MW each.
sub-plant contains different battery technology (Li-Ion, Lead acid, and NaNiCl)
Project
Aachen, Germany
Q3 2015
at RWTH Aachen University E.ON, Exide and Beta Motion. The world’s first modular, large-scale battery storage system with a capacity of 6.25 MW is being built in Aachen, Germany. The Modular Multi-Mega-watt Multi-Technology Medium Volt-age Battery Storage (M5BAT) project will focus on the following areas: integrating renewable energy sources, testing the decentralized supply of control power to stabilize grid operation, and facilitating electricity trading at competitive prices.
33 9/12/2017
SMA system solutions for hybrid applications
SMA System Technology
Plant information
Project
Australia
Q4 2015
Confidential
Source: http://www.samsungsdi.com/ess/utility-solution
34
35
SMA system solutions for grid-connected systems
SMA System Technology
Simulation and Sizing
Plant information
batteries from a Korean manufacturer
demand power/storage supply and provision of reactive power
Project
KEPCO power grid, Korea. Several locations
Q1 2016 SMA‘s large scale on-grid storage system can provide the grid management services needed to secure grid operations even without conventional power plants. It can take on the frequency- dependent control of active power feed-in, stabilize the voltage with reactive power supply and help re-establish supply after grid failure. Transmission losses and complicated grid congestion management can therefore be avoided just as costly grid infrastructure investments can.
Source: SMA project example
Frequency Control with 24 pcs SCS 1000 for South Korea with DC Disconnection unit
SMA System Technology
Plant information
Project
South Korea
Jan/Feb. 2016
Confidential
36
SMA system solutions for hybrid applications
SMA System Technology
Plant information
Project
Caribbean
Q1 2016
Confidential
Source: http://www.samsungsdi.com/ess/utility-solution
37
Energy storage system for power system frequency regulation with Sunny Central Storage
System frequency regulation for KEPCO power grid
The SMA Hybrid Utility solution for ancillary services
SMA is supplying a large-scale storage project, run by the state-owned Korean electric utility company KEPCO (Korea Electric Power Corporation), with 24 Sunny Central Storage 1000 battery inverters and system technology. The project is aimed at supplying reserve power and is the largest of its kind in the world. In addition to SMA, only local companies were qualified for the other portions of the 200- megawatt project. Supplying reserve power is of particular importance in Korea. Because of the country’s island location and its border with neighboring North Korea, it is not possible to import the balancing power needed to stabilize utility grids the way it is done in other countries. The power must therefore be generated and supplied within the country itself. With on-grid storage systems, the Sunny Central Storage battery inverters provide a full range of grid management services such as frequency control or grid congestion management. This reduces
reserve power capacities and ensures grid
will issue invitations to bid on additional portions of frequency regulation projects, each with 200 MW that will be used to supply reserve power for grid stabilization. This is intended to guarantee long-term reliability of the Korean utility grid.
System Size
System Information
grid, several strategic locations in South Korea
January/February 2016
Project scope
Facts
bid for this tender, all regional besides SMA
place and want to be under the top 5 for 2016
www.SMA.de/en/products/references.html SMA Solar Technology AG
Kepco power grid with >90GW
Company PCS Supplier 1 LGE Plaspo 2 WOOJIN INDUSTRIAL SYSTEMS WOOJIN INDUSTRIAL SYSTEMS 3 POSCO ICT LSIS 4 EN Technologies Inc LSIS 5 LG CNS Destin Power 6 Bosung Powertec SMA 7 Woogin M&E Woogin M&E 8 GS Neotek LSIS
Top 8 applicant 2015
Source: KEPCO
