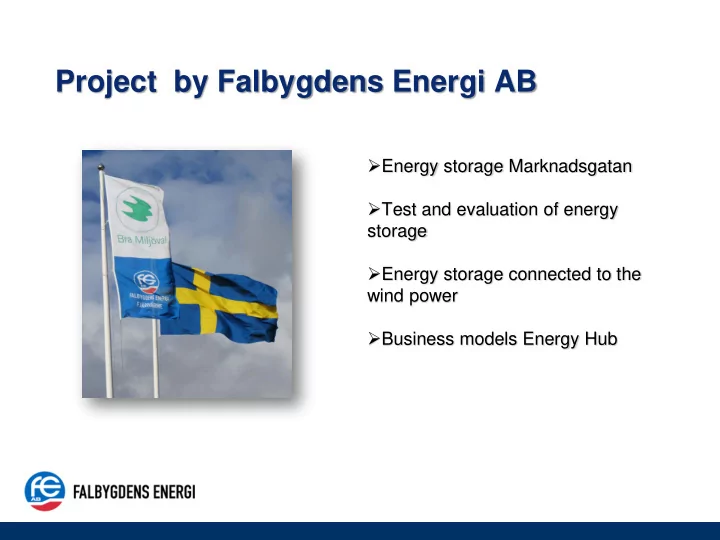

Project by Falbygdens Energi AB

• Energy storage Marknadsgatan
• Test and evaluation of energy

storage

• Energy storage connected to the

wind power

• Business models Energy Hub

Energy Storage Marknadsgatan

Energy Storage

Renewable electricity production Electric cars Visualization The aim of the project was to test new technologies, visualize the power output from a energy storage and experiment with new business models. The goal was a pilot plant where Falbygdens Energi has the ability to test, evaluate the technology and benefits of a local energy storage. The project was implemented between 2011-03-22 and 2012-09-30

Test and evaluation of Energy storage

• Functions tests
• Applications test
• Business models

The goal is to test and evaluate an existing energy storage plague spirit in a local power grid, and to evaluate the role of energy storage in the size of 100 kWh may have in the future regarding function, applications and possible business models. The project will continue to 2014-12-31.

Energy storage connected to the wind power

The goal of the study is that the report will serve as an instruction and as a basis for a technical specification and can be used for a possible purchase

• f an energy store.

The project was implemented between 2011-11-01 and 2012-09-30.

Business models Energy Hub

http://www.ferroamp.com/energyhub/benefits-for-consumers

The purpose of the study is to investigate and evaluate new business models for energihuben, solar cells and energy

• storage. The local energy store is located

directly adjacent to the consumer's

• installation. The business model will be

the basis for getting the product to market. The goal is to find the business model that ties together the various new benefits with the product, where all partners supplier / customer / utility companies is winner and an intermediate goal is to identify and quantify the various new benefits that are the product of electric utilities, consumers and the environment. The project will continue to 2013-12-31.

The first battery storage in Sweden. Case studies, possibilities and outcomes.

Pia Borg

Project: Energy Storage Marknadsgatan

Energy Storage Renewable electricity production Electric cars Visualization

Film

Battery Storage

• Active power 75 kW
• Reactive power 100 kVar
• Filter 50A
• Energy 90 kWh

Single line diagram

• Battery modules
• Converter
• Step-up transformer
• Monitoring system
• Fire extinguishing System
• Air conditioning
• Measuring

Load profile

Daily cycling

Applications for energy storage in the low voltage network

• Peak shaving/load shifting
• Reactive power compensation
• Power quality improvement

Test program

• Capacity increase of substation

due to load leveling

• Voltage control by energy

storage reactive power

• Evaluation of reduction of

losses 20/0,4 transformer

• Evaluation of losses in energy

storage system

• Capacity and round trip

efficiency

• Battery degradation plus

internal resistance and peak power capability

• Reliability of the energy

storage

• Evaluation of ambient

conditions in energy storage system

ELFORSK

www.elforsk.se/Rapporter/?rid=12_44_

• Dimensioning criteria
• Regulatory framework
• Business Models
• Financial Calculation
• Simulation Tools

Conclusions

• Peak shaving/load shifting, Reactive power compensation,

Power quality improvement

• Provides additional wind power in the grid
• Applications (Increased hosting capacity, reduced cost, peak

reduction, reduced losses and prevention power interruption)

• More profitable for a supplier than the network owner
• Resonance problem (E-STATCOM)
