ACFI EDM School November 2016 Effective Field Theory and EDMs Vincenzo Cirigliano Los Alamos National Laboratory 1 Lecture III outline EFT approach to physics beyond the Standard Model Standard Model EFT up to dimension 6: guided tour

slide-1
SLIDE 1

1

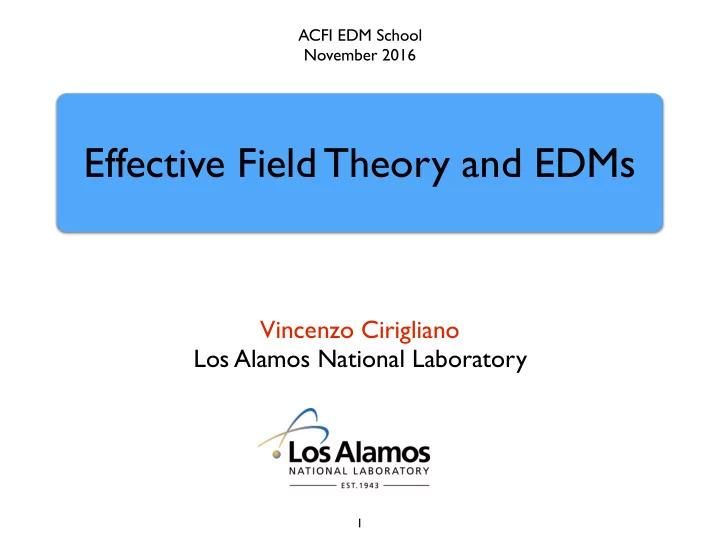

Effective Field Theory and EDMs

Vincenzo Cirigliano Los Alamos National Laboratory

ACFI EDM School November 2016

slide-2
SLIDE 2

2

Lecture III outline

  • EFT approach to physics beyond the Standard Model
  • Standard Model EFT up to dimension 6: guided tour
  • Simple examples of matching
  • CP violating dimension-6 operators contributing to EDMs
  • Classification
  • Evolution from the BSM scale to hadronic scale
slide-3
SLIDE 3

3

Effective theory for new physics (and EDMs)

slide-4
SLIDE 4

4

EDMs and new physics

1/Coupling M vEW

UV new physics: Supersymmetry, Extended Higgs sectors, … Dark sectors: effects below current sensitivity ** LeDall-Pospelov-Ritz 1505.01865

  • EDMs are a powerful probe of high-scale new physics
  • Quantitative connection
  • f EDMs with high scale

models requires Effective Field Theory tools

slide-5
SLIDE 5

5

Connecting EDMs to UV new physics

Multi-scale problem: need RG evolution of effective couplings & hadronic / nuclear / molecular calculations of matrix elements

RG EVOLUTION

(perturbative)

MATRIX ELEMENTS

(non-perturbative)

slide-6
SLIDE 6

6

Connecting EDMs to UV new physics

In this lecture we will cover the EFT analysis connecting physics between the new physics scale Λ and the hadronic scale Λhad ~ 1 GeV

RG EVOLUTION

(perturbative)

MATRIX ELEMENTS

(non-perturbative)

slide-7
SLIDE 7

7

The low-energy footprints of LBSM

vEW

Familiar example:

W q2 << MW2 GF ~ g2/Mw2 g g

  • At energy Eexp << MBSM,

new particles can be “integrated out”

  • Generate new local
  • perators with

coefficients ~ gk/(MBSM)n Effective Field Theory emerges as a natural framework to analyze low-E implications of classes of BSM scenarios and inform model building

slide-8
SLIDE 8

8

Why use EFT for new physics

  • General framework encompassing classes of models
  • Efficient and rigorous tool to analyze experiments at

different scales (from collider to table-top)

  • The steps below UV matching apply to all models: can be

done once and for all

  • Very useful diagnosing tool in this “pre-discovery” phase :)
  • Inform model building (success story is SM itself**)

EFT and UV models approaches are not mutually exclusive

slide-9
SLIDE 9

9

**EFT for β decays and the making

  • f the Standard Model
slide-10
SLIDE 10

10

EFT framework

  • Assume mass gap

MBSM > GF-1/2 ~ vEW

  • Degrees of freedom:

SM fields (+ possibly νR)

  • Symmetries: SM gauge

group; no flavor, CP , B, L

  • EFT expansion in E/MBSM, MW/MBSM [Oi(d) built out of SM fields]

[ Λ ↔ MBSM ]

slide-11
SLIDE 11

11

Guided tour of Leff

Weinberg 1979

  • Dim 5: only one operator
slide-12
SLIDE 12

11

Guided tour of Leff

Weinberg 1979

  • Dim 5: only one operator
  • Violates total lepton number
  • Generates Majorana mass for L-handed neutrinos (after EWSB)
  • “See-saw”:
slide-13
SLIDE 13

12

Guided tour of Leff

  • Dim 6: many structures (59, not including flavor)

No fermions Two fermions Four fermions

slide-14
SLIDE 14

13

Guided tour of Leff

  • Dim 6: affect many processes
  • B violation
  • Gauge and Higgs boson couplings
  • EDMs, LFV, qFCNC, ...
  • g-2, Charged Currents, Neutral Currents, ...

Buchmuller-Wyler 1986, .... Grzadkowski-Iskrzynksi- Misiak-Rosiek (2010) Weinberg 1979 Wilczek-Zee1979

  • EFT used beyond tree-level: one-loop anomalous dimensions known

Alonso, Jenkins, Manohar, Trott 2013

slide-15
SLIDE 15

14

Examples of matching

  • Explicit examples of “matching” from full model to EFT
  • Dim 5: Heavy R-handed neutrino

L L

φ φ

νR νR λνT λν

MR-1

g ~ λνT MR-1 λν g

slide-16
SLIDE 16

15

Examples of matching

YT

Lj Li T

g ~ µT MT-2 YT

φ φ µT

  • Explicit examples of “matching” from full model to EFT
  • Dim 5: Triplet Higgs field

g

slide-17
SLIDE 17

16

More on matching

  • We just saw two simple examples of matching calculation in EFT:

★ To a given order in E/MR,T, determine effective couplings (Wilson

coefficients) from the matching condition Afull = AEFT with amplitudes involving “light” external states

★ We did matching at tree-level, but strong and electroweak higher

  • rder corrections can be included

Full theory Effective theory

slide-18
SLIDE 18

17

★ In some cases Afull starts at loop level (highly relevant for EDMs)

MSSM

= C

More on matching

  • We just saw two simple examples of matching calculation in EFT:

Function of SUSY coupling and masses

slide-19
SLIDE 19

18

CP-violating operators contributing to EDMs: from BSM scale to hadronic scale

slide-20
SLIDE 20
  • When including flavor indices,

at dimension=6 there are 2499 independent couplings of which 1149 CP-violating !!

19

Dim-6 CPV operators

Engel, Ramsey-Musolf, Van Kolck 1303.2371 Dekens-DeVries 1303.3156 Alonso et al.2014

  • A large number of them contributes to EDMs

**Caveat: (i) strange quark can’t really be ignored; (ii) new physics could couple predominantly to heavy quarks; (iii) flavor-changing operators can contribute to EDMs (multiple insertions)

  • Leading flavor-diagonal CP odd operators contributing to EDMs

have been identified, neglecting 2nd and 3rd generation fermions**

slide-21
SLIDE 21
  • CPV BSM dynamics dictated by:

20

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-22
SLIDE 22
  • CPV BSM dynamics dictated by:

20

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

Elementary fermion (chromo)-electric dipole

non-relativistic limit

slide-23
SLIDE 23
  • CPV BSM dynamics dictated by:

21

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-24
SLIDE 24
  • CPV BSM dynamics dictated by:

21

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-25
SLIDE 25
  • CPV BSM dynamics dictated by:

21

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-26
SLIDE 26
  • CPV BSM dynamics dictated by:

21

High-scale effective Lagrangian

Here follow notation of: Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-27
SLIDE 27

22

Evolution to low-E: generalities

  • Operators in Leff depend on the energy scale μ at which they are

“renormalized” (i.e. the UV divergences are removed)

  • To avoid large logs, μ should be of the order of the energy probed
  • Physical results should not depend on the arbitrary scale
  • The couplings Ci depend on μ in such a way to guarantee this!
  • 1. Evolution of effective couplings with energy scale
slide-28
SLIDE 28

23

Evolution to low-E: generalities

  • In our case, in the evolution of Leff we encounter the

electroweak scale: remove top quark, Higgs, W, Z

  • b and c quark thresholds
  • 2. As one evolves the theory to low energy, need to remove

(“integrate out”) heavy particles

slide-29
SLIDE 29

24

Λ ΛHad vEW

g, B, W g,γ f = q, e f = q, e CEDM mixing into EDM CEDM renormalization

Dipole operators

slide-30
SLIDE 30

24

Λ ΛHad vEW

g, B, W g,γ f = q, e f = q, e CEDM mixing into EDM CEDM renormalization

Dipole operators

slide-31
SLIDE 31

25

Three gauge bosons

Λ ΛHad vEW

g g g Weinberg mixing into CEDM g g g q q g New structure at low-energy

slide-32
SLIDE 32

26

Dipole and three-gluon mixing

Effect of mixing is important

Rosetta stone

Dekens-DeVries 1303.3156

slide-33
SLIDE 33

27

Four fermion operators (1)

Λ ΛHad vEW

“Diagonal” QCD evolution of scalar and tensor quark bilinears mixes into lepton dipoles

slide-34
SLIDE 34

28

Four fermion operators (2)

Λ ΛHad vEW

4-quark operators mix among themselves and into quark dipoles

slide-35
SLIDE 35

29

Induced 4-quark operator

Λ ΛHad vEW

slide-36
SLIDE 36

29

Induced 4-quark operator

Λ ΛHad vEW

+ color-mixed structure induced by QCD corrections

slide-37
SLIDE 37

30

Gauge-Higgs operators

Λ ΛHad vEW

f = q, e g,γ Mix into quark CEDM, quark EDM, electron EDM

slide-38
SLIDE 38

31

… and more

Λ ΛHad vEW

f = q, e γ For example: top quark electroweak dipoles induce at two loops electron and quark EDMs — strongest constraints (by three orders of magnitude) !

VC, W. Dekens, J. de Vries, E. Mereghetti 1603.03049 , 1605.04311

B, W t t t

slide-39
SLIDE 39

32

… and more

Bound on top EDM improved by three

  • rders of magnitude:

|dt| < 5 ⨉10-20 e cm Dominated by eEDM LHC sensitivity (pp → jet t γ) and LHeC dt ~10-17 e cm [Fael-Gehrmann 13, Bouzas-Larios 13]

VC, W. Dekens, J. de Vries, E. Mereghetti 1603.03049

Cγ = cγ + i cγ ~

  • EDM physics reach vs flavor and collider probes
slide-40
SLIDE 40

33

Low-energy effective Lagrangian

  • When the dust settles, at the hadronic scale we have:
slide-41
SLIDE 41

33

Low-energy effective Lagrangian

Electric and chromo-electric dipoles of fermions

J⋅E J⋅Ec

  • When the dust settles, at the hadronic scale we have:
slide-42
SLIDE 42

33

Low-energy effective Lagrangian

Gluon chromo-EDM (Weinberg operator) Electric and chromo-electric dipoles of fermions

J⋅E J⋅Ec

  • When the dust settles, at the hadronic scale we have:
slide-43
SLIDE 43

33

Low-energy effective Lagrangian

Gluon chromo-EDM (Weinberg operator) Electric and chromo-electric dipoles of fermions

J⋅E J⋅Ec

  • When the dust settles, at the hadronic scale we have:

Explicit form of operators given in previous slides

Semi-leptonic (3) and four-quark (2 “SP” + 2 “LR”) Their form (and number) is strongly constrained by SU(2) gauge invariance

slide-44
SLIDE 44

34

Low-energy effective Lagrangian

  • When the dust settles, at the hadronic scale we have:

Quark EDM and chromo-EDM MSSM 2HDM MSSM

  • Generated by a variety of BSM scenarios

See Lecture IV for detailed discussion

slide-45
SLIDE 45

35

Low-energy effective Lagrangian

  • When the dust settles, at the hadronic scale we have:
  • Generated by a variety of BSM scenarios

Weinberg

  • perator

2HDM MSSM

See Lecture IV for detailed discussion

slide-46
SLIDE 46

36

Low-energy effective Lagrangian

  • When the dust settles, at the hadronic scale we have:
  • Important points:
  • Each BSM scenario generate its own pattern of operators

(and hence of EDM “signatures”)

  • Within a model, relative importance of operators depends on

various parameters (masses, etc)

  • So, in a post-discovery scenario, a combination of EDMs will

allow us to learn about underlying sources of CP violation

slide-47
SLIDE 47

37

But we are not done yet…

RG EVOLUTION

(perturbative)

MATRIX ELEMENTS

(non-perturbative)

Multi-scale problem: need RG evolution of effective couplings & hadronic / nuclear / molecular calculations of matrix elements

slide-48
SLIDE 48

38

But we are not done yet…

RG EVOLUTION

(perturbative)

MATRIX ELEMENTS

(non-perturbative)

Multi-scale problem: need RG evolution of effective couplings & hadronic / nuclear / molecular calculations of matrix elements

slide-49
SLIDE 49

39

But we are not done yet…

RG EVOLUTION

(perturbative)

MATRIX ELEMENTS

(non-perturbative)

Multi-scale problem: need RG evolution of effective couplings & hadronic / nuclear / molecular calculations of matrix elements

slide-50
SLIDE 50

40

Next step: from quarks and gluons to hadrons

  • Leading pion-nucleon CPV interactions characterized by few LECs

T

  • odd P-odd pion-

nucleon couplings Electron and Nucleon EDMs Short-range 4N and 2N2e coupling N N γ N N π N N e e

To be discussed in Lectures VI, VII, VIII

slide-51
SLIDE 51

41

Backup slides

slide-52
SLIDE 52

42

Standard Model building blocks

slide-53
SLIDE 53

43

Standard Model Lagrangian

EWSB

slide-54
SLIDE 54

44

Counting operators at low scale

Engel, Ramsey-Musolf, Van Kolck 1303.2371

slide-55
SLIDE 55

45

Renormalization group

  • Large logs (from widely separated scales) spoil validity of

perturbation theory

  • Ordinary pert. theory proceeds “by rows”: NLO, N2LO, ...
  • RGE re-organize the expansion “by columns”: LL, NLL, ...

NLO N2LO N3LO

slide-56
SLIDE 56

46

  • RGEs: exploit the fact that physics does not depend on the

renormalization scale

  • Bare operators do not depend on μ (subtraction scale)
  • Physical amplitudes do not depend on μ
slide-57
SLIDE 57

47

  • In general, need to solve:
slide-58
SLIDE 58

48

  • In general, need to solve:
  • Needed input: γi(0) anomalous dimensions for relevant operators
  • One-loop beta functions:
