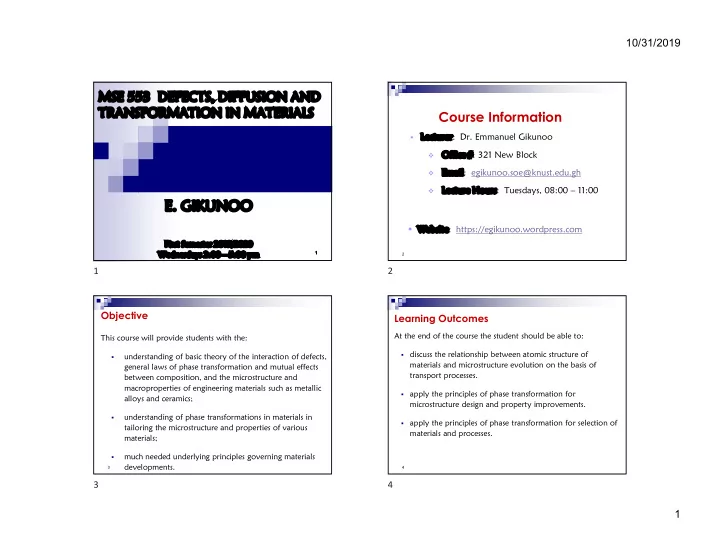

E. GIKUNOO Website: https://egikunoo.wordpress.com First Semester - - PowerPoint PPT Presentation

10/31/2019 1

MSE 553 DEFECTS, DIFFUSION AND TRANSFORMATION IN MATERIALS

• E. GIKUNOO

First Semester 2019/2020 Wednesdays 2:00 – 5:00 pm

1

• Lecturer: Dr. Emmanuel Gikunoo



Office : 321 New Block



Email: egikunoo.soe@knust.edu.gh



Lecture Hours: Tuesdays, 08:00 – 11:00

2

Course Information

• Website: https://egikunoo.wordpress.com

Objective

This course will provide students with the:

• understanding of basic theory of the interaction of defects,

general laws of phase transformation and mutual effects between composition, and the microstructure and macroproperties of engineering materials such as metallic alloys and ceramics;

• understanding of phase transformations in materials in

tailoring the microstructure and properties of various materials;

• much needed underlying principles governing materials

developments.

3

At the end of the course the student should be able to:

• discuss the relationship between atomic structure of

materials and microstructure evolution on the basis of transport processes.

• apply the principles of phase transformation for

microstructure design and property improvements.

• apply the principles of phase transformation for selection of

materials and processes.

4

Learning Outcomes 1 2 3 4

10/31/2019 2

Course Content

This course will introduce students to:

• basic crystallography and thermodynamics;
• defects classification in different crystals, defects in non-

crystalline materials, mechanical, electrical, magnetic and optical properties of defects, defect characterization techniques;

• Fick’s first and second laws, Intrinsic and integrated diffusion

coefficient, Tracer and growth kinetics, Matano-Boltz analysis, Kirkendall effect, Darken analysis, physico-chemical approach of diffusion;

• basic kinetics of transformation, interfacial and homogeneous

nucleation, nucleation and growth, coarsening and the Gibbs- Thompson equation, diffusion and diffusionless transformations.

5

References

• W. D. Callister, Jr., Materials Science and Engineering – An

Introduction, 7th Edition, John Wiley & Sons, 2006.

• D. R, Askeland and P

. P . Phule, The Science and Engineering of Materials, 4th Edition, Thomson Learning Vocational, 2003.

• D. A. Porter, K. E. Easterling, M. Sherif, Phase T

ransformations in Metals and Alloys, 3rd edition, Chapman & Hall, 2009.

• P

. Haasen, Physical Metallurgy, 3RD edition, Cambridge University Press, 1996.

• H. V. Keer, Principles of the Solid State, New Age International

(P) Limited, 2005.

• Presentation Slides

6 7

Grading

Assignments 20 T erm Papers 15 Assigned Presentation 15 Final Exam 50 Total 100

• Crystal Structure – matter assumes a periodic shape
• Non-crystalline or amorphous “structures” exhibit no long range

periodic shapes

• Crystal systems – not structures but potentials

 FCC, BCC and HCP – common crystal structures for metals

• Point, direction and planer ID’ing in crystals
• X-ray diffraction and crystal structure

Crystallography

8

5 6 7 8

10/31/2019 3

• Non dense, random packing
• Dense, ordered packing

Dense, ordered packed structures tend to have lower energies & thus are more stable.

Energy and Packing

Energy r typical neighbor bond length typical neighbor bond energy Energy r typical neighbor bond length typical neighbor bond energy 9

Crystaling Materials

Means: Periodic arrangement of atoms/ions over large atomic distances

Leads to structure displaying LONG- RANGE ORDER that is Measurable and Quantifiable

All metals, many ceramics, and some polymers exhibit this “High Bond Energy” and a More Closely Packed Structure

STRUCTURES

Materials lacking long range order

Amorphous Materials

These less densely packed lower bond energy “structures” can be found in some metals and are

• bserved in almost all

ceramics, glass and many “plastics”

10 11

Crystallography

12

Crystallography 9 10 11 12

10/31/2019 4

13

Crystallography

14

Crystallography Crystal Systems

7 crystal systems of varying symmetry are known These systems are built by changing the lattice parameters: a, b, and c are the edge lengths , , and  are interaxial angles Unit cell: smallest repetitive volume which contains the complete lattice pattern of a crystal.

15 16

Crystal Systems 13 14 15 16

10/31/2019 5

• Rare due to low packing density (only Polonium (Po) has

this structure)

• Close-packed directions are cube edges.

Coordination No. = 6 (# nearest neighbors) for each atom as seen

Simple Cubic Structure (SC)

17

*assume hard spheres

• APF for a simple cubic structure = 0.52

APF = a3 4 3 p (0.5a)3 1 atoms unit cell atom volume unit cell volume

Atomic Packing Factor (APF)

close-packed directions a R=0.5a contains (8 x 1/8) = 1 atom/unit cell Here: a = 2 × Rat Where Rat is the atomic radius 𝐵𝑄𝐺 = 𝑊𝑝𝑚𝑣𝑛𝑓 𝑝𝑔 𝑏𝑢𝑝𝑛𝑡 𝑗𝑜 𝑣𝑜𝑗𝑢 𝑑𝑓𝑚𝑚 𝑊𝑝𝑚𝑣𝑛𝑓 𝑝𝑔 𝑣𝑜𝑗𝑢 𝑑𝑓𝑚𝑚

18

Coordination # = 8

• Atoms touch each other along cube diagonals within a unit cell.
• Note: All atoms are identical; the center atom is shaded

differently only for ease of viewing. ex: Cr, W, Fe (), T antalum, Molybdenum

Body Centered Cubic Structure (BCC)

2 atoms/unit cell: (1 center) + (8 corners x 1/8)

19

Atomic Packing Factor: BCC

a APF = 4 3 p ( 3a/4)3 2 atoms unit cell atom volume a3 unit cell volume length = 4R = Close-packed directions: 3 a

APF for a body-centered cubic structure = 0.68

a R a 2 a 3

20

17 18 19 20

10/31/2019 6

Coordination # = 12

Face Centered Cubic Structure (FCC)

4 atoms/unit cell: (6 face x ½) + (8 corners x 1/8)

• Atoms touch each other along face diagonals.
• ABCABC... Stacking Sequence
• Note: All atoms are identical; the face-centered atoms are

shaded differently only for ease of viewing. ex: Al, Cu, Au, Pb, Ni, Pt, Ag

21

APF for a face-centered cubic structure = 0.74

Atomic Packing Factor: FCC

The maximum achievable APF!

APF = 4 3 p ( 2a/4)3 4 atoms unit cell atom volume a3 unit cell volume

Close-packed directions: length = 4R = a√2 Unit cell contains: 6 x 1/2 + 8 x 1/8 = 4 atoms/unit cell

a 2 a

 a = 22 R

22

Coordination # = 12 APF = 0.74 3D Projection 2D Projection

Hexagonal Close-Packed Structure (HCP)

6 atoms/unit cell c/a = 1.633 (ideal)

c a

A sites B sites A sites Bottom layer Middle layer Top layer

• Atoms touch each other along face diagonals.
• ABAB... Stacking Sequence

ex: Cd, Mg, Ti, Zn

23

We find that both FCC & HCP are highest density packing schemes (APF = .74) – this illustration shows their differences as the closest packed planes are “built- up”.

HCP and FCC Stalking

24

21 22 23 24

10/31/2019 7

Theoretical Density, r

where n = number of atoms/unit cell A = atomic weight VC = Volume of unit cell = a3 for cubic NA = Avogadro’s number = 6.023 x 1023 atoms/mol

Density = r =

r =

a R

r =

a3 52.00 2 atoms unit cell mol g unit cell volume atoms mol 6.023x1023 rtheoretical ractual = 7.18 g/cm3 = 7.19 g/cm3

• Ex: Cr (BCC)

A = 52.00 g/mol , R = 0.125 nm, n = 2  a =

• √ = 0.2883 nm

25 26

Basic Crystallography

Repetition = Symmetry

• T

ypes of repetition

• Rotation
• T

ranslation

• Rotation
• What is rotational symmetry
• This object is obviously symmetric. Can

be rotated 90˚ without detection.

• Symmetry is doing something that

looks like nothing has been done!

27

Basic Crystallography

• A figure has rotational symmetry if

it can be rotated by an angle between 0˚ and 360˚ so that the image coincides with the preimage.

• The angle of rotational symmetry is

the smallest angle for which the figure can be rotated to coincide with itself.

• The order of symmetry is the

number of times the figure coincides with itself as it rotates through 360˚.

28

25 26 27 28

10/31/2019 8

Locations in Lattices: Point Coordinates

Point coordinates for unit cell center are a/2, b/2, c/2 ½ ½ ½ Point coordinates for unit cell (body diagonal) corner are 111 Translation: integer multiple of lattice constants  identical position in another unit cell

z x y a b c

000 111

y z



2c

  

b b

29

Crystallographic Directions

• 1. Vector is repositioned (if necessary)

to pass through the Unit Cell origin.

• 2. Read off line projections (to

principal axes of unit cell) in terms

• f unit cell dimensions a, b, and c
• 3. Adjust to smallest integer values
• 4. Enclose in square brackets, no

commas [uvw]

ex: 1, 0, ½ => 2, 0, 1 => [ 201 ]

• 1, 1, 1

[ 111 ] =>

z x y

x y z Projections a/2 b 0c Projections in terms of a, b, and c ½ 1 Reduction 1 2 Enclosure [brackets] [120]

where ‘overbar’ represents a negative index

30

Linear Density – Considers Equivalence and is important in Slip Linear Density of Atoms = LD = ex: linear density of Al in [110] direction where a = 0.405 nm

a [110]

# atoms length 3.5 nm-1 a 2 2 LD = = # atoms CENTERED on the direction of interest! Length is of the direction of interest within the Unit Cell

31

Determining Angles Between Crystallographic Direction:

   

1 1 2 1 2 1 2 2 2 2 2 2 2 1 1 1 2 2 2

u u v v w w Cos u v w u v w 



                 

Where ui’s , vi’s & wi’s are the “Miller Indices” of the directions in question – also, if a direction has the same Miller Indices as a plane, it is NORMAL to that plane

32

29 30 31 32

10/31/2019 9

HCP Crystallographic Directions

• 1. Vector repositioned (if necessary) to pass

through origin.

• 2. Read off projections in terms of unit

cell dimensions a1, a2, a3, or c

• 3. Adjust to smallest integer values
• 4. Enclose in square brackets, no commas

[uvtw]

[1120] ex: ½, ½, -1, 0 =>

dashed red lines indicate projections onto a1 and a2 axes

a1 a2 a3

• a3

2 a2 2 a1

• a3

a1 a2 z

Algorithm

33

HCP Crystallographic Directions

 Hexagonal Crystals

4 parameter Miller-Bravais lattice coordinates are related to the direction indices (i.e., u'v'w') in the ‘3 space’ Bravais lattice as follows.    ' w w t v u ) v u ( +

• )

' u ' v 2 ( 3 1

• )

' v ' u 2 ( 3 1

• 

] uvtw [ ] ' w ' v ' u [ 

• Fig. 3.8(a), Callister 7e.
• a3

a1 a2 z

34

Computing HCP Miller- Bravais Directional Indices (an alternative way):

• a3

a1 a2 z

We confine ourselves to the bravais parallelopiped in the hexagon: a1-a2-Z and determine: (u’,v’w’) Here: [1 1 0] - so now apply the models to create Miller Bravis indices          

 

1 1 1 2 ' ' 2 1 1 1 3 3 3 1 1 1 2 ' ' 2 1 1 1 3 3 3 1 1 2 2 3 3 3 ' M-B Indices: [1120] u u v v v u t u v w w                          

35

Defining Crystallographic Planes



Miller Indices: Reciprocals of the (three) axial intercepts for a plane, cleared of fractions & common

• multiples. All parallel planes have same Miller indices.



Algorithm (in cubic lattices this is direct)

• 1. Read off intercepts of plane with axes in

terms of a, b, c

• 2. Take reciprocals of intercepts
• 3. Reduce to smallest integer values
• 4. Enclose in parentheses, no commas i.e.,

(hkl)  families {hkl}

36

33 34 35 36

10/31/2019 10

Crystallographic Planes -- families

37

Crystallographic Planes

z x y a b c

• 4. Miller Indices (110)

Example a b c

z x y a b c

• 4. Miller Indices (100)
• 1. Intercepts

1 1 

• 2. Reciprocals

1/1 1/1 1/ 1 1 0

• 3. Reduction

1 1 0

• 1. Intercepts

1/2  

• 2. Reciprocals

1/½ 1/ 1/ 2 0 0

• 3. Reduction

2 0 0 Example a b c

38

Crystallographic Planes

z x y a b c

  

• 4. Miller Indices (634)

Example

• 1. Intercepts

1/2 1 3/4 a b c

• 2. Reciprocals

1/½ 1/1 1/¾ 2 1 4/3

• 3. Reduction

6 3 4 (001) (010), Family of Planes {hkl} (100), (010), (001), Ex: {100} = (100),

39

x y z Intercepts Intercept in terms of lattice parameters Reciprocals Reductions Enclosure

a -b c/2 

• 1 1/2

0 -1 2

N/A

(012) Determine the Miller indices for the plane shown in the sketch

40

37 38 39 40

10/31/2019 11

Crystallographic Planes (HCP)

In hexagonal unit cells the same idea is used

Example a1 a2 a3 c

• 4. Miller-Bravais Indices

(1011)

• 1. Intercepts

1 

• 1

1

• 2. Reciprocals

1 1/ 1 0

• 1
• 1

1 1

• 3. Reduction

1 0

• 1

1

a2 a3 a1 z

41

Crystallographic Planes



We want to examine the atomic packing of crystallographic planes – those with the same packing are equivalent and part of families



Iron foil can be used as a catalyst. The atomic packing of the exposed planes is important.

a)

Draw (100) and (111) crystallographic planes for Fe. b) Calculate the planar density for each of these planes.

42

Planar Density of (100) Iron

Solution: At T < 912C iron has the BCC structure. (100) Radius of iron R = 0.1241 nm

R 3 3 4 a  2D repeat unit

=

Planar Density =

a2 1 atoms 2D repeat unit

=

(nm)2 atoms 12.1 m2 atoms = 1.2 x 1019

1

2

R 3 3 4 area 2D repeat unit

Atoms: wholly contained and centered in/on plane within U.C., area of plane in U.C.

43

Planar Density of (111) Iron

Solution (cont): (111) plane 1/2 atom centered on plane/ unit cell

atoms in plane atoms above plane atoms below plane

a h 2 3 

a 2

3*1/6

= =

nm2 atoms 7.0 m2 atoms 0.70 x 1019 Planar Density =

atoms 2D repeat unit area 2D repeat unit

2

8 3 R

Area 2D Unit: ½ hb = ½*[(3/2)a][(2)a]=1/2(3)a2=8R2/(3)

44

41 42 43 44

10/31/2019 12

CERAMIC AND OTHER UNIT CELLS

45

Cesium chloride (CsCl) unit cell showing (a) ion positions and the two ions per lattice point and (b) full-size ions. Note that the Cs+−Cl− pair associated with a given lattice point is not a molecule because the ionic bonding is nondirectional and because a given Cs+ is equally bonded to eight adjacent Cl−, and vice versa.

46

Sodium chloride (NaCl) structure showing (a) ion positions in a unit cell, (b) full-size ions, and (c) many adjacent unit cells.

47

Fluorite (CaF2) unit cell showing (a) ion positions and (b) full-size ions.

48

45 46 47 48

10/31/2019 13

SiO4

4

The cristobalite (SiO2) unit cell showing (a) ion positions (b) full-size ions and (c) the connectivity of SiO44- tetrahedra. Each tetrahedron has a Si4+ at its center. In addition, an O2- would be at each corner of each tetrahedron and is shared with an adjacent tetrahedron.

49

Many crystallographic forms of SiO2 are stable as they are heated from room temperature to melting temperature. Each form represents a different way to connect adjacent SiO44- tetrahedra

50

Polymorphism: Also in Metals

 Two or more distinct crystal structures for the same

material (allotropy/polymorphism) titanium  (HCP), (BCC)-Ti carbon: diamond, graphite BCC FCC BCC 1538ºC 1394ºC 912ºC -Fe -Fe -Fe liquid iron system:

51

The corundum (Al2O3) unit cell is shown superimposed on the repeated stacking of layers of close-packed O2− ions. The Al3+ ions fill two-thirds of the small (octahedral) interstices between adjacent layers.

52

49 50 51 52

10/31/2019 14

Exploded view of the kaolinite unit cell, 2(OH)4Al2Si2O5.

53

(a) An exploded view of the graphite (C) unit cell. (b) A schematic of the nature of

graphite’s layered structure.

54

(a) C60 molecule, or buckyball. (b) Cylindrical array of hexagonal rings of carbon atoms,

• r buckytube.

55

Arrangement of polymeric chains in the unit cell of

• polyethylene. The dark spheres are carbon atoms, and the

light spheres are hydrogen atoms. The unit-cell dimensions are 0.255 nm × 0.494 nm × 0.741 nm.

56

53 54 55 56

10/31/2019 15

Diamond cubic unit cell showing (a) atom positions. There are two atoms per lattice point (note the outlined example). Each atom is tetrahedrally coordinated. (b) The actual packing of full-size atoms associated with the unit cell.

57

Zinc blende (ZnS) unit cell showing (a) ion positions. There are two ions per lattice point (note the outlined example). Compare this structure with the diamond cubic structure. (b) The actual packing of full-size ions associated with the unit cell.

58

Densities of Material Classes

rmetals > rceramics > rpolymers Why?

Data from Table B1, Callister 7e.

r(g/cm )

3

Graphite/ Ceramics/ Semicond Metals/ Alloys Composites/ fibers Polymers 1 2 20 30

*GFRE, CFRE, & AFRE are Glass, Carbon, & Aramid Fiber-Reinforced Epoxy composites (values based on 60% volume fraction of aligned fibers in an epoxy matrix).

10 3 4 5 0.3 0.4 0.5

Magnesium Aluminum Steels Titanium Cu,Ni Tin, Zinc Silver, Mo Tantalum Gold, W Platinum Graphite Silicon Glass -soda Concrete Si nitride Diamond Al oxide Zirconia HDPE, PS PP, LDPE PC PTFE PET PVC Silicone Wood AFRE* CFRE* GFRE* Glass fibers Carbon fibers Aramid fibers

Metals have...

• close-packing

(metallic bonding)

• often large atomic masses

Ceramics have...

• less dense packing
• often lighter elements

Polymers have...

• low packing density

(often amorphous)

• lighter elements (C,H,O)

Composites have...

• intermediate values

In general

59

• Some engineering applications require single crystals:
• Properties of crystalline materials often related to crystal structure.

Ex: Quartz fractures more easily along some crystal planes than others.

• Diamond single crystals for abrasives
• turbine blades

(Courtesy of Pratt and Whitney). (Courtesy of Martin Deakins, GE Superabrasives.)

Crystals as Building Blocks

60

57 58 59 60

10/31/2019 16

• Most engineering materials are polycrystals.
• Nb-Hf-W plate with an electron beam weld.
• Each "grain" is a single crystal.
• If grains are randomly oriented, overall component

properties are not directional.

• Grain sizes typically ranges from 1 nm to 2 cm

(i.e., from a few to millions of atomic layers).

(Courtesy of Paul E. Danielson, Teledyne Wah Chang Albany)

1 mm

Polycrystals

Isotropic Anisotropic

61

• Single Crystals
• Properties vary with

direction: anisotropic.

• Example: the modulus
• f elasticity (E) in BCC iron:
• Polycrystals
• Properties may/may not

vary with direction.

• If grains are randomly
• riented: isotropic.

(Epoly iron = 210 GPa)

• If grains are textured,

anisotropic.

200 mm

Source of data is R.W. Hertzberg, Deformation and Fracture Mechanics

• f Engineering

Materials, 3rd ed., John Wiley and Sons, 1989. courtesy of L.C. Smith and C. Brady, the National Bureau of Standards, Washington, DC [now the National Institute of Standards and Technology, Gaithersburg, MD].

Single vs Polycrystals

E (diagonal) = 273 GPa E (edge) = 125 GPa

62

Effects of Anisotropy:

Modulus of Elasticity values for several metals at various crystallographic orientations

63

X-Ray Diffraction

 Diffraction gratings must have spacings comparable to

the wavelength of diffracted radiation.

 Can’t resolve spacings    Spacing is the distance between parallel planes of

atoms.

64

61 62 63 64

10/31/2019 17

Relationship of the Bragg angle (θ) and the experimentally measured diffraction angle (2θ).

X-ray intensity (from detector)

 2c

d  n 2 sinc

65

X-Rays to Determine Crystal Structure

X-ray intensity (from detector)

 c

d  n 2 sinc

Measurement of critical angle, c, allows computation of planar spacing, d.

• Incoming X-rays diffract from crystal planes.

Adapted from Fig. 3.19, Callister 7e. reflections must be in phase for a detectable signal!

spacing between planes d

  

extra distance traveled by wave “2”

2 2 2 hkl

a d h k l   

For Cubic Crystals:

h, k, l are Miller Indices

66

Figure 3.34 (a) An x-ray diffractometer. (Courtesy of Scintag, Inc.) (b) A schematic of the experiment.

67

X-Ray Diffraction Pattern

Adapted from Fig. 3.20, Callister 5e.

(110) (200) (211)

z x y a b c

Diffraction angle 2

Diffraction pattern for polycrystalline -iron (BCC)

Intensity (relative)

z x y a b c z x y a b c

68

65 66 67 68

10/31/2019 18

Diffraction in Cubic Crystals:

69

• Atoms may assemble into crystalline or amorphous structures.
• Common metallic crystal structures are FCC, BCC, and HCP

. Coordination number and atomic packing factor are the same for both FCC and HCP crystal structures.

• We can predict the density of a material, provided we know

the atomic weight, atomic radius, and crystal geometry (e.g., FCC, BCC, HCP)

• Crystallographic points, directions and planes are specified in

terms of indexing schemes.Crystallographic directions and planes are related to atomic linear densities and planar densities.

SUMMARY

70

• Materials can be single crystals or polycrystalline. Material

properties generally vary with single crystal orientation (i.e., they are anisotropic), but are generally non-directional (i.e., they are isotropic) in polycrystals with randomly oriented grains.

• Some materials can have more than one crystal structure. This is

referred to as polymorphism (or allotropy).

• X-ray diffraction is used for crystal structure and interplanar

spacing determinations.

SUMMARY

71

69 70 71
