DISASTER RELIEF CENTER 2x Accommodation Container 2x Sanitary - PowerPoint PPT Presentation

Nov 29, 2023 •473 likes •569 views

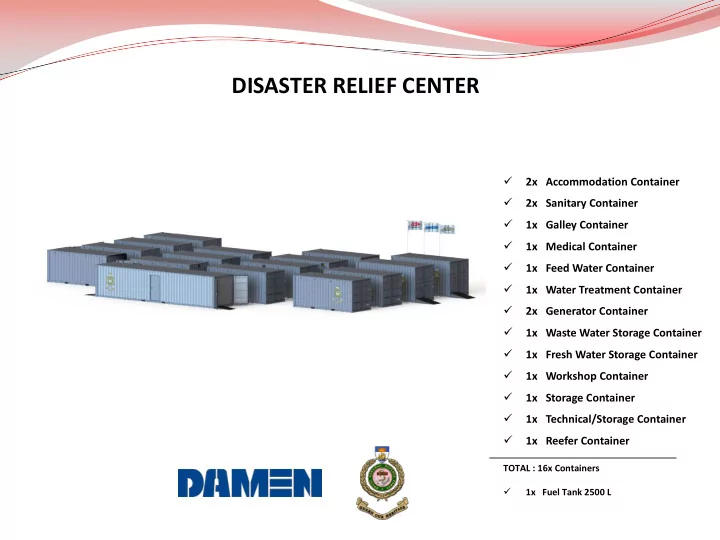

DISASTER RELIEF CENTER 2x Accommodation Container 2x Sanitary Container 1x Galley Container 1x Medical Container 1x Feed Water Container 1x Water Treatment Container 2x Generator Container 1x

DISASTER RELIEF CENTER ü 2x Accommodation Container 2x Sanitary Container ü ü 1x Galley Container 1x Medical Container ü 1x Feed Water Container ü ü 1x Water Treatment Container 2x Generator Container ü ü 1x Waste Water Storage Container 1x Fresh Water Storage Container ü 1x Workshop Container ü ü 1x Storage Container 1x Technical/Storage Container ü ü 1x Reefer Container TOTAL : 16x Containers 1x Fuel Tank 2500 L ü
ACCOMMODATION CONTAINER 20ft Standard Box (2x) ü Accommodation for max. 6 persons ü Bunk beds (3x) ü Lockers (6x) ü Desk ü Airco system
MEDICAL CONTAINER 40ft DoubleDoors (1x) ü Treatment rooms (2x) ü Lobby (max 4 persons) ü HEPA Overpressure system ü Split Airco System ü Wheelchair Ramp (2x)
SANITARY CONTAINER 20ft High Cube (2x) ü Toilet (2x) ü Shower (1x) ü Toilet for wheelchair use (1x) ü Shower for wheelchair use (1x) ü Basin (2x) ü Internal waste water tank ü Basin for wheelchair use (1x ) ü Ramp for wheelchair
FRESH WATER STORAGE CONTAINER 20ft Standard Box (1x) ü Storage Tank (20.000 Liter)
WORKSHOP & STORAGE CONTAINER 20ft Standard Box ü Tool Cabinet (3x) ü Workbench (incl. drawers) ü Storage Shelves
TECHNICAL / STORAGE CONTAINER 20ft Standard Box ü Storage Area - Cable and equipment hooks ü Technical Area - Hydrophore installation - Electrical Switchboards
FEED WATER CONTAINER 20ft Standard Box ü Buffertank (9000 Liter) ü High Pressure Pump
