A CENTRAL DATABASE SYSTEM FOR MARINE AND COASTAL RESOURCES AND ENVIRONMENT Department of Marine and Coastal Resources THAILAND Dr. Kongkiat Kittiwattanawong Phuket Marine Biological Center Department of Marine and Coastal Resources Protect,

slide-1
SLIDE 1

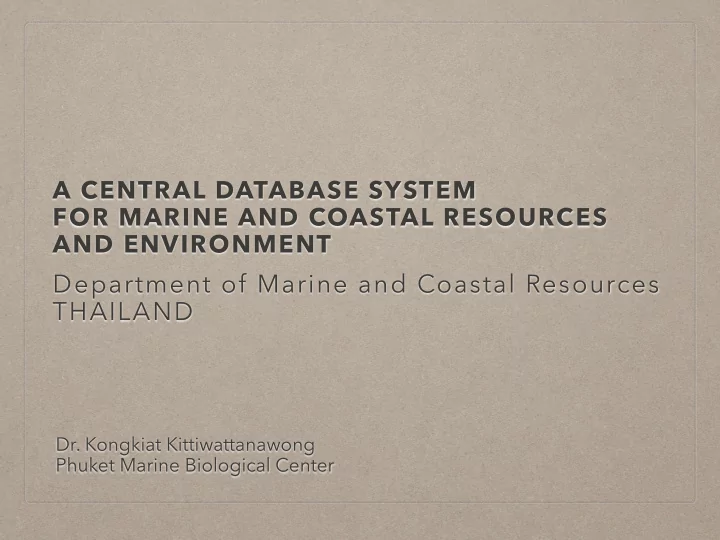

A CENTRAL DATABASE SYSTEM FOR MARINE AND COASTAL RESOURCES AND ENVIRONMENT

Department of Marine and Coastal Resources THAILAND

  • Dr. Kongkiat Kittiwattanawong

Phuket Marine Biological Center

slide-2
SLIDE 2

Department of Marine and Coastal Resources

  • Protect, Conserve and Restore Marine and Coastal

resources and Environment.

  • Propose, Implement and Enforce Policy plans,

Managing strategies as well as Laws.

  • Monitor and Research.
  • Encourage awareness and participation of the public
  • Data center: Aggregate and Disseminate
slide-3
SLIDE 3

http://marinegiscenter.dmcr.go.th

slide-4
SLIDE 4

SYSTEM DESIGN

slide-5
SLIDE 5

Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map SHP & Attribute

slide-6
SLIDE 6

Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map SHP & Attribute Accessibility

Public Staffs Decision makers Admin Cloud LAN

Policy and Management Acting

slide-7
SLIDE 7

Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map SHP & Attribute Accessibility

Public Staffs Decision makers Admin

Policy and Management Acting

Cloud LAN

slide-8
SLIDE 8

Cloud LAN DMCR PMBC

slide-9
SLIDE 9

Coastal boundary Coral boundary Seagrass boundary … Islands Beach Protected areas … 29+ Layers

Static Data & Base Map Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data SHP & Attribute

slide-10
SLIDE 10

Dynamic Data

  • Online Input facility
  • Offline Input template

Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools

Query Static Data & Base Map SHP & Attribute

Marine Biodiversity Coral Seagrass Marine Endangered Species Water quality Mangrove Coastal Erosion Enforcement report

slide-11
SLIDE 11
  • Online Input facility
  • Offline Input template

Standardised Data

  • Editing tools

Dynamic Data Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools

Query Static Data & Base Map SHP & Attribute

Marine Biodiversity Coral Seagrass Marine Endangered Species Water quality Mangrove Coastal Erosion Enforcement report Marine Biodiversity Coral Seagrass Marine Endangered Species Water quality Mangrove Coastal Erosion Enforcement report

slide-12
SLIDE 12

Seagrass Water Quality

  • End. Species

Coral ... Transect survey Standard WQ Parameter Stranding records Manta Tow survey Spot check survey Sediment Sighting report Transect survey … … … Spot check survey …

Click to reveal

  • verview data

by year and location

MIS INTERFACE

Data group overview

Dynamic group and layer heading depends on available data Dynamic layer heading depends on available data

slide-13
SLIDE 13

MIS INTERFACE

Data layer overview

Office Province Year 1 Year 2 ... All PMBC Trang 2 10 ... 22 PMBC Phuket 20 100 ... 120 PMBC … Central Chumporn 5 20 ... 25 Central Surat 3 5 ... 8 Central … … … ALL ALL 175

Click to display selected Click to reveal all records

slide-14
SLIDE 14

MIS INTERFACE

Data layer overview

Click to display selected

Office Province Year 1 Year 2 ... All PMBC Trang 2 10 ... 22 PMBC Phuket 20 100 ... 120 PMBC … Central Chumporn 5 20 ... 25 Central Surat 3 5 ... 8 Central … … … ALL ALL 175 10

slide-15
SLIDE 15
slide-16
SLIDE 16

Marine Biodiversity Coral Seagrass Marine Endangered Species Water quality Mangrove Coastal Erosion Enforcement report

Analysed Data

  • Analysis tools

Standardised Data

  • Editing tools

View, Report & Download

  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map SHP & Attribute

  • SP Richness & Diversity
  • %Life cover
  • SP Richness & Diversity
  • %Cover, Biomass
  • SP Richness & Diversity
  • Stranded statistic
  • Richness
  • SOWAY index
  • WQ parameters
  • Density
  • SP Richness & Diversity

Erosion level

  • No. of cases
slide-17
SLIDE 17

Mangrove Biodiversity Erosion Seagrass Marine Endangered Species Coral Seawater Quality

slide-18
SLIDE 18

696 Stations (136 permanent stations) 2007-present Every 2 Months 8 SOWAY parameters Other 6+ parameters

SEAWATER QUALITY

slide-19
SLIDE 19

SEAWATER QUALITY

WQ Table RecordID StationID DateTime DO TCB PO4 NO3 Temp TSS pH NH4 NH3 PO4 SC WQ Excel file Station Table StationID StationName Office Province Amphur District Subdistrict Lat Lon Station Excel file SOWAY Table RecordID StationName Province DateTime Lat Lon SOWAY_Score WQ_Status

Excel import tool

1

many

DO TCB PO4 NO3 Temp TSS pH NH4

SOWAY index

=(1/100)×(DO×0.16+TCB×0 .14+PO4×0.12+NO3×0.12+ Temp×0.12+TSS×0.11+pH× 0.11+NH4×0.11)^2

slide-20
SLIDE 20
  • SHP tools

SHP & Attribute Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map

  • Marine Resources and

Environmental Data & Indicators

  • Photo
  • Video
  • PDF and other Attached files

Standardised Data Analysed Data

slide-21
SLIDE 21

Query Standardised Data

  • Editing tools

Analysed Data View, Report & Download

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Dynamic Data Static Data & Base Map SHP & Attribute

  • MIS: Drop-down list
  • GIS: Area of Interest or SHP
  • Overview available Metadata
  • Reveal and Edit Raw Data
  • Recalculate Indices
  • Recalculated resource coverage
slide-22
SLIDE 22

View, Report & Download Standardised Data

  • Editing tools

Analysed Data

  • Analysis tools
  • SHP tools
  • Online Input facility
  • Offline Input template

Query Dynamic Data Static Data & Base Map SHP & Attribute

slide-23
SLIDE 23

Status summary report Year 2013

CORAL: 25 spp., Coverage 246 Rai, Status=Good SEAGRASS: 5 spp. Coverage 1,300 Rai, Status=Very good BIODIVERSITY: Richness 154 spp., Diversity Index=2.33 MARINE ENDANGERED SPECIES: 12 spp., Stranded cases=38 SEAWATER QUALITY: SOWAY index=5.32, Status: Fair MANGROVE (2000): Coverage 24,765 Rai, Status=Fair

Drop down to select year Click to display yearly status Map with selected area Click to display name list Click to display Map Click to display Status composition graph

slide-24
SLIDE 24

http://marinegiscenter.dmcr.go.th

slide-25
SLIDE 25

KNOWLEDGE MANAGEMENT

Coral Seagrass Seaturtle Dolphin Dugong Mangrove Biodiversity Island Beach Whale shark

slide-26
SLIDE 26
slide-27
SLIDE 27

THANK YOU FOR YOUR ATTENTION
