Decommissioning: Winds of Change in Offshore Oil & Gas Accelerating NAMEPA & NOIA Winds of Change in Offshore Oil and Gas February 2014 Accelerating 1 1 Oil & Gas Decommissioning Winds of Change Accelerating What has

slide-1
SLIDE 1

Accelerating 1

Accelerating

1

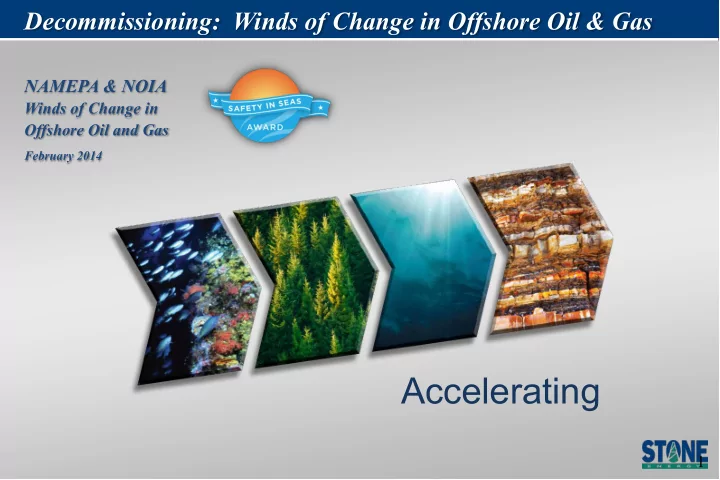

Decommissioning: Winds of Change in Offshore Oil & Gas

NAMEPA & NOIA

Winds of Change in Offshore Oil and Gas

February 2014

slide-2
SLIDE 2

Accelerating 2

Oil & Gas Decommissioning – Winds of Change

What has changed?

Idle-Iron NTL became effective: October 2010

Structures removed from the OCS:

  • 2002 – 2010: Averaged 164
  • 2011 – 2013: Averaged 262
  • 60% Increase post Idle-Iron

0 ¡ 50 ¡ 100 ¡ 150 ¡ 200 ¡ 250 ¡ 300 ¡ 2002 ¡2003 ¡2004 ¡2005 ¡2006 ¡2007 ¡2008 ¡2009 ¡2010 ¡2011 ¡2012 ¡2013 ¡

  • No. ¡Structures ¡Removed ¡

Gulf ¡of ¡Mexico ¡-­‑ ¡Outer ¡ConDnental ¡Shelf ¡ Decommissioned ¡Structures ¡

Total ¡Removed ¡

  • Avg. ¡Removed ¡'02-­‑'10: ¡
  • Avg. ¡Removed ¡'11-­‑'13: ¡
slide-3
SLIDE 3

Accelerating 3

Stone Decommissioning – January 2011

Single-Well Caissons Multi-Well Caissons Braced Caissons

Tri-Pods

Work Scope ~ 100 Structures & 130 Wells

4-Pile Structures

36-Pile Structure 6-Pile Structures

Estimated Cost: $235 million

  • ver 3 years
slide-4
SLIDE 4

Accelerating 4

Oil & Gas Decommissioning – Winds of Change

What needed to change?

The Decommissioning Process Traditional Mini-Van Method

slide-5
SLIDE 5

Accelerating 5

Oil & Gas Decommissioning – Process Evolution

Mini-Van Method

Multiple Mobilizations – Sequential Steps:

  • 1. Prepare the structure
  • 2. Plug the wells
  • 3. Sever & remove the well conductors (casings)
  • 4. Flush, pig and remove the pipelines
  • 5. Hydrocarbon-free the production equipment
  • 6. Mobilize derrick barge to remove the structure
  • 7. Perform Site Clearance
slide-6
SLIDE 6

Accelerating 6

  • After well is plugged with required

number of cement barriers

6

Mini-Van Method – Explosives to remove the Well

  • Explosives used to sever all well

conductors > 15’ BML

slide-7
SLIDE 7

Accelerating 7

Mini-Van Method: Structure Removal via Derrick Barge

slide-8
SLIDE 8

Accelerating 8

  • Explosives to Sever Jacket Piles > 15’ BML

Mini-Van Method: Explosives to remove the Jacket

slide-9
SLIDE 9

Accelerating 9

Oil & Gas Decommissioning – Winds of Change

What has changed?

The Decommissioning Process New Stone Energy Method Old School Mini-Van Method

slide-10
SLIDE 10

Accelerating 10

Oil & Gas Decommissioning – Process Evolution

New Stone Energy Method

Single Mobilization – Concurrent Steps:

  • 1. Perform all work in one or two mobilization(s)
  • 2. Utilize the newest technologies
  • 3. Utilize fewer resources – Decommissioning Department of 7

(1 - Manager; 2 - Project Managers; 2 - Engineers; 1 - Regulatory Specialist; 1 - Administrative Assistant)

  • 4. Complete the work scope in ½ the time
  • 5. Spend ⅓ less money
  • 6. Safer, Leaner, Greener and Less Expensive
slide-11
SLIDE 11

Accelerating 11

§ Operating water depths of 18’ to 280’ § Accommodations for 152 Workers § 15,200 ft² Clear Deck Space § 500 Ton Heavy Lift Crane

New Technology: 335’ Liftboat Robert

\

slide-12
SLIDE 12

Accelerating 12

New Stone Method Step 1: Mobilize all equipment

Stone Method

  • Platform make-safe
  • Plug wells
  • Flush & pig pipelines
  • Remove pipeline tube-turns
  • Hydrocarbon free vessels
  • Remove production equip.
  • Abrasively sever conductors
slide-13
SLIDE 13

Accelerating 13

New Stone Method Step 2: Perform Work in Parallel

Stone Method

  • Abrasively sever jacket
  • Diver debris sweep
  • Acoustic bottom scan
slide-14
SLIDE 14

Accelerating 14

New Stone Method Step 3: Take Structure Away

Stone Method

  • Secure to Material Barge
  • Move to next location
slide-15
SLIDE 15

Accelerating 15

No Harm to Marine Environment

=

Stone Decommissioning Method: Greener

slide-16
SLIDE 16

Accelerating 16

Stone Decommissioning Method: Less Expensive

6 Spreads; 6 Mobilizations

42 Days of Work over a 10 Month Period . . .

Spend: $3,557,000

Mini-Van Method

6 Spreads; 1 Mobilization

22 Days of Work over a 22 Day Period . . .

Spend: $2,401,000

Stone Method

slide-17
SLIDE 17

Accelerating 17

New Technology: Internal Abrasive Cutting

Abrasive Jet Nozzle

slide-18
SLIDE 18

Accelerating 18

New Technology: Internal Abrasive Cutting

slide-19
SLIDE 19

Accelerating 19

Old Technology: Horizontal Diamond Wire Saw

60’ 18’ 60’

Diamond ¡Wire ¡Saw ¡Moun0ng ¡

slide-20
SLIDE 20

Accelerating 20

New Technology: Articulating Diamond Wire Saw

10’ 16’ 10’ Post-Cut Position

7’

Running Position

3’

slide-21
SLIDE 21

Accelerating 21

Mud Line Diamond Wire

New Technology – Articulating Diamond Wire Saw

slide-22
SLIDE 22

Accelerating 22

New Technology: Excavation

Diver Jet Wand and Air Lift Mini-Van Method New Auger Dredge Stone Method

slide-23
SLIDE 23

Accelerating 23

New Stone Method

Stone Energy Decommissioning Method

slide-24
SLIDE 24

Accelerating 24

New Stone Method: Fast - 94 Locations in 590 Days

slide-25
SLIDE 25

Accelerating 25

New Stone Method: Regulatory Excellence

86 Structure Removal Permits w/ Site Clearance Plan 86 Structure Removal Final Reports 59 Pipeline Abandonment Permits 59 Pipeline Abandonment Final Reports 46 Well TA Application for Permit to Modify (APM) 44 Well Revised Permit to Modify (RPM) 157 Well PA Application for Permit to Modify (APM) 310 Weekly Activity Reports (WAR) 203 End-of-Operations Reports (EOR) 284 Rig-Move Notifications (RMN) 86 Site Clearance Verification Reports 86 NavAid Discontinuation Reports

1506 Regulatory Filings (3.6 Every Business Day)

slide-26
SLIDE 26

Accelerating 26

  • 86 - Structures Removed
  • 157 - Wells PA’d
  • 59 - Pipelines Abandoned
  • 1,115 - Air/Mixed Gas Dives
  • 330 - Internal Abrasive Cuts
  • 40 - External Abrasive Cuts
  • > 420,000 Man-Hrs Worked

Results – 20 Months New Stone Method: Accomplishments

Zero Recordable Incidents

slide-27
SLIDE 27

Accelerating 27

Stone Method: Safer, Greener, Less Expensive

Safer, Leaner, Greener and Less Expensive 2013

slide-28
SLIDE 28

Accelerating 28

Traditional vs. Stone Decommissioning Methods

Estimated Cost: $235 million Actual Cost: $155 million

Stone Method: Accomplishments

slide-29
SLIDE 29

Accelerating 29

Stone Method: Safer, Greener, Less Expensive

Questions?

Safer, Leaner, Greener and Less Expensive 2013
