EMIS/DS 1300: A Practical Introduction to Data Science Data Visualization Slides by Michael Hahsler Important Components of Visualization Symbols : Circles, dots, lines, bars, ... Position : Axes and the origin (0/0) are important.

SLIDE 1

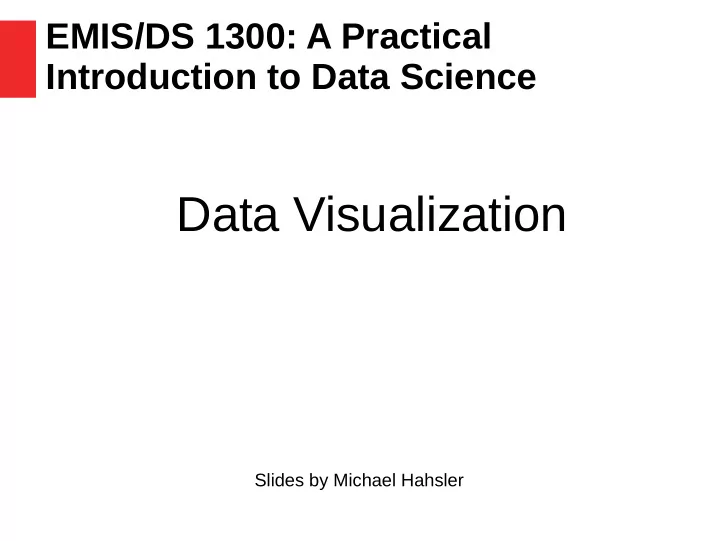

EMIS/DS 1300: A Practical Introduction to Data Science

Slides by Michael Hahsler

Data Visualization

SLIDE 2

SLIDE 3

Important Components of Visualization

Symbols: Circles, dots, lines, bars, ...
Position: Axes and the origin (0/0) are important.
Size/Area: Should only be used if it faithfully

represents information.

Color: One color should not overpower another.
Angle: Human eyes are not good at comparing

angles.

All components of the plot need to convey
information. E.g., don’t use color just to make it

more colorful.

SLIDE 4

Eat Eat fruits fruits when when they are in they are in season!!! season!!!

Data Visualization

Infoviz is a field

f its own.

SLIDE 5

Do you notice the slight flaw? Do you notice the slight flaw?

SLIDE 6

Tools - Popularity

n = 1,220 analytic professionals

https://www.kdnuggets.com/2018/05/poll-tools-analytics-data-science-machine-learning-results.html http://www.rexeranalytics.com/Data-Miner-Survey-2015-Intro.html

Rexer Analytics 2015

SLIDE 7

The map of Napoleon's Russian campaign

Created by M. Minard, Inspector General of Bridges and Roads (retired). Paris, November 20, 1869.

SLIDE 8

SLIDE 9

Fox News – 2012 presidential race

SLIDE 10

Is this pie a pie chart?

SLIDE 11

You could use a bar chart instead

SLIDE 12

Sky News – Average UK life expectancy

SLIDE 13

UK Life Expectancy (axes)
