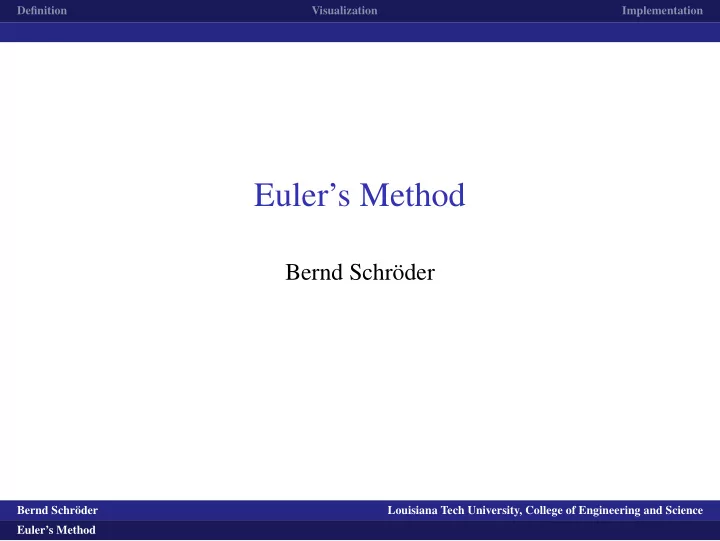

Definition Visualization Implementation Eulers Method Bernd Schr oder logo1 Bernd Schr oder Louisiana Tech University, College of Engineering and Science Eulers Method Definition Visualization Implementation Eulers Method

slide-1
SLIDE 1

logo1 Definition Visualization Implementation

Euler’s Method

Bernd Schr¨

  • der

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-2
SLIDE 2

logo1 Definition Visualization Implementation

Euler’s Method

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-3
SLIDE 3

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-4
SLIDE 4

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

  • 2. For a fixed step length ∆x, we compute the slope F(x0,y0)
  • f the tangent to the solution curve through (x0,y0).

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-5
SLIDE 5

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

  • 2. For a fixed step length ∆x, we compute the slope F(x0,y0)
  • f the tangent to the solution curve through (x0,y0). Then

we follow that tangent line for a distance of ∆x.

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-6
SLIDE 6

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

  • 2. For a fixed step length ∆x, we compute the slope F(x0,y0)
  • f the tangent to the solution curve through (x0,y0). Then

we follow that tangent line for a distance of ∆x.

  • 3. At the end point (x1,y1) of this line segment we use

F(x1,y1) to compute the slope at this new point (x1,y1)

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-7
SLIDE 7

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

  • 2. For a fixed step length ∆x, we compute the slope F(x0,y0)
  • f the tangent to the solution curve through (x0,y0). Then

we follow that tangent line for a distance of ∆x.

  • 3. At the end point (x1,y1) of this line segment we use

F(x1,y1) to compute the slope at this new point (x1,y1) and then we follow this new line segment.

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-8
SLIDE 8

logo1 Definition Visualization Implementation

Euler’s Method

  • 1. Euler’s Method formalizes the idea of tracing curves in a

direction field for the differential equation y′ = F(x,y).

  • 2. For a fixed step length ∆x, we compute the slope F(x0,y0)
  • f the tangent to the solution curve through (x0,y0). Then

we follow that tangent line for a distance of ∆x.

  • 3. At the end point (x1,y1) of this line segment we use

F(x1,y1) to compute the slope at this new point (x1,y1) and then we follow this new line segment.

  • 4. This process repeats for as far as we want to go.

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-9
SLIDE 9

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-10
SLIDE 10

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-11
SLIDE 11

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-12
SLIDE 12

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-13
SLIDE 13

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-14
SLIDE 14

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-15
SLIDE 15

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-16
SLIDE 16

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-17
SLIDE 17

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-18
SLIDE 18

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-19
SLIDE 19

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-20
SLIDE 20

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-21
SLIDE 21

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-22
SLIDE 22

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-23
SLIDE 23

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-24
SLIDE 24

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-25
SLIDE 25

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-26
SLIDE 26

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-27
SLIDE 27

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-28
SLIDE 28

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0, 400 pts.

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-29
SLIDE 29

logo1 Definition Visualization Implementation

Euler’s Method from a Direction Field

y′ = y−x2, y(0) = 0, 400 pts., exact solution: y(x) = x2 +2x+2−2ex

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-30
SLIDE 30

logo1 Definition Visualization Implementation

Reminder for Spreadsheet Implementation

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method

slide-31
SLIDE 31

logo1 Definition Visualization Implementation

Reminder for Spreadsheet Implementation

Step length: ∆x. Initial values: (x0,y0). xn+1 := xn +∆x yn+1 = yn +F(xn,yn)∆x. The value yn will be an approximation for the value of the solution y at xn.

Bernd Schr¨

  • der

Louisiana Tech University, College of Engineering and Science Euler’s Method
