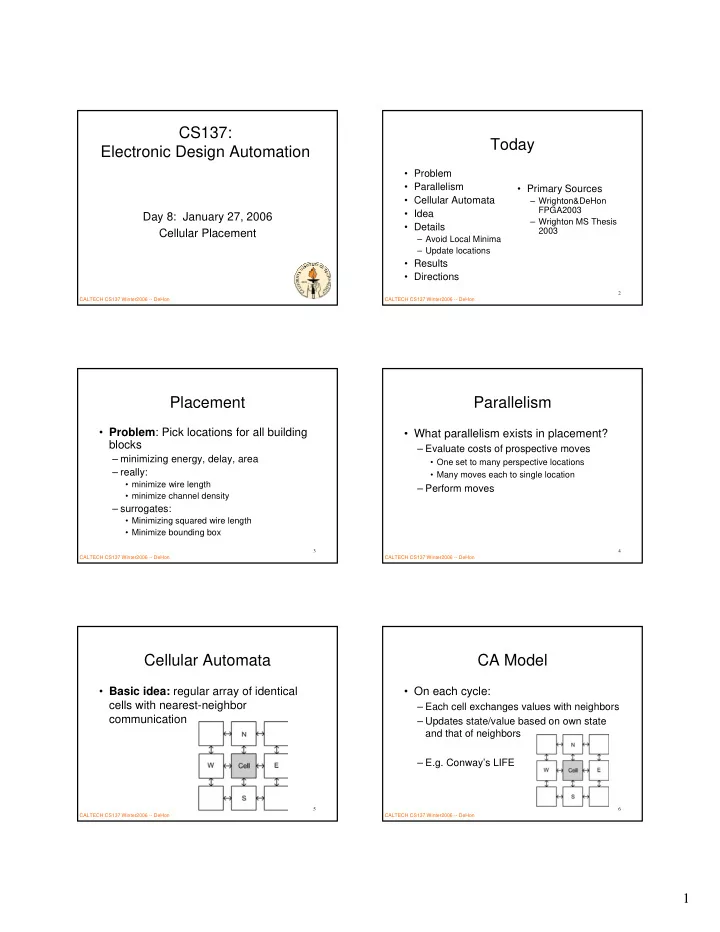

CALTECH CS137 Winter2006 -- DeHon 1

CS137: Electronic Design Automation

Day 8: January 27, 2006 Cellular Placement

CALTECH CS137 Winter2006 -- DeHon 2

Today

• Problem
• Parallelism
• Cellular Automata
• Idea
• Details

– Avoid Local Minima – Update locations

• Results
• Directions
• Primary Sources

– Wrighton&DeHon FPGA2003 – Wrighton MS Thesis 2003

CALTECH CS137 Winter2006 -- DeHon 3

Placement

• Problem: Pick locations for all building

blocks

– minimizing energy, delay, area – really:

• minimize wire length
• minimize channel density

– surrogates:

• Minimizing squared wire length
• Minimize bounding box

CALTECH CS137 Winter2006 -- DeHon 4

Parallelism

• What parallelism exists in placement?

– Evaluate costs of prospective moves

• One set to many perspective locations
• Many moves each to single location

– Perform moves

CALTECH CS137 Winter2006 -- DeHon 5

Cellular Automata

• Basic idea: regular array of identical

cells with nearest-neighbor communication

CALTECH CS137 Winter2006 -- DeHon 6

CA Model

• On each cycle:

– Each cell exchanges values with neighbors – Updates state/value based on own state and that of neighbors – E.g. Conway’s LIFE

2

CALTECH CS137 Winter2006 -- DeHon 7

Cellular Automata

• Physical Advantage:

– No long wires

• Area linear in number of nodes
• Minimum delaysmall cycle time
• Good scaling properties

CALTECH CS137 Winter2006 -- DeHon 8

System Architecture Taxonomy

(Subject to continuing refinement and embellishment)

CALTECH CS137 Winter2006 -- DeHon 9

CA Placement

• Can we perform placement in a CA?

CALTECH CS137 Winter2006 -- DeHon 10

Mapping

• Each cell is a physical placement

location

• State is a logical node assigned to the

cell

• Assume:

– Cell knows own location – State knows location of connected nodes

CALTECH CS137 Winter2006 -- DeHon 11

Costs

• Assume:

– Cell knows own location – State knows location of connected nodes

• Cell computes: its cost at that location

( )

2 .

) . ( ) . (

∑

∈

−

edges g e

snk e L src e L

CALTECH CS137 Winter2006 -- DeHon 12

Moves

• Two adjacent cells can exchange graph

nodes

3

CALTECH CS137 Winter2006 -- DeHon 13

Moves

• Evaluate goodness of proposed swap

– Each cell considers impact of its graph node being in the other cell – Keep if swap reduces cost

CALTECH CS137 Winter2006 -- DeHon 14

Move Costs

• Only really need to evaluate delta cost
• (src.x-sink.x)2
• Moving sink
• d/dx=-2 (src.x-sink.x)
• Delta move cost is linear distance

CALTECH CS137 Winter2006 -- DeHon 15

Parallel Swaps

• Pair up and perform N/2 swaps in

parallel

CALTECH CS137 Winter2006 -- DeHon 16

Movement

• Alternate pairings with N,S,E,W

neighbor move any directions

CALTECH CS137 Winter2006 -- DeHon 17

Basic Idea

• Pair up PEs
• Compute impact of swaps in parallel
• Perform swaps in parallel
• Repeat until converge

CALTECH CS137 Winter2006 -- DeHon 18

Problems/Details

• Greedy swaps local minima?
• How update location of neighbors?

– …they are moving, too

4

CALTECH CS137 Winter2006 -- DeHon 19

Avoid Greedy

• Insert randomness in swaps
• Simulated Annealing
• Shake up system to get out of local

minima

• Swap if

– Randomly decide to swap – OR beneficial to swap

• Change swap thresholds over time

CALTECH CS137 Winter2006 -- DeHon 20

Swap?

CALTECH CS137 Winter2006 -- DeHon 21

Impact of Randomness

CALTECH CS137 Winter2006 -- DeHon 22

Range Limiting

Eurgo, Hauck, & Sharma DAC 2005

CALTECH CS137 Winter2006 -- DeHon 23

Local Swaps Only

• Assume there’s an ideal location
• Each node takes a biased Random Walk

away from minimum cost location

• Gives node a distribution function around the

minimum cost location

• If wander into a better “minimum cost” home,

then wanders around new centerpoint

• Decreasing temperature restricts effective

radius of walk

CALTECH CS137 Winter2006 -- DeHon 24

Local Swap Random Walk

• Decreasing temperature restricts

effective radius of walk

5

CALTECH CS137 Winter2006 -- DeHon 25

How update locations?

• Broadcast?
• Pipelined Ring?
• Send to neighbors?

– Routing network?

• Tree?
• For whom?

– Everyone? Only things moved? Only things moved a lot?

CALTECH CS137 Winter2006 -- DeHon 26

Simple Solution: Ring

• Drop value

in ring

• Shift around

entire array

• Everyone

listens for updates

CALTECH CS137 Winter2006 -- DeHon 27

Simple Solution: Ring

• Weakness?

– Serial – N cycles to complete – N/2 swaps in O(1) – Then O(N) to update?

CALTECH CS137 Winter2006 -- DeHon 28

Simple Solution: Ring

• Linear update bad
• Idea: allow staleness

– Things move slowly – Estimate of position not that bad… – …and continued

• peration will

correct…

CALTECH CS137 Winter2006 -- DeHon 29

Algorithm

CALTECH CS137 Winter2006 -- DeHon 30

Algorithm

Update Locations

6

CALTECH CS137 Winter2006 -- DeHon 31

Algorithm

Try Moves

CALTECH CS137 Winter2006 -- DeHon 32

Quality vs. Parameters

CALTECH CS137 Winter2006 -- DeHon 33

Iso-Quality

Pick point on Iso-Quality Curve that minimizes time

CALTECH CS137 Winter2006 -- DeHon 34

FPGA Implementation

• Virtex E (180nm)
• 10ns cycle (100MHz)
• 150 cycles for 4-phase swap

– (~40 cycles/swap)

• 400 LUTs / Placement Engine
• Comparing

– 2.2GHz Intel Xeon (L2 512KB)

CALTECH CS137 Winter2006 -- DeHon 35

Results

CALTECH CS137 Winter2006 -- DeHon 36

Tuning Quality

7

CALTECH CS137 Winter2006 -- DeHon 37

Scaling

• Processor cycles O(N4/3)

– VPR

• Systolic cycles

– O(N1/2) – assume geometric refinement;

O(N1/2 ) update

– O(N5/6) – mesh sort, same number of swaps as VPR (N4/3 / N1/2)

CALTECH CS137 Winter2006 -- DeHon 38

Scaling

Also includes technology scaling

CALTECH CS137 Winter2006 -- DeHon 39

Variations

• Update Schemes
• Cost Functions
• Larger bins than PEs

CALTECH CS137 Winter2006 -- DeHon 40

Update Scheme: Tree

• Build Reduce Tree (H-Tree)
• Route to route in O(N1/2) time
• Route from root to leaves in O(N1/2)

times

• Pipeline
• Same bandwidth as Ring (1/cycle)
• But less staleness (only O(N1/2))

CALTECH CS137 Winter2006 -- DeHon 41

Reducing Broadcast (Idea 1)

• Don’t update things that haven’t moved

(much)

– …or things that move and move back before broadcast

• Keep track of staleness

– How far moved from last broadcast

• Give priority to stalest data
• Max staleness wins at each tree stage

– Break ties with randomness

CALTECH CS137 Winter2006 -- DeHon 42

Reducing Broadcast (Idea 2)

• Update locally
• Don’t need to know if someone far away

moved by 1 square

• …but need to know if near neighbor did
• Multigrid/multiscale scheme

– Only alert nodes in same subtree – When change subtrees at a level, alert all nodes underneath

8

CALTECH CS137 Winter2006 -- DeHon 43

Update Scheme: Mesh Route

• Can Route a permutation in O(N1/2) time
• n a mesh
• Build mesh switching
• Make O(N) swaps
• Then take O(N1/2) time moving/updating
• Becomes full simulated annealing

– i.e. not just local swaps

CALTECH CS137 Winter2006 -- DeHon 44

Cost Functions

CALTECH CS137 Winter2006 -- DeHon 45

Cost Functions

• Bounding Box2 phase update

– Phase 1: alert source to location of all sinks – Phase 2: source communicates bbox extents to all sinks

CALTECH CS137 Winter2006 -- DeHon 46

Timing

• Linear Update:

– Topological ordering of netlist – Use tree to distribute updates – Send updates in netlist order – get delay in one pass

• Mesh:

– Compute directly with dataflow-style spreading activation

• Wait for all inputs; then send output

CALTECH CS137 Winter2006 -- DeHon 47

Bins

CALTECH CS137 Winter2006 -- DeHon 48

Node Bins

• Keep more than one graph node per PE
• Local swap of one node from each PE

node set each step

– One with largest benefit? – Randomly select based on cost/benefit?

• Like rejectionnless annealing

9

CALTECH CS137 Winter2006 -- DeHon 49

Admin

• Parallel Prefix familiarity?
• Due today: literature review
• There is class on Monday
