Coor Coordination of Wind Energy & Militar dination of Wind Energy & Military y Operations in T Operations in Texas 13 Januar January 2020 y 2020 Tony Pari Parisi, CAPT CAPT, CEC, USN (R , CEC, USN (Retired ed) parisit48@g


slide-1
SLIDE 1

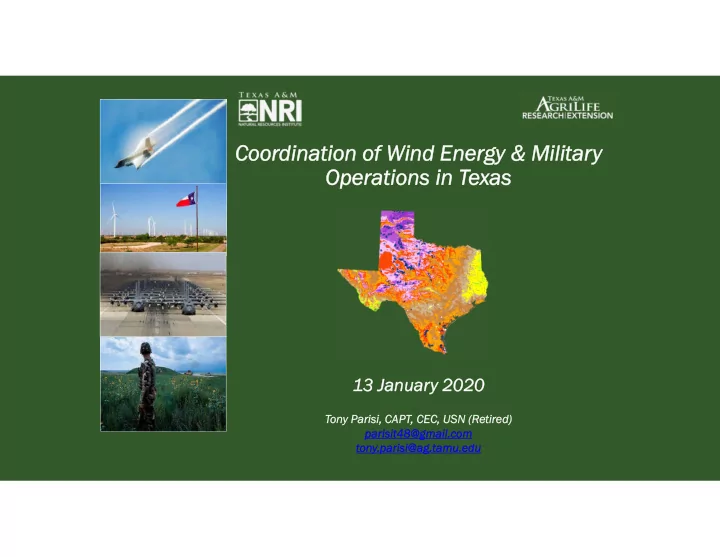

Coor Coordination of Wind Energy & Militar dination of Wind Energy & Military y Operations in T Operations in Texas

13 Januar January 2020 y 2020

Tony Pari Parisi, CAPT CAPT, CEC, USN (R , CEC, USN (Retired ed) parisit48@g sit48@gmail.co il.com tony.parisi@a .parisi@ag.ta .tamu.edu u.edu

1

slide-2
SLIDE 2

2

Agenda enda

  • Background
  • Accomplishments
  • Report
  • Notification Areas
  • Web Tool
  • Additional Info
slide-3
SLIDE 3

3

Approac Approach

  • DoD Office of Economic Adjustment grant with matching funds

from Texas Military Preparedness Commission

  • Goal: Identify present and future incompatible land use

activities that may limit the military’s test and training mission, with an emphasis on wind energy development

Bac Background ground

  • Develop/update tools that facilitate early engagement among

industry, military and community stakeholders – Report – Web based tool

We did not identify exclusion areas

  • r produce Red‐Yellow‐Green maps
slide-4
SLIDE 4

4

Accomplishments ccomplishments

  • Stakeholder engagement

– Workshops/conference calls with military, industry (individual developers & AWEA) & communities – Last workshop at Sheppard AFB on 8 AUG

  • Input on draft report
  • Demonstrate initial version of web tool
  • Base tour
  • Windfarm tour
  • Report
  • Texas Early Notification Tool (TENT)
  • Joint TMPC/AWEA/NRI Press Release & Media Kit
slide-5
SLIDE 5

5

Re Report

  • Military Assets in Texas

– Military Installations & Radars – Military Airspace – Additional Operating Areas

  • Weather Radars
  • Wind Energy

– Competitive Renewable Energy Zones – Impacts of Wind Energy on Military Missions – Mitigations

  • Texas Early Notification Areas
  • Other Encroachment Issues

– Solar Energy – Tall Structures

  • Legislation And Regulations
  • Texas Early Notification Tool
slide-6
SLIDE 6

6

Early Notification Areas Early Notification Areas

  • Installations

– 25 nm: consistent with SB277

  • Special Use Airspace & Military Training Routes

– ≤1,500 ft AGL

  • Radars

– Line of sight for structures ≥ 750 ft AGL

  • Additional Operating Areas

– Dyess AFB Tennyson C‐130 Drop Zone – Snyder Electronic Scoring Site (ESS): 1 nm – Dyess AFB Remote Threat Emitter sites: ½ – Dyess AFB Low Altitude Tactical Navigation (LATN) area – Sheppard AFB Radar Approach Control (RAPCON) airspace – Fort Bliss Maintenance Test Flight (MTF) areas – Fort Bliss High Altitude Mountainous Environmental Training Site (HAMETS) – Fort Hood Western Training Area (WTA)

These are not exclusion areas

slide-7
SLIDE 7

Ins Installation Notification Areas allation Notification Areas

7

slide-8
SLIDE 8

SU SUA & A & MTRs MTRs ≤ 1,500 ft AGL

slide-9
SLIDE 9

Radar Line of Sight Radar Line of Sight

slide-10
SLIDE 10

Additional Operating Areas Additional Operating Areas

10

slide-11
SLIDE 11

Combined Notification Area Combined Notification Area

11

slide-12
SLIDE 12

12

Combined Notification Area Combined Notification Area & Exis & Existing Wind T ting Wind Turbines rbines

slide-13
SLIDE 13

13

Texas Early Notification T xas Early Notification Tool

  • ol

https://tent.nri.tamu.edu/ Link to report is available on the tool website

slide-14
SLIDE 14

14

Follo llow-on Ef

  • n Efforts
  • OEA proposal pending
  • Additional workshops/engagement
  • Maintain/update TENT
  • Reports/web tool on additional encroachment issues
slide-15
SLIDE 15

http://nri.tamu.edu/

Tony Parisi parisit48@gmail.com tony.parisi@ag.tamu.edu (805) 444‐4567
