11/22/2011 Community Liaison Group 14.11.2011 INTRODUCING THE WATERVIEW CONNECTION Community Liaison Group presentation: 14.11.2011 1 11/22/2011 Quick history lesson 1956 De Leeuw Cather Masterplan Introduced concept of SH1 spine

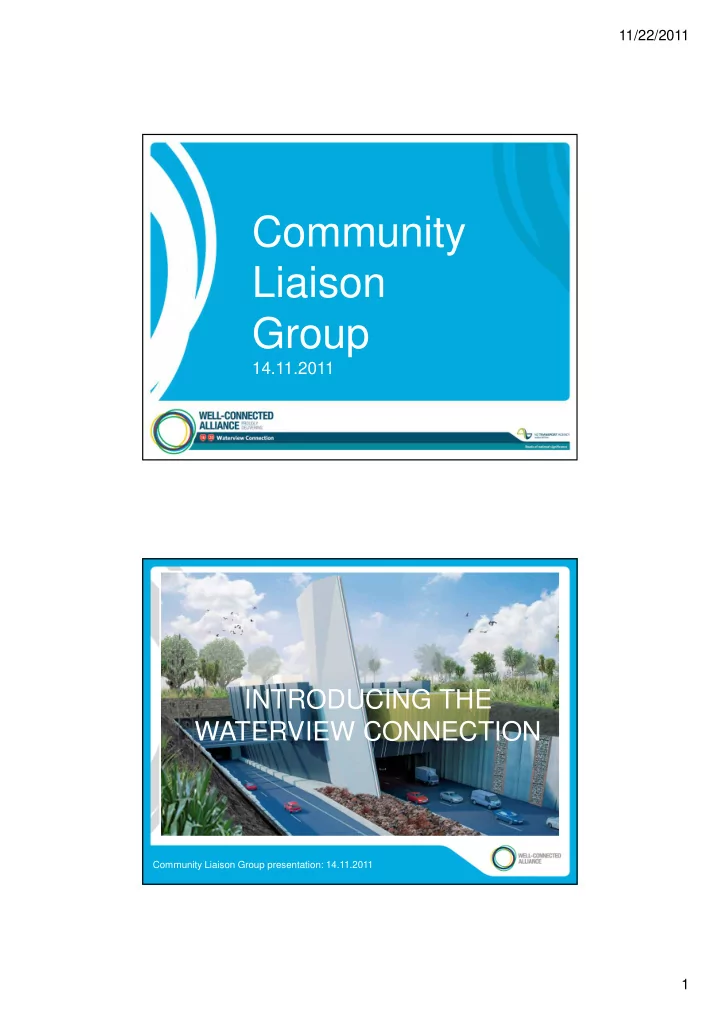

SLIDE 1

11/22/2011 1

Community Liaison Group

14.11.2011

Community Liaison Group presentation: 14.11.2011

INTRODUCING THE WATERVIEW CONNECTION

SLIDE 2

11/22/2011 2

Community Liaison Group presentation: 14.11.2011

Quick history lesson

1956 De Leeuw Cather Masterplan
Introduced concept of SH1 spine & WRR
Recommended completion by 1980
Report also predicted possibility of two car families!
SH1 growth from 60s
WRR development over last 10 years
2000 Transit 10 Year State Highway

Programme: $93M Avondale Extension

March 2009 RoNS …Waterview

Connection

Community Liaison Group presentation: 14.11.2011

Waterview Connection

5km of 6-lane

motorway

Twin 2.4km tunnels
Strong urban

design influence

NZTA’s largest

project to date

Improved CBD-

airport link

SLIDE 3

11/22/2011 3

Community Liaison Group presentation: 14.11.2011

Well-Connected Alliance

Community Liaison Group presentation: 14.11.2011

Project objectives

Injury free
Fully integrated, efficient, safe link
Balance social, environmental and

economic

Best use of money
Highly collaborative relationships
Exceptional people development

SLIDE 4

11/22/2011 4

Community Liaison Group presentation: 14.11.2011

Integrated infrastructure

concept only

Community Liaison Group presentation: 14.11.2011

????

Third auxiliary lane from

Dominion Road

Modifications to Ernie

Pinches Footbridge

Minor modifications to

Maioro Street Interchange

Extension of Roskill cycleway

SLIDE 5

11/22/2011 5

Community Liaison Group presentation: 14.11.2011

Realign Valonia Street to

improve safety

Upgrade Valonia fields
Realign Oakley Creek
New Hendon Park Footbridge
Widening Richardson Road

Bridge

New cycleways

Community Liaison Group presentation: 14.11.2011

TBM methodology with

access largely from the south

Portal moved slightly south
Vent building below ground –

with access from Hendon Ave

Reconfigured parking and

sport fields

SLIDE 6

11/22/2011 6

Community Liaison Group presentation: 14.11.2011

TBM (EPBM)

Community Liaison Group presentation: 14.11.2011

SLIDE 7

11/22/2011 7

Community Liaison Group presentation: 14.11.2011 Community Liaison Group presentation: 14.11.2011

Tunnelling under Great North

Road

Tunnel portal further north?
Vent building underground
Open space around Herdman

Street

Reconfigured Waterview Park

SLIDE 8

11/22/2011 8

Community Liaison Group presentation: 14.11.2011

Four level interchange
Minor geometry changes to

improve safety and reduce enviro / heritage impacts

Relocate stormwater ponds

for more available park area

Reconstruction of Carrington

Rd Bridge walls
