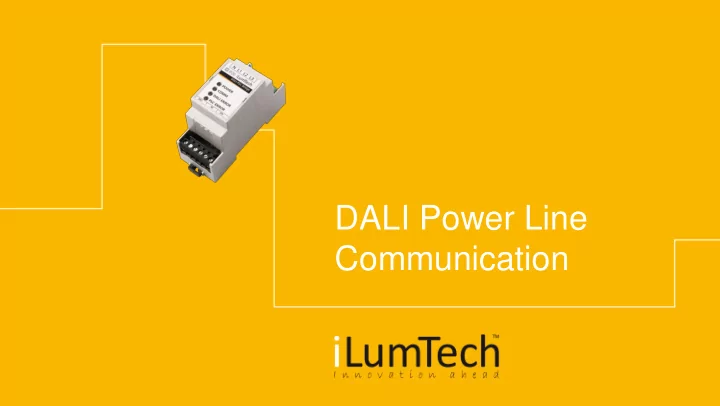

DALI Power Line Communication

Content

DALI PLC | Content

• Functionality and advantages
• How does it work?
• Applications
• Installation
• Technical parameters
• About us

Functionality and advantages

DALI PLC | Functionality of

• A device that facilitates communication of forward and

backward DALI commands through mains wiring

• Installation requires at least one DALI PLC Bridge and

another DALI PLC Bridge, or a DALI PLC-IN implemented directly in the luminaire

• The luminaires should be installed toghether with DALI

PLC on one phase

• No need for a special driver or dedicated luminaire; any

DALI driver works

• Control of a group of luminaires connected on one DALI

bus / Control of luminaires equipped with DALI drivers but without any DALI network / Control of luminaires equipped with DALI a driver and integrated DALI PLC-IN module

DALI PLC| How does it work?

DALI PLC Bridge for the control of a group of luminaires in a DALI network

Standard DALI controls, interfaces DALI PLC Bridge – connection between DALI and the mains DALI PLC Bridge – connection between the mains and DALI luminaires DALI luminaires equipped with standard DALI drivers

How does it work?

DALI PLC| How does it work?

Standard DALI controls, interfaces DALI PLC Bridge – connection between DALI and the mains DALI luminaires equipped with standard DALI drivers

How does it work?

DALI PLC-IN Bridge – connection between the mains and DALI luminaire; implemented directly in the luminaire

DALI PLC Bridge for individual control of luminaires equipped with integrated DALI PLC-IN modules

DALI PLC| How does it work?

Standard DALI controls, interfaces DALI PLC Bridge – connection between DALI and the mains DALI luminaires equipped with standard DALI drivers

How does it work?

DALI PLC Bridge for the control of a group of DALI luminaires through mains wiring

DALI PLC Bridge – connection between the mains and s group of luminaires within a DALI network

Applications

DALI PLC| Applications

Hypermarkets / factories Wherever it would prove to be too costly to install additional DALI wiring due to the size of the installation. Historical buildings Buildings where reconstruction and modification of walls and ceilings is restricted or forbidden. Residential buildings / hotels Buildings with existing mains wiring where it is beneficial to easily update luminaires to those with advanced DALI / Tunable White functionality. Street illumination DALI control of street lighting through already existing mains infrastructure.

Installation

DALI PLC | Installation

DALI PLC | Technical parameters

Technical parameters

• A maximum of 64 DALI devices with unique address

can be connected to a single network

• No extra DALI Power supply is needed – DALI

Power supply already integrated (DALI PLC-IN)

• 3 phase support, over voltage protection (DALI PLC

Bridge)

• Communication error source detection (DALI PLC

Bridge)

• DALI 12–25 V DC, output current <20 mA
• PLC 110/230 V AC, input current <20 mA

DALI PLC | About us

About us

iLumTech is the developer and provider of a range of unique lighting control devices under the brand name Connected

• Lighting. All are suitable for a wide range of customers

including lighting and non-lighting component manufacturers, distributors, wholesalers, installation companies, and end

• users. iLumTech supports customers with a wide range of

comprehensive services across industrial, optical, thermal, electronic, and mechanical design, all of which are supported by excellent supply-chain management, full system testing, and prototyping as well further OEM support. For more information, visit www.ilumtech.eu.
