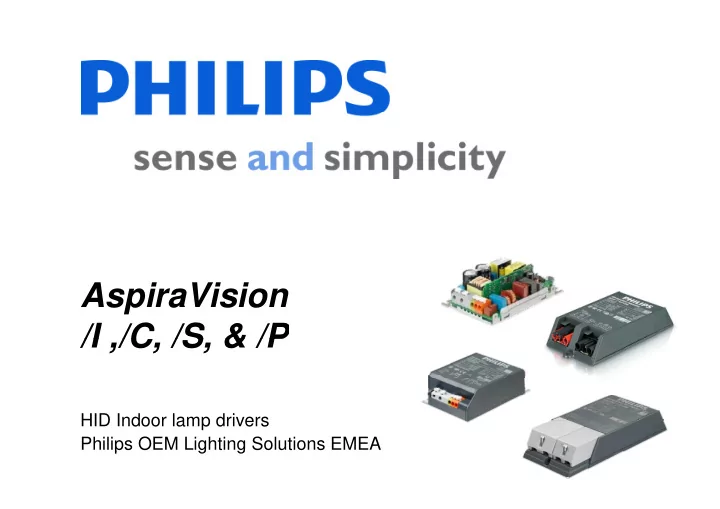

AspiraVision /I /C /S & /P /I ,/C, /S, & /P

HID Indoor lamp drivers Philips OEM Lighting Solutions EMEA p g g

Philips lamp and gear combinations are tested for a million hours before being released

Philips OEM Lighting Solutions EMEA

2

The mark of excellence in HID electronic gears technology. Intelligent, easy to use and simple to install easy to use and simple to install

Independent (/I) Connector (/C) Standard (/S) PCB (/P) (/I) (/C) (/S) (/P)

Product Features

Loop Through

(Only in /I type)

Voltage Drop Detection Soft Start Improved Thermal Performance Low EMI

Philips OEM Lighting Solutions EMEA

3

Soft Start Improved Thermal Performance Soft Start Soft Start limits the inrush-current of the driver, allowing more gears to run a single MCB. Fast and easy one-to-one replacements with electro-magnetic gears are possible to significantly reduce installation costs. Improved Thermal Performance Improved temperature performance means gears with this feature have a longer lifetime of up to 80,000 hours compared to standard gears in similar conditions, making them suitable for use with temperature-critical luminaires. Loop Through Electronic drivers with Loop Through have an extra mains

• connector. You can connect mains input from one driver to

the next without the need for a splitter, making installation quick and easy with lower costs Low Electromagnetic Interference (EMI) Standard gear has a typical 6dB under limit at its most critical point. With the Low Electromagnetic Interference feature, a typical under limit of 10dB is possible, making it suitable for EMI-critical luminaires. Flexplus Our Flexplus range of drivers provide an easy to use ‘Plug-and- play’ solution that eliminates wrong wiring. A wide Voltage Drop Detection Most electronic gears switch off when there is a significant drop in mains voltage for more than 5 milliseconds, irrespective of whether that’s due to lamp end-of-life or not range of cables and plugs can be pre-installed on the driver so all the installer needs to do is plug it into the mains. irrespective of whether that s due to lamp end of life or not. This clever feature detects the difference and will continue to re-ignite the lamp for uninterrupted operation.

Philips OEM Lighting Solutions EMEA

4

Soft Start limits the inrush-current of the driver, allowing more gears to run a single MCB, thus drastically reducing installation costs. Fast and easy one-to-one replacements with electro- magnetic gears are possible to significantly reduce installation costs magnetic gears are possible to significantly reduce installation costs. Without Softstart With Softstart 70W 20 pcs / MCB 32 pcs / MCB

Standard With SOFT START

35W 24 pcs / MCB 58 pcs / MCB

MCB groups 1 (night) 2 3 4 5

Shop window Shop windo

MCB groups 1 (night) 1 2 4 5

35W CDM MCB wiring Sh 35W CDM MCB wiring

• w
• 100

35W HID lamps

• p window

counter

• 100

35W HID lamps

Shop window counter

• 100

35W HID lamps

• 5

Circuit Breakers

Benefit: Low cost of installation

• 100

35W HID lamps

• 2

Circuit Breakers

Calculate Savings

Philips OEM Lighting Solutions EMEA

5

Benefit: Low cost of installation

Savings Calculator.zip

Calculate Savings

Electronic drivers with Loop Through have an extra mains connector. You can connect mains input from one driver to the next without the need for a splitter, making installation quick and easy with lower costs This feature is only available in independent (/l) version

Standard With Loop Through

• costs. This feature is only available in independent (/l) version.

Philips OEM Lighting Solutions EMEA

6

Benefit: Reduces the installation cost (for wiring) + Ease of use

Standard gear has a typical 6dB under limit at its most critical point. With the Low Electromagnetic Interference feature, a typical under limit of 10dB is possible, making it suitable for EMI-critical luminaires

Standard Gear: typical 6dB under limit at most critical point

luminaires.

yp p AspiraVision: typical 10dB under limit at most critical point

Benefit:

‐ Possible application in EMI critical

Philips OEM Lighting Solutions EMEA

7

luminaires

Improved temperature performance means gears with this feature have a longer lifetime of up to 80,000 hours compared to standard gears in similar conditions, making them suitable for use with temperature- critical luminaires

• Longer life-time in comparison to standard gears in similar temperature conditions

critical luminaires.

Gear Lifetime at 50°C Ambience Temperature

35W Standard Gear Life-time 40,000 hours AspiraVision Life time 60 000 hours AspiraVision Life-time 60,000 hours 70W Standard Gear Life-time 40,000 hours AspiraVision Life-time 80,000 hours

Benefit: f ‐Longer life‐time ‐ Possible application in temperature‐critical luminaires

Philips OEM Lighting Solutions EMEA

8

luminaires

Significant drops in voltage of more than 5 milliseconds cause gears to switch off. This clever feature can detect whether this is due to a drop in mains voltage or end of lamp life, continuing to reignite the lamp where appropriate to ensure uninterrupted operation

• Detects difference between non-igniting lamp and voltage drop

lamp where appropriate to ensure uninterrupted operation.

Benefit: U i d O i

Philips OEM Lighting Solutions EMEA

9

‐ Uninterrupted Operation

GPC EOC Product Description 913700647566 872790088436400 HID-AV C 35 /S CDM 220-240V 50/60Hz 913700647666 872790088524800 HID-AV C 35 /I CDM 220-240V 50/60Hz 913700647766 872790088437100 HID-AV C 35 /P CDM 220-240V 50/60Hz 9 3 006 66 8 90088 3 00 C 35 / C 50/60 913700647966 872790088525500 HID-AV C 35 /C CDM 220-240V 50/60Hz 913700646566 872790088432600 HID-AV C 70 /S CDM 220-240V 50/60Hz 913700646566 872790088432600 HID AV C 70 /S CDM 220 240V 50/60Hz 913700646666 872790088522400 HID-AV C 70 /I CDM 220-240V 50/60Hz 913700646766 872790088433300 HID-AV C 70 /P CDM 220-240V 50/60Hz 913700646766 872790088433300 HID AV C 70 /P CDM 220 240V 50/60Hz 913700646966 872790088523100 HID-AV C 70 /C CDM 220-240V 50/60Hz

Philips OEM Lighting Solutions EMEA

10
