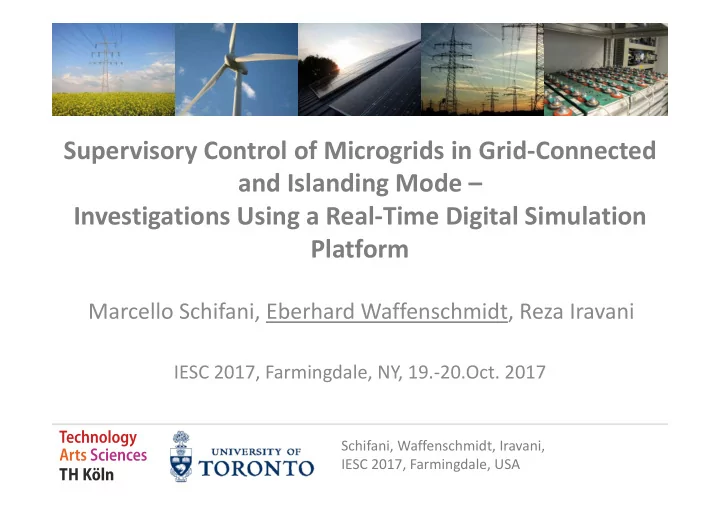

SLIDE 1

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Supervisory Control of Microgrids in Grid-Connected and Islanding Mode – Investigations Using a Real-Time Digital Simulation Platform

Marcello Schifani, Eberhard Waffenschmidt, Reza Iravani

IESC 2017, Farmingdale, NY, 19.-20.Oct. 2017

SLIDE 2

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Future power grid

2

SLIDE 3

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Blackout

Source: www.tagesschau.de

Whole Europa is hit by a Blackout. Whole Europa? Nope! One smart village is able to fight the darkness… And there will be more!

SLIDE 4

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Studied case

4

SLIDE 5

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Criterias for the control structure

 Recognition of faults to initialize the islanding process  Recognition of recovery to initialize the reconnection process  Short detection time.  Transients to be minimized.  Quickly each steady-state  In Islanded Mode, frequency and voltage is kept constant.

5

SLIDE 6

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Benchmark grid

6

Adopted from: IEEE Recommended Practice for Industrial and Commercial Power Systems Analysis (Brown Book), 1997.

DER 4 L7 DER 3 L6 DER 2 L5 T1 PCC F4 F3 C9 T8 TDR4 TDR2 TDR3 C6 C8 T7 T6 C7 TL1 13.8 kV 15 MVA 69 kV 100 MVA X/R = 22.2 2 MVAr VSC 3.0 MVA VSC, 3.0 MVA VSC 0.5 MVA 0.6 kV 0.6 kV 0.6 kV (0.75+j0.08) MVA (0.73+j0.03) MVA (0.87+j0.33) MVA

Supervisory control Local control Local control Local control

SLIDE 7

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Superisory control

 Islanding

Detection
Command for circuit breaker
Command to local control

 Reconnection

Detection
Synchronisation

 Coordination of local controllers

Selection of master device

7

SLIDE 8

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Local control

 Grid connected mode:

Real and reactive power (PQ) to grid is controlled
by current mode control

 Islanding mode (only „master“ device):

Voltage and frequency (VF) is controlled
By voltage mode control

8

SLIDE 9

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Simulation setup

9

SLIDE 10

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Simulation types

 Offline simulation

Full setup
More time consuming

 Real-time simulation

Reduced setup: One DER4 and one load L7
More realistic:

Can be linked to hardware

10

SLIDE 11

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Schematic of the current controlled VSC

11

Filter Filter Controler

Current Measurement Voltage Measurement

SLIDE 12

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

12

Zero current crossing detection Re-connection detection Voltage range detection

Islanding detection and grid reconnection control

SLIDE 13

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Simulation results

13

SLIDE 14

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Simulation scenarios

14

Adopted from: IEEE Recommended Practice for Industrial and Commercial Power Systems Analysis (Brown Book), 1997.

DER 4 L7 DER 3 L6 DER 2 L5 T1 PCC F4 F3 C9 T8 TDR4 TDR2 TDR3 C6 C8 T7 T6 C7 TL1 13.8 kV 15 MVA 69 kV 100 MVA X/R = 22.2 2 MVAr VSC 3.0 MVA VSC, 3.0 MVA VSC 0.5 MVA 0.6 kV 0.6 kV 0.6 kV (0.75+j0.08) MVA (0.73+j0.03) MVA (0.87+j0.33) MVA

Scenario 1: Intentional islanding Scenario 2: 3 phase short to ground Scenario 3: 1 phase short to ground

SLIDE 15

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Scenario1: Intentional Islanding

15

Offline Simulation Real-Time Simulation

SLIDE 16

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Scenario 1: Intentional islanding

16

Grid Voltages Reactive Power Pset Qset Qin Pin

Time / s 0.50 0.55 0.60 0.65 0.70 0.75 0.45

Real Power

Re-connection Islanding Initialisation

Real-Time Simulation

SLIDE 17

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Time / s 0.50 0.55 0.60 0.65 0.70 0.75 0.45 0.80 0.85 0.90

Scenario 2: 3-phase short to ground

17

Grid Voltages Reactive Power Pset Qset Qin Pin Real Power

Re-connection Islanding Short circuit

Offline Simulation

Real Power negative!

SLIDE 18

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Scenario 3: 1-phase short to ground

18

Time / s 0.50 0.55 0.60 0.65 0.70 0.75 0.45

Grid Voltages Reactive Power Pset Qset Qin Pin Real Power

Re-connection Islanding Short circuit

Real-Time Simulation

SLIDE 19

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Summary

Control for islanding and re-connect of microgrid:  Converter control  Supervisory control

Detection for islanding
Re-connection
Power control

19

To do

SLIDE 20

Schifani, Waffenschmidt, Iravani, IESC 2017, Farmingdale, USA

Contacts

20

Prof. Dr. Eberhard Waffenschmidt

CIRE - Cologne Institute for Renewable Energy Cologne University of Applied Sciences Betzdorferstraße 2, 50679 Köln, eberhard.waffenschmidt@th-koeln.de https://www.th-koeln.de/personen/eberhard.waffenschmidt/

Prof. Reza Iravani

Department of Electrical and Computer Engineering University of Toronto 10 King's College Road, Toronto, Ontario, Canada M5S 3G4 iravani@ecf.utoronto.ca http://www.ele.utoronto.ca/prof/iravani/iravanimain.html Marcello Schifani, MSc Alumni Student Cologne University of Applied Sciences Cologne, Germany, marcello.schifani@mail.utoronto.ca
