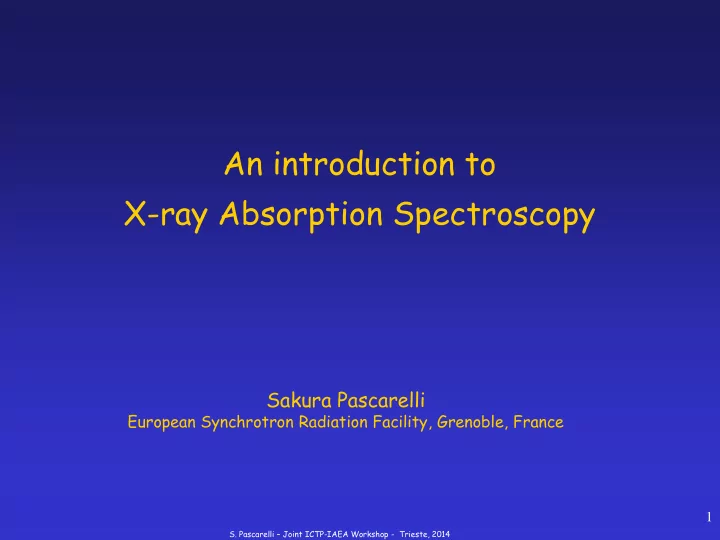

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

1

Sakura Pascarelli

European Synchrotron Radiation Facility, Grenoble, France

An introduction to X-ray Absorption Spectroscopy

slide-2
SLIDE 2
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

2

Outline

 X-ray Absorption Spectroscopy  X-ray Absorption Fine Structure (EXAFS and XANES)  Major historical EXAFS breakthroughs

slide-3
SLIDE 3
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

3

Outline

 X-ray Absorption Spectroscopy  X-ray Absorption Fine Structure (EXAFS and XANES)  Major historical EXAFS breakthroughs

slide-4
SLIDE 4
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

4

Main X-ray based techniques

 elastic diffusion  microscopic geometric structure  diffraction (crystalline solids)  scattering (amorphous solids, liquids)

 Two fundamental X-ray-matter interactions:

 photoelectric absorption  scattering (elastic, inelastic)  spectroscopy  electronic structure, local structure of matter  absorption  emission  inelastic scattering

 Two families of experimental techniques:

slide-5
SLIDE 5
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

5

The Absorption Coefficient m

I0 I t I = I0 exp[-mt]

linear absorption coefficient

mt = ln [ I0 / I ]

slide-6
SLIDE 6
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

6

  • 1. Measure I0 and I as a function of EX

polychromatic X-rays monochromatic X-rays synchrotron source monochromator incident flux monitor transmitted flux monitor sample I0 I t

  • 2. Calculate:

m t = ln [I0/I ]

The Absorption Coefficient m

slide-7
SLIDE 7
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

7

m has sudden jumps (absorption edges) which occur at energies characteristic of the element. m/r [barns/atom] 3 4 E A Z r m  m depends strongly on X-ray energy E and atomic number Z, and on the density r and atomic mass A

The Absorption Coefficient m

slide-8
SLIDE 8
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

8

Photoelectric absorption dominates the absorption coefficient in this energy range total absorption coefficient photoelectric absorption elastic scattering inelastic scattering E(eV)

Germanium m [cm-1]

102

103 104 105

106 104 102 100 10-2 10-4

slide-9
SLIDE 9
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

9

Photoelectric Absorption

X-rays (light with wavelength 0.06 ≤ l ≤ 12 Å or energy 1 ≤ E ≤ 200 keV) are absorbed by all matter through the photoelectric effect: An x-ray is absorbed by an atom when the energy of the x-ray is transferred to a core-level electron (K, L, or M shell) which is ejected from the atom. The atom is left in an excited state with an empty electronic level (a core hole). Any excess energy from the x-ray is given to the ejected photoelectron.

slide-10
SLIDE 10
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

10

De-excitation: Fluorescence and Auger Effect

When x-rays are absorbed by the photoelectric effect, the excited core-hole will relax back to a “ground state” of the atom. A higher level core electron drops into the core hole, and a fluorescent x-ray or Auger electron is emitted. X-ray fluorescence and Auger emission occur at discrete energies characteristic

  • f the absorbing atom, and can be used to identify the absorbing atom.

Auger Effect: An electron is promoted to the continuum from another core-level. X-ray Fluorescence: An x-ray with energy = the difference

  • f the core-levels is emitted.

Ka : LK, Kb : M  K 1s 2p 3p

slide-11
SLIDE 11
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

11

XAS measurements

XAS measures the energy dependence of the x-ray absorption coefficient μ(E) at and above the absorption edge of a selected element. μ(E) can be measured in several ways: Transmission: The absorption is measured directly by measuring what is transmitted through the sample: I = I0 e −μ (E)t μ(E) t = − ln (I/I0) Fluorescence: The re-filling the deep core hole is detected. Typically the fluorescent x-ray is measured. μ(E) ~ IF / I0 synchrotron source monochromator sample I0 IF I

slide-12
SLIDE 12
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

12

Outline

 X-ray Absorption Spectroscopy  X-ray Absorption Fine Structure (EXAFS and XANES)  Major historical EXAFS breakthroughs

slide-13
SLIDE 13
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

13

What is XAFS ?

X-ray Absorption Fine Structure: oscillatory variation of the X-ray absorption as a function of photon energy beyond an absorption edge. As K-edge in InAsP

0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 12000 12400 12800 13200 Absorption E (eV)

E(eV) Absorption coefficient m

Proximity of neighboring atoms strongly modulates the absorption coefficient

slide-14
SLIDE 14
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

14

EXAFS and XANES

XAFS is often broken into 2 regimes: XANES X-ray Absorption Near-Edge Spectroscopy EXAFS Extended X-ray Absorption Fine-Structure which contain related, but slightly different information about an element’s local coordination and chemical state.

As K-edge in InAsP

0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 12000 12400 12800 13200 Absorption E (eV)

Absorption coefficient m

XANES EXAFS

slide-15
SLIDE 15
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

15

0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 12000 12400 12800 13200 Absorption E (eV) Absorption coefficient m

EXAFS and XANES

XANES: transitions to unfilled bound states, nearly bound states, continuum  local site symmetry, charge state, orbital occupancy

XANES EXAFS

EXAFS: 50 - 1000 eV after edge due to transitions to continuum  local structure (bond distance, number, type of neighbors….)

slide-16
SLIDE 16
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

16

EXAFS qualitatively

isolated atom E e- condensed matter e-

R l

m k m p E E Ekin 2 2

2 2 2

 = =  =

l = 2 p/k The kinetic energy of the ejected photoelectron Ekin is: E0 Ekin

slide-17
SLIDE 17
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

17

Where do the oscillations come from ?

  • 1. As E is scanned above E0, Ekin is

varied, and consequently k and l.

  • 2. The outgoing and backscattered

parts of the wave interfere either constructively or destructively, depending on the ratio between l and R.

  • 3. It is the interference between
  • utgoing and incoming waves that

gives rise to the sinusoidal variation of m(E) Due to a quantistic effect, the autointerference of photoelectron wave modifies the absorption coefficient value:  frequency ~ distance from neighbors  amplitude ~ number and type of neighbors e-

R l

m k m p E E Ekin 2 2

2 2 2

 = =  =

slide-18
SLIDE 18
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

18

Kr gas Rh metal

slide-19
SLIDE 19
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

19

Absorption coefficient

2

ˆ ) (

  

f f I i H

E m

photoelectron core hole

1 2 3 4 continuum

1s electron

1 2 3 4 continuum

 

 ˆ

in principle, all electrons are involved  multi body process

single electron

2 1 1

ˆ

 

   

f f N f i N i

r    

j j j j

r A A       

 

  ˆ ˆ

dipole

2

ˆ ˆ

   

f f i

r 

2 1 1 2

 

  

f N N

f i

S

sudden

2 2

ˆ

 

f f i

r S      

j j j I

r A H       

slide-20
SLIDE 20
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

20

Consequences of dipole approximation: Selection rules

Dl = ± 1 Ds = 0 Dj = ± 1 Dm = 0

 For 1-electron transitions: edge initial state final state K, L1 s (l=0) p (l=1) L2, L3 p (l=1) s (l=0), d (l=2)

slide-21
SLIDE 21
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

21

Absorption coefficient

2

ˆ ) (

 

f f i

r E    m 

i f

E E  =  

p

f

  =

photoelectron core hole

1 2 3 4 continuum

s

i

1 = 

i

E

|f> very complicated  final state strongly influenced by environment |i> relatively easy  ground state of atom; i.e. 1s e- wavefunction 1s electron

1 2 3 4 continuum

 

 ˆ Approx: dipole + single electron + sudden  : photon polarization

r: electron position

slide-22
SLIDE 22
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

22

  • utgoing spherical wave originating

from the absorbing atom

f f

  =

Isolated atom: atomic absorption coefficient

photoelectron free to travel away undisturbed

 

2

ˆ

f i

r     m   

     

2 *

ˆ r r r r d

f i

        m     overlap integral of initial and final state wavefunctions: monotonically decreases as function of E e- h

slide-23
SLIDE 23
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

23

Non-isolated atom

sum of the outgoing and all the incoming waves,

  • ne per each neighboring atom.

f f f

    =

 

2

ˆ

f f i

r      m    

         

2 *

ˆ r r r r r d

f f i

          m    

         

 

   

 

   

2 * * * 2 *

ˆ ˆ ˆ Re 2 ˆ r r r r d r r r r r r r d r r r r d

f i f i f i f i

                            m       

  

EXAFS

e- h

slide-24
SLIDE 24
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

24

Origin of EXAFS

The region where  i

 0 represents simultaneously

the source and the detector for the photoelectron that probes the local structure around the absorber atom c : fractional change in m introduced by the neighbors

 

c m m  = 1

Interference between outgoing wavefunction and backscattered wavelets Dominant contribution to integral comes from spatial region close to absorber atom nucleus, where the core orbital wavefunction i ≠ 0.

     

 

   

 

   

 

   =

2 * * *

ˆ ˆ ˆ Re 2 r r r r d r r r r r r r d k

f i f i f i

                    c

(1)

slide-25
SLIDE 25
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

25

The EXAFS signal c

We’re interested in the energy dependent

  • scillations in μ (E), as these will tell us

something about the neighboring atoms, so we define the EXAFS as:

       

E E E E m m m c D  =

We subtract off the smooth “ bare atom” background μ0(E), and divide by the “edge step” D μ0(E0), to give the oscillations normalized to 1 absorption event.

0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 12000 12400 12800 13200 Absorption E (eV)

m (E) E(eV) Dm0 m0(E)

slide-26
SLIDE 26
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

26

EXAFS : c (k)

 

2

2  E E m k  =

  • 0.10
  • 0.05

0.00 0.05 0.10 5 10 15 20 k (A-1) c (k)

XAFS is an interference effect, and depends on the wave-nature of the photoelectron. It’s convenient to think of XAFS in terms of photoelectron wavenumber, k, rather than x-ray energy c (k) is often shown weighted by k2 or k3 to amplify the oscillations at high-k:

  • 3.00
  • 2.00
  • 1.00

0.00 1.00 2.00 3.00 5 10 15 20 k (A-1) k2 c (k)

slide-27
SLIDE 27
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

27

A Fourier Transform of the EXAFS signal provides a photoelectron scattering profile as a function of the radial distance from the absorber.

Qualitative picture of local coordination in R space

The frequencies contained in the EXAFS signal depend on the distance between the absorbing atom and the neighboring atoms (i.e. the length of the scattering path).

R1(SS) R2(SS), R3(SS), MS

R(A) Amplitude of FT

  • 0.10
  • 0.05

0.00 0.05 0.10 5 10 15 20 k (A-1) c (k)

c(k) k(A-1)

slide-28
SLIDE 28
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

28

  • 4
  • 2

2 4 6 8 0 1 2 3 4 5 6 7 8

Structural determinations depend on the feasibility of resolving the data into individual waves corresponding to the different types of neighbors (SS) and bonding configurations (MS) around the absorbing atom. As In As P As As InAsxP1-x absorber As atom

2 4 6 8 0 1 2 3 4 5 6 7 8

R(A) Amplitude of FT As In As In In As P In As As In

Quantitative structural determination

slide-29
SLIDE 29
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

29

c : sum of damped waves

c (k) is the sum of contributions cj (k) from backscattered wavelets:

     

 

k sin k A k

j j j

 c =

   

 =

j j k

k c c

Damping of the amplitude at large k, due to static and thermal disorder

 

2 2

2  k j j

e k f N

The larger the number

  • f neighbors, the larger

the signal

 

k R k

j j

  2

The stronger the scattering amplitude, the larger the signal Each shell contributes a sinusoidal signal which

  • scillates more rapidly

the larger the distance Each cj (k) can be approximated by a damped sine wave of the type:

slide-30
SLIDE 30
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

30

InAsxP1-x absorber As atom k(A-1) k(A-1)

  • 0.2
  • 0.1

0.1 0.2 4 8 12 16 20

  • 0.6
  • 0.4
  • 0.2

0.2 0.4 0.6 4 8 12 16 20

  • 0.6
  • 0.4
  • 0.2

0.2 0.4 0.6 4 8 12 16 20

  • 2
  • 1.5
  • 1
  • 0.5

0.5 1 1.5 2 4 8 12 16 20

As P As As As In As In shape of the envelope of each wave indicative

  • f nature of backscatterer atom:

Amplitudes

slide-31
SLIDE 31
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

31

Frequencies: Single and Multiple Scattering paths

R1 SS g2(r) f = 2 R1 R1 MS g2(r) f = 4 R1 MS g3(r) f = R1 + R2 + R3 R1 R3 R2 MS g3(r) f = 2R1 + 2R3 R1 R3 The sum over paths in the EXAFS equation includes many shells of atoms (1st neighbor, 2nd neighbor, 3rd neighbor, . . . ), but can also include multiple scattering paths, in which the photoelectron scatters from more than one atom before returning to the central atom. EXAFS can give information on the n-body distribution functions gn(r).

slide-32
SLIDE 32
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

32

The EXAFS equation

To model the EXAFS, we use the EXAFS Equation where f(k) and (k) are photoelectron scattering properties of the neighboring atom. (The sum is over “shells” of similar neighboring atoms). If we know these properties, we can determine:

R distance to neighboring atom. N coordination number of neighboring atom. 2 mean-square disorder of neighbor distance.

The scattering amplitude f(k) and phase-shift (k) depend on atomic number Z of the scattering atom, so we can also determine the species of the neighboring atom.

     ]

2 [ sin

2 2

2 2 2

k kR e kR k f N S k

j j k j j j j

j

 c

   =

slide-33
SLIDE 33
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

33

The EXAFS equation: simple description      ]

2 [ sin

2

k kR kR k f k  c   =

With spherical wave for the propagating photoelectron: and a scattering atom at a distance r = R, we get: where the neighboring atom gives the amplitude |f(k)| and phase-shift s(k) to the scattered photoelectron. Substituting into equation (1) and after some math we get:

|f(k)| eis(k)

for 1 scattering atom.

A B R I II III

Region I: amplitude

  • f outgoing wave

Region II: amplitude of wave arriving on B Region III: amplitude of backscattering on B Region II: amplitude of ingoing wave, backscattered from B

Df ~ 0f

e ikR 2kR e ikR kR

[i

eic ] eic ]

     

k k k

c s

   2  =

kr eikr

slide-34
SLIDE 34
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

34

Development of the EXAFS equation

For N scattering atoms, and with a thermal and static Gaussian disorder of 2, giving the mean square disorder in R*, we have

     ]

2 [ sin

2 2

2 2 2

k kR e kR k f N S k

k

 c

  =

A real system will have neighboring atoms at different distances and of different

  • types. We add all these contributions to get a version of the EXAFS equation:

To obtain this formula we used a spherical wave for the photoelectron:

* EXAFS takes place on a time scale much shorter than that of atomic motion, so the measurement serves as an instantaneous snapshot of the atomic configuration

     ]

2 [ sin

2 2

2 2 2

k kR e kR k f N S k

j j k j j j j

j

 c

   =

kr eikr

slide-35
SLIDE 35
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

35

The photoelectron mean free path

But the photoelectron can also scatter inelastically*, and may not be able to get back the absorbing atom. Also: The core-hole has a finite lifetime**, limiting how far the photoelectron can go.

) ( / k r ikr

e kr e

l 

Using a damped wave-function: where l(k) is the photo electron’s mean free path (including core hole lifetime), the EXAFS equation becomes: The mean free path l depends on k. For the EXAFS k range, l < 25 Å. The l and R-2 terms make EXAFS a local atomic probe.

* Electrons that have suffered inelastic losses will not have the proper wave vector to contribute to the interference process.

   

 

 ]

2 [ sin

/ 2 2 2 2

2 2

k kR e e kR k f N S k

j j k R k j j j j

j

 c

l 

   =

 

** the photoelectron and core hole exist simultaneously

slide-36
SLIDE 36
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

36

S0

2 : Amplitude Reduction Term

Another important Amplitude Reduction Term is due to the relaxation of all the

  • ther electrons in the absorbing atom to the hole in the core level:

where f

N-1 accounts for the relaxation of the other N-1 electrons relative to

these electrons in the unexcited atom: 0

N-1 . Typically S0 2 is taken as a constant:

0.7 < S0

2 < 1.0

which is found for a given central atom, and simply multiplies the XAFS c. Note that S0

2 is completely correlated with N.

This, and other experimental and theoretical issues, make EXAFS amplitudes (and therefore N) less precise than EXAFS phases (and therefore R). Usually S0

2 is found from a “standard” (data from a sample with well-known

structure) and applied to a set of unknowns as a scale factor.

2 1 1 2

 

  

f N N

f i

S

slide-37
SLIDE 37
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

37

Scattering Amplitude and Phase-Shift: f (k) and  (k)

The scattering amplitude f (k) and phase-shift  (k) depend on atomic number. The scattering amplitude f (k) peaks at different k values and extends to higher-k for heavier elements. For very heavy elements, there is structure in f (k). The phase shift (k) shows sharp changes for very heavy elements. These scattering functions can be accurately calculated (say with the programs FEFF, GNXAS, etc.), and used in the EXAFS modeling. Z can usually be determined to within 5

  • r so. Fe and O can be distinguished, but

Fe and Mn cannot be.

slide-38
SLIDE 38
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

38

Calculating f (k) and  (k)

These days, we can calculate f (k) and  (k) easily using different software codes These programs take as input:

  • 1. a list of atomic x,y,z coordinates for a physical structure
  • 2. a selected central atom.

The result is a set of files containing the f (k), and  (k) for a particular scattering “shell” or “scattering path” for that cluster of atoms. Many analysis programs use these files directly to model EXAFS data. A structure that is close to the expected structure can be used to generate a model, and used in the analysis programs to refine distances and coordination numbers.

slide-39
SLIDE 39
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

39

 Diffraction Methods (X-rays, Neutrons)  Crystalline materials with long-range ordering -> 3D picture of atomic coordinates  Materials with only short-range order (amorphous solid, liquid, or solution) -> 1D RDF containing interatomic distances due to all atomic pairs in the sample.

XAFS vs Diffraction Methods

 XAFS

 1D radial distribution function (centered at the absorber)  Higher sensitivity to local distortions (i.e. within the unit cell)  Charge state sensitivity (XANES)  Element selectivity  Structural information on the environment of each type of atom:  distance, number, kind, static and thermal disorder  3-body correlations  Investigation of matter in the solid (crystalline or amorphous), liquid, solution

  • r gaseous state with same degree of accuracy.
slide-40
SLIDE 40
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

40

EXAFS: typical applications

 Local structure in non-crystalline matter  Local environment of an atomic impurity in a matrix of different atomic species  Study of systems whose local properties differ from the average properties  Detection of very small distortions of local structure

Element selectivity Local structure sensitivity

slide-41
SLIDE 41
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

41

0.80 1.00 1.20 1.40 1.60 1.80 2.00 2.20 2.40 12000 12400 12800 13200 Absorption E (eV) Absorption coefficient m

EXAFS and XANES

XANES: transitions to unfilled bound states, nearly bound states, continuum  local site symmetry, charge state, orbital occupancy

XANES EXAFS

EXAFS: 50 - 1000 eV after edge due to transitions to continuum  local structure (bond distance, number, type of neighbors….)

slide-42
SLIDE 42
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

42

XANES Interpretation

The EXAFS Equation breaks down at low-k, and the mean-free-path goes up. This complicates XANES interpretation: We do not have a simple equation for XANES. XANES can be described qualitatively (and nearly quantitatively ) in terms of coordination chemistry regular, distorted octahedral, tetrahedral, . . . molecular orbitals p-d orbital hybridization, crystal-field theory, . . . band-structure the density of available electronic states multiple-scattering multiple bounces of the photoelectron These chemical and physical interpretations are all related, of course: What electronic states can the photoelectron fill? XANES calculations are becoming reasonably accurate and simple. These can help explain what bonding orbitals and/or structural characteristics give rise to certain spectral features. Quantitative XANES analysis using first-principles calculations are still rare, but becoming possible...

slide-43
SLIDE 43
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

43

K-Edge XANES

1s 3d Ground State Excited States

Total electron energy Main edge

Mn3+

Pre-edge Continuum

1s 3d p 1s 3d 4p 1s 3d Mn: [Ar] 3d5 4s2

slide-44
SLIDE 44
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

44

1s 3d 4p Mn4+ 1s 3d Mn4+ 1s 3d 4p Mn3+

Chemical Shift

1s 3d Ground State Mn3+ Excited States

Mn2O3 MnO2 Total electron energy

Mn: [Ar] 3d5 4s2

slide-45
SLIDE 45
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

45

Edge Shifts and Pre-edge Peaks in Fe oxides

The shift of the edge position can be used to determine the valence state. The heights and positions of pre-edge peaks can also be sometimes used to determine Fe3+/Fe2+ ratios.

XANES for Fe oxides and metal

slide-46
SLIDE 46
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

46

XANES Analysis: Oxidation State

XANES can be used simply as a fingerprint of phases and oxidation state. The Normalized XANES from several Fe compounds: XANES analysis can be as simple as making linear combinations of “known” spectra to get compositional fraction of these components.

slide-47
SLIDE 47
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

47

The XANES of Cr3+ and Cr6+ shows a dramatic dependence on oxidation state and coordination chemistry. For ions with partially filled d shells, the p-d hybridization changes dramatically as regular octahedra distort, and is very large for tetrahedral coordination. This gives a dramatic pre-edge peak – absorption to a localized electronic state.

XANES Analysis: Coordination Chemistry

Oh centrosymm

  • nly weak quadrupole

channel Td non-centrosymm p-d mixing dipole channel

slide-48
SLIDE 48
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

48

XANES: Conclusions

XANES is a much larger signal than EXAFS XANES can be done at lower concentrations, and less-than-perfect sample conditions. XANES is easier to crudely interpret than EXAFS For many systems, the XANES analysis based on linear combinations of known spectra from “model compounds” is sufficient. XANES is harder to fully interpret than EXAFS The exact physical and chemical interpretation of all spectral features is still difficult to do accurately, precisely, and reliably. This situation is improving, so stay tuned to the progress in XANES calculations . . . .

slide-49
SLIDE 49
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

49

Outline

 X-ray Absorption Spectroscopy  X-ray Absorption Fine Structure (EXAFS and XANES)  Major historical EXAFS breakthroughs

slide-50
SLIDE 50

Major historical EXAFS breakthroughs

  • Atomic scale structure in solid solutions
  • Lattice distortions around impurities in dilute alloys
  • Structure of amorphous materials

50

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-51
SLIDE 51

Solid solutions: Vegard’s law and the Virtual Crystal Approximation

ABx C1-x aAB aAC AC

AC AC

a R 4 3

0 = AB AB

a R 4 3

0 =

a(x)

 x

a a a ) x ( a

AC AB AC

  

Vegard’s Law: AB VCA:

     

x a x R x R

AC AB

4 3 = =

51

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-52
SLIDE 52

Atomic scale structure in solid solutions

  • Atomic scale structure not well understood: XRD averages

structure over distances that are large on the scale of a lattice constant.

  • Calculations of the properties of solid solutions have often

relied on simple approximations (i.e. VCA)

  • VCA assumes that all atoms occupy average lattice positions

defined by X-ray lattice constants

AxB1-xC

  • With the use of the VCA, properties of alloys may be calculated whether or not

the alloys’s lattice costant varies linearly with composition between those of the end members (follows Vegard’s law)

52

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-53
SLIDE 53

Atomic scale structure in solid solutions

  • GaAs and InAs bonds change only by 0.04 Å in whole x range !!
  • contradicts underlying assumptions of VCA
  • important distortions within unit cell accommodated by bond angle changes

53

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-54
SLIDE 54

Lattice distortions around impurities in dilute alloys

Mn Ni Ni Ni Ni

  • systematic study of substitutional impurities in fcc and bcc metals
  • important shifts in first shell bond length detected

2 % Mn in Ni Mn K edge

54

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-55
SLIDE 55

Lattice distortions around impurities in dilute alloys

Mn shifts 12 Ni nearest neighbors

  • utwards by:

0.023 ± 0.004 Å (1 % of distance)

XAFS ck2 Fourier Transform

  • f ck2

Fit

  • f 1st shell

55

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-56
SLIDE 56

Comparison to band structure calculations

Displacements  has two contributions:

  • 1. Valence difference between impurity and host:
  • change of charge density in impurity cell
  • parabolic dependence (Z)
  • 2. Magnetoelastic contribution Cr, Mn, Fe in Cu  majority and minority bands are split:
  • large magnetic moment
  • low DOS at Fermi level
  • low binding energy
  • increased interatomic distance

Cu matrix

XAS Band structure calculations

  • N. Papanikolau et al., Phys. Rev. B 55, 4157 (1997)

56

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-57
SLIDE 57

Structure of amorphous materials

Random network model: GeO2 tetrahedra connected by bridging Oxygen with deviations about bond angles such that long range periodicity destroyed Microcrystalline model: GeO2 composed of 15-20 Å crystallites – to explain long range fluctuations in RDF after removing first 3 peaks From X-ray scattering experiments on glasses:

57

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-58
SLIDE 58

EXAFS determines:

  • identical 1st shell coordination number (to within 2%)
  • increased disorder on Ge-Ge shell

 microcrystalline model definitively ruled out.

c-GeO2 g-GeO2

58

  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014
slide-59
SLIDE 59
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

59

More information: web links

International XAFS Society: http://ixs.iit.edu/ Tutorials and other Training Material: http://xafs.org/Tutorials Software Resources EXAFS: http://xafs.org/Software http://leonardo.phys.washington.edu/feff http://gnxas.unicam.it/

slide-60
SLIDE 60
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

60

More information: Books and Review Articles

Fundamentals of XAFS Introduction to XAFS: A Practical Guide to X-ray Absorption Fine Structure Spectroscopy, G. Bunker, Cambridge University Press, 2012 X-ray Absorption: Principles, Applications, Techniques of EXAFS, SEXAFS, and XANES, in Chemical Analysis 92

  • D. C. Koningsberger and R. Prins, ed., John Wiley & Sons, 1988.

Basic Principles and Applications of EXAFS, Chapter 10 in Handbook of Synchrotron Radiation, pp 995–1014.

  • E. A. Stern and S. M. Heald, E. E. Koch, ed., North-Holland, 1983

FEFF Theoretical approaches to x-ray absorption fine structure

  • J. Rehr et al., Rev. Mod. Phys. 72, 621 - 654 (2000)

GNXAS X-ray absorption spectroscopy and n-body distribution functions in condensed matter (I): theory of the GNXAS data-analysis method

  • A. Filipponi, A. Di Cicco and C. R. Natoli, Phys. Rev. B 52, 15122 (1995)

MXAN Geometrical fitting of experimental XANES spectra by a full multiple-scattering procedure M.Benfatto and S. Della Longa J. Synchr. Rad. 8 , 1087 (2001)

slide-61
SLIDE 61
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

61

How to measure the absorption coefficient m

   

t N a t a t a

e e ) ( I ) t ( I N ) ( I ln ) t ( I ln dx t N x I dI t dx N x I dI

a

m 

  

 

= =  =  =  = 

 

at/cm2 cm2/at

slide-62
SLIDE 62
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

62

  • m is related to the atomic cross section:
  • in general you find tabulated the mass absorption coefficient m/r:
  • for a generic sample PxQy…..:

     

 

1 3 2 

=                         = = cm cm gr mole gr mole at at cm A N t N

a a a

r      m                    =         M A y M A x

Q Q P P tot

r m r m r m       =                   = gr cm mole gr mole at at cm A Na

a 2 2

 r m

t N

e e ) ( I ) t ( I

a

m   

= =

slide-63
SLIDE 63
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

63

Recipe for calculating t for transmission XAS

t N

e e ) ( I ) t ( I

a

m   

= =

1. Total absorption above the edge must not be too high: m above edge t = 2  5 I / I0 ~ 0.14  0.007 ideally m above edge t = 2-3 2. Contrast at edge must be as large as possible: [ m above edge - m below edge ] t > 0.1 ideally [ m above edge - m below edge ] t = 1

If absorber is very dilute, and matrix absorbs a lot, then this is not possible  fluorescence detection

slide-64
SLIDE 64
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

64

How to calculate m

energy density u carried by X-ray beam is: linear absorption coefficient m measures the energy density reduction due to the interaction with the system of atoms:

2 2

2 2 2

A E u

  = =

 

dx du u 1  =  m

   

 

 

 

 

=  =  =  =

f if ph ph

W n A n dx d A n dx d A dx du A

2 2 2 2 2 2

2 2 2 2    m    m     m    m   

slide-65
SLIDE 65
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

65

I. Lets consider the interaction between: Monochromatic X-ray beam ( = 2pn + monoatomic sample EM field (classic) + atom (quantistic) (semi-classical description)

II. m ~ m photoelectric absorption for 1 < E < 50 keV III. Qualitatively, interaction process is: core hole

1 2 3

continuum or free energy level 1s electron

1 2 3

| i > , Ei | f >, Ef = Ei + 

X-ray Absorption

slide-66
SLIDE 66
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

66

Transition probability: Golden Rule

 m depends on: – atomic density n – transition probability Wif of atom from | i > to | f >  to calculate Wif : time-dependent perturbation theory based on power series of EM field - atom interaction potential.  The interaction is in general WEAK  Can limit series to 1st order: Golden Rule

 

=

f if

W n A2 2    m 

 

f f I i if

E H W r p

2

ˆ 2   = 

(2) (1)

I

H ˆ

f I i H 

 ˆ

Matrix element of HI between initial and final state EM field - atom interaction hamiltonian operator

 

f

E r

Density of final states, compatible with energy conservation:

Ef = Ei + 

slide-67
SLIDE 67
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

67

 the interaction hamiltonian for photoelectric absorption (see Appendix 1) is (to 1st order):  the transition probability for photoelectric absorption of a monochromatic, polarized and collimated photon beam is [(3) into (2)]:

 

j j j I

r A m e i H   =

   

(3)

 

f f j j r k i i if

E e A m e W

j

r  p

2 2 2 2

ˆ     =

 

 

(4)

slide-68
SLIDE 68
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

68

Dipole approximation

 further simplification:  transition probability in dipole approximation:  alternative and equivalent expression :  finally one gets [(5) into (1)]:

 

1 ! 2 1

2

     =

    

  j j r k i

r k r k i e

j

 

f f j j i if

E A m e W r  p

2 2 2 2

ˆ     =

 

 

f f j j i if

E r A e W r   p

2 2 2 2

ˆ    =

 

(5) (6)

1

2 

 j r k if  

 

=

f

n e

2

2   p  m

 

f f j j i

E r r 

2

ˆ     

slide-69
SLIDE 69
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

69

 if |i > and |f > are known (if wavefunctions and energies can be calculated): 1) calculate Wif 2) calculate m  in practice, one is interested in inverse process: 1) measure m 2) extract EXAFS 3) obtain information on local structure through |f >  but, to obtain structural info, one still needs to calculate |i > and |f >

  • r at least be able to express their structural properties in parametric form

– |i > relatively easy

  • ground state of atom

– |f > in general very complicated

  • in principle, all electrons are involved -> multi body process
  • final state strongly influenced by environment

 

=

f

n e

2

2   p  m

 

f f j j i

E r r 

2

ˆ     

slide-70
SLIDE 70
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

70

Single electron approximation

 large part of m due to “elastic” transitions: – only 1 electron out of N modifies its state: leaves its deep core level – all other N-1 “passive” electrons relax their orbitals to adapt to the new potential created by presence of core hole  remaining part of m due to “inelastic” transitions: – primary excitation of core electron provokes successive excitations

  • f other (external) electrons (shake up, shake off processes)

– excess energy distributed among all excited electrons

     

 m  m  m

inel el

 =

 

 

f f N f i N i el

r  r     m

2 1 1

ˆ

 

    

1 

N

i

Slater determinant of “passive” electrons’ wavefunctions

f

r   , ,

Wavefunction, position vector, final energy of “active” electron where

slide-71
SLIDE 71
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

71

“Sudden” approximation and overlap factor

– if photoelectron energy is sufficiently high (E > few 10 eV above edge)

 time to exit atom << relaxation time of passive electrons  its state not influenced by passive electrons relaxation

 

 

f f i el

S r  r     m

2 2

ˆ   

where

2 1 1 2  

  =

N f N i

S – Allows to reduce interpretation of EXAFS to the calculation

  • f the final state of ONLY the photoelectron

(S0

2 ~ 0.7 - 0.9)

(7)

slide-72
SLIDE 72
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

72

The polarization dependent dipole operator

dipole operator in terms of spherical harmonics dipole operator a = x, y , z X-ray prop direction q = +1, 0, -1 polarization states (q photon angular momentum)

2

ˆ ) (

 

f f i

r E    m 

electron position vector photon polarization vectors linear polarization circular polarization with k // z

slide-73
SLIDE 73
  • S. Pascarelli – Joint ICTP-IAEA Workshop - Trieste, 2014

73

The dipole selection rules

By looking at the non-zero matrix elements we get the dipole selection rules where q is the X-ray angular momentum

2

ˆ ) (

 

f f i

r E    m 

matrix elements factor into spin, radial and angular parts
