An Embedded Robotic Wheelchair Control Architecture with Reactive Navigations Design by: Chung-Hsien Kuo, Yao-Sheng Syu, Tsung-Chin Tsai and Ting- Shuo Chen Presentation by: Joshua Henderson 1 Motivation Lower costs of automated

slide-1
SLIDE 1

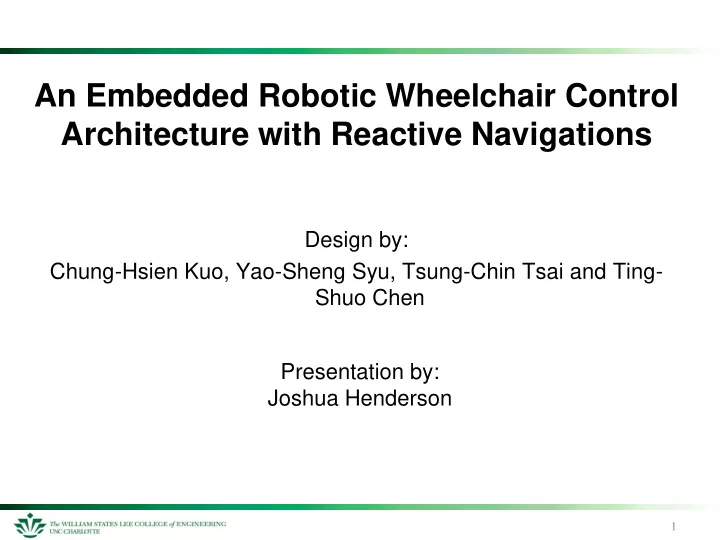

An Embedded Robotic Wheelchair Control Architecture with Reactive Navigations

Design by: Chung-Hsien Kuo, Yao-Sheng Syu, Tsung-Chin Tsai and Ting- Shuo Chen

1

Presentation by: Joshua Henderson

slide-2
SLIDE 2

Motivation

  • Lower costs of automated wheelchairs
  • Give increased mobility to the handicapped
  • Increased safety of the handicapped

2

slide-3
SLIDE 3

Navigation Architectures

3

  • Embedded approach allows faster real-time responses
  • Reduces the need for interrupts and polling at the application

level

  • Allows for faster response times
slide-4
SLIDE 4

Microcontroller

  • Xscale PXA270
  • Part of Marvell’s implementation of the ARMv5 architecture
  • Embedded Linux with kernel 2.6.15

4

slide-5
SLIDE 5

Artificial Potential Fields (APF)

  • Desired destination is represented by low points
  • High points are objects to be avoided

5

slide-6
SLIDE 6

Artificial Potential Fields

6

Destination Obstacle

slide-7
SLIDE 7

Navigation Flow Chart

7

  • Reactive Navigation is inactive until an obstacle is within 2m
  • Applies APF
  • Generates Justified Command
slide-8
SLIDE 8

System Architecture and Device Drivers

8

slide-9
SLIDE 9

Wheelchair

9

slide-10
SLIDE 10

GUI and Information Display

10

slide-11
SLIDE 11

Simulation

11

Simulated using Microsoft Visual C++

slide-12
SLIDE 12

Results

12

Manual Navigation Reactive Navigation Averaged Results

Red = Reactive Blue = Manual

slide-13
SLIDE 13

Conclusion

  • Embedded Systems result in lower costs and provide

improved reaction times

  • Reactive Navigation gives the user a smoother ride and

helps prevent collisions

  • Future Improvements
  • Voice commands
  • Fully autonomous navigation

13

slide-14
SLIDE 14

References

http://www.youtube.com/watch?v=r9FD7P76zJs http://web.eecs.utk.edu/~parker/Courses/CS594-fall08/Lectures/Oct-16- Potential-Fields.pdf http://en.wikipedia.org/wiki/XScale

  • J. Liu, H. Zhang, B. Fan, G. Wang, and J. Wu, “A Novel Economical

Embedded Multi-mode Intelligent Control System for Powered Wheelchair” Chung-Hsien Kuo, Yao-Sheng Syu, Tsung-Chin Tsai and Ting-Shuo Chen “An Embedded Robotic Wheelchair Control Architecture with Reactive Navigations”

14
