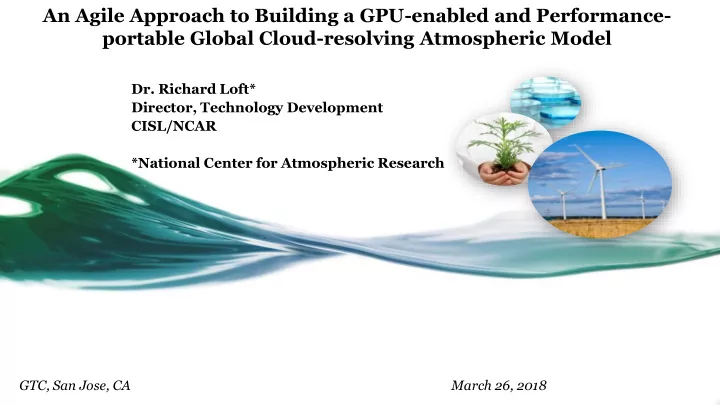

An Agile Approach to Building a GPU-enabled and Performance- portable Global Cloud-resolving Atmospheric Model

• Dr. Richard Loft*

Director, Technology Development CISL/NCAR *National Center for Atmospheric Research GTC, San Jose, CA March 26, 2018

Outline

• Origins Backstory
• The MPAS Model
• Team
• Tools and Design
• Status

2

Project began with research based on student projects

• Two years of student internship projects in the Summer Internships in Parallel

Computational Science (SIParCS) at NCAR funded student projects related to architectural inter-comparison.

• Projects focused on optimizing atmospheric numerical PDE solvers for both

CPUs and GPUs with performance portability in mind.

• Architectures compared:
• Xeon Broadwell, Haswell;
• Xeon Phi KNL;
• NVIDIA Tesla P100->V100.

3

Benchmark Problem

• Shallow Water Equations (SWE)

– A set of non-linear partial differential equations (PDE) – Capture features of atmospheric flow around the Earth

• Radial basis function-generated finite difference (RBF-FD) methods

RBF-FD solution to SWE test case “Flow over an isolated mountain” using 655,532 points [1]

3

An example of 75-point stencil

• n a sphere [1]

Evaluate differential

• perator D at every point

Stencil points Non-stencil points Cone-shaped mountain Day 1 Day 15

4

Optimizing Stencils for different architectures

Insufficient Workload Parallelism Sufficient Workload Parallelism

Directive-based portability in the RBF-FD shallow water equations (2-D unstructured stencil)

• CI roofline model generally

predicts performance well, even for more complicated algorithms.

• Xeon performance crashes to

DRAM BW limit when cache size is exceeded, with some state reuse.

• Xeon Phi (KNL) HBM memory is

less sensitive to problem size that Xeon, saturates with CI figure.

• NVIDIA Pascal P100 performance

fits CI model GPU’s require higher levels of parallelism to reach saturation.

50 100 150 200 250 300 350

Performance (GFLOPS) Broadwell KNL P100

5

What is MPAS? – The Model for Prediction Across Scales NCAR’s Global Meteorological/Climate Model; ~100,000 SLOC

6

Simulation of 2012 Tropical Cyclones at 4Km Resolution – Courtesy of Falko Judt, NCAR

Weather and Climate Alliance (WACA):

• NCAR
• NVIDIA Corporation
• IBM Corporation/The Weather Company
• University of Wyoming, CE&EE Department
• Korean Institute of Science and Technology Information (KISTI)

7

Initial Divide and Conquer Strategy

8

MPAS Dynamics MPAS Physics Problem Reports and Support Ideas and Results

Weather and Climate Alliance (WACA):

A Collaboration for Earth System Model Acceleration

• NCAR (2+4)
• Dr. Rich Loft, Director TDD
• Dr. Raghu Raj Kumar, Project Scientist TDD
• Clint Olson, TDD
• Bill Skamarock, Senior Science, MMM
• Michael Duda, Software Engineer, MMM
• Dave Gill, Software Engineer, MMM
• KISTI (2+1)
• Minsu Joh, KISTI Director, Disaster Management Research Center
• Dr. Ji-Sun Kang. Senior Researcher
• Jae-Youp Kim, GRA
• NVIDIA/PGI (1+3)
• Greg Branch, NVIDIA, Sales
• Dr. Carl Ponder, Senior Applications Engineer
• Brent Leback, PGI Compiler Engineering Manager
• Craig Tierny, Solutions Architect
• University of Wyoming (1+5)
• Dr. Suresh Muknahallipatna, Professor E&CE, UW
• Supreeth Suresh, Pranay Reddy, Sumathi Lakshmiranganathan, Cena Miller, Bradley Riotto - GRAs

9

~6 PI +13 technical staff Started in September 2016 (18 months) ~9 FTE-years

10 Problem Reports and Support

Since September: added IBM and The Weather Company

IBM/TWC participants (1+2)

• Jaime Moreno
• Todd Hutchinson
• Constantinos Evangelinos

Tools for Accelerating Code Optimization

• Kernel GENerator (KGEN)
• Extracts kernels from Fortran applications
• Creates:
• Standalone source code
• Input and output state for verification
• Added support for code coverage and representation
• Broad user community
• 8 Domestic institutions
• 5 international institutions
• 1 Company
• Available on Github:

https://github.com/NCAR/KGen

11

KGEN is a useful tool for accelerating code porting and optimization

MPAS Synchronous and Asynchronous Execution

LW and SW Radiation Dynamics and Physics Asynch I/O Land Surface

:

Dynamics and Physics Land Surface

:

LW and SW Radiation

• r

LW and SW Radiation LW and SW Radiation

• r
• r

Disk 𝛦t

• r

Phase 2: pushing on to a full MPAS port

• Status of GPU-based model components
• Ported, optimized, verified
• Dry dynamical core
• GPU-direct implementation of MPAS halo exchanges
• Ported, optimized
• Moist dynamics (tracer transport)
• Xu-Randall Cloud fraction
• Ported, undergoing optimization
• WSM6 Microphysics
• YSU Boundary layer scheme
• Awaiting Porting
• Scale Insensitive Tiedtke convection scheme
• Monin-Obukhov surface layer scheme
• CPU-based components
• Overlapping SW and LW RRTMG Radiation (lagged radiation)
• NOAH Land Surface Model (synchronous, remains on CPU)
• SIONlib I/O subsystem

13

IBM/TWC MPAS Objectives

• MPAS grid with local refinement

24-hour global forecasts

• 12 km global grid
• 3 km refinement over

selected regions.

• 32.8 M horizontal points
• 56 layers

Forecast requirement

• Complete 20 hour simulation
• …in 45 minutes
• xRe = 26.7
• For 𝛦t = 18 sec, timestep

budget is 0.674 seconds

14

Refined grids can be generated anywhere desired.

• Dr. Kumar will show next that as few as 800 V100s could achieve this goal…
