slide-1
SLIDE 1

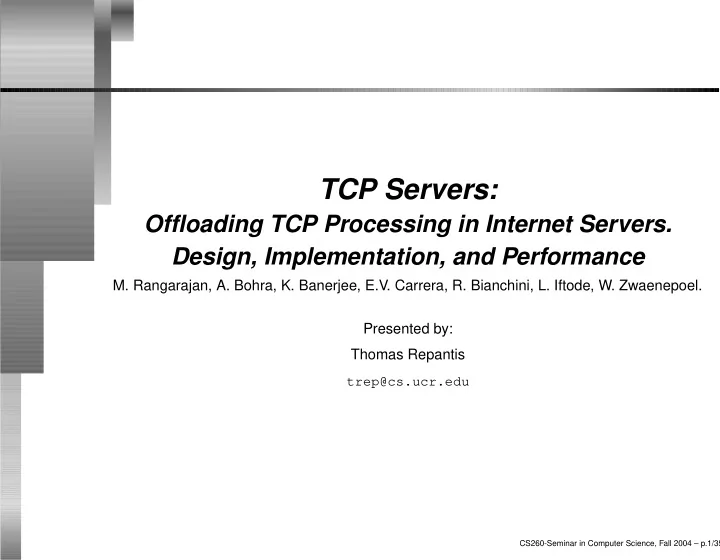

TCP Servers:

Offloading TCP Processing in Internet Servers. Design, Implementation, and Performance

  • M. Rangarajan, A. Bohra, K. Banerjee, E.V. Carrera, R. Bianchini, L. Iftode, W. Zwaenepoel.

Presented by: Thomas Repantis

trep@cs.ucr.edu

CS260-Seminar in Computer Science, Fall 2004 – p.1/35

slide-2
SLIDE 2

Overview

To execute the TCP/IP processing on a dedicated processor, node, or device (the TCP server) using low-overhead, non-intrusive communication between it and the host(s) running the server application. Three TCP Server architectures:

  • 1. A dedicated network processor on a symmetric

multiprocessor (SMP) server.

  • 2. A dedicated node on a cluster-based server built

around a memory-mapped communication interconnect such as VIA.

  • 3. An intelligent network interface in a cluster of

intelligent devices with a switch-based I/O interconnect such as Infiniband.

CS260-Seminar in Computer Science, Fall 2004 – p.2/35

slide-3
SLIDE 3

Introduction

  • The network subsystem is nowadays one of the

major performance bottlenecks in web servers: Every outgoing data byte has to go through the same processing path in the protocol stack down to the network device.

  • Proposed solution a TCP Server architecture:

Decoupling the TCP/IP protocol stack processing from the server host, and executing it on a dedicated processor/node.

CS260-Seminar in Computer Science, Fall 2004 – p.3/35

slide-4
SLIDE 4

Introductory Details

  • The communication between the server host and

the TCP server can dramatically benefit from using low-overhead, non-intrusive, memory-mapped communication.

  • The network programming interface provided to

the server application must use and tolerate asynchronous socket communication to avoid data copying.

CS260-Seminar in Computer Science, Fall 2004 – p.4/35

slide-5
SLIDE 5

Apache Execution Time Breakdown

CS260-Seminar in Computer Science, Fall 2004 – p.5/35

slide-6
SLIDE 6

Motivation

  • The web server spends in user space only 20% of

its execution time.

  • Network processing, which includes TCP

send/receive, interrupt processing, bottom half processing, and IP send/receive take about 71%

  • f the total execution time.
  • Processor cycles devoted to TCP processing,

cache and TLB pollution (OS intrusion on the application execution).

CS260-Seminar in Computer Science, Fall 2004 – p.6/35

slide-7
SLIDE 7

TCP Server Architecture

  • The application host avoids TCP processing by

tunneling the socket I/O calls to the TCP server using fast communication channels.

  • Shared memory and memory-mapped

communication for tunneling.

CS260-Seminar in Computer Science, Fall 2004 – p.7/35

slide-8
SLIDE 8

Advantages

  • Kernel Bypassing.
  • Asynchronous Socket Calls.
  • No Interrupts.
  • No Data Copying.
  • Process Ahead.
  • Direct Communication with File Server.

CS260-Seminar in Computer Science, Fall 2004 – p.8/35

slide-9
SLIDE 9

Kernel Bypassing

  • Bypassing the host OS kernel.
  • Establishing a socket channel between the

application and the TCP server for each open socket.

  • The socket channel is created by the host OS

kernel during the socket call.

CS260-Seminar in Computer Science, Fall 2004 – p.9/35

slide-10
SLIDE 10

Asynchronous Socket Calls

  • Maximum overlapping between the TCP

processing of the socket call and the application execution.

  • Avoid context switches whenever this is possible.

CS260-Seminar in Computer Science, Fall 2004 – p.10/35

slide-11
SLIDE 11

No Interrupts

  • Since the TCP server exclusively executes TCP

processing, interrupts can be apparently easily and beneficially replaced with polling.

  • Too high polling frequency rate would lead to bus

congestion while too low would result in inability to handle all events.

CS260-Seminar in Computer Science, Fall 2004 – p.11/35

slide-12
SLIDE 12

No Data Copying

  • With asynchronous system calls, the TCP server

can avoid the double copying performed in the traditional TCP kernel implementation of the send

  • peration.
  • The application must tolerate the wait for

completion of the send.

  • For retransmission, the TCP server can read the

data again from the application send buffer.

CS260-Seminar in Computer Science, Fall 2004 – p.12/35

slide-13
SLIDE 13

Process Ahead

  • The TCP server can execute certain operations

ahead of time, before they are actually requested by the host.

  • Specifically, the accept and receive system calls.

CS260-Seminar in Computer Science, Fall 2004 – p.13/35

slide-14
SLIDE 14

Direct Communication with File Server

  • In a multi-tier architecture a TCP server can be

instructed to perform direct communication with the file server.

CS260-Seminar in Computer Science, Fall 2004 – p.14/35

slide-15
SLIDE 15

TCP Server in an SMP-based Architecture

  • Dedicating a subset of the processors for in-kernel

TCP processing.

  • Network generated interrupts are routed to the

dedicated processors.

  • The communication between the application and

the TCP server is through queues in shared memory.

CS260-Seminar in Computer Science, Fall 2004 – p.15/35

slide-16
SLIDE 16

SMP-based Architecture Details

  • Offloading interrupts and receive processing.
  • Offloading TCP send processing.

CS260-Seminar in Computer Science, Fall 2004 – p.16/35

slide-17
SLIDE 17

TCP Server in a Cluster-based Architecture

  • Dedicating a subset of nodes to TCP processing.
  • VIA-based SAN interconnect.

CS260-Seminar in Computer Science, Fall 2004 – p.17/35

slide-18
SLIDE 18

Cluster-based Architecture Operation

  • The TCP server node acts as the network

endpoint for the outside world.

  • The network data is transferred between the host

node and the TCP server node across SAN using low latency memorymapped communication.

CS260-Seminar in Computer Science, Fall 2004 – p.18/35

slide-19
SLIDE 19

Cluster-based Architecture Details

  • The socket call interface is implemented as a user

level communication library.

  • With this library a socket call is tunneled across

SAN to the TCP server.

  • Several implementations:
  • 1. Split-TCP (synchronous)
  • 2. AsyncSend
  • 3. Eager Receive
  • 4. Eager Accept
  • 5. Setup With Accept

CS260-Seminar in Computer Science, Fall 2004 – p.19/35

slide-20
SLIDE 20

TCP Server in an Intelligent-NIC-based Architecture

  • Cluster of intelligent devices over a

switched-based I/O (Infiniband).

  • The devices are considered to be "intelligent", i.e.,

each device has a programmable processor and local memory.

CS260-Seminar in Computer Science, Fall 2004 – p.20/35

slide-21
SLIDE 21

Intelligent-NIC-based Architecture Details

  • Each open connection is associated with a

memory-mapped channel between the host and the I-NIC.

  • During a message send, the message is

transferred directly from user-space to a send buffer at the interface.

  • A message receive is first buffered at the network

interface and then copied directly to user-space at the host.

CS260-Seminar in Computer Science, Fall 2004 – p.21/35

slide-22
SLIDE 22

4-way SMP-based Evaluation

  • Dedicating two processors to network processing

is always better than dedicating only one.

  • Throughput benefits of up to 25-30%.

CS260-Seminar in Computer Science, Fall 2004 – p.22/35

slide-23
SLIDE 23

4-way SMP-based Evaluation

CS260-Seminar in Computer Science, Fall 2004 – p.23/35

slide-24
SLIDE 24

4-way SMP-based Evaluation

  • When only one processor is dedicated to the

network processing, the network processor becomes a bottleneck and, consequently, the application processor suffers from idle time.

  • When we apply two processors to the handling of

the network overhead, there is enough network processing capacity and the application processor becomes the bottleneck.

  • The best system would be one in which the

division of labor between the network and application processors is more flexible, allowing for some measure of load balancing.

CS260-Seminar in Computer Science, Fall 2004 – p.24/35

slide-25
SLIDE 25

2-node Cluster-based Evaluation for Static Load

  • Asynchronous send operations outperform their

counterparts

CS260-Seminar in Computer Science, Fall 2004 – p.25/35

slide-26
SLIDE 26

2-node Cluster-based Evaluation for Static Load

  • Smaller gain than that achievable with SMP-based

architecture.

  • 17% is the greatest throughput improvement we

can achieve with this architecture/workload combination.

CS260-Seminar in Computer Science, Fall 2004 – p.26/35

slide-27
SLIDE 27

2-node Cluster-based Evaluation for Static Load

  • In the case of Split-TCP and AsyncSend the host

has idle time available since it is the network processing at the TCP server that proves to be the bottleneck.

CS260-Seminar in Computer Science, Fall 2004 – p.27/35

slide-28
SLIDE 28

2-node Cluster-based Evaluation for Static and Dynamic Load

  • Split TCP and Async Send systems saturate later

than Regular TCP .

CS260-Seminar in Computer Science, Fall 2004 – p.28/35

slide-29
SLIDE 29

2-node Cluster-based Evaluation for Static and Dynamic Load

  • At an offered load of about 500 reqs/sec, the host

CPU is effectively saturated.

  • 18% is the greatest throughput improvement we

can achieve with this architecture.

CS260-Seminar in Computer Science, Fall 2004 – p.29/35

slide-30
SLIDE 30

2-node Cluster-based Evaluation for Static and Dynamic Load

  • Balanced confgurations depend heavily on the

particular characteristics of the workload.

  • A dynamic load balancing scheme between host

and TCP server nodes is required for ideal performance in dynamic workloads

CS260-Seminar in Computer Science, Fall 2004 – p.30/35

slide-31
SLIDE 31

Intelligent-NIC-based Simulation Evaluation

  • For all the simulated processor speeds, the

Split-TCP system outperforms all the other implementations.

  • The improvements over a conventional system

range from 20% to 45%.

CS260-Seminar in Computer Science, Fall 2004 – p.31/35

slide-32
SLIDE 32

Intelligent-NIC-based Simulation Evaluation

  • The ratio of processing power at the host to that

available at the NIC plays an important role in determining the server performance.

  • In Split-TCP the processor on the NIC saturates

much earlier than the host processor or the network.

CS260-Seminar in Computer Science, Fall 2004 – p.32/35

slide-33
SLIDE 33

Conclusions about TCP Servers 1/2

  • Offloading TCP/IP processing is beneficial to
  • verall system performance when the server is
  • verloaded.
  • An SMP-based approach to TCP servers is more

efficient than a cluster-based one.

  • The benefits of SMP and cluster-based TCP

servers reach 30% in the scenarios we studied.

  • The simulated results show greater gains of up to

45% for a cluster of devices.

CS260-Seminar in Computer Science, Fall 2004 – p.33/35

slide-34
SLIDE 34

Conclusions about TCP Servers 2/2

  • TCP servers require substantial computing

resources for complete offloading.

  • The type of workload plays a significant role in the

efficiency of TCP servers.

  • Depending on the application workload, either the

host processor or the TCP Server can be- come the bottleneck.

  • Hence, a scheme to balance the load between the

host and the TCP Server would be beneficial for server performance.

CS260-Seminar in Computer Science, Fall 2004 – p.34/35

slide-35
SLIDE 35

Thank you!

Questions/comments?

CS260-Seminar in Computer Science, Fall 2004 – p.35/35
