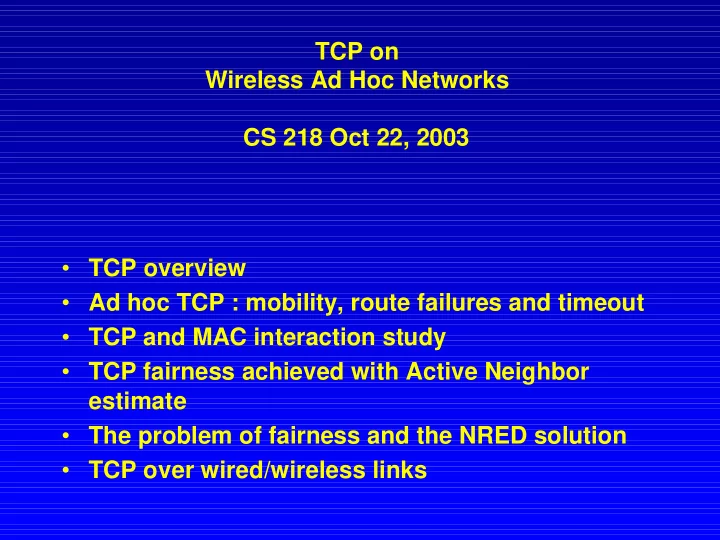

TCP on Wireless Ad Hoc Networks CS 218 Oct 22, 2003

  • TCP overview
  • Ad hoc TCP : mobility, route failures and timeout
  • TCP and MAC interaction study
  • TCP fairness achieved with Active Neighbor

estimate

  • The problem of fairness and the NRED solution
  • TCP over wired/wireless links
slide-2
SLIDE 2

TCP ad hoc: Relevant literature

Holland and Vaidya: Impact of Routing and Link Layers

  • n TCP Perofrmance in mobile ad hoc nets, Mobicom 99
  • T. D. Dyer and R. V. Boppana, "A Comparison of TCP

Performance over Three Routing Protocols for Mobile Ad Hoc Networks," In Proceedings of Mobihoc 2001, 2001.

  • K. Tang and M. Gerla, "Fair Sharing of MAC under TCP in

Wireless Ad Hoc Networks," In Proceedings of IEEE MMT'99, Venice, Italy, Oct. 1999.

  • Kaixin Xu, et al TCP Behavior across Multihop Wireless

Networks and the Wired Internet -ACM WoWMoM 2002 (co-located with MobiCom 2002), Atlanta, Ga, Sep. 2002

slide-3
SLIDE 3

TCP Congestion Control

  • end-end control (no network

assistance)

  • sender limits transmission:

LastByteSent-LastByteAcked ≤ CongWin

Roughly,

  • CongWin is dynamic, function
  • f perceived network

congestion How does sender perceive congestion?

  • loss event = timeout
  • r 3 duplicate acks
  • TCP sender reduces

rate (CongWin) after loss event two mechanisms:

– AIMD – slow start

rat e = CongWin RTT Byt es/ sec

slide-4
SLIDE 4

TCP AIMD

8 Kbytes 16 Kbytes 24 Kbytes time congestion window

multiplicative decrease: cut CongWin in half after loss event additive increase: increase CongWin by 1 MSS every RTT in the absence of loss events: probing Long-lived TCP connect ion

slide-5
SLIDE 5

TCP Slow Start

  • When connection begins,

CongWin = 1 MSS

– Example: MSS = 500 bytes & RTT = 200 msec – initial rate = 20 kbps

  • available bandwidth may be

>> MSS/RTT

– desirable to quickly ramp up to respectable rate

  • When connection begins,

increase rate exponentially fast until first loss event

slide-6
SLIDE 6

TCP Slow Start (more)

  • When connection begins,

increase rate exponentially until first loss event:

– double CongWin every RTT – done by incrementing CongWin for every ACK received

  • Summary: initial rate is

slow but ramps up exponentially fast

Host A

  • ne segment

RTT

Host B

t ime

two segments four segments

slide-7
SLIDE 7

Refinement

  • After 3 dup ACKs:

– CongWin is cut in half – window then grows linearly

  • But after timeout event:

– CongWin instead set to 1 MSS; – window then grows exponentially – to a threshold, then grows linearly

  • 3 dup ACKs indicat es

net work capable of delivering some segment s

  • t imeout bef ore 3 dup

ACKs is “ more alarming”

P hilosophy:

slide-8
SLIDE 8

Refinement (more)

Q: When should the exponential increase switch to linear? A: When CongWin gets to 1/2 of its value before timeout.

Implementation:

  • Variable Threshold
  • At loss event, Threshold is

set to 1/2 of CongWin just before loss event

2 4 6 8 10 12 14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Transmission round congestion window size (segments) Series1 Series2

threshold TCP Tahoe TCP Reno

slide-9
SLIDE 9

Summary: TCP Congestion Control

  • When CongWin is below Threshold, sender in slow-start

phase, window grows exponentially.

  • When CongWin is above Threshold, sender is in

congestion-avoidance phase, window grows linearly.

  • When a triple duplicate ACK occurs, Threshold set to

CongWin/2 and CongWin set to Threshold.

  • When timeout occurs, Threshold set to CongWin/2 and

CongWin is set to 1 MSS.

slide-10
SLIDE 10

Impact of Mobility on TCP

  • Mobility causes route changes
slide-11
SLIDE 11

Impact of Multi-Hop Wireless Paths

200 400 600 800 1000 1200 1400 1600 1 2 3 4 5 6 7 8 9 10 Number of hops TCP Throughtput (Kbps)

TCP Throughput using 2 Mbps 802.11 MAC

slide-12
SLIDE 12

Throughput Degradations with Increasing Number of Hops

  • Packet transmission can occur on at most one hop among

three consecutive hops

  • Increasing the number of hops from 1 to 2, 3 results in

increased delay, and decreased throughput

  • Increasing number of hops beyond 3 allows simultaneous

transmissions on more than one link, however, degradation continues due to contention between TCP Data and Acks traveling in opposite directions

  • When number of hops is large enough, the throughput

stabilizes due to effective pipelining

slide-13
SLIDE 13

Mobility: Throughput generally degrades with increasing speed …

Speed (m/s) Average Throughput Over 50 runs Ideal Actual

slide-14
SLIDE 14

mobility causes link breakage, resulting in route failure TCP data and acks en route discarded

Why Does Throughput Degrade?

TCP sender times out. Starts sending packets again Route is repaired

No throughput No throughput despite route repair

slide-15
SLIDE 15

mobility causes link breakage, resulting in route failure TCP data and acks en route discarded

Why Does Repair Latency hurt?

TCP sender times out. Backs off timer. Route is repaired TCP sender times out. Resumes sending

No throughput No throughput despite route repair

slide-16
SLIDE 16

How to Improve Throughput (Bring Closer to Ideal)

  • Network feedback
  • Inform TCP of route failure by explicit message
  • Let TCP know when route is repaired

– Probing (eg, persistent pkt retransmissions) – Explicit link repair notification

  • Alleviates repeated TCP timeouts and backoff
slide-17
SLIDE 17

Performance with Explicit Notification

0.2 0.4 0.6 0.8 1 2 10 20 30 mean speed (m/s) throughput as a fraction of ideal Base TCP With explicit notification

slide-18
SLIDE 18

Impact of Caching

  • Route caching has been suggested as a

mechanism to reduce route discovery overhead [Broch98]

  • Each node may cache one or more routes to a

given destination

  • When a route from S to D is detected as broken,

node S may:

– Use another cached route from local cache, or – Obtain a new route using cached route at another node

slide-19
SLIDE 19

To Cache or Not to Cache

Average speed (m/s)

Actual throughput (as fraction of expected throughput)

slide-20
SLIDE 20

Why Performance Degrades With Caching

  • When a route is broken, route discovery returns a cached

route from local cache or from a nearby node

  • After a time-out, TCP sender transmits a packet on the new

route. However, what if the cached route has also broken after it was cached?

  • Another route discovery, and TCP time-out interval
  • Process repeats until a good route is found

timeout due to route failure timeout, cached route is broken timeout, second cached route also broken

slide-21
SLIDE 21

Issues To Cache or Not to Cache

  • Caching can result in faster route “repair”
  • Faster does not necessarily mean correct!
  • If incorrect repairs occur often enough, caching

performs poorly

  • Need mechanisms for determining when cached

routes are stale

slide-22
SLIDE 22

Caching and TCP performance

  • Caching can reduce overhead of route discovery

even if cache accuracy is not very high

  • But if cache accuracy is not high enough, gains

in routing overhead may be offset by loss of TCP performance due to multiple time-outs

slide-23
SLIDE 23

TCP Performance

Two factors result in degraded throughput in presence of mobility:

  • Loss of throughput that occurs while waiting for

TCP sender to timeout (as seen earlier)

– This factor can be mitigated by using explicit notifications and better route caching mechanisms

  • Poor choice of congestion window and RTO

values after a new route has been found

– How to choose cwnd and RTO after a route change?

slide-24
SLIDE 24

Issues Window Size After Route Repair

  • Same as before route break: may be too
  • ptimistic
  • Same as startup: may be too conservative
  • Better be conservative than overly optimistic

– Reset window to small value after route repair – Let TCP ramp up to suitable window size – Anyway, window impact low on paths with small delay-bdw product

slide-25
SLIDE 25

Issues RTO After Route Repair

  • Same as before route break

– If new route long, this RTO may be too small, leading to premature timeouts and unnecessary retransmissions

  • Same as TCP start-up (6 second)

– May be too large – May result in slow response to next packet loss

  • Another plausible approach: new RTO = function of old

RTO, old route length, and new route length

– Example: new RTO = old RTO * new route length / old route length – Not evaluated yet – Pitfall: RTT is not just a function of route length
