NSRI: Support for the Developer Community Ambient Lifting and Ballast Technology Update 23 rd September 2015, Michael Cowie Presentation Overview Ecosse Subsea Systems ESS Ethos Imagine if Ambient Lifting Technology

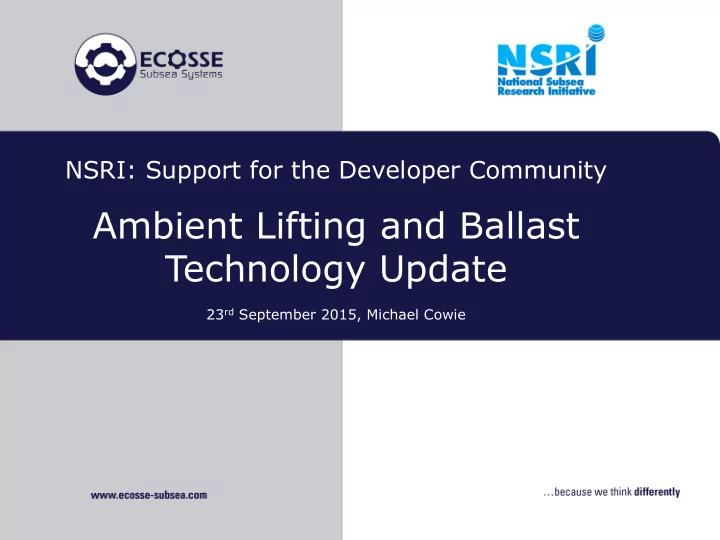

  1. NSRI: Support for the Developer Community Ambient Lifting and Ballast Technology Update 23 rd September 2015, Michael Cowie

  2. Presentation Overview • Ecosse Subsea Systems • ESS Ethos • Imagine if…… • Ambient Lifting Technology – theory and examples • Status of technology

  3. Ecosse Subsea Systems ESS is a Technology Based Company: Established in 1996 • 100% Scottish owned • Initially O & G focused, diversified into Offshore Renewables • Core business: • Ø Subsea engineering consultancy Ø Offshore contracting Ø Technology development and implementation

  4. ESS Ethos Provision of Subsea Services that are focused on being: • Safe • Simple • Robust • Cost-effective Ø Off-the Shelf Components Ø Negate the requirement for specialist vessels Ø Installable by local people and vessels Ø Recoverable, recyclable

  5. Imagine if…….. • Image installing a 450Te Foundation utilising a Multicat Vessel in extreme environmental conditions…… • Imagine recovering a 600Te+ structure using an Anchor Handler vessel in remote locations…… This can be achieved with Ambient Lifting and Ballast Technology where: Ø Spread cost is more than halved Ø Weather risk is significantly reduced Ø Vessel choice is increased

  6. Ambient Lifting

  7. Ambient Lifting – General Overview • Ambient lifting is a flexible mechanism that allows you to control the ascent, descent and underwater positioning of offshore structures. • Innovative subsea lifting without use of heavy-lift vessels. • Ambient lifting can be used in a variety of industries including Oil & Gas, Decommissioning, Offshore Wind, Wave & Tidal Energy.

  8. Ambient Lifting: Theory Examples

  9. Structure INSTALLATION / RECOVERY Example • Structure is designed to be buoyant when flooded with fluid • Structure is positioned over structure Te to be recovered Neutrally Buoyant 300Te 9

  10. Structure INSTALLATION / RECOVERY Example • Structure is neutrally buoyant • Structure encloses over top of structure and is locked in Te 300Te 10

  11. Structure INSTALLATION / RECOVERY Example Te • Fluid in receptacle is replaced by gas • Structure is recovered to surface in a very controlled manner 300Te 11

  12. Structure FOUNDATION Example Te 250Te • In air structural weight 0kg 12

  13. Structure FOUNDATION Example • In-water structural weight Te • Buoyancy in receptacle designed to ensure structure is neutrally 250Te buoyant Neutrally Buoyant 250Te 250Te 13

  14. Structure FOUNDATION Example • In-water weight increased by adding ballast material • Structure sinks to floor in a very Te controlled manner 250Te 0-200Te 250Te 250Te 14

  15. Structure FOUNDATION Example • Gas is replaced or compressed by fluid • Now in-water structural weight plus weight generated by water in receptacle • Design ensures sufficient for temporary stability Te 250Te 200Te 250Te 250Te 15

  16. Structure FOUNDATION Example • Fluid is be replaced by denser fluid • Fluid has SG = 3 and is pump-able • On-bottom weight is trebled • Structure is fit for extreme environmental loading Te 250kg 3 x Wt =600Te 250Te 250Te 16

  17. Structure FOUNDATION Example • Reverse process for recovery • Fluid replaces heavy fluid Te 17

  18. Structure FOUNDATION Example • Structure is neutrally buoyant • Structure is returned to surface in a very controlled manner Te 18

  19. Structure FOUNDATION Example • Structure on surface Te • Can be towed to quayside for recovery Neutrally Buoyant 250Te 19

  20. Foundation Installation/Recovery Example

  21. ¡ ¡Steel ¡Frame ¡(Lower ¡Sec/on) ¡ ¡ Lower ¡pipework ¡sec/on ¡(approx. ¡ 5000m) ¡

  22. First ¡pipe ¡sec/on ¡loaded ¡to ¡Steel ¡Frame ¡on ¡ quayside ¡and ¡secured ¡ ¡

  23. Lower ¡sec/on ¡steelwork ¡and ¡pipework ¡ loaded ¡in ¡to ¡water ¡ ¡ Mass ¡ Buoyancy ¡ ¡ Net ¡Upli2 ¡

  24. Second ¡pipework ¡sec/on ¡loaded ¡into ¡Steel ¡ Frame ¡in ¡Quayside ¡water ¡ ¡ Mass ¡ Buoyancy ¡ ¡ Net ¡Upli2 ¡ ¡ ¡ ¡

  25. Third ¡pipework ¡sec/on ¡loaded ¡into ¡Steel ¡ Frame ¡in ¡Quayside ¡water ¡ ¡ Mass ¡ Buoyancy ¡ ¡ Net ¡Upli2 ¡ ¡ ¡ ¡

  26. Upper ¡steelwork ¡aBached ¡to ¡Steel ¡Frame ¡in ¡ Quayside ¡water ¡ ¡ Mass ¡ Buoyancy ¡ ¡ Net ¡Upli2 ¡

  27. BoBom ¡third ¡of ¡ABL ¡pipework ¡filled ¡with ¡SG ¡ 2.5 ¡fluid ¡prior ¡to ¡tow ¡out. ¡ ¡ Mass ¡ Buoyancy ¡ Net ¡Upli2 ¡ ¡ ¡ ¡

  28. 50Te ¡external ¡ballast ¡added ¡to ¡frame ¡prior ¡ to ¡tow ¡out. ¡ ¡ Mass ¡ Buoyancy ¡ ¡ Net ¡Upli2 ¡ ¡ ¡ ¡

  29. Second ¡vessel ¡arrives ¡in ¡the ¡ field ¡to ¡assist ¡in ¡ballas/ng ¡ opera/ons. ¡ ¡ ABL ¡unit ¡is ¡aBached ¡to ¡both ¡vessel ¡winches. ¡ ¡ The ¡unit ¡is ¡ballasted ¡via ¡the ¡control ¡umbilical ¡ un/l ¡it ¡has ¡a ¡nega/ve ¡buoyancy ¡and ¡both ¡ winches ¡are ¡showing ¡a ¡weight ¡of ¡5-­‑10Te. ¡

  30. Vessels ¡simultaneously ¡pay ¡ out ¡on ¡winches ¡to ¡lower ¡the ¡ founda/on ¡to ¡the ¡seabed. ¡ ¡ ¡

  31. Upon ¡laydown ¡on ¡the ¡ seabed, ¡the ¡ABL ¡unit ¡can ¡be ¡ fully ¡water ¡ballasted ¡and ¡ then ¡disconnected. ¡ ¡ ¡ On ¡boBom ¡weight ¡when ¡fully ¡ water ¡ballasted ¡with ¡boBom ¡third ¡ filled ¡with ¡SG ¡2.5 ¡fluid ¡ External ¡Ballast=131Te ¡ ¡

  32. ¡ For ¡recovery ¡of ¡unit ¡the ¡ ¡ removal ¡of ¡heavy ¡fluid ¡from ¡ top ¡two ¡HDPE ¡sec/ons ¡gives ¡ a ¡net ¡upliX ¡of ¡17Te ¡for ¡tow ¡ back ¡to ¡port. ¡Reverse ¡Process ¡ to ¡installa/on. ¡ ¡

  33. Subsea Structure Recovery Example

  34. Two ¡AHTS ¡vessels ¡are ¡implemented ¡ for ¡the ¡removal ¡of ¡the ¡subsea ¡ Structure ¡ 19m ¡ 4m ¡ LiX ¡ connec/on ¡ points ¡to ¡be ¡ located ¡in ¡ Structure ¡ 600Te ¡

  35. The ¡ABL ¡unit ¡is ¡constrained ¡by ¡tow ¡ chains ¡from ¡the ¡vessels. ¡ ¡ ¡

  36. The ¡ABL ¡unit ¡ballasted ¡down ¡to ¡ connect ¡to ¡the ¡Structure. ¡ ABL ¡aBached ¡to ¡the ¡Jacket ¡ Foo/ng ¡using ¡the ¡ mechanical ¡connectors ¡ shown ¡on ¡following ¡slide. ¡

  37. Male ¡por/on ¡ aBached ¡to ¡ underside ¡of ¡ABL ¡ frame ¡ ¡ Female ¡por/on ¡to ¡ be ¡placed ¡on ¡the ¡ founda/on. ¡

  38. Upon ¡connec/on, ¡buoyancy ¡is ¡ added ¡to ¡ABL ¡unit ¡to ¡liX ¡Structure ¡ from ¡the ¡seabed. ¡ ¡

  39. The ¡unit ¡can ¡be ¡towed ¡by ¡a ¡single ¡ vessel ¡to ¡port ¡for ¡decommissioning. ¡ ¡ ¡

  40. Ambient Lifting – Status Work to date: • Technology is patent pending, submitted July 2014 • Prototype constructed, 1:10 model • Test tank procured for ESS Workshop • Successful prototype trials undertaken • Trials witnessed by potential Clients • Secured 1 st Project – installation of gravity based foundation 450Te foundation being installed with multicats in extreme currents, Q1/Q2 2016 • • In discussions with a number potential Clients for Ambient Lifting as lifting systems and as removable foundations. • In discussions with Diving TA’s for Ambient Lifting as alternative to air-bags Going forward: • Renewables and Decommissioning focus • Looking for demonstration opportunities and funding support
