SLIDE 1

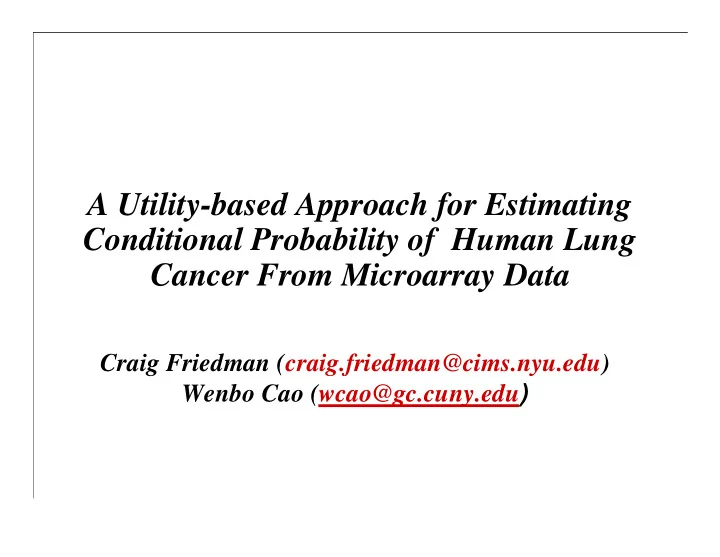

A Utility-based Approach for Estimating Conditional Probability of Human Lung Cancer From Microarray Data

Craig Friedman (craig.friedman@cims.nyu.edu) Wenbo Cao (wcao@gc.cuny.edu)

SLIDE 2

2

Introduction
Measuring model performance and building probabilistic

models from a model-user’s perspective

Probabilistic models from Microarray data

– 2 state conditional probability (NL or AD) – 6 state conditional probability (NL, AD, SMCL, SQ, COID, OA) – Conditional density (survival models, time permitting)

Conclusion

SLIDE 3

3

Introduction Conditional Probability Models

Prob(y=y|x), where

– X is a vector of explanatory variables (for example, microarray data), – Y is a random variable or vector (for example, Y in {NL,AD}), and, – y is a particular value for Y (for example, y=AD).

Given one (or more) cutoff(s), each conditional probability model can

be converted to a classification model. – For example, classify as AD if and only if Prob(y=AD|x)>cutoff.

Conditional probability models tell us directly about the probabilities.

The provide more information than classification models, in general.

SLIDE 4

4

Introduction Principal References

Friedman, C. and Sandow, S., Model Performance Measures for

Expected Utility Maximizing Investors, International Journal of Theoretical and Applied Finance, June, 2003.

Friedman, C. and Sandow, S., Learning Probabilistic Models: An

Expected Utility Maximization Approach, Journal of Machine Learning Research, July, 2003.

Friedman, C. and Huang, J., A Utility-Based Public Firm Default

Probability Model, Working Paper, 2003

Friedman, C. and Sandow, S., Ultimate Recoveries, Risk,

August, 2003

SLIDE 5

5

Introduction Model Performance Measures

Develop good conditional probability models

– To do so, we must have a way to measure model performance – The models will be used by model-users to make decisions—performance should be measured accordingly

SLIDE 6

6

Performance Measures Utility Theory Elements

Utility functions assign values (utilities) to random wealth levels

(power=2 utility used by Morningstar to rank funds)

Utility functions characterize the investor’s risk aversion.
Rational investors maximize their expected utility (from Utility Theory).

SLIDE 7

7

Performance Measures: Utility Theory Example

GAME 1 GAME 2 $1 $1

A Fair Coin is Tossed $1.10 $ .91 $2.00 $ .80

Maximizing Expected Utility, The More Risk Averse Investor Chooses Game 1 Maximizing Expected Utility, The Less Risk Averse Investor Chooses Game 2

SLIDE 8

8

Performance Measures Utility Theory Elements

More is preferred to less (the utility function is a

strictly increasing function of wealth)

The slope of the utility function decreases as wealth

increases (a gift of $1 provides more utility when your wealth is low than when your wealth is large.)

SLIDE 9

9

Performance Measures

These Model Performance Measures are – Natural Extensions of the Axioms of Utility Theory – Practical implementation is widely used (log-likelihood) – Many probabilistic contexts (not just 2 state, e.g., ROC) – Consistent with our approach to Model Formulation

SLIDE 10

10

Performance Measures

Assumptions:

– Investor/model-user with utility function – Market with odds ratio for each state (NL and AD have different payoffs) – Model-user believes model and makes decisions to maximize expected utility (a consequence of Utility Theory)

Paradigm: We base our model performance measure on an (out of

sample) estimate of expected utility.

Accurate models allow for effective decisions/investment strategies
Inaccurate models induce over-betting and under-betting
Our performance measures have financial interpretation

SLIDE 11

11

Performance Measures: An Important Class of Utilities

Interpretations (for a rich, tractable class of utility functions)

– Estimated wealth growth rate pickup (for a certain type of investor) who uses model 2 rather than model 1 – Logarithm of likelihood ratio (our old friend from classical Statistics) – Performance measure that generates an optimal (in the sense of the Neyman-Pearson Lemma) decision surface.

SLIDE 12

12

Performance Measures: An Important Class of Utilities

Morningstar uses the power utility with power 2.
This is how a member of our family approximates Morningstar’s

utility function

SLIDE 13

13

Performance Measures

Investor has utility function U(W),

SLIDE 14

14

Performance Measures Our Paradigm

SLIDE 15

15

Performance Measures Our Paradigm

SLIDE 16

16

Maximum Expected Utility Models Introduction

To find a model, we balance

– Consistency with the Data (there is a precise measure) – Consistency with Prior Beliefs (there is a precise measure) From an investor/model-user’s perspective

Result: a 1 hyperparameter family of models (an efficient frontier), each
f which is associated with a a given level of consistency with the data.

Each model – asymptotically maximizes expected utility over a potentially rich family of models – is robust: maximizing outperformance of benchmark model under the most adverse true measure (can make precise).

Choose optimal hyperparameter value by maximizing expected utility
n an out of sample data set.

SLIDE 17

17

Maximum Expected Utility Models Formulation

We define the notion of Dominance (of one model measure over

another). We select a measure on the efficient frontier.

SLIDE 18

18

Maximum Expected Utility Models Formulation

The probability simplex for a 2 state model:

SLIDE 19

19

Maximum Expected Utility Models Formulation

The probability simplex for a 3 state model:

SLIDE 20

20

Maximum Expected Utility Models Formulation

SLIDE 21

21

MEU Modeling Approach

Balance

–Consistency with the Data –Consistency with Prior Beliefs

SLIDE 22

22

MEU Modeling Approach Dual Problem

We solve the dual of above optimization problem, which

amounts to a maximization with respect to a set of Lagrange multipliers.

The dual problem can be interpreted as the search for a

maximum-likelihood exponential model, with regularization.

Choose α to maximize the out-of sample log-likelihood

SLIDE 23

23

MEU Modeling Approach

Dual problem is strictly convex
Model produced is theoretically robust (best-

worst case measure)

Features allow for flexibility
Approach avoids overfitting

SLIDE 24

24

Maximum Expected Utility Models Logistic Regression

The models can be made flexible enough to conform to the data, but avoid

verfitting.

Linear logistic regression (and some generalizations) have the axis alignment Property.

SLIDE 25

25

Toy (2 Variable) Problem

Based on data from the Wisconsin Breast Cancer Databases, to

illustrate, we select 2 variables:

– Standard error of texture – Fractal dimension

We want to model the probability of malignancy, given the

Standard error of texture and the fractal dimension.

SLIDE 26

26

Toy (2 Variable) Version Data

(We have transformed the data so that they lie in the unit

square.)

SLIDE 27

27

Toy (2 Variable) Problem The Model

For each explanatory variable pair, we seek the function

prob(malignancy|se,fd), where se=standard error of texture fd=fractal dimension

SLIDE 28

28

We model 2 ways

Linear logistic regression
MEU methodology

SLIDE 29

29

Toy Problem Same Data, 2 Different Models

Logistic Regression

MEU

SLIDE 30

30

Toy Problem Contour Plots

The MEU model is clearly more consistent with the data, without
verfitting. Linear logit is too stiff to reflect the story told by the

data.

SLIDE 31

31

Model Performance Results Toy (2 Variable) Version

Logistic Regression:

– ROC: 0.4646 – EWGRP: -0.0035

MEU Model:

– ROC: 0.6196 – EWGRP : 0.0223 where

EWGRP=Expected Wealth Growth Rate Pickup

By adding additional explanatory variables, we can improve

model performance

SLIDE 32

32

Model Performance MEU vs Benchmark

Overfit linear Logit versus MEU model

SLIDE 33

33

Applications 2 Categories: Harvard and Michigan Data

Categories: 1) AD and suspected AD 2) Normal lung RESULTS, using 58 common probe set variables, level-set features

Training on Harvard data, Testing on Michigan data MEU method: roc = 1, delta = 0.3341 Linear Logit: roc = .8186, delta = -22.1663 Training on Michigan data, Testing on Harvard data MEU method: roc = 1, delta = 0.3276 Linear Logit: roc = 0.7245, delta = -1.5982

We note that the MEU model produced perfect classification on the out

f sample data sets.

SLIDE 34

34

Applications 2 Categories: Harvard and Michigan Data

Training on Harvard, testing on Michigan

– Blue: Normal Lung; Red: AD and Suspected AD (OA)

SLIDE 35

35

Applications 2 Categories: Harvard and Michigan Data

Training on Michigan, testing on Harvard

– Blue: Normal Lung; Red: AD and Suspected AD (OA)

SLIDE 36

36

Applications Multi-Category: Harvard Data

Categories:

– NL (17 samples): 1 -- (0 0 0 0 0 1) normal lung – AD (127 samples): 2 -- (0 0 0 0 1 0) lung adenocarcinomas – SMCL (6 samples): 3 -- (0 0 0 1 0 0) small-cell lung carcinomas (SCLC) – SQ (21 samples): 4 -- (0 0 1 0 0 0) squamous cell lung carcinomas – COID (20 samples):5 -- (0 1 0 0 0 0) pulmonary carcinoids – OA (12 samples): 6 -- (1 0 0 0 0 0)

ther adenocarcinomas (which were

suspected to be extrapulmonary metastases)

Variables: 8 most important variables from 58 common probe set vars.
Features: linear + quadratic + gaussian

– (10 k-mean centers for Gaussian features)

? = 0.4408

? 0 = -10.7712

SLIDE 37

37

Applications Multi-Category: Harvard Data

VARIABLES: Rank Probe set 1 AFFX-BioDn-3_at 2 AFFX-BioC-3_at 3 AFFX-BioC-5_st 4 AFFX-HUMGAPDH/M33197_5_st 5 AFFX-CreX-5_at 6 AFFX-BioDn-5_st 7 AFFX-CreX-3_st 8 AFFX-DapX-3_at

SLIDE 38

38

COID

SLIDE 39

39

Multi-category Concentration Measure

1 certainty, 0 uncertainty Point color in the figures:

Blue points with symbol "+" : NL
Red points with symbol "." : AD
Black points with symbol "*" : OA
Green points with symbol "*" : SMCL
Cyan points with symbol "x" : SQ
Magenta points with symbol "+":

COID

SLIDE 40

40

Application Survival Time Density Modeling

p(t|x) – probability density of survival time t, conditioned on

vector x of explanatory variables, which are:

SLIDE 41

41

Survival Time Model Performance

.3536 Maximum Expected Utility Delta Model

Model Performance Measure, Delta : gain in

expected logarithmic utility (wealth growth rate) with respect to a non-informative model for survival time

SLIDE 42

42

Conditional Probability Survival Time density as function of J04423E coli bloD gene

Other explanatory variables are set to median values

SLIDE 43

43

Conditional Time Probability density as function of gene expression

Blue curves for several gene expression levels Other variables are set to median values

SLIDE 44

44

We have used Model Performance measures based on the

perspective of an investor/model-user’s

We have built Microarray Data Conditional Probability

Models on that are approximately optimal with respect to the above performance measures. These models – Are numerically robust (convex programming) – Are theoretically robust (best-worst case measure) – Are flexible – Do not overfit – Perform well in practice

Conclusion

SLIDE 45

45

References available on request.

craig.friedman@cims.nyu.edu

References

SLIDE 46

46

AFFX-BioB-5_at
AFFX-BioB-m_at
AFFX-BioB-3_at
AFFX-BioC-5_at
AFFX-BioC-3_at
AFFX-BioDn-5_at
AFFX-BioDn-3_at
AFFX-CreX-5_at
AFFX-CreX-3_at
AFFX-BioB-5_st
AFFX-BioB-m_st
AFFX-BioB-3_st
AFFX-BioC-5_st
AFFX-BioC-3_st
AFFX-BioDn-5_st
