A Smart Port Card Tutorial --- Hardware John DeHart Washington University jdd@arl.wustl.edu http://www.arl.wustl.edu/~jdd Washington SPC Tutorial 1 July 7/8 2000 WASHINGTON UNIVERSITY IN ST LOUIS References: New Links from Kits

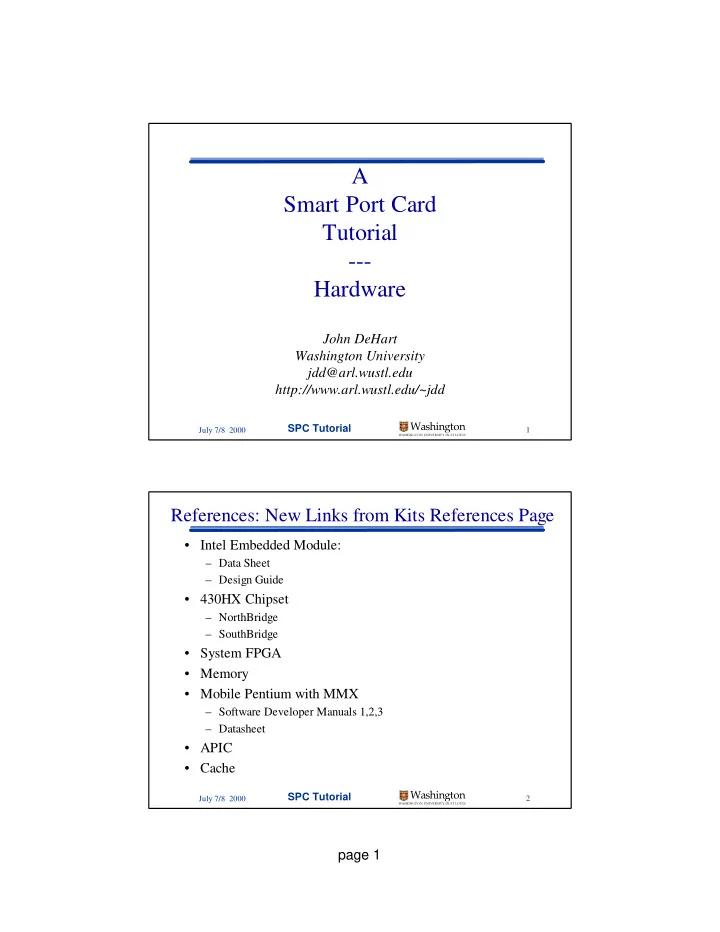

slide-1
SLIDE 1

page 1

July 7/8 2000

SPC Tutorial

1

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

A Smart Port Card Tutorial

  • Hardware

John DeHart Washington University jdd@arl.wustl.edu http://www.arl.wustl.edu/~jdd

July 7/8 2000

SPC Tutorial

2

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

References: New Links from Kits References Page

  • Intel Embedded Module:

– Data Sheet – Design Guide

  • 430HX Chipset

– NorthBridge – SouthBridge

  • System FPGA
  • Memory
  • Mobile Pentium with MMX

– Software Developer Manuals 1,2,3 – Datasheet

  • APIC
  • Cache
slide-2
SLIDE 2

page 2

July 7/8 2000

SPC Tutorial

3

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

Motivation

  • Active Networking
  • Network Probe
  • High performance router architectures

– PC as router is VERY limited – (Gigabit/s + Processing) on each port – MSR: Multi-Service multiport Router

July 7/8 2000

SPC Tutorial

4

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

The Smart Port Card

  • Hardware:

– SPC as a PC

  • How do they each boot?

– SPC Hardware Components

  • What roles do they play?
slide-3
SLIDE 3

page 3

July 7/8 2000

SPC Tutorial

5

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

Typical Pentium PC

CPU North- Bridge Cache DRAM SouthBridge (PIIX3) (PIC, PIT, …) PCI Bus ISA Bus PCI Devices ISA Devices BIOS Super-IO BIOS

RTC Uarts Kbd/Mse Floppy Parallel ...

Addr/Data Ctrl Ctrl Addr/Data/Ctrl Intr NMI INIT

CPU/Memory Bus

July 7/8 2000

SPC Tutorial

6

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

How NetBSD Boots on a PC

Components:

– Pentium – Boot ROM (replaced by BIOS in modern systems?) – BIOS – Bootloader – Kernel

slide-4
SLIDE 4

page 4

July 7/8 2000

SPC Tutorial

7

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

Sketch of How a PC Boots

  • Pentium after Reset:

– fetches its first instruction from location 0xFFFFFFF0

  • Boot Code must be located at 0xFFFFFFF0
  • Boot Code jumps to BIOS located in ROM

– Boot Code may actually be part of the BIOS...

  • BIOS copies itself into memory (Shadow)
  • BIOS remaps memory

– future accesses to BIOS addresses go to memory instead of ROM.

  • BIOS performs system configuration (some proprietary)

– Motherboard Details – Pentium Details – NB/SB Chipset Details – Device configuration: IRQs, Memory maps, ...

… at least what I understand…

July 7/8 2000

SPC Tutorial

8

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

How a PC Boots (continued…)

  • BIOS loads bootloader into memory (from disk…)
  • BIOS jumps to bootloader
  • Bootloader performs some more configuration:

– Pentium control registers – Cache configuration – Memory/Page model

  • Bootloader determines what to run next.
  • Bootloader may have to do some device configuration.

– e.g. to get OS from a disk.

  • Bootloader loads OS kernel into memory
  • Bootloader jumps to start of OS kernel
slide-5
SLIDE 5

page 5

July 7/8 2000

SPC Tutorial

9

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

How a PC Boots (continued…)

  • Kernel does some OS-specific configuration:

– for NetBSD look in: sys/arch/i386/i386/locore.s – Determines what CPU it has (“cpuid” instruction) – Paging – Virtual Memory

July 7/8 2000

SPC Tutorial

10

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

Typical Pentium PC (Again…)

CPU North- Bridge Cache DRAM SouthBridge (PIIX3) (PIC, PIT, …) PCI Bus ISA Bus PCI Devices ISA Devices BIOS Super-IO BIOS

RTC Uarts Kbd/Mse Floppy Parallel ...

Addr/Data Ctrl Ctrl Addr/Data/Ctrl Intr NMI INIT

CPU/Memory Bus

slide-6
SLIDE 6

page 6

July 7/8 2000

SPC Tutorial

11

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

What SPC Needs

CPU North- Bridge Cache DRAM SouthBridge (PIC, PIT, …) PCI Bus APIC BIOS BIOS

Addr/Data Ctrl Ctrl Addr/Data/Ctrl Intr NMI INIT

RTC Uarts

CPU/Memory Bus

July 7/8 2000

SPC Tutorial

12

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA Intel Embedded Module

SPC Architecture

CPU North- Bridge Cache DRAM PCI Bus APIC

Addr/Data Ctrl Ctrl Addr/Data/Ctrl Intr NMI INIT

PIT PIC RTC’ BIOS ROM UART1 Interface UART2 Interface UART1 UART2

Link Interface Switch Interface

slide-7
SLIDE 7

page 7

July 7/8 2000

SPC Tutorial

13

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

SPC Photo Tour

Switch Interface Link Interface Serial Ports APIC CPU Module PCI Bus System FPGA DRAM

July 7/8 2000

SPC Tutorial

14

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

SPC Components

  • APIC
  • PCI Bus Master
  • Pentium Embedded Module

– 166 MHz MMX Pentium Processor

  • L1 Cache: 16KB Data, 16KB Code

– L2 cache: 512 KB – NorthBridge - 33 MHz, 32 bit PCI Bus

  • PCI Bus Master
  • System FPGA
  • PCI Bus Slave

– Xilinx XC4020XLA-1 FPGA – 20K Equivalent Gates – ~ 75% used

slide-8
SLIDE 8

page 8

July 7/8 2000

SPC Tutorial

15

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

SPC Components (continued)

  • Memory

– EDO DRAM – 64MB (Max for current design) – SO DIMM

  • Switch Interface - 1 Gb Utopia
  • Link Interface - 1 Gb Utopia
  • UART

– Two Serial Ports

  • NetBSD system console
  • TTY port

July 7/8 2000

SPC Tutorial

16

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA

  • Coded in VHDL
  • PCI slave device
  • Replaces some of the PIIX3 (south bridge)
  • Replaces some of the BIOS
  • Replaces some of the Super IO Chip
  • Provides reset capability
slide-9
SLIDE 9

page 9

July 7/8 2000

SPC Tutorial

17

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA: PIIX3 Functionality

  • Programmable Interrupt Controller (PIC)

– Four Interrupts supported and statically assigned:

  • PIT (IRQ 0)
  • APIC (IRQ 5)
  • COM1 (IRQ 4)
  • COM2 (IRQ 3)

– Static fully-nested interrupt priority structure. – Specific End of Interrupt is the only EOI mode supported

  • Programmable Interval Timer (PIT)

– generates a clock interrupt for NetBSD every ~10ms

  • Reset - covered in a later slide

July 7/8 2000

SPC Tutorial

18

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA: BIOS Functionality

  • Interrupt functionality replaced by static values
  • Simple 16 word by 32-bit “ROM”

– implements loop waiting for location 0xFFE00 to change value – then jumps to boot loader code

  • Does NOT perform configuration of Northbridge

– This will be done by the boot loader

  • Does NOT perform PCI configuration of APIC

– This will be done by the APIC Driver

slide-10
SLIDE 10

page 10

July 7/8 2000

SPC Tutorial

19

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA: Super IO Chip Functionality

  • UART Interface

– Two Serial lines supported – Fixed IRQs

  • Real Time Clock

– only the register accesses of the RTC are supported – no interrupts supported – i.e. supported only so NetBSD didn’t need to change – i.e. no alarms will be generated

July 7/8 2000

SPC Tutorial

20

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA: Reset

  • SPC needs a reset before every download:

– switch reset:

  • causes SPC to be reset
  • causes all connections in switch to be lost

– System FPGA reset

  • causes SPC to be reset
  • has no effect on the switch
  • Normal SouthBridge reset:

– I/O Register: 0xCF9 – Hard Reset: assert CPURST, PCIRST#, and RSTDRV

  • write 0xCF9 0x02 (00000010b)
  • write 0xCF9 0x06 (00000110b)

– Soft Reset: assert INIT

  • write 0xCF9 0x00 (00000000b)
  • write 0xCF9 0x04 (00000100b)

bits

slide-11
SLIDE 11

page 11

July 7/8 2000

SPC Tutorial

21

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

System FPGA: Reset

  • SPC Reset:

– a sequence of two writes to memory addresses – APIC Control cells can write to

  • memory addresses
  • configuration registers
  • NOT I/O Registers! Argh...

– To mimic the reset structure of the SB we use:

  • 0xFFFFFFF0
  • 0xFFFFFFF4

– Hard Reset (all we really care about)

  • write 0xFFFFFFF0 0x02 (00000010b)
  • write 0xFFFFFFF4 0x06 (00000110b)

bits

July 7/8 2000

SPC Tutorial

22

Washington

WASHINGTON UNIVERSITY IN ST LOUIS

Caveats

  • Intel Embedded Module problem

– Memory corruption caused by noise on M/A bus – Hopefully it will be fixed before we ship – We work around it with 25 MHz PCI and no HLT

  • This reduces the probability of noise on the bus
  • PCI Bus

– 33 MHz vs. 25 MHz

  • NetBSD Kernel HLT instruction

– if absolutely nothing to do, NetBSD does a “HLT” – this reduces power consumption – also causes large power/current swings – We have removed the HLT instruction for the SPC

  • Serial Cables

– RS232 is not necessarily hot-swappable

  • sometimes you can get away with it but not always
