Browser based approach for Smart Card Connectivity My Smart Card My Smart Card Kapil Sachdeva expiration: 09/10 Karen Lu Ksheerabdhi Krishna Challenges Installing crypto providers Breaks mobility Breaks ubiquity of web


slide-1

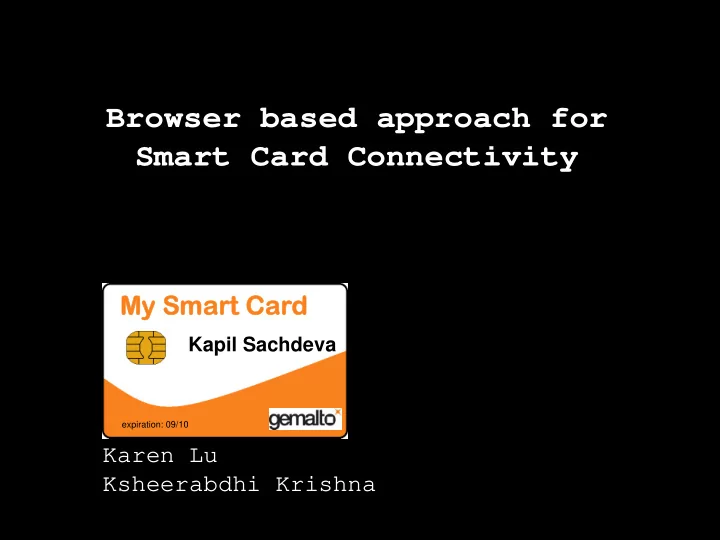

SLIDE 1

Kapil Sachdeva

expiration: 09/10

My Smart Card My Smart Card

Browser based approach for Smart Card Connectivity

Karen Lu Ksheerabdhi Krishna

slide-2
SLIDE 2
slide-3
SLIDE 3

Challenges

  • Installing crypto providers

– Breaks mobility – Breaks ubiquity of web – Configurations hard for end user

  • Supporting implementations compliant to

various arch./browser/OS combination is painful

  • User interface decoupled (and not

controlled) through web application

  • All crypto arch abstractions are leaky

– Do not utilize all the functionalities offered by security device

slide-4
SLIDE 4

SConnect

  • Web apps drive the user interface

– Enable the possibility of continuous improvement

  • Implementation for a particular smart card

access comes from server (as JavaScript)

  • Enable other functionalities:

– Alternative auth mechanisms – Digital signature & encryption for web content

  • Consistent interfaces across browsers/os
slide-5
SLIDE 5

SConnect security mechanisms

  • HTTPS Required
  • Override user’s decision to ignore SSL

errors shown by browser

  • Connection key to only allow authorized

sites

  • User Consent
slide-6
SLIDE 6

Questions?

slide-7
SLIDE 7

Leaky Abstraction

PC/SC IFD Handler Interface Service Provider Interfaces

ICC-Aware Application ICC-Aware Application

Smart Card Aware Application

Resource Manager

IFD Handler IFD IFD IFD

SC SC SC Reader Driver Smart Card Readers Smart Cards PC/SC RM Interface

Service Providers Service Providers Service Provider

Middleware

Leaky

slide-8
SLIDE 8

Abstraction that works

ICC-Aware Application ICC-Aware Application

Smart Card Aware Application

Resource Manager

IFD Handler IFD IFD IFD

SC SC SC Reader Driver (USB CCID Class) Smart Card Readers Smart Cards PC/SC IFD Handler Interface PC/SC RM Interface
