21 ST CENTURY LIBRARY and Community Learning Center for HAYWARD NOLL & TAM rhaa LANDSCAPE CITY OF ARCHITECTS ARCHITECTS HAYWARD CHRISTOPHER NOLL MANUELA KING JANE LIGHT Principal Principal Interim Library Director SCOTT SALGE JACOB

slide-1
SLIDE 1

10 July 2018

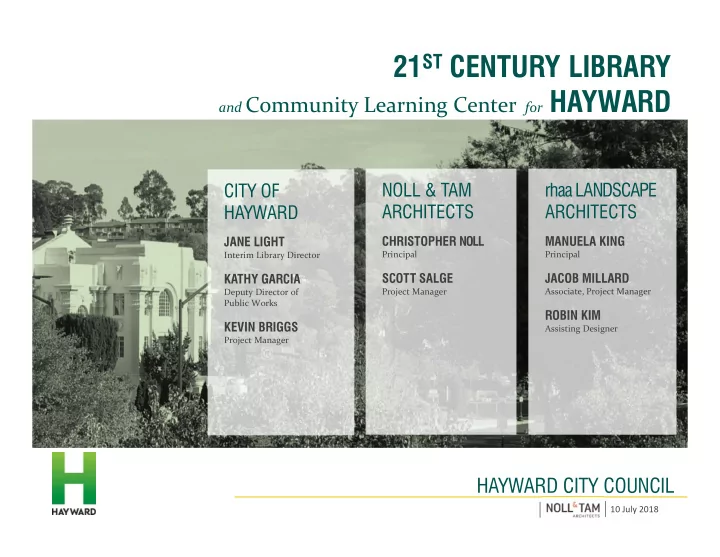

21ST CENTURY LIBRARY

and Community Learning Center for HAYWARD

NOLL & TAM ARCHITECTS

CHRISTOPHER NOLL

Principal

SCOTT SALGE

Project Manager

CITY OF HAYWARD

JANE LIGHT

Interim Library Director

KATHY GARCIA

Deputy Director of Public Works

KEVIN BRIGGS

Project Manager

rhaa LANDSCAPE ARCHITECTS

MANUELA KING

Principal

JACOB MILLARD

Associate, Project Manager

ROBIN KIM

Assisting Designer

HAYWARD CITY COUNCIL

slide-2
SLIDE 2

10 July 2018

HAYWARD LIBRARY & COMMUNITY LEARNING CENTER HERITAGE PLAZA PROJECT SCOPE

MAIN LIBRARY / SITE HERITAGE PLAZA / CIVIC SPACE MUNICIPAL GARAGE C STREET & POST OFFICE SITE

slide-3
SLIDE 3

10 July 2018

HAYWARD LIBRARY & COMMUNITY LEARNING CENTER PROGRAM HIGHLIGHTS

  • Children’s Homework Tutoring Center
  • Story time Space
  • Dedicated Teen Library Space and Homework Center
  • Friends of the Library Store
  • Digital Learning Center and Maker Lab Space
  • Community Meeting Spaces
  • Large Community Room for 200 people
  • Community Learning Center for Hayward adults and seniors

…and much more.

slide-4
SLIDE 4

10 July 2018

SUSTAINABILITY AND ENERGY GOALS

GREEN BUILDING AND SUSTAINABILITY GOALS

  • Minimum building lifespan goal of 75 years
  • Goal to Achieve LEED Platinum
  • Eliminate building use of fossil fuels
  • Harvest and reuse Rainwater for Library and Landscape
  • Model of civic stewardship to the bay area and the nation

ANNUAL BUILDING ENERGY USE GOALS BEYOND LEED

  • Reduce the Library’s energy consumption by 50%
  • 100% solar powered Library to achieve annual “Zero Net Energy”
slide-5
SLIDE 5

10 July 2018

RAINWATER CAPTURE

slide-6
SLIDE 6

10 July 2018

HARVESTING SITE RAINWATER FOR RE-USE

Excess rainwater is harvested from plaza surfaces Rainwater is harvested from garage and library roof tops Rainwater is pumped into 400,000 gallon storage cistern located underground in old library basement Upon demand, water is pumped to filtration and sterilization equipment Filtered and treated water is pumped to non-potable fixtures in the library…

slide-7
SLIDE 7

10 July 2018

PROJECT WATER USE REDUCTION GOALS HAYWARD LIBRARY EUI

1,995,707 1,122,114 761,114 761,114 292,000 189,800 189,800 45,552 60,000.00 39,000.00 39,000.00 39,000.00

996,793 gallons 1,357,793 gallons 1,502,041 gallons

0% 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% BASELINE WATER USE EFFICIENT WATER USE AND FIXTURES HARVESTED WATER USED FOR IRRIGATION HARVESTED WATER USED FOR IRRIGATION AND GREY WATER

LANDSCAPE IRRIGATION NON-POTABLE FIXTURES POTABLE FIXTURES

slide-8
SLIDE 8

10 July 2018

HERITAGE PLAZA

slide-9
SLIDE 9

10 July 2018

HISTORIC HAYWARD CITY MAPS 1878

COUNTY OF ALAMEDA 1878

HAYWARD

HAYWARD CITY MAP 1878

HISTORIC PLAZA

Source: David Rumsey Historical Map Collection

slide-10
SLIDE 10

10 July 2018

DOWNTOWN HAYWARD 1948

Images Courtesy: Hayward Area Historical Society

slide-11
SLIDE 11

10 July 2018

PROJECT SITE

FUTURE LIBRARY LOCATION PROJECT BOUNDRY EXISTING LIBRARY

slide-12
SLIDE 12

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

2018 PLAN WITH FORMER LIBRARY LOCATION

slide-13
SLIDE 13

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

2014 PLAN

slide-14
SLIDE 14

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

2018 PLAN

slide-15
SLIDE 15

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

MISSION STREET PLAZA

slide-16
SLIDE 16

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

WATKINS STREET ENTRANCE

slide-17
SLIDE 17

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

REDUCED AMOUNT OF TURF

slide-18
SLIDE 18

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

SEATING ALONG OVAL

slide-19
SLIDE 19

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

REMOVED BIOSWALE

slide-20
SLIDE 20

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

CHILDREN’S GARDEN

slide-21
SLIDE 21

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

INCLUSION OF JAPANESE AMERICAN MEMORIAL

slide-22
SLIDE 22

10 July 2018 COAST REDWOOD DAWN REDWOOD CANARY PALM GINKGO MAGNOLIA OTHER

SIGNIFICANT TREES

STORM DAMAGED TREES TO BE REPLACED

slide-23
SLIDE 23

10 July 2018

SIGNIFICANT TREES

slide-24
SLIDE 24

10 July 2018

ARBORETUM WALK

slide-25
SLIDE 25

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

CHILDREN’S GARDEN AT PLAZA

slide-26
SLIDE 26

10 July 2018

CHILDREN’S GARDEN AT HERITAGE PLAZA

slide-27
SLIDE 27

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

OUTDOOR SEATING AREAS

slide-28
SLIDE 28

10 July 2018

OUTDOOR SEATING AREAS

slide-29
SLIDE 29

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

OVERHEAD TRELLIS

slide-30
SLIDE 30

10 July 2018

OVERHEAD TRELLIS

slide-31
SLIDE 31

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

ENTRANCES TO PLAZA AT C STREET

slide-32
SLIDE 32

10 July 2018

PLAZA ENTRANCES

slide-33
SLIDE 33

10 July 2018

RECYCLED PRODUCT SEATING WITH ARMS

slide-34
SLIDE 34

10 July 2018

SCULPTURAL FURNITURE

slide-35
SLIDE 35

10 July 2018

HISTORICAL INTERPRETIVE ELEMENTS

CONSERVED & NEW SIGNAGE, MARKERS & MONUMENTS

JAPANESE AMERICAN INTERNMENT MEMORIAL MARKER, PREFERRED LOCATION

slide-36
SLIDE 36

10 July 2018

WATKINS ST. MISSION BLVD. C ST. D ST. NEW LIBRARY POST OFFICE

C ST. STREETSCAPE DESIGN

slide-37
SLIDE 37

10 July 2018

PLAZA & C STREET

slide-38
SLIDE 38

10 July 2018

C ST. STREETSCAPE DESIGN

slide-39
SLIDE 39

10 July 2018

EVENTS

slide-40
SLIDE 40

10 July 2018

PROGRAMMING DIAGRAM

slide-41
SLIDE 41

10 July 2018

EVENTS

slide-42
SLIDE 42

10 July 2018

QUESTIONS

Schematic Illustration
