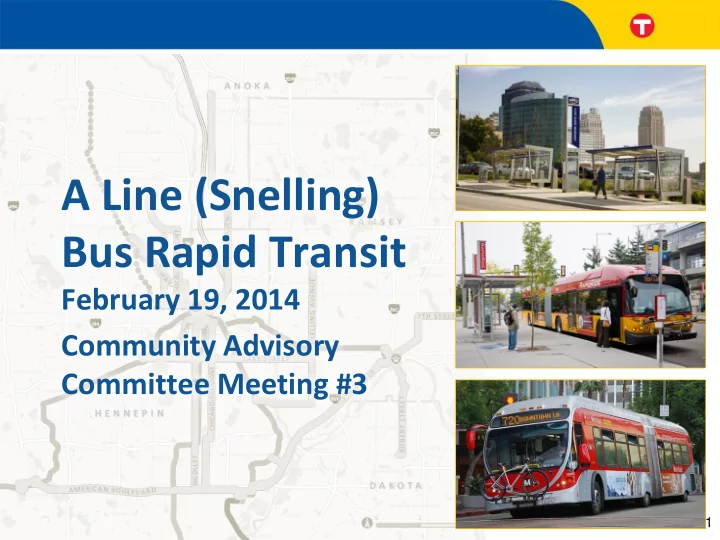

A Line (Snelling) Bus Rapid Transit

February 19, 2014 Community Advisory Committee Meeting #3

slide-2
SLIDE 2

2

Business Outreach

  • Targeting

businesses on station corners

  • 42 letters sent
  • 60 follow-up calls
  • 25 one-on-one

meetings during January 24-30

Ginkgo Coffeehouse owner Kathy Sundberg

slide-3
SLIDE 3

3

Business Outreach

Meetings held with

  • Har Mar Mall

Snelling & County Rd B

  • BP Gas Station

Snelling & Larpenteur

  • Falcon Crossing

Snelling & Larpenteur

  • Lloyd’s Pharmacy

Snelling & Minnehaha

  • Gingko Coffeehouse

Snelling & Minnehaha

  • Spruce Tree Centre

Snelling & University

  • CVS

Snelling & University

  • Midway Book

Snelling & University

  • Stoltz Dry Cleaners

Snelling & Grand

  • Sweeney Cleaners

Snelling & St. Clair

  • Fourleaf Enterprises

Snelling & St. Clair

  • R & S Crossing

Snelling & Randolph

  • ProFuel

Snelling & Randolph

  • Walgreens

Snelling & Randolph

  • Plum’s

Snelling & Randolph

  • Parkway Family Physicians

Snelling & Highland

  • Gloria Dei Lutheran Church

Snelling & Highland

  • Red Robin Cleaners

Ford & Kenneth

  • Highland Lifecare

Ford & Kenneth

  • Highland Bank

Ford & Finn

  • Parkway West Apartments

46th & 46th

  • Jakubas Dental

46th & Minnehaha

  • Highland Business Assn
  • Midway Chamber of Commerce
slide-4
SLIDE 4

4

Roseville/Falcon Heights Open House

  • January 23, Roseville Library
  • Approximately 40 attendees
  • 10 comment sheets received, many conversations &

exhibit comments

slide-5
SLIDE 5

5

Comments on Specific Locations

Location Comment

Rosedale Transit Center

  • Would like the Park-and-Ride back at Rosedale.

Snelling & County Rd B

  • Target needs to make a sidewalk to the Har Mar bus stop.

Snelling & Roselawn

  • Almost nobody uses this stop.

Hamline & Larpenteur

  • An 84 route option to serve as much of Hamline as possible

would be a good idea (a la future Route 83). Hamline & Hoyt

  • Consider restoring the 84 Local to the Hamline/Hoyt area!

Snelling & Nebraska

  • Can you add a stop between Larpenteur and Como, even with

the limitation of the west side boundary of the State Fair?

  • Job Corps span of service later at night.
  • Need stop in the Como-Larpenteur gap!

Snelling & Como

  • A dedicated bike lane is needed along Snelling between Como

and Hewitt (similar to bike bridge along Lexington). Snelling & University

  • The bus stop by the book store is too small for such a high

usage.

slide-6
SLIDE 6

6

Hoyt-Midway Feasibility Review

T T T T T

Larpenteur Hoyt Midway Como Arlington

T Current Bus Stop

HHH Job Corps Minnesota State Fair Grounds

Guardrail, no sidewalk Station Station Fence, no sidewalk NORTH >>

slide-7
SLIDE 7

7

A Line Project Progress

  • $10 million for A Line in

Governor’s proposed bonding bill

  • $1.9 million design

contract with Kimley- Horn authorized 1/22/14

– A Line design – Pilot station – Prototypical arterial BRT station shelter

slide-8
SLIDE 8

8

A Line Project Progress

  • Northbound Snelling &

University recommended concept

  • Corridor concept plan
  • Pilot station at 7th &

Olson in Minneapolis

slide-9
SLIDE 9

9

Northbound Snelling & University

NEARSIDE SPRUCE TREE Northbound BRT Station? FARSIDE SPRUCE TREE Northbound BRT Station? NEARSIDE UNIVERSITY Northbound BRT Station? FARSIDE UNIVERSITY Northbound BRT Station?

1 2 3 4

Southbound BRT Station

slide-10
SLIDE 10

10

Northbound Snelling & University

Southbound BRT Station

IRT Recommended Concept: Farside Spruce Tree Bumpout station Aligned with southbound station

T Routes 21 & 84 T Route 84

slide-11
SLIDE 11

11

Key to Concept Plans

11

80 ft x 10 ft

T

Standard dimension

80 ft x 10 ft

T

Red: Bumpout station Blue: Curbside station (within existing curb line) Signalized intersection

T

BUS STOP ID #

ON / OFF

Existing bus stop Existing weekday ridership information, Fall 2012 data

Illustration does not reflect actual geometry

  • r exact placement

relative to intersection.

slide-12
SLIDE 12

12

Snelling/County Road B (SB)

COUNTY ROAD B 80 ft x 10 ft

T T Site 50015

171 / 41

slide-13
SLIDE 13

13

Snelling/County Road B (NB)

80 ft x 10 ft

T T Site 50013

48 / 268

slide-14
SLIDE 14

14

Snelling/Roselawn

84 South 50011 100 2.5 1.4 735.5

ROSELAWN AVE 80 ft x 10 ft

T

80 ft x 10 ft

T T Site 50011

3 / 1

T Site 50012

1 / 5

slide-15
SLIDE 15

15

Snelling/Larpenteur (NB)

LARPENTEUR AVE 80 ft x 10 ft

T T Site 50010

72 / 114

slide-16
SLIDE 16

16

Snelling/Larpenteur (SB)

84 South 50032 100 111.8 67.5 780

LARPENTEUR AVE 80 ft x 10 ft

T T Site 50032

112 / 68

slide-17
SLIDE 17

17

Snelling/Como (NB)

COMO AVE

slide-18
SLIDE 18

18

Snelling/Como (SB)

COMO AVE

T Site 18523

165 / 88

T Site 18509

92 / 144

slide-19
SLIDE 19

19

Snelling/Hewitt

84 South 15114 100 57.7 33.6 938.2

HEWITT AVE

T T Site 15042

31 / 37

Site 15114

57 / 34

80 ft x 10 ft

T

80 ft x 10 ft

T

slide-20
SLIDE 20

20

Snelling/Minnehaha

80 ft x 10 ft 80 ft x 10 ft

T T

MINNEHAHA AVE

Hamline Marathon Gas Station

Site 15040

48 / 65

Site 15116

68 / 37

T T

slide-21
SLIDE 21

21

  • Existing SB stop
  • Ridership
  • 84 SB: 25 on / 27 off
  • 144 EB: 1 on / 12 off
  • Property Information
  • 201 North Snelling – Snelling Imports 651-643-

7600 Mr. David Nadini

Snelling/Dayton (SB)

DAYTON AVE 80 ft x 10 ft

MN Pain & Wellness Ctr Snelling Imports

T

201 209

Site 17307

25 / 39

Site 17371

47 / 26

80 ft x 10 ft

T

Existing high-visibility crosswalks

T T

Redevelopment – The Vintage on Selby

slide-22
SLIDE 22

22

Snelling/Grand

  • NB – Not existing NB stop

– Ridership

  • 84 NB: 180 on / 83 off
  • 144 WB: 28 on / 1 off

– Property Information

  • Macalester-owned properties

– Parking

  • 5 spaces between Grand and alley; signed 15-minute parking
  • More spaces on far side of alley
  • SB – Existing SB stop

– Ridership

  • 84 SB: 82 on / 169 off
  • 144 EB: 2 on / 29 off

– Property Information

  • Macalester College

– Parking

  • Signed no parking – bus stop

80 ft x 10 ft

Macalester Permit Parking (22 spaces) Khyber Pass Dunn Bros Coffee Municipal Lot (55 2-hour spaces) Breadsmith Jamba Juice Lampert Building Common Good Books

80 ft x 10 ft GRAND AVE

T T

1573 36 1567 1561

Macalester College Store

Site 17366

208 / 84

Site 17312

84 / 198

T

slide-23
SLIDE 23

23

  • NB

– St. Paul Corner Drug – Carmelo’s Ristorante – Animal Medical Clinic – HealthPoint Oriental Medicine – Apartments – Potential concern about Carmelo’s on-street parking – businesses use shared parking on SE corner

  • SB

– in front of Macalester

Snelling/St. Clair

  • ST. CLAIR AVE

80 ft x 10 ft

Parking (21 spaces) Shared Parking (34 spaces)

80 ft x 10 ft

Parking (~15 spaces)

  • St. Clair Broiler

1580

Matt’s Pro Guitar Snelling Apts (10 units)

245 247 249

Vacant Health Point Oriental Medicine

232 234

Animal Medical Clinic

238

Carmelo’s Saint Paul Corner Drug

240

Apartments

Site 17318

11 / 48

Site 17361

64 / 12

T T T T

slide-24
SLIDE 24

24

Snelling/Randolph

RANDOLPH AVE

Practical Goods Plum’s Bar & Grill Parking (18 spaces) Rita Ambourn Rita Ambourn Awe Vending Goby’s Parking (11 spaces) Awe Parking (12 spaces)

67 ft x 10 ft 80 ft x 10 ft

ProFuel

T T

485 480 476 472 464

Site 17357

168 / 42

Site 17325

43 / 184

T T

slide-25
SLIDE 25

25

Snelling/Highland

HIGHLAND PKWY 80 ft x 10 ft 80 ft x 10 ft

T T T T Site 17332

4 / 19

Site 17352

39 / 4

700

Gloria Dei Lutheran Church Parkway Family Physicians

721

slide-26
SLIDE 26

26

Snelling/Fairview

  • Potential concerns about stopping in single lane
  • f traffic
  • Renter-occupied platform corners

– WB – 12-unit apartments (Hornig Companies) – EB – Twinhomes w/off-street parking

Apartments (~12 units) Twinhome Twinhome

80 ft x 10 ft 80 ft x 10 ft FAIRVIEW AVE

Apartments (~12 units)

1825 1835 1818 1812

FORD PKWY

T T Site 41722

1 / 4

Site 18697

2 / 2

T T

slide-27
SLIDE 27

27

Ford/Kenneth

KENNETH ST FORD PKWY

Highland Lifecare CB Burnet Burnet Parking (41 spaces)

1999 1991 2004 201 2

BP

2005

80 ft x 10 ft

T

57 ft x 10 ft

T Site 18694

3 / 31

Site 4283

46 / 11

T T

2015

slide-28
SLIDE 28

28

Ford/Finn

Route Dir Site I.D. % Rte Samp Avg Daily ON Avg Daily OFF Avg Daily LOAD 23 West 4286 100 18 0.7 40.1 46 West 4286 100 39.3 14 122.8 70 East 4286 85 6.1 13.7 74 West 4286 100 38.7 39 435.6 84 South 4286 100 16.9 15.7 230.4

FINN ST FORD PKWY 80 ft x 10 ft

T

80 ft x 10 ft

T Site 4282

147 / 125

Site 4286

119 / 70

T T

Local Bus Stop

Lifetime Fitness & Structured Parking

slide-29
SLIDE 29

29

Ford/Woodlawn

WOODLAWN AVE FORD PKWY 80 ft x 10 ft

T

80 ft x 10 ft

T Site 4290

6 / 8

Site 4279

12 / 15

T T

Petco

slide-30
SLIDE 30

30

46th/45th-46th

45TH AVE 46TH STREET 46TH AVE 80 ft x 10 ft

T

4556 4500

Site 51516

7 / 16

Site 51514

16 / 6

Parkway West Apartments

T T

SF Home SF Home

slide-31
SLIDE 31

31

46th/Minnehaha

46TH STREET 80 ft x 10 ft

T

80 ft x 10 ft

T

Geller Auto Repair Falls Liquor Jakubas Dental

Site 53362

19 / 2

Site 16607

2 / 30

T T

slide-32
SLIDE 32

32

2014: Pilot Station at 7th & Olson

6th Avenue N Olson Memorial Highway << Metro Transit Heywood Garage Current Route 19 Planned C Line Current Route 5 Future Arterial BRT

32

slide-33
SLIDE 33

CONCEPTUAL SHELTER DESIGNS

slide-34
SLIDE 34

34

Station Elements Design Custom BRT Shelter

Layout

varies by size and location constraints

Identity

is consistent across sizes, locations

Pylon

  • Iconic station

identifier

  • Appears at EVERY

station

  • Real-time info panel
  • Security cameras
  • Emergency telephone

Other Station Elements

Must-Haves:

  • Ticket Vending

Machine

  • GoTo Validator

Other elements tailored by location:

  • Trash
  • Seating
  • Bike Parking
  • Etc.

3 Base Layout Concepts 10 Identity Concepts for Shelter & Pylon

slide-35
SLIDE 35

35

Concept A Base – Open Layout

slide-36
SLIDE 36

36

Concept B Base – L-Shaped

slide-37
SLIDE 37

37

Concept C Base – C-Shaped

slide-38
SLIDE 38

38

10 Identity Concepts

slide-39
SLIDE 39

39

12 corridors, 400+ stations

slide-40
SLIDE 40

40

Snelling & Larpenteur, Roseville

slide-41
SLIDE 41

41

Snelling & Hewitt, St. Paul

slide-42
SLIDE 42

42

Snelling & Dayton, St. Paul

slide-43
SLIDE 43

43

Snelling & Grand, St. Paul

slide-44
SLIDE 44

44

Snelling & St. Clair, St. Paul

slide-45
SLIDE 45

45

Snelling & Randolph, St. Paul

slide-46
SLIDE 46

46

Ford & Fairview, St. Paul

slide-47
SLIDE 47

47

Ford & Finn

slide-48
SLIDE 48

48

46th & 46th, Minneapolis

slide-49
SLIDE 49

49

2014 Design Schedule

A Line (Snelling Avenue) BRT Corridor Design & Prototype Station Design 2014 MILESTONE SCHEDULE

2014 J F M A M J J A S O N D Design Input Inventory, Survey, Site Investigation 7TH & OLSON PILOT STATION 50% design 90% design Final bid documents Construction bidding & award Construction PROTOTYPICAL SHELTER Design input & concepts 50% design Bid documents Bidding & award to manufacturer Shelter fabrication & installation at pilot site A LINE 30-50% design 90% design

April October PROPOSED CAC-HOSTED OPEN HOUSES
