A Line (Snelling) Bus Rapid Transit July 24, 2014 Technical - PowerPoint PPT Presentation

Oct 28, 2023 •192 likes •420 views

A Line (Snelling) Bus Rapid Transit July 24, 2014 Technical Advisory Committee Meeting #7 1 A Line - Approved Plan Summary Extensive pre-design (2012-2013) technical analysis Corridor Planning & Pre-Design Community of station

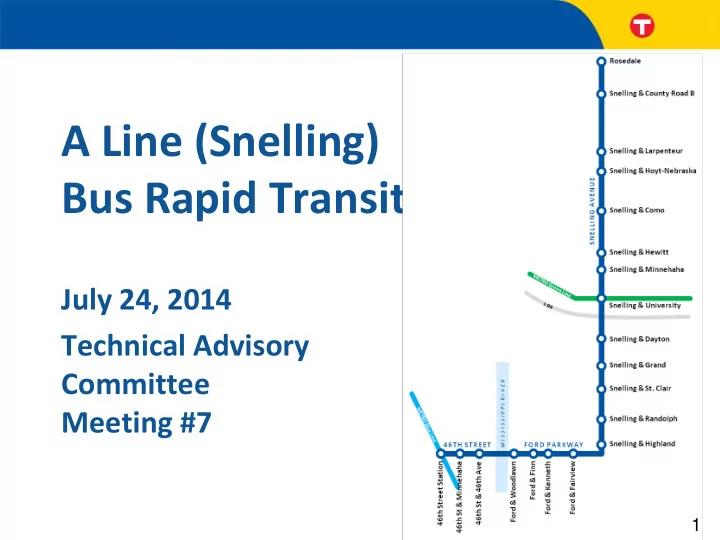

  1. A Line (Snelling) Bus Rapid Transit July 24, 2014 Technical Advisory Committee Meeting #7 1

  2. A Line - Approved Plan Summary • Extensive pre-design (2012-2013) technical analysis Corridor Planning & Pre-Design Community of station locations and community engagement Engagement • Shared for public review May 2014 Concept Plan • Included multiple alternatives for two stations of interest Community Input on Concept Plan • The final number and location of stations Recommended Plan • A specific location for each platform Comments on Recommended Plan Action Approved to Approve Final Design Recommended Plan* Plan *pending MnDOT layout approval 2

  3. Recommended Plan Rosedale • Part 1: Number & Location Snelling & County Road B of Stations Snelling & Roselawn Snelling & Larpenteur 20 Stations in Snelling & Hoyt-Nebraska Recommended Plan Snelling & Como – Includes Snelling & Hewitt Snelling & Hoyt-Nebraska Snelling & Minnehaha – Defers Snelling & Roselawn Snelling & University Snelling & Dayton Snelling & Grand 46th St & Minnehaha 46th Street Station 46th St & 46th Ave Ford & Woodlawn Snelling & St. Clair Ford & Kenneth Ford& Fairview Ford & Finn Snelling & Randolph Snelling & Highland 3

  4. Roselawn Station Deferral • Consistently higher ridership at Hoyt-Arlington Snelling & Roselawn Snelling & Roselawn Snelling & Hoyt-Arlington 80 75 70 Average Daily Boarding Activity 72 68 66 60 60 50 40 30 20 10 7 6 4 6 6 - 2010 2011 2012 2013 2014 4

  5. Recommended Plan Rosedale • Part 2: Specific Snelling & County Road B Platform Locations Snelling & Larpenteur Station to be built at Snelling & Hoyt-Nebraska existing bus stop location (24) Snelling & Como Station to be built at Snelling & Hewitt Snelling & Minnehaha relocated bus stop (14) Snelling & University Snelling & Dayton 46th St & Minnehaha Snelling & Grand 46th St & 46th Ave Ford & Woodlawn Ford & Kenneth Ford& Fairview 46th Street Station Snelling & St. Clair Ford & Finn Snelling & Randolph Snelling & Highland 5

  6. 46th Street & 46th Avenue - EB 6

  7. Snelling & Highland Parkway - NB 7

  8. Snelling & Highland Parkway - SB 8

  9. Snelling & St. Clair - NB 9

  10. Snelling & Grand - NB 10

  11. Snelling & Spruce Tree - NB 11

  12. Snelling & Larpenteur - SB 12

  13. Snelling & County Road B - NB 13

  14. Urban Design Elements Colored Shelter Trash Concrete Concrete Receptacle Sidewalk Ticket Vending Bench Bike Rack Turf Pylon Detectable Plates 14

  15. Urban Design Elements Bike Loop Bench 15

  16. Platform Typical Sections

  17. Pylon Foundation

  18. Electrical/Communication Elements A Line Package: • Electrical & Communication cabinets • Communication equipment (not sole- sourced) • Underground infrastructure • Installation of shelters, pylons, and equipment Included in Other Packages: • Sole-sourced communication equipment to be procured by Metro Transit • Fare collection • Shelters & Pylons 18

  19. Electrical/Communication Cabinets Communication Cabinet (~26”x32”x44”) Electrical Cabinet (~24”x20”x50”) 19

  20. Communication/Electrical Plan 20

  21. Sample TSP Plans 21

  22. Sample TSP Plans 22
