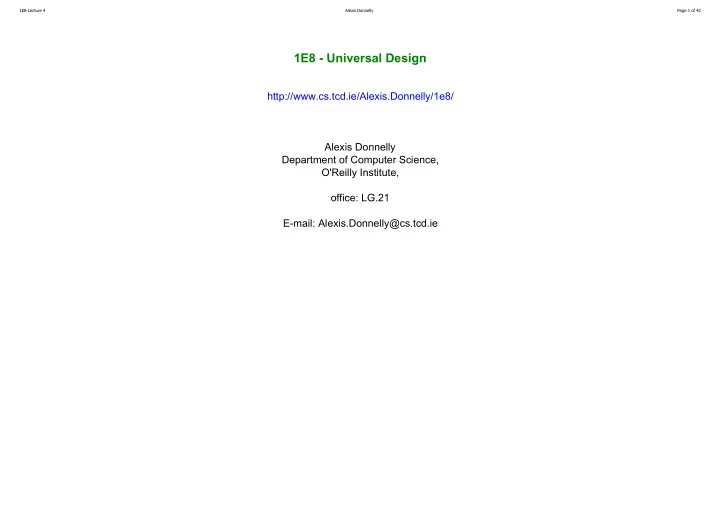

1E8 - Universal Design

http://www.cs.tcd.ie/Alexis.Donnelly/1e8/ Alexis Donnelly Department of Computer Science, O'Reilly Institute,

• ffice: LG.21

E-mail: Alexis.Donnelly@cs.tcd.ie

1E8-Lecture 4 Alexis.Donnelly Page 1 of 42

Overview A Better Understanding of Impairments/Disablement contd... [THE TABLE]... Video of Screenreader UD applied to the Web Inclusive Design Toolkit More news on Coursework & Exam

1E8-Lecture 4 Alexis.Donnelly Page 2 of 42

Familiarity with Impairments/Disablements [REMINDER] We are examining some typical impairments from several design-related points of view: Impairment reason/cause/conditions Analogous Disabling Environment Barriers/Problems encountered due to Conventional design Coping Strategies Coping Tools Impairments: Low Vision, Blindness, Low Hearing, Profound Deafness, Motor skills / Mobility, Cognitive

1E8-Lecture 4 Alexis.Donnelly Page 3 of 42

The Impairments-Environments-and-Strategies Table [REVISITED] Impairment Symp. Root Cause Similar Disabling Envr. Barriers Found Coping Strategies Coping Tools Low Vision ... ... ... ... ... ... Blindness ... ... ... ... ... ... Low Hearing ... ... ... ... ... ... Profound Deafness ... ... ... ... ... ... Motor Skills / Mobility MSM-S MSM-RC MSM-SDE MSM-BF MSM-CS MSM-CT Cognitive C-S C-RC C-SDE C-BF C-CS C-CT

[source: based on work done at Trace Research & Development Center Univ of Wisconsin]

1E8-Lecture 4 Alexis.Donnelly Page 4 of 42

Motor Skills & Mobility: Symptoms (MSM-S) Neuromuscular Impairments: Paralysis Weakness (paresis) Interference with control Spasticity Ataxia Athetosis, Chorea Skeletal Impairments: Joint movement limitations Result of pain Mechanical problem Small or malformed limbs Missing limbs - congenital or lost by accident / amputation Non-average trunk size

1E8-Lecture 4 Alexis.Donnelly Page 5 of 42

Motor Skills & Mobility: Root Causes (MSM-RC) Cerebral Palsy Traumatic injuries (Spinal Chord, Head, Stroke, Limbs) Diabetes mellitus Back disorders Malformations - congenital, thalydomide Parkinson's Disease Huntington's Disease (chorea) Multiple Sclerosis (MS) ALS (Lou Gehrig's Disease) Muscular Dystrophy (MD) Myasthenia Gravis Poliomyelitis Guillain-Barre' Syndrome Epilepsy Arthritis

1E8-Lecture 4 Alexis.Donnelly Page 6 of 42

Motor Skills & Mobility: Similar Disabling Environment (MSM-SDE) wearing large gloves/mitts wearing dangerous chemicals suit / spacesuit / diving suit working in bouncing vehicle leg/arm in cast use of crutches travelling in rocket / jet fighter - high accelerations

1E8-Lecture 4 Alexis.Donnelly Page 7 of 42

Motor Skills & Mobility: Barriers Found (MSM-BF) Mobility Fine motor skills Avoiding hazards / accidents Manipulation Cooking Self-care Sports / recreation Communication / conversation

1E8-Lecture 4 Alexis.Donnelly Page 8 of 42

Motor Skills & Mobility: Coping Strategies (MSM-CS) Seek assistance with: Mobility Self care Manipulation Communication

1E8-Lecture 4 Alexis.Donnelly Page 9 of 42

Motor Skills & Mobility: Coping Tools (MSM-CT) Wheelchair, scooter Walking frame, crutches, prosthetic limbs Reacher / grabber Robotic aids Speech recognition - environmental control system Communication aids: speech tablet ...

1E8-Lecture 4 Alexis.Donnelly Page 10 of 42

Cognitive: Symptoms (C-S) Impairments of Intelligence and Thinking Impairments of Memory Impairment of Language / communication Aphasia (Specific) Learning Disabilities

1E8-Lecture 4 Alexis.Donnelly Page 11 of 42

Cognitive: Root Causes (C-RC) Congenital: Downs Syndrome, lack of oxygen before or after birth, foetal alcohol syndrome, hereditary syndromes (Fragile X), etc. Head Injury (Cerebral Trauma) - both closed and open head injuries. Environmental Causes - lead poisoning, poor nutrition, poor language and cognitive stimulation, etc. Stroke (Cerebral Vascular Accident) Alzheimer's Disease Multiple Sclerosis

1E8-Lecture 4 Alexis.Donnelly Page 12 of 42

Cognitive: Similar Disabling Environments (C-SDE) There aren't many, except perhaps: under the affluence of incahol (and similar substances) in a foreign language environment

1E8-Lecture 4 Alexis.Donnelly Page 13 of 42

Cognitive: Barriers Found (C-BF) [1/3] Communication: understanding speech, speaking Dealing with visual complexity (e.g., displays, controls) Understanding sequential instructions (spoken, written, or symbolic) Reading Writing / Typing Computer Access Phone Use Operating "public machines" (e.g., ATM's, point-of-sale terminals, vending machines, pay phones, elevators) Transportation: using public transport, navigation, map reading Shopping: finding or locating proper store, item in store; understanding relative costs; paying and counting change Cooking (particularly following instructions)

1E8-Lecture 4 Alexis.Donnelly Page 14 of 42

Cognitive: Barriers Found (C-BF) [2/3] Dealing with money Schedules / time skills Daily living activities Planning a task / tasks Learning in conventional educational settings Understanding consequences of actions, particularly long-term consequences Following work and other daily routines: going to work regularly, on time, and understanding and observing rules; organizing activities in temporal sequences; making decisions about day-to-day matters; understanding time of day; understanding past and future (appointment-keeping) Self-awareness, self-identity, and self-presentation (grooming, dress, social behavior)

1E8-Lecture 4 Alexis.Donnelly Page 15 of 42

Cognitive: Barriers Found (C-BF) [3/3] Managing interpersonal relationships including social activities, managing conversations, managing emotions and their expression. Safety: identifying hazards and hazard labeling, avoiding hazards, refraining from conduct potentially self-endangering, reacting appropriately to emergency or injury, taking proper precautions Wandering or getting lost. Some of these difficulties are imputed or inferred (wrongly) to a person on the basis of physical appearance.

1E8-Lecture 4 Alexis.Donnelly Page 16 of 42

Cognitive: Coping Strategies (C-CS) facilitate cognitive tasks - minimise effort on language, memory, learning, processing substitute for what deficits may be present simplified routines

1E8-Lecture 4 Alexis.Donnelly Page 17 of 42

Cognitive: Coping Tools (C-CT) Memory aids Wandering aids Aids to sequencing Reading aids Conversation/writing aids Aids to learning Emergency/call systems "Companion" Systems Problem solving aids

1E8-Lecture 4 Alexis.Donnelly Page 18 of 42

Cognitive Impairments: Design Strategies NOTE: difficult impairment to cater for in design since: hard to get feedback / information from the users themselves hard to imagine the condition hard to simulate the condition Several impairments often involved: communication (language) learning memory processing (thinking & sequencing) So: Simplify tasks as much as possible exploit & enhance what functionalities remain provide support / help / companion function

1E8-Lecture 4 Alexis.Donnelly Page 19 of 42

UD and Computers Recall the Interaction Cycle from last lecture: Perceive-Understand-Decide/Select-Do So: Can the screen be read & understood? Can sound be heard? Can keyboard be used? Can mouse be used? If not, users will require some assistive technology: Screen-reader (JAWS), screen-magnifier (Zoomtext) Operating System modifications (Start/Settings/Control Panel/Accessibility Options in Windows) Alternative keyboard software with keyboard only interface voice-recognition package (Dragon Dictate or ViaVoice)

1E8-Lecture 4 Alexis.Donnelly Page 20 of 42

UD and the WWW Interesting case because it involves many parts of the "system": Alternative I/O devices Operating System Application softwate (browser) Assistive Technology software (Screen- reader) Website web page author All of these must work together seamlessly Watch the video (6 mins) "Introduction to Screenreader" from Trace Research Center. [QuickTime required. ~12 Mb]

1E8-Lecture 4 Alexis.Donnelly Page 21 of 42

UD and the WWW

Pipeline model of the WWW - (information flows left to right) Most important standard is that for HTML - Content Guidelines (WCAG) W3C = World Wide Web Consortium (technical UN of the web); WAI = Web Accessibility Initiative (part of W3C); WC = Web Content (usually a HTML file); UA = User Agent(browser); AT = Authoring Tool (Frontpage, Dreamweaver)

1E8-Lecture 4 Alexis.Donnelly Page 22 of 42

UD and the WWW (Some HTML Guidelines from WCAG) Don't forget ALT text with images Provide text alternatives to audio careful with tables (column & row labelling) link text should make sense out of context don't rely on colour alone don't rely on layout alone .... WAI Home Page: http://www.w3.org/WAI/ WCAG: http://www.w3.org/TR/WCAG10/ Bobby Accessibility Checker: http://bobby.watchfire.com/bobby/html/en/index.jsp

• r local TCD version: http://macneill.cs.tcd.ie:8180/bobby

1E8-Lecture 4 Alexis.Donnelly Page 23 of 42

Inclusive Design Toolkit from Cambridge Engineering Design Centre http://www-edc.eng.cam.ac.uk/betterdesign/

1E8-Lecture 4 Alexis.Donnelly Page 24 of 42

Inclusive Design Toolkit includes: explanation of inclusive design guidance on processes for inclusive design data on user capabilities impairment simulators an exclusion calculator

• - all very helpful with each stage of the design process

1E8-Lecture 4 Alexis.Donnelly Page 25 of 42

Inclusive Design Toolkit -- Visual Impairment Simulator First, select a scene/object

1E8-Lecture 4 Alexis.Donnelly Page 26 of 42

Inclusive Design Toolkit -- Visual Impairment Simulator Then, select a visual impairment -- macular degeneration

1E8-Lecture 4 Alexis.Donnelly Page 27 of 42

Inclusive Design Toolkit -- Object with Contrast Toaster with variable contrast controls

1E8-Lecture 4 Alexis.Donnelly Page 28 of 42

Inclusive Design Toolkit -- Object with Contrast Toaster with darker contrast controls

1E8-Lecture 4 Alexis.Donnelly Page 29 of 42

Inclusive Design Toolkit -- Object with Contrast + Impairment Now introduce glaucoma

1E8-Lecture 4 Alexis.Donnelly Page 30 of 42

Inclusive Design Toolkit -- Object, NO Contrast + Impairment ... and reduce the contrast

1E8-Lecture 4 Alexis.Donnelly Page 31 of 42

Inclusive Design Toolkit -- Supermarket Visit ... a common supermarket scene ...

1E8-Lecture 4 Alexis.Donnelly Page 32 of 42

Inclusive Design Toolkit -- Supermarket + Colour Blindness supermarket -- as seen with colour blindness

1E8-Lecture 4 Alexis.Donnelly Page 33 of 42

Inclusive Design Toolkit -- Supermarket + Cataracts supermarket -- as seen with cataracts

1E8-Lecture 4 Alexis.Donnelly Page 34 of 42

Inclusive Design Toolkit -- Exclusion Calculator Starting page of the exclusion calculator

1E8-Lecture 4 Alexis.Donnelly Page 35 of 42

Inclusive Design Toolkit -- EC + User Demands Having answered some questions about required user capabilities

1E8-Lecture 4 Alexis.Donnelly Page 36 of 42

Inclusive Design Toolkit -- EC -- The Result Numbers and categories excluded (UK population)

1E8-Lecture 4 Alexis.Donnelly Page 37 of 42

Content of Coursework Essay showing that: you understand UD (~10%) you have done some exercise that has raised your own awareness. (~40%) and have applied this knowledge in (re)-designing a mainstream product or environment. (~50%) You may devise your own , but you must obtain my agreement first!

1E8-Lecture 4 Alexis.Donnelly Page 38 of 42

Coursework: Possible Topics & Exam: Sample Question Book / Product Review Exhibition / Product Report A day in the Life of... Accessibility Audit using the tools available from the Inclusive Design Toolkit from Cambridge E. D. C.. Application of NDA IT Accessibility Guidelines to a piece of equipment Web page Accessibility Audit using Bobby OR .... Roll your own (but agree with me first!) - more ideas on the course webpage "Define and explain briefly what is meant by the term Universal Design. What are the attributes of a universally designed product? Describing in relevant detail, illustrate how this approach has been applied in your personal coursework assignment. Pay particular attention to the impact on your

• wn thinking as an engineer, and to the re-design of the product/environment on which you have focussed. Has it got the attributes of a UD product?"

1E8-Lecture 4 Alexis.Donnelly Page 39 of 42

Coursework: Admin details Hand in a paper version of your coursework essay by 3 PM on Friday 24th of April 2009 to the Department of Computer Science, O'Reilly Institute. E-mail me an electronic version by the same deadline -- Subject: UD 1E8 Coursework. Both paper and electronic versions are required. I will provide feedback as quickly as possible and no later than the end of lecture term (8 of May 2009). Feedback is not guaranteed for coursework received after the hand-in deadline. Coursework must have the cover sheet declaring that it is your own work If working with a person with a disability, you must also hand in a collaboration form signed by that person (or their nominee). Don't put covers on your essay -- I can't open them easily! Exam question will be based on your coursework! Enjoy & Best of luck!

1E8-Lecture 4 Alexis.Donnelly Page 40 of 42

Examination Paper Structure Examination Paper will probably look something like this, but details are to be confirmed. (long questions: Do 5 out of 7 ) - 20% each David Taylor - 2 Alexis Donnelly - 1 Kurshid Ahmed - 2 Anil Kokaram - 2

1E8-Lecture 4 Alexis.Donnelly Page 41 of 42

Some Parting Thoughts... ...from George Bernard Shaw You see what is and ask "Why?", but I dream of what never was and I ask "Why not?"

[George Bernard Shaw]

The reasonable man adapts himself to the world; the unreasonable one persists in trying to adapt the world to himself. Therefore all progress depends on the unreasonable man.
