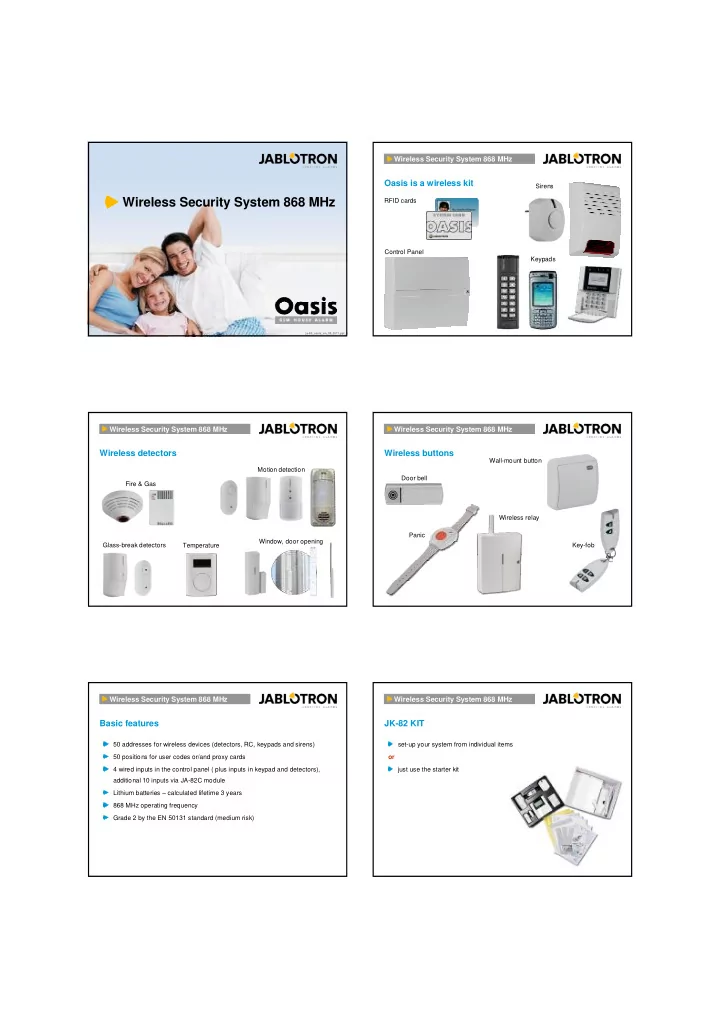

Wireless Security System 868 MHz

ja-80_oasis_en_09_2011.ppt_c1

Wireless Security System 868 MHz

Vložit text + info Vložit text

Oasis is a wireless kit

Keypads RFID cards Sirens Control Panel

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Wireless detectors

Motion detection Fire & Gas Window, door opening Temperature Glass-break detectors

Wireless Security System 868 MHz

Vložit text + info Vložit text + info

Wireless buttons

Door bell Panic Wall-mount button Key-fob Wireless relay

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Basic features

50 addresses for wireless devices (detectors, RC, keypads and sirens) 50 positions for user codes or/and proxy cards 4 wired inputs in the control panel ( plus inputs in keypad and detectors), additional 10 inputs via JA-82C module Lithium batteries – calculated lifetime 3 years 868 MHz operating frequency Grade 2 by the EN 50131 standard (medium risk)

Wireless Security System 868 MHz

set-up your system from individual items

• r

just use the starter kit

Vložit text + info Vložit text + info Vložit text Vložit text

JK-82 KIT

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Kit installation

1 5 6 3 2 4 Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Service mode after powering up

A: Enrollment of more devices

key 1 and connect batteries, exit with #

B: Communication quality test

key 298 (turns on signal measurement) arrow keys scroll devices device triggering = signal from 1/4 to 4/4 # returns you to Service mode

C: GSM signal strength test

key 888 (922 for JA-80Y) return to Service mode by #

Each signal should be at least 2/4

Wireless Security System 868 MHz

Vložit text + info Vložit text + info

Optional antennas

AN-80 AN-81

can be used with control panel and UC-82 receiver

Wireless Security System 868 MHz

Vložit text + info Vložit text + info

JA-80Z Repeater

Repeats RF signals of up to 40 enrolled items Working range can be enhanced up to 2x Shows signal strength of enrolled items Hardware of JA-82K + JA-82R Two-way communication with the control panel

• copy PGX, PGY, EW, IW outputs

Hardwired inputs TMP, INP JA-80F, JA-84P, JA-80A cannot be enrolled

Wireless Security System 868 MHz

Vložit text + info Vložit text + info

Programming

299 enrollment of PGX to AC relay X 237 PGX function = on/off

Wireless Security System 868 MHz

Vložit text + info Vložit text + info

Operating a key-fob

SET (arm) UNSET (disarm) both buttons = PANIC

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Let the user feel that (s)he is the master

„Master“ card enrollment: * 5 1234 card Access card enrollment: * 6, Master card, key nn, card Access code programming: * 6, Master card, key nn, code To erase access code and card: * 6, Master card, key nn, 0000 nn = user number 01 to 50 each user can have code, card or both

Peter 6319 Susan 1507 Ann 3891 Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Keypad operation

Function ∗ Esc # PGX off PGX on Status details (open windows, PG, faults) ? Partial setting B (if used) B Partial setting A (if used) A Complete setting ABC Unsetting/Setting Card/code

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

2 level partial arming (example: family house)

Set (armed) by:

C B A

A A A B B C

Key A Key B Key ABC Garage Garage + Ground floor Complete arming

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Split system (example: two families in a house, two offices)

Set (armed) by: Code or card Brown Code or card Ward If both A+B armed, then C also armed Brown armed Ward armed Entire house armed

• inc. common section

A C B A B A B C C

Wireless Security System 868 MHz

Vložit text + info

Remote access

SMS instructions: CODE space INSTRUCTION Turning PGX off PGY OFF Turning PGY on PGY ON Turning PGX off PGX OFF Turning PGX on PGX ON Last event memory checking MEMORY Status checking STATUS Disarming UNSET Arming SET Phone call: Call and wait for the system to respond (after 5 rings) Enter a valid code (master, user or service) Operate the system… hang up at the end

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The JA-82K control panel

Modularity

JA-82K control panel = 4 inputs JA-82R = radio JA-82C = 10 inputs

50 addresses for devices

Wired inputs Wireless devices Enrollment via radio comm. or by keying in production codes

50 addresses for codes / cards

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The JA-82K control panel

Mains power supply and battery

Output 12V, 500mA

Memory for the last 255 events Replaceable memory chip Alarm outputs: EW and IW Programmable outputs: PgX and PgY

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The JA-83K control panel

power transformer 1.1 A back up battery up to 18 Ah JA-82R radio module antenna up to wired inputs communicator: 80X telephone line 80Y GSM 80V LAN + tel. line

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

Hard-wired inputs

Hard-wired inputs addresses 01 to 14 / 30 (can be switched off by DIP switch or by SW) Maximum of 5 detectors in a loop Double balanced - triggering and tampering Programmable reaction (Natural = delayed) Enrollment of a wireless device to address 01 - 14 disables the input terminal

Connected to COM via a 1 kΩ resistor = untriggered input Connected to COM via 2 to 5 kΩ = triggered input Connected to COM via less then 700Ω or more then 7k8 kΩ = tamper signal

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text

Control panel reactions

Devices and codes/cards can have reactions:

Off NATURAL (key-fob, code and card = set / unset, smoke detector = fire alarm) 24 hours Instant Delay (Natural) Next delay Fire Panic Set Set / Unset PG control John 6319 David 1507 Peter 389

Every device, input, code and card can be assigned to section A, B or C

Wireless Security System 868 MHz

Example of system management

Vložit text + info Vložit text + info Vložit text

OLink SW

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text

Device setting

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text

Code and card setting

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text

Control panel setting

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The JA-81F keypad

Fully graphical display

Customizable logo (128x48)

Two versions

White backlight only Settable backlight color JA-81F-RGB

Wakening by

External input Gently pressing the keypad’s door

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The JA-81F keypad

Internal menu

Language setting Brightness Contrast Backlight color (JA-81F-RGB only)

Text editing

Manually or via Olink software JA-82T direct connection support

JA-81E = hard-wired version

Wireless Security System 868 MHz

Vložit text + info Vložit text + info Vložit text Vložit text

The PC-01 proximity card

RFID access card (EM UNIQUE 125kHz) Up to 50 cards can be enrolled to the system The card has the same function as an access code For higher security the card can be combined with a code PC-02, PC-0x

Wireless Security System 868 MHz

Wireless detectors

Powered by lithium batteries Battery lifetime is up to 3 years (status is supervised) Communication range about 200 – 300m open area Communication supervision every 9 minutes Detection of motion, glass-breaking, opening, smoke, heat, gas

Wireless Security System 868 MHz

Vložit text + info

The JA-80P motion detector

PIR sensor Hard-wired input IN (initiates same reaction as PIR) 15 min test mode after closing the cover 5 min sleep time (can be shortened to 1 minute) DIP switches

DEL/INS (Natural reaction) NORM/HIGH (immunity level)

Covers 120°/12m Optional lenses (pet, long corridor, vertical curtain) 1 x AA Lithium battery 3.6V

Wireless Security System 868 MHz

Vložit text + info

The JA-80P motion detector

Wireless Security System 868 MHz

Vložit text + info

The JA-83P mini motion detector

PIR detector 1/3 smaller than JA-80P 15 min test mode after closing the cover 5 min sleep time (can be shortened to 1 minute) DIP switches

DEL/INS (Natural reaction) NORM/HIGH (immunity level)

Covers 120°/12m Optional lenses (pet, long corridor, vertical curtain) 1x CR123A Lithium battery 3V

Wireless Security System 868 MHz

Vložit text + info

The JA-86P dual-zone detector

Dual PIR sensor resolves PET problems Usable in extreme environment (cellar – mice, insects…) Indoor use only 15 min test mode after closing the cover 5 min sleep time (can be shortened to 1 minute) DIP switches

DEL/INS (Natural reaction) NORM/HIGH (immunity level)

1 x AA Lithium battery 3.6V (3 year life time) Principle: PIR1 + PIR2 = Alarm JS-22 = wired version

Wireless Security System 868 MHz

Vložit text + info

The JA-86P dual-zone detector

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

IR flash camera motion detector 4 in 1: flash to distress the thief

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

USB connector

Wireless Security System 868 MHz

Vložit text + info

The JA-84P parameters

Camera resolution: 160 x 120 B&W Bi-directional communication On activation takes 4 pictures:

1x without flash 3x with flash

Range of the flash: max. 3 meters Detector’s memory capacity: 61 photos

USB port Flash drive functionality

Photo transfer time to server: approx. 15s

Wireless Security System 868 MHz

Vložit text + info

The JA-84P parameters

Battery: 2 x CR-123A

Lifetime approx 3 years (inc. 100 photo series)

4 configuration switches:

DEL/INS (Delayed/Instant reaction) NORM/HIGH (PIR analysis) ON/OFF Flash (flash) ON/OFF Trans (photo transmission)

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera – installation:

The JA-80Q into the control panel

Photo transmission from the premises Cooperates with an 80Y (GSM) or an 80V (LAN) communicator

Enroll the detector to the control panel Testing by key-fob

Close the detector’s cover (green LED) Press any key on the key-fob to enroll it

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera – installation:

Camera testing

Set (Arm) button = with flash Unset (Disarm) button = without flash The key-fob is automatically erased after 15 minutes

Switch off radio interference indication The photos can be displayed at www.img.jablotron.com

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

Detector coverage

Top view

PIR

CAMERA

Side view

2,5

Side view

2,5

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

Register at www.img.jablotron.com

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

Displaying pictures on www.img.jablotron.com

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

Configuration

Wireless Security System 868 MHz

Vložit text + info

The JA-84P detector with built-in camera

Configuration

Wireless Security System 868 MHz

Vložit text + info

Picture can be sent to a mobile

Flash forces the violator to look at the camera Provoking an attack Camera is designed to confirm the alarm Oasis

Wireless Security System 868 MHz

Vložit text + info

And on top of all that..

iPhone owners can use a special application for access to the pictures from their Oasis system iPhone Oasis

Wireless Security System 868 MHz

Vložit text + info

The JA-85P motion detector

Mini-size PIR detector Can be used in a house or in the car (CA-1802 & 1803) 15 min test mode after closing the cover DIP switches

NORM / HIGH (immunity level) DEL / INS (Natural reaction) Supervision ON / OFF Sleep 1 / 5 minutes

Semi-sphere lens max. detection distance 5m 1 x AA Lithium 3.6V battery

Wireless Security System 868 MHz

Vložit text + info

The JA-85P motion detector

Wireless Security System 868 MHz

Vložit text + info

The JA-85B glass-break detector

Dual detection (air pressure change + glass breaking sound) Can be used in the house or in the car 15 min test mode after closing the cover DIP switches

DEL / INS (Natural reaction) Supervision ON / OFF

Detection up to 9 meters (min. 0,6 x 0,6 m) Can be tested with GBT-212 1 x AA Lithium 3.6V battery

Wireless Security System 868 MHz

Vložit text + info

The JA-85B glass-break detector

Wireless Security System 868 MHz

Vložit text + info

The JA-80PB motion and glass-break

PIR sensor + glass-break sensor in one housing Enrolls to 2 addresses in the system The same characteristics as JA-80P with JA-85B Glass-break DIP switches:

DEL / INS (Natural reaction) PIR / GBS (LED indicator function in test mode)

2 Lithium bateries: 1 x AA + 1x 1/2 AA 3,6V

Wireless Security System 868 MHz

The JA-80W Wireless Dual PIR + MW detector

Two parts PIR part = JA-80P (same technology) MW part = microwave detector MW part Working frequency cca 10GHz Movement detection coverage from 0.5 to 20 m (adjustable)

• Dual detection
• PIR part activates MW
• ALARM = PIR activation + activation

MW sensitivity knob

Dual detection = better protection, less false alarms.

Wireless Security System 868 MHz

The JA-80W inside

Settings options DEL / INS (Nature reaction) PIR NORM / HIGH (sensitivity level) MW NORM / HIGH (analysis level) MW NORM / TEST (MW testing) LED indication Short LED flash = PIR activation Long LED flash = MW activation 1x AA Lithium 3,6V battery

Setting switches Microwave detector PIR part

The JA-80W detectors cannot be installed too close to each other

Wireless Security System 868 MHz

Oasis = perimeter protection

Perimeter protection Intruder is detected before entering premises But also Protects owners of the premises when they are at home Perimeter protection visible for intruder from outside means that intruder may change his mind Overview of open windows and doors Can be used for home automation

Wireless Security System 868 MHz

The JA-88P outdoor detector

Based on Optex detector (build in transceiver) Two independent motions sensors 94 zones (not overlapping) Sleeping time 5 s / 120 s ANTI-masking feature IP-55 protection Installed at 2,5 to 3 m above ground Selectable coverage

• Max. coverage 85°/12 m

3 x AA Lithium 3,6V battery Bottom line of detector must be parallel with ground!

Wireless Security System 868 MHz

The JA-80IR outdoor infra red barrier

Based on Optex infra barrier Two beams detectors Range up to 60 m Selectable beams modulations (more IR barriers) Selectable speed of movement 2 transceivers build in IP-55 protection Powered by 4 x 3,6V 13 Ah batteries In OASIS it occupies two positions, both items are enrolled!!!

Wireless Security System 868 MHz

The JA-87P outdoor PIR detector - curtain

Based on Optex detector (build in transceiver) 2 parts (detector and transceiver), more options for installation 2 zones – not overlapping Curtain features – curtain angle 5° Most suitable for balconies, gates, garage, patio, french windows… ANTI-masking function Installed from 0,8 to 1,2 m above the ground Selectable coverage (2m or 5m) 1 x AA Lithium 3,6V battery IP55 protection, sleeping time 5s/120s.

Wireless Security System 868 MHz

Vložit text + info

The JA-89P outdoor PIR detector

Based on an Optex product 2 sensors (eliminate alarms caused by small animals) IP-54 cover Installation height 0.8 - 1.2 m Adjustable detection angle 1 x AA Lithium battery 3.6V IP55 protection

Wireless Security System 868 MHz

Vložit text + info

The JA-89P outdoor PIR detector

Covered area adjustable area not covered

Wireless Security System 868 MHz

Vložit text + info

The JA-81M magnetic detector

Magnetic door / window detector Status detector (optional pulse reaction) DIP switches:

DEL / INS (Natural reaction) MG ON / OFF (enable/disable internal sensor)

3 input terminals :

TMP = tamper input IN1 = NC / NO alarm input (1k balanced) IN2 = Roller-shutter input (3 activations within 5s = alarm, disconnection = tamper)

1x AA Lithium 3.6V battery Optional brown housing.

Wireless Security System 868 MHz

Vložit text + info

The JA-81M detector

MG OFF MG ON tamper switch external sensors Reaction

• mag. sensor

ON/OFF INSTANT DELAY

IN 2 IN 1 GN D TM P

1k

LITHIUM 3,6V AA Wireless Security System 868 MHz

Vložit text + info

The JA-83M magnetic detector

Magnetic detector about 1/3 shorter than the JA-81M Status detector (optional pulse reaction) DIP switch:

DEL / INS (Natural reaction)

2 types of the magnets:

Classic cube (see the picture) Magnetic ring with a screw

1x CR-123A 3V Lithium battery Optional brown housing.

Wireless Security System 868 MHz

Vložit text + info

The JA-82M window detector

„Invisible“ window (door) detector (EURO or wooden) To be installed in the frame of a window (door) DIP switches:

INS / DEL (Natural reaction) TMP on / off Status / Pulse reporting

2 x CR2354 Lithium 3V battery back-plates

Wireless Security System 868 MHz

The JA-82SH shock and tilt detector

2 functions (shock or tilt, only one can be active!) Shock detector Detects attempts to force , smash, drill or saw through (windows, doors or walls) Shock confirmation feature (= memory of previous shocks) Tilt detector Detects non authorised manipulation (tampering) with objects Detector uses a semiconductor tri-axial accelerometer Selectable sensitivity by knob 1x CR123A battery, app. 2 years (20 activations/day)

Wireless Security System 868 MHz

Vložit text + info

The CT-01 roller-shutter detector

Detects window shutter (curtain) movement Principle – ratchet-wheel generates the pulses Can be used with the JA-81M

Example of the IN2 connection

Wireless Security System 868 MHz

Vložit text + info

The LD-12 flood detector

Hardwired detector Protection of kitchen, bathroom, cellar… NO and NC output Should not be placed permanently in water LD-81 + JA-81M = wireless version

Wireless Security System 868 MHz

Vložit text + info

The JA-80S smoke detector

Fire detector (optical smoke + temperature over 60°C) Testing by test button or by aerosol During alarm the siren can by stopped by pressing its button Jumpers:

FIRE / INS (Natural reaction, INS = restaurant, fireplace...) SIREN ON / OFF

1 x AA Lithium 3,6V battery New model JA-82ST – coming soon

Wireless Security System 868 MHz

Vložit text + info

The JA-80S smoke detector

Siren Reaction

Wireless Security System 868 MHz

Vložit text + info

The JA-80G gas detector

Combustive gas detector (propane, methane..)

Sensor = hot platinum wire

Mains powered Can be tested with a cigarette lighter DIP switches:

10 / 20% LEL (gas concentration) MEM ON / OFF (memory function)

Output relay contact max. 6A

Wireless Security System 868 MHz

Vložit text + info

RC-8x controllers

To be enrolled by inserting a battery or pressing a button Can be used with a control panel, UC and AC receivers and indoor siren Communication range up to 100m door bell, panic personal panic controlling, panic (housing for 2 or 4 buttons) controlling, panic

Wireless Security System 868 MHz

Vložit text + info

The RC-86 key-fob

Universal two-band key-fob

868MHz Oasis 433MHz PROFI / Maestro / Comfort

Frequency setting is done easily just by the buttons Communication range 30 meters Housing for 2 and 4 buttons

Wireless Security System 868 MHz

Vložit text + info

The RC-86 key-fob

Setting table:

Wireless Security System 868 MHz

Vložit text + info

The RC-88 button

DIP switches:

Panic (remote control or panic button function) TMP (disable tamper sensors and communication supervision)

Can also be used with UC, AC and JA-80L 1x 1/2 AA Lithium 3.6V battery (3 year life time, max. 20 activations/day)

Wireless Security System 868 MHz

Vložit text + info

The RC-87 personal panic button

Can be enrolled to the control panel, siren or UC/AC modules Optional

Wrist watch or necklace version Audible confirmation of triggering Delay (5s) to stop accidental triggering

No radio communication supervision CR2032 lithium battery Working range up to 200m

Wireless Security System 868 MHz

Vložit text + info

The RC-85 remote control module

Design to be installed in a car (12 to 24V) 3 wires

GND A = if connected to +U transmits arming signal B = if connected to +U transmits disarming signal both A + B connected to +U transmits a panic signal

Flashing full-beam headlights or blowing the horn send signals Can also be used to transmit an alarm from a car alarm Optional “double click” activation No battery, powered by car

Wireless Security System 868 MHz

Vložit text + info

The JA-80L indoor siren

Mains powered

Disconnected from power during alarm = tamper alarm Disconnected from power without alarm = low-bat warning (optional)

Enrolls by plugging in Selectable alarm setting following PG outputs (alarm reporting from one section only) Generates sounds:

IW alarm Exit and entrance beeps Door bell - 8 melodies Detector - triggered sounds - 8 melodies

Wireless Security System 868 MHz

Vložit text + info

The JA-80L indoor siren

LED indicates PGY status Two volume levels (by keeping the button pressed) Triple click enables/disables arming chirp sounds Signal level measurement – by pressing button

Wireless Security System 868 MHz

Vložit text + info

The JA-80A outdoor siren

Totally wire-free Loudness 112dB/1m (increases gradually)

• Max. duration of the siren sound: 3 min.

Flashes 30 min. after the alarm Jumpers:

50 / 25 s. (communication cycle with the control panel) LED ON / OFF (warning flash every minute)

Enrolls by connecting its battery Lithium battery BAT-80 (max. life time 3 to 5 years)

Wireless Security System 868 MHz

Vložit text + info

The JA-80A outdoor siren

Siren connector (beware of high voltages) LEDs Top cover sensor Siren rem oval sensor Battery connector

enabled disabled communication interval 25s interval 50s LED indication

antenna

Wireless Security System 868 MHz

Vložit text + info

Communicators

External communication

GSM network – GPRS, SMS, VOICE Internet (LAN - Ethernet) PSTN

Reports from the system Remote access position

Wireless Security System 868 MHz

Vložit text + info

Event reporting

INTERNET Oasis Telephone network Automatic Receiving Center and

• r

User notification

Wireless Security System 868 MHz

Remote access

www.GSMLink.cz INTERNET Internet Telephone and

• r

OLINK 2.0 or higher

Wireless Security System 868 MHz

JA-82Y GSM/GPRS communicator

Events reporting SMS to up to 8 tel. numbers (18 languages) Call in and Voice messages (up to 7 types) Up to 2 ARC (IP, SMS or CID protocol) Picture reporting from JA-84P (JA-80Q implemented on the board) Remote access Voice menu by calling in By sending SMS command System controlling (or outputs) by ring in Controlling and programming through Internet by using Olink 2.0 or higher Antenna must be connected before powering up!!!.

Wireless Security System 868 MHz

JA-82Y GSM/GPRS communicator

Other features Control panel time synchronisation with GSM network SMS reporting limit to up to 50 SMS in 24 hours Option to enter URL addresses for ARC IP address or image server Suggestion – do not use prepaid cards

Wireless Security System 868 MHz

JA-82Y remote Internet access

Possible with JA-82Y and OLink 2.0.1 and higher versions Remote access

Wireless Security System 868 MHz

Vložit text + info

The JA-80V LAN+PSTN communicator

Communication via LAN & PSTN Event reporting by:

SMS (17 lang. selection) phone calls ARC (IP, CID or DR protocols)

Picture transmission (using JA-80Q module) Remote access via:

Phone (keypad registration or SMS) Internet - www.gsmlink.cz Unanswered ringing from an authorized phone number

ARC programming can be locked

Wireless Security System 868 MHz

Vložit text + info

The JA-80X voice communicator

Reports alarms with voice messages Up to 4 phone numbers via PSTN 7 voice messages

System name Intrusion Fire Tampering Panic Technical alarm Remote access welcome note

Allows remote access via telephone keypad authorization (DTMF) Supports CID protocol transmission to ARC (PSTN line) Can be combined with JA-80V or JA-80Y

Wireless Security System 868 MHz

Vložit text + info

The UC-82 relay module

Powered by 12V DC 2 output relays (X & Y) - max 2A Low bat. output External antenna is optional Powered by 12V (20mA) external source Can be used with:

Control panel Detectors RC-8x transmitters

Wireless Security System 868 MHz

Vložit text + info

The UC-82 relay module

8 battery connecting detector triggering 1 entry of 299 in Service mode PG outputs of control panel 60 button pressing key-fob

• n/off

4 8 battery connecting detector tamper 60 button pressing key-fob latch 3 battery connecting detector 60 button pressing key-fob impulse 2 min. 2 battery connecting detector 60 button pressing key-fob impulse 1 sec. 1 Max. number Enrolls with Device Reaction No.

Wireless Security System 868 MHz

Vložit text + info

The AC-82 relay module

Powered directly from mains 230V, 50Hz 2 output relays (X and Y) - max 5A Can be used with:

Control panel Detectors RC-8x transmitters TP-8x thermostats

Wireless Security System 868 MHz

Vložit text + info

The AC-82 relay module

8 battery connecting detector triggering 8 battery connecting thermostat 1 entry of 299 in Service mode PG outputs of control panel 60 button pressing enrolls pair of buttons key-fob

• n/off

4 8 battery connecting detector tamper 60 button pressing key-fob latch 3 battery connecting detector 60 button pressing key-fob impulse 2 min. 2 battery connecting detector 60 button pressing key-fob impulse 1 sec. 1 Max. number Enrolls with Device Reaction No.

Wireless Security System 868 MHz

Vložit text + info

The JA-82T and JA-80BT interface

Connects control panel to PC Provides USB or Bluetooth interface Suitable for O-Link, Comlink software

Wireless Security System 868 MHz

THANK YOU End of 1st part
