slide-1
SLIDE 1

Gulf Freeway PEL Study Stakeholder Meeting

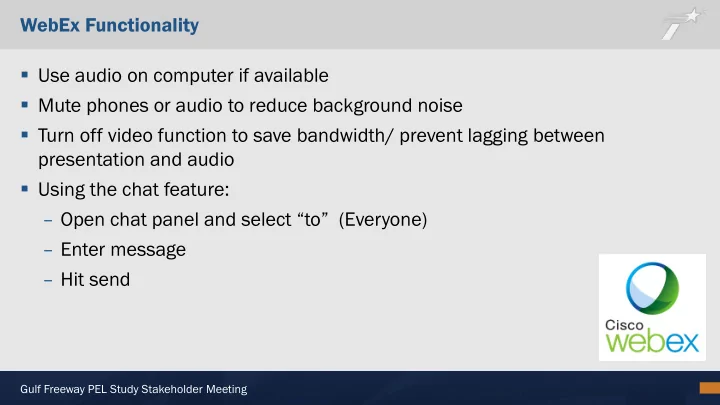

WebEx Functionality

  • Use audio on computer if available
  • Mute phones or audio to reduce background noise
  • Turn off video function to save bandwidth/ prevent lagging between

presentation and audio

  • Using the chat feature:

– Open chat panel and select “to” (Everyone) – Enter message – Hit send

slide-2
SLIDE 2

Gulf Freeway PEL Study Stakeholder Meeting

Stakeholder Meeting No. 1

Gulf Freeway Planning and Environmental Linkages (PEL) Study: I-45 South from I-69 / US 59 (Downtown) to Beltway 8 South

April 23, 2020

slide-3
SLIDE 3

Gulf Freeway PEL Study Stakeholder Meeting

Introductions

slide-4
SLIDE 4

Gulf Freeway PEL Study Stakeholder Meeting

Safety Moment – Home Office Ergonomics

4

slide-5
SLIDE 5

Gulf Freeway PEL Study Stakeholder Meeting

Agenda

5

Stakeholder Roles & Responsibilities Route Importance Study Overview Previous Studies What is a PEL Study? Existing Corridor Conditions 1 2 3 4 5 7 Purpose & Need 8 Next Steps 9 10 Minute Break 6

slide-6
SLIDE 6

Gulf Freeway PEL Study Stakeholder Meeting

Mentimeter Setup

  • Registration:

– Name – Title – Agency – Email address

  • Test question

6

You access via URL Link & Code www.menti.com Code 135278 OR Scan the QR Code

slide-7
SLIDE 7

Gulf Freeway PEL Study Stakeholder Meeting

Stakeholder Roles & Responsibilities

Stakeholders

  • Representatives from local and regional agencies, school districts,

chambers, management districts, emergency services, elected officials, and

  • ther key stakeholders

Stakeholder Responsibilities

  • Attend scheduled meetings and serve as a liaison to respective organization
  • Communicate TxDOT project information to constituents
  • Bring ideas and concerns to TxDOT’s attention
  • Encourage community involvement and input in the project, and consider

that input in discussions about the project

  • Provide study feedback through survey and interactive polling

7

slide-8
SLIDE 8

Gulf Freeway PEL Study Stakeholder Meeting

Route Importance

8

slide-9
SLIDE 9

Gulf Freeway PEL Study Stakeholder Meeting

Study Overview

slide-10
SLIDE 10

Gulf Freeway PEL Study Stakeholder Meeting

Study Overview

10

N

I-69 / US 59 (Downtown) to Beltway 8 South Downtown, Midtown, University of Houston, Gulfgate, Texas Southern University, Hobby Airport

slide-11
SLIDE 11

Gulf Freeway PEL Study Stakeholder Meeting

Why study this corridor?

  • TTI’s 2019 Top 100 congested corridors

(Downtown to I-610: #6; I-610 to BW8: #30)

  • No major improvements since construction

completion in 1970

  • North of study limits - proposed NHHIP

improvements

  • South of study limits - recent widening to 5

mainlanes and 3 frontage road lanes in each direction

11

PEL study will identify the issues and needs along the corridor Gulf Freeway: I-69 / US 59 to BW 8 South

slide-12
SLIDE 12

Gulf Freeway PEL Study Stakeholder Meeting

Corridor History

12

slide-13
SLIDE 13

Gulf Freeway PEL Study Stakeholder Meeting

Study Area

13

  • Existing Facility:

– 6 t to 8 m mainl nlane nes (3 to 4 lanes each direction) – 1 re reversi sible le H HOT la lane (Emancipation to BW 8) – 3 front ntage r road lane nes (in each direction)

N

slide-14
SLIDE 14

Gulf Freeway PEL Study Stakeholder Meeting

Study Overview: Express Lanes Network

14

Northbound HOV entrance, south of Beltway 8

Reversible Lane 2-Way HOT/HOV 2-Way Planned Express Lane 2-Way Express Lane

slide-15
SLIDE 15

Gulf Freeway PEL Study Stakeholder Meeting

Study Process/Schedule

15

We are working on this step

slide-16
SLIDE 16

Gulf Freeway PEL Study Stakeholder Meeting

Interactive Poll – 4 Questions

16

slide-17
SLIDE 17

Gulf Freeway PEL Study Stakeholder Meeting

What is a PEL Study?

slide-18
SLIDE 18

Gulf Freeway PEL Study Stakeholder Meeting

What is a PEL Study?

18

  • Approach to decision making
  • Early consideration of:

– Environmental goals – Community goals – Economic goals

  • Promotes efficient and

cost-effective solutions

  • Minimizes duplication of effort
  • Reduces delays in project implementation
  • Open and frequent communication at all levels

PEL = Planning and Environmental Linkages PEL Coordination

slide-19
SLIDE 19

Gulf Freeway PEL Study Stakeholder Meeting

PEL Study Background

  • A PEL study can:

– Identify future projects – Develop project Purpose and Need – Define project scope – Refine the range of viable alternatives – Link planning to environmental issues which move into NEPA*

  • Decisions made with

stakeholder input

19

* The adoption of the PEL study into the NEPA process is subject to determination by FHWA.

slide-20
SLIDE 20

Gulf Freeway PEL Study Stakeholder Meeting

Existing Corridor Conditions

slide-21
SLIDE 21

Gulf Freeway PEL Study Stakeholder Meeting

Houston Region Growth

21

Source: H-GAC Regional Transportation Plan (2045)

slide-22
SLIDE 22

Gulf Freeway PEL Study Stakeholder Meeting

Number of Travel Lanes with Typical Sections

22

N

slide-23
SLIDE 23

Gulf Freeway PEL Study Stakeholder Meeting

Right of Way Widths

23

N

Right of Way Widths

slide-24
SLIDE 24

Gulf Freeway PEL Study Stakeholder Meeting

Grade Separations

24

N

Grade Separation Locations

Overpass (I-45 over Crossing Street) Underpass (I-45 under Crossing Street)

Vertical Clearance

< 18.5 ft

Vertical Clearance

< 18.5 ft

Vertical Clearance

< 16.5 ft

slide-25
SLIDE 25

Gulf Freeway PEL Study Stakeholder Meeting

Traffic Volumes

25

N

2019 Daily Traffic Volume

Vehicles per Day (VPD) – Both Directions

slide-26
SLIDE 26

Gulf Freeway PEL Study Stakeholder Meeting

Origin Destination - Northbound

26 Source: 2019 StreetLight O-D Data

Traffic pattern from north of BW 8

90,250 ( NB 2019 ADT)

Through Volume 10,830 (NB 2019 ADT)

slide-27
SLIDE 27

Gulf Freeway PEL Study Stakeholder Meeting

Origin Destination - Southbound

27 Source: 2019 StreetLight O-D Data

Traffic pattern from south of I-69 / US 59

87,480 (SB 2019 ADT)

Through Volume 14,870 (SB 2019 ADT)

slide-28
SLIDE 28

Gulf Freeway PEL Study Stakeholder Meeting

Travel Time in Study Corridor

28 Source: NPMRDS 2019

slide-29
SLIDE 29

Gulf Freeway PEL Study Stakeholder Meeting

Travel Time Reliability

29

slide-30
SLIDE 30

Gulf Freeway PEL Study Stakeholder Meeting

Travel Time Reliability

30

Planning Time Index Range

slide-31
SLIDE 31

Gulf Freeway PEL Study Stakeholder Meeting

Travel Time Reliability

31

Planning Time Index Range

Source: NPMRDS 2019

SB I-45 is unreliable for 4 hours in PM peak NB I-45 is unreliable for 14 hours throughout the day NB I-45 is unreliable for 3 hours in the AM peak and 5 hours in PM peak

Southbound I-45 South Northbound I-45 South

slide-32
SLIDE 32

Gulf Freeway PEL Study Stakeholder Meeting

Existing (2019) Level of Service

32

LOS | AM LOS | PM

N N

slide-33
SLIDE 33

Gulf Freeway PEL Study Stakeholder Meeting

Safety: Overall Conditions

33 Source: CRIS database 2014-2018

slide-34
SLIDE 34

Gulf Freeway PEL Study Stakeholder Meeting

Safety: Mainlane Crash Hot Spots (2014-2018)

34 Source: CRIS database 2014-2018

slide-35
SLIDE 35

Gulf Freeway PEL Study Stakeholder Meeting

Safety: Mainlane Crash Summary by Type and Severity (2014-2018)

35 Source: CRIS database 2014-2018

slide-36
SLIDE 36

Gulf Freeway PEL Study Stakeholder Meeting

Safety: Frontage Crash Hot Spots (2014-2018)

36 Source: CRIS database 2014-2018

BW 8 Almeda Genoa/ Shaver Clearwood /Edgebrook Monroe/ Winkler Broadway/ Park Pl Woodridge Wayside

Note:

The frontage crash includes crash records

  • n frontage road and crossing streets

within 500 feet buffer

slide-37
SLIDE 37

Gulf Freeway PEL Study Stakeholder Meeting

Population and Employment Activity Centers

37

1 Regional Activity Centers

REGIONAL AL MAJOR

5 Major Activity Centers

MINOR

1 Minor Activity Centers

North Hobby Source: H-GAC, StreetLight, CoStar Third Ward / Eastwood Downtown Fuqua / BW8 GulfgateCenter / I-610 Edgebrook / Almeda Telephone Road

Activity population - 11,000+/mi2 AND 120+ O-D daily trips/ac Activity population - 11,000+/mi2 OR 100+ O-D daily trips/ac Activity population – 7,201 to 11,000/mi2 AND 40+ O-D daily trips/ac

slide-38
SLIDE 38

Gulf Freeway PEL Study Stakeholder Meeting

Freight Facts

38

Sources: TTI Most Congested Roadways (2019); Texas Freight Mobility Plan 2018; I-45 Freight Corridor Plan (2016)

N

Most Bottlenecks

Houston has the most freight bottlenecks in Texas, and 6 of the top 50 bottlenecks nationwide

2X Freight Growth

Statewide truck tonnage is forecasted to nearly double by 2045, rising from 2.2 billion tons in 2016 to 4.0 billion tons

6th Worst

Congested roadway in TX (2019) I-69 / US 59 to I-610

Port Access

Serious congestion accessing and exiting Port Houston cargo terminals, with domino effects on nearby roadways

8% Trucks

North of I-610

4% Trucks

South of I-610

CBD

slide-39
SLIDE 39

Gulf Freeway PEL Study Stakeholder Meeting

Freight Activities

39 Source: 2015 TranSearch, 2019 CoStar

EaD aDo/Harri rrisburg

Waste/scrap materials, nonmetallic minerals and chemicals/allied products

Spur 5 5

Primary metal products, chemicals/allied products, and nonmetallic minerals

SH 3/South H Hous uston

Waste/scrap materials, clay, concrete, glass, stone products, and bulk commodity shipments

Ho Hobb bby A Airport

Chemicals/allied products, crude petroleum, natural gas, and bulk commodity shipments

Port of Houston

1 2 3 4 1 2 3 4

St Study Ar Area F a Freig ight Ho Hotspots

slide-40
SLIDE 40

Gulf Freeway PEL Study Stakeholder Meeting

Interactive Poll – 3 Questions

40

slide-41
SLIDE 41

Gulf Freeway PEL Study Stakeholder Meeting

10 Minutes Break

41

slide-42
SLIDE 42

Gulf Freeway PEL Study Stakeholder Meeting

Previous Studies

slide-43
SLIDE 43

Gulf Freeway PEL Study Stakeholder Meeting

Previous Studies

43

  • 50 previous studies related to Gulf Freeway PEL Study Corridor were

reviewed

  • Comprehensive list includes studies from various agencies, e.g., TxDOT,

H-GAC, City of Houston, Harris County, Houston Metro, etc.

  • The review focused on how study/project recommendations impact or

influence the Gulf Freeway study corridor

slide-44
SLIDE 44

Gulf Freeway PEL Study Stakeholder Meeting

Previous Studies: MetroNext Impacts to Gulf Freeway

44

Connecting Green Line and Purple Line and extending to Hobby Airport

Light Rail

University Corridor between Westchase and Tidwell

BRT

Gulf Regional Express between Bay Area and Downtown

Regional Express Network

slide-45
SLIDE 45

Gulf Freeway PEL Study Stakeholder Meeting

Previous Studies: North Houston Highway Improvement Project

45

I-45 MaX Lane Start/End at Commerce St in Downtown Proposed I-45 (General Purpose Lanes) Realignment Gulf Freeway PEL Study Corridor

STARTS HERE

slide-46
SLIDE 46

Gulf Freeway PEL Study Stakeholder Meeting

Purpose & Need

slide-47
SLIDE 47

Gulf Freeway PEL Study Stakeholder Meeting

Purpose & Need

47

slide-48
SLIDE 48

Gulf Freeway PEL Study Stakeholder Meeting

Purpose & Need

48 Source: H-GAC

  • A clear, concise, well-justified Purpose & Need is the foundation of every

transportation project – A project's "Need" is an identified transportation deficiency or problem – A project’s "Purpose" is the set of objectives that will be met to address the transportation deficiency

  • Consider H-GAC’s defined regional Goals & Objectives

to identify the I-45 corridor needs such as: – Safe fety – Mobili lity – Asset pr pres eser ervation – Freight mobili lity / / economic d deve velo lopment – Resource ce C Conservation

slide-49
SLIDE 49

Gulf Freeway PEL Study Stakeholder Meeting

Interactive Poll – 6 Questions

49

slide-50
SLIDE 50

Gulf Freeway PEL Study Stakeholder Meeting

Next Steps

50

Summer 2020 Fall 2020

slide-51
SLIDE 51

Gulf Freeway PEL Study Stakeholder Meeting

51

Questions & Open Discussion

slide-52
SLIDE 52

Gulf Freeway PEL Study Stakeholder Meeting

Project Contact

52

Who can can I I co contact act?

Sofia Huang, PE Project Development 7600 Washington Ave Houston, TX 77007

  • Tel. 469-434-5094

Benjamin.Burns@txdot.gov

Vis isit:

www.TxDOT.gov (keyword search I-45S PEL)

Benjamin Burns Project Development 7600 Washington Ave Houston, TX 77007

  • Tel. 713-802-5233

Sofia.Huang@txdot.gov
