VTC Series video cart basic dimensions front view side view rear - - PDF document

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

2

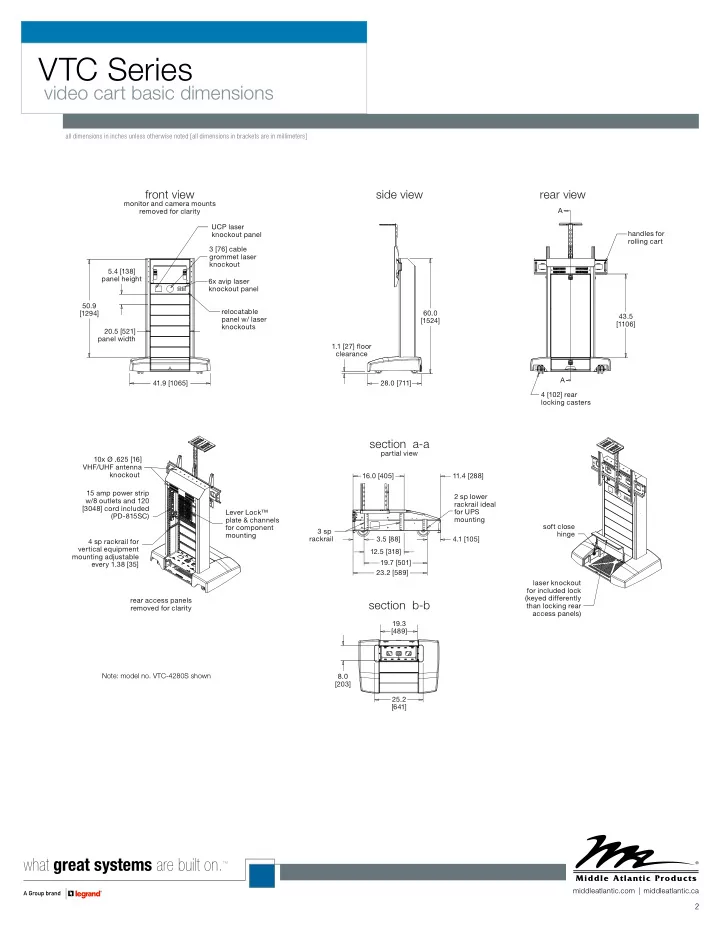

A A 60.0 [1524] 41.9 [1065] 28.0 [711] 1.1 [27] floor clearance 4.1 [105] 23.2 [589] 3.5 [88] 11.4 [288] 16.0 [405] 5.4 [138] panel height 20.5 [521] panel width 12.5 [318] 19.7 [501] 43.5 [1106] 50.9 [1294] 8.0 [203] 19.3 [489] 25.2 [641] rear access panels removed for clarity soft close hinge laser knockout for included lock (keyed differently than locking rear access panels)

front view

monitor and camera mounts removed for clarity relocatable panel w/ laser knockouts 6x avip laser knockout panel UCP laser knockout panel 3 [76] cable grommet laser knockout

side view

4 [102] rear locking casters

rear view

handles for rolling cart 4 sp rackrail for vertical equipment mounting adjustable every 1.38 [35] 15 amp power strip w/8 outlets and 120 [3048] cord included (PD-815SC) 10x Ø .625 [16] VHF/UHF antenna knockout Lever Lock™ plate & channels for component mounting

section a-a

partial view 2 sp lower rackrail ideal for UPS mounting 3 sp rackrail

section b-b

all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

video cart basic dimensions

Note: model no. VTC-4280S shown

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

3 Part # 4 sp rackrail for vertical mounting 12 sp rack w/ tempered glass front door

VTC-4280S x VTC-4280S-R x VTC-4255D x VTC-4255D-R x VTC-5670D x VTC-5670D-R x all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

video cart with rack basic dimensions

Note: model no. VTC-4280S-R shown A A 16.7 [423] 20.2 [512] 31.2 [793] 14.5 [368] usable depth 21.1 [535] 20.6 [523] tempered glass front door

front view

front door removed for clarity 12 sp rack

side view

6.3 [159] x 27.0 [686] shelf size

rear view

heat vents from rack through top

rear view

rear access panels and front door removed for clarity 10-32 threaded rackrail

section a-a

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

4

D D E E 19.21 [488] 18x .50 [13] 4x 2.25 [57] horizontal mounting bracket is adjustable to: 55.64 [1413] 53.01 [1346] 50.39 [1280] .34 [9] 21.0 [533]

VTC-4280S VTC-5670D

display mount bracket hole pattern 21.0 [533] ref A B C all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

monitor mount basic dimensions

Part # A Display Width B VESA Pattern Accommodation C VESA Pattern Accommodation

VTC-4280S & VTC-4280S-R 80 [2032] and under up to VESA 900 up to VESA 400 VTC-4255D & VTC-4255D-R 47 [1194] and under up to VESA 600 up to VESA 400 55 [1397] and under up to VESA 400 up to VESA 400 VTC-5670D & VTC-5670D-R 63 [1600] and under up to VESA 600 up to VESA 400 71 [1803] and under up to VESA 400 up to VESA 400

Part # Single or Dual Displays Color Display Size Max Display Weight Lb [kg] D Horizontal Length E Max Distance Outer Verticals

VTC-4280S single nickel 42 [1067] to 80 [2023 250 [113] 38.00 [965] 35.75 [908] VTC-4280S-BW single black 42 [1067] to 55 [1397] 250 [113] 38.00 [965] 35.75 [908] VTC-4280S-R single nickel 42 [1067] to 80 [2023] 250 [113] 38.00 [965] 35.75 [908] VTC-4280S-RBW single black 42 [1067] to 55 [1397] 250 [113] 38.00 [965] 35.75 [908] VTC-4255D dual nickel 42 [1067] to 55 [1397] 125 [57] (total: 250 [113]) 74.00 [1880] 71.75 [1822] VTC-4255D-BW dual black 42 [1067] to 55 [1397] 125 [57] (total: 250 [113]) 74.00 [1880] 71.75 [1822] VTC-4255D-R dual nickel 42 [1067] to 55 [1397] 125 [57] (total: 250 [113]) 74.00 [1880] 71.75 [1822] VTC-4255D-RBW dual black 42 [1067] to 55 [1397] 125 [57] (total: 250 [113]) 74.00 [1880] 71.75 [1822] VTC-5670D dual nickel 56 [1422] to 70 [1778] 125 [57] (total: 250 [113]) 90.00 [2286] 87.75 [2229] VTC-5670D-BW dual black 56 [1422] to 70 [1778] 125 [57] (total: 250 [113]) 90.00 [2286] 87.75 [2229] VTC-5670D-R dual nickel 56 [1422] to 70 [1778] 125 [57] (total: 250 [113]) 90.00 [2286] 87.75 [2229] VTC-5670D-RBW dual black 56 [1422] to 70 [1778] 125 [57] (total: 250 [113]) 90.00 [2286] 87.75 [2229]

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

5

all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

camera mount basic dimensions

Part # Mounting Location

VTC-4280S above or below display VTC-4280S-R above or below display VTC-4255D between displays VTC-4255D-R between displays VTC-5670D between displays VTC-5670D-R between displays 12 [305] 8 [207] maximum camera mount height 26.5 [674] minimum camera mount height 25.7 [652] Top/bottom camera mount - can be mounted in any location horizontally above or below display, with the exception of where display mount brackets and posts are located. Display mount bracket locations are based upon location of the vesa mounting holes on each specific display.

VTC-4280S top/bottom mounting plate

included with mount slot for 1/4-20 [m6] camera mounting hardware slot for 1/4-20 [m6] camera mounting hardware

side view

top camera mount

between-display mounting plate

included with mount

side view

between-display camera mount

side view

bottom camera mount 8 [206] 8 [203] maximum camera mount height: 9.8 [249] minimum camera mount height: 8.2 [208]

VTC-5670D

Between-display camera mount - can be mounted between two displays in any location except for the solid parts of the display mounting bracket. This location is based upon the specific displays used.

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

6

all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

speaker shelf basic dimensions

Part # A Panel Height B Speaker Area

VTC-SPK-SH5.5 5.4 [138] 4.3 [110] VTC-SPK-SH11 10.9 [227] 9.8 [249] 20.5 [521] A B 19.4 [493] 18.9 [481] 7.4 [188] 2.5 [63] 2.2 [56] 20.8 [528] 8.0 [203] usable depth

speaker grille

black speaker cloth Ø .2 [4] x 1.3 [32] ob typ shelf is adjustable every 1.38 [35]

section b-b

middleatlantic.com | middleatlantic.ca

what great systems are built on.

™

7

all฀dimensions฀in฀inches฀unless฀otherwise฀noted฀[all฀dimensions฀in฀brackets฀are฀in฀millimeters]

VTC Series

accessories basic dimensions

Part # Minimum Work Surface Height Maximum Work Surface Height

VTC-4280S 32 [813] 48 [1219] VTC-4280S-R 36 [914] 48 [1219] VTC-4255D 32 [813] 48 [1219] VTC-4255D-R 36 [914] 48 [1219] VTC-5670D 32 [813] 48 [1219] VTC-5670D-R 36 [914] 48 [1219] A A 1.1 [29] 5.4 [138] 20.5 [521] 16.6 [422] interior width shelf height 4.8 [121] interior height 12.0 [305] 32.0 [813] 7.9 [201] slide travel 7.5 [190] 7.6 [193] interior depth 6.2 [158]

VTC-WS-32X12SL

work surface is adjustable in 1 [25] increments 2 [51] cable grommet

VTC-DWR-5.5

latch with lock (keyed the same as rear access panels)

section A-A
