SLIDE 1

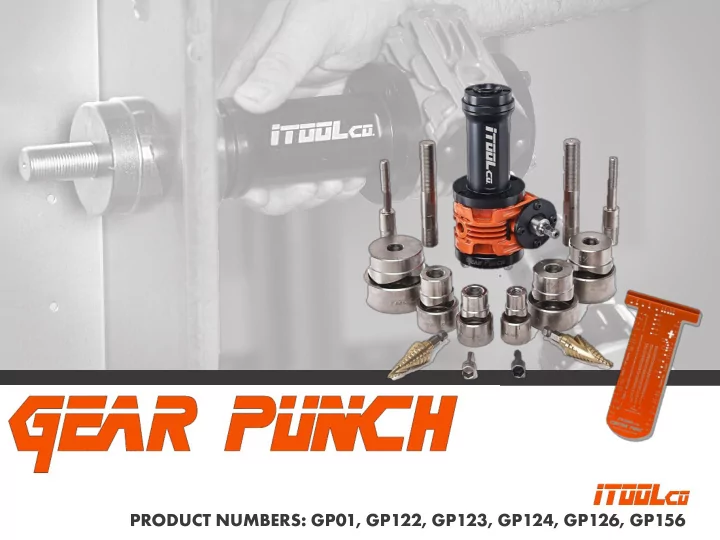

GEAR PUNCH
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156
FASTER Cuts through 10 gauge mild and stainless steel. SAFER Lightweight and works with any drill – new or old. SMARTER Lifetime replacement
- n draw studs.
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156 GEAR PUNCH - - PowerPoint PPT Presentation
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156 GEAR PUNCH - - PowerPoint PPT Presentation
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156 GEAR PUNCH PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156 FASTER Cuts through 10 gauge mild and stainless steel. SAFER Lightweight and works with any drill new or old.
SLIDE 2
SLIDE 3
GEAR PUNCH
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156
HOLE MAKING HAS NEVER BEEN EASIER
- Maintains sharp cutting edges
- No special add-ons needed
- Punches and dies are clearly marked
- Compatible with other punch
and die offerings
SLIDE 4
GEAR PUNCH
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156
INCLUDES CENTER POINT KNOCKOUT LAYOUT TOOL
Product Number: CP01
- Quickly layout and punch knockouts
- Easy to use
- Make accurate knockout layouts
with no math
- 70 times faster than a tape measure
- 6” ruler for convenience
SLIDE 5
PRODUCT NUMBER
GP122 Includes GP123 Includes GP124 Includes GP126 Includes GP156 Includes
Center Point Knockout Layout CP02
1 1 1
7/16” x 3/4" Draw Stud: DS716
2 2 2
3/4" x 3/4” Draw Stud: DS034
2 2 2
3/4" x 1-1/8” Draw Stud: DS118
2 2 2
3/8” Nut Driver: ND038
2 2 2
7/8” Step Bit: SB78
2 2 2
1/2" Punch and Die: PD01
1 1 1
3/4” Punch and Die: PD02
1 1 1
1” Punch and Die: PD03
1 1 1
1-1/4” Punch and Die: PD04
1 1 1
1-1/2” Punch and Die: PD05
1 1 1
2” Punch and Die: PD06
1 1 1
2-1/2” Punch and Die: PD07
1 1 1
3” Punch and Die: PD08
1 1 1
3-1/2” Punch and Die: PD09
1 1 1
4” Punch and Die: PD10
1 1 1
5” Punch and Die: PD11
1 1
6” Punch and Die: PD12
1 1
30.5MM Punch and Die: PD13
GEAR PUNCH
PRODUCT NUMBERS: GP01, GP122, GP123, GP124, GP126, GP156
SPECIFICATIONS
SLIDE 6
