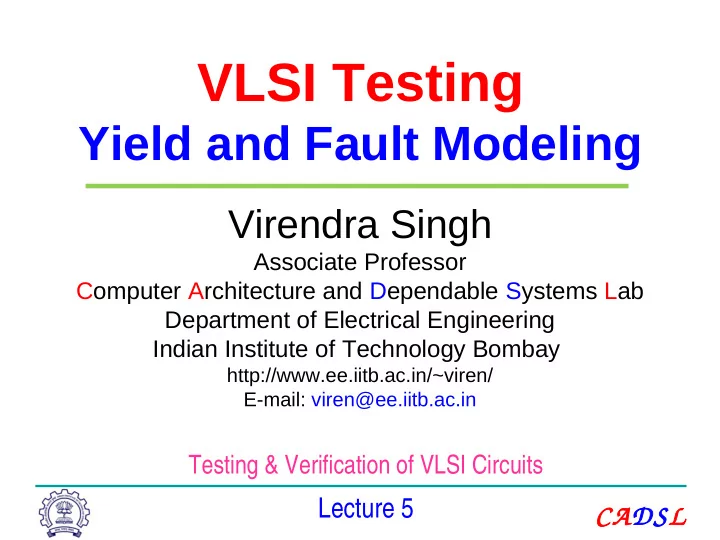

VLSI Testing Yield and Fault Modeling Virendra Singh Associate Professor Computer Architecture and Dependable Systems Lab Department of Electrical Engineering Indian Institute of Technology Bombay http://www.ee.iitb.ac.in/~viren/ E-mail:

SLIDE 1

CADSL

VLSI Testing

Yield and Fault Modeling

Virendra Singh

Associate Professor Computer Architecture and Dependable Systems Lab Department of Electrical Engineering Indian Institute of Technology Bombay

http://www.ee.iitb.ac.in/~viren/ E-mail: viren@ee.iitb.ac.in

Testing & Verification of VLSI Circuits

Lecture 5

SLIDE 2

CADSL

Costs of Testing

Design for testability (DFT)

– Chip area overhead and yield reduction – Performance overhead

Software processes of test

– Test generation and fault simulation – Test programming and debugging

Manufacturing test

– Automatic test equipment (ATE) capital cost – Test center operational cost

24 Jan 2013 EE-709@IITB 2

SLIDE 3

CADSL

Design for Testability (DFT)

DFT refers to hardware design styles or added hardware that reduces test generation complexity. Motivation: Test generation complexity increases exponentially with the size of the circuit. Logic block A Logic block B Primary inputs (PI) Primary

utputs

(PO) Test input Test

utput

Int. bus Example: Test hardware applies tests to blocks A and B and to internal bus; avoids test generation for combined A and B blocks.

24 Jan 2013 EE-709@IITB 3

SLIDE 4

CADSL

Testing Principle

24 Jan 2013 EE-709@IITB 4

SLIDE 5

CADSL

ADVANTEST Model T6682 ATE

24 Jan 2013 EE-709@IITB 5

SLIDE 6

CADSL

Cost of Manufacturing Testing

0.5-1.0GHz; analog instruments; 1,024 digital pins:

ATE purchase price = $1.2M + 1,024 x $3,000 = $4.272M

Running cost (five-year linear depreciation)

= Depreciation + Maintenance + Operation = $0.854M + $0.085M + $0.5M = $1.439M/year

Test cost (24 hour ATE operation)

= $1.439M/(365 x 24 x 3,600) = 4.5 cents/second

24 Jan 2013 EE-709@IITB 6

SLIDE 7

CADSL

Cost Analysis Graph

40,000 25,000 20,000 200k 150k 100k 50k 100 50 Miles Driven Fixed, Total and Variable Costs ($) Average Cost (cents) T

a l c

t Fixed cost Variable cost Average cost

24 Jan 2013 EE-709@IITB 7

SLIDE 8

CADSL

A Modern VLSI Device System-on-a-chip (SOC)

DSP core RAM ROM Inter- face logic Mixed- signal Codec Data terminal Transmission medium

24 Jan 2013 EE-709@IITB 8

SLIDE 9

CADSL

VLSI Chip Yield

A manufacturing defect is a finite chip area with electrically malfunctioning circuitry caused by errors in the fabrication process. A chip with no manufacturing defect is called a good chip. Fraction (or percentage) of good chips produced in a manufacturing process is called the yield. Yield is denoted by symbol Y. Cost of a chip:

Cost of fabricating and testing a wafer

Yield x Number of chip sites on the wafer

24 Jan 2013 EE-709@IITB 9

SLIDE 10

CADSL

Clustered VLSI Defects

Wafer Defects Faulty chips Good chips Unclustered defects Wafer yield = 12/22 = 0.55 Clustered defects (VLSI) Wafer yield = 17/22 = 0.77

24 Jan 2013 EE-709@IITB 10

SLIDE 11

CADSL

Yield Parameters

Defect density (d ) = Average number of defects per

unit of chip area

Chip area (A)
Clustering parameter (α)
Negative binomial distribution of defects,

p (x ) = Prob (number of defects on a chip = x )

Γ (α+x ) (Ad /α) x

= ------------- . ---------------------- x ! Γ (α) (1+Ad /α) α+x where Γ is the gamma function α = 0, p (x ) is a delta function (maximum clustering) α = ∞ , p (x ) is Poisson distribution (no clustering)

24 Jan 2013 EE-709@IITB

SLIDE 12

CADSL

Yield Equation

Y = Prob ( zero defect on a chip ) = p (0) Y = ( 1 + Ad / α ) − α Example: Ad = 1.0, α = 0.5, Y = 0.58 Unclustered defects: α = ∞, Y = e - Ad Example: Ad = 1.0, α = ∞, Y = 0.37 too pessimistic !

24 Jan 2013 EE-709@IITB

SLIDE 13

CADSL

Defect Level or Reject Ratio

 Defect level (DL) is the ratio of faulty chips

among the chips that pass tests.

 DL is measured as parts per million (ppm).  DL is a measure of the effectiveness of tests.  DL is a quantitative measure of the

manufactured product quality. For commercial VLSI chips a DL greater than 500 ppm is considered unacceptable.

24 Jan 2013 EE-709@IITB

SLIDE 14

CADSL

Determination of DL

 From field return data: Chips failing in the field

are returned to the manufacturer. The number

f returned chips normalized to one million chips

shipped is the DL.

 From test data: Fault coverage of tests and chip

fallout rate are analyzed. A modified yield model is fitted to the fallout data to estimate the DL.

24 Jan 2013 EE-709@IITB

SLIDE 15

CADSL

Modified Yield Equation

Three parameters:
Fault density, f = average number of

stuck-at faults per unit chip area

Fault clustering parameter, β
Stuck-at fault coverage, T
The modified yield equation:

Y (T ) = (1 + TAf / β) - β Assuming that tests with 100% fault coverage (T =1.0) remove all faulty chips, Y = Y (1) = (1 + Af / β) - β

24 Jan 2013 EE-709@IITB

SLIDE 16

CADSL

Defect Level

Y (T ) - Y (1) DL (T ) = -------------------- Y (T ) ( β + TAf ) β = 1 - -------------------- ( β + Af ) β Where T is the fault coverage of tests, Af is the average number of faults on the chip of area A, β is the fault clustering parameter. Af and β are determined by test data analysis.

24 Jan 2013 EE-709@IITB

SLIDE 17

CADSL

5 1 0 1 5 2 0 2 5 3 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 1 0 0 F a u l t C o v e r a g e D e f e c t L e v e l

Yield and Fault Coverage

24 Jan 2013 EE-709@IITB

SLIDE 18

CADSL

Computed DL

Stuck-at fault coverage (%) Defect level in ppm 237,700 ppm (Y = 76.23%)

SEMATECH Chip (Courtesy: IBM)

24 Jan 2013 EE-709@IITB

SLIDE 19

CADSL

T i m e i n M

n t h s

R e v e n u e s

∆ T

T i m e t o M a r k e t L o s s o f R e v e n u e s

Time to Market

24 Jan 2013 EE-709@IITB

SLIDE 20

CADSL

Failure Rate Vs Product Lifetime
