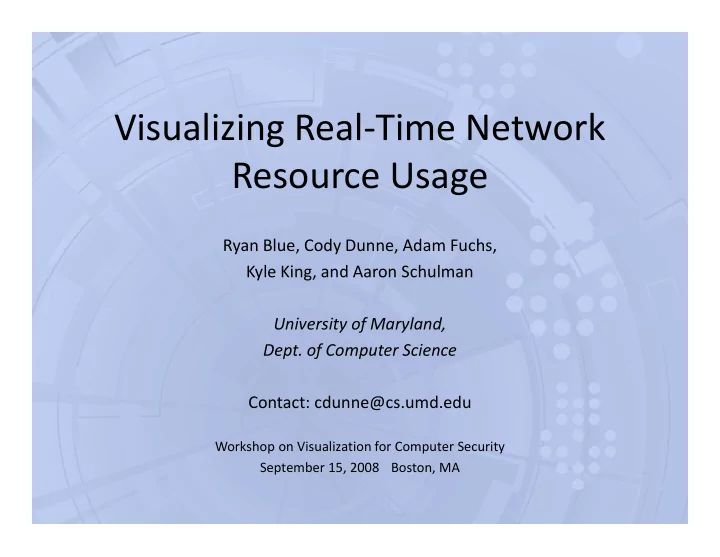

Visualizing Real-Time Network Resource Usage Ryan Blue, Cody Dunne, Adam Fuchs, Kyle King, and Aaron Schulman Kyle King, and Aaron Schulman University of Maryland, Dept. of Computer Science Contact: cdunne@cs.umd.edu Workshop on

slide-1
SLIDE 1

Visualizing Real-Time Network Resource Usage

Ryan Blue, Cody Dunne, Adam Fuchs, Kyle King, and Aaron Schulman Kyle King, and Aaron Schulman University of Maryland,

  • Dept. of Computer Science

Contact: cdunne@cs.umd.edu

Workshop on Visualization for Computer Security September 15, 2008 Boston, MA

slide-2
SLIDE 2

Introduction

  • Computer network data

– Adversarial behavior – Configuration problems – Unfair resource usage – Unfair resource usage

  • Visualization tools

– Too much data – Cluttered – Hard to follow – Primary tools are text based

slide-3
SLIDE 3

Goals

  • Real-time
  • Visual stability
  • Identify local systems

Monitor behavior

  • Monitor behavior

– Attacks – Topology changes – Unusual network usage

slide-4
SLIDE 4

NetGrok

http://www.youtube.com/watch?v=uCXPaNvl5Ok

slide-5
SLIDE 5

Contributions

  • Hashed layout
  • Grouped, home-centric layout
  • Treemap links without occlusion

Mouse-over and preferential edge display

  • Mouse-over and preferential edge display
  • Visualization framework for real-time IP data
slide-6
SLIDE 6

Implementation Details

  • Java
  • Prefuse toolkit

– Custom data structures and visualizations

  • JPCAP library
  • JPCAP library
  • Jigloo Eclipse plugin
slide-7
SLIDE 7

Professional Feedback

  • Expert user:
  • Use case meetings (2 x 1 hr + emails)
  • PCAP and live capture analysis (1 hr)
  • Likert scale questionnaire
  • Positive:

– Filter sliders, esp. time histogram – Filter sliders, esp. time histogram – Intuitive layout and grouping – "NetGrok is excellent as a real-time diagnostic"

  • Criticisms:

– Transport layer data (TCP/UDP) – Dynamic grouping – Animations – Treemaps interesting but not intuitive

slide-8
SLIDE 8

Future Work

  • Age off old data
  • More visualizations

– Semantic substrates – Coarser views – Coarser views

  • Personal security tool
slide-9
SLIDE 9

Acknowledgments

  • Professor Ben Shneiderman our advisor
  • Brad Plecs our case study participant
  • Thomas Lotze, Joonghoon Lee, Michael

VanDaniker, Fatemeh Mir Rashed, Abigail VanDaniker, Fatemeh Mir Rashed, Abigail Daken, Michael Lam, Huimin Guo, and Krist Wongsuphasawat our reviewers

slide-10
SLIDE 10

Contact Info

  • Website: www.cs.umd.edu/projects/netgrok/
  • Email:

cdunne@cs.umd.edu
