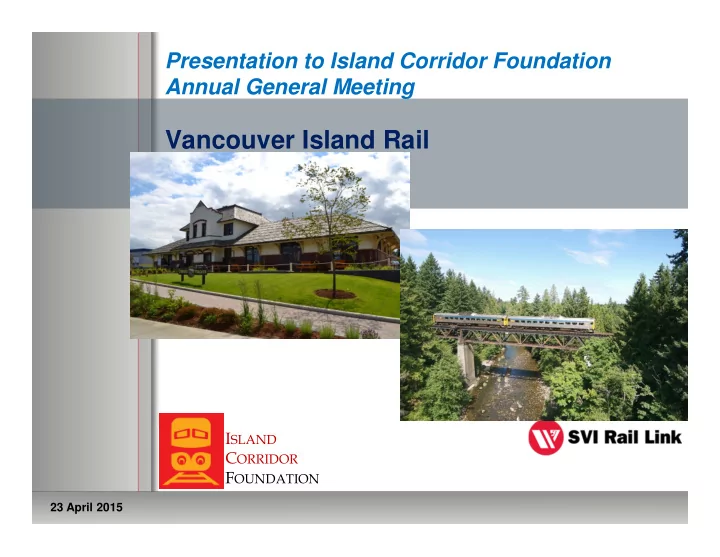

SLIDE 1
Vancouver Island Rail
Presentation to Island Corridor Foundation Annual General Meeting
23 April 2015
VANCOUVER ISLAND RAIL CORRIDOR
23 April 2015
Presentation to ICF Annual General Meeting 2
Vancouver Island Rail - - PowerPoint PPT Presentation
Vancouver Island Rail - - PowerPoint PPT Presentation
Presentation to Island Corridor Foundation Annual General Meeting Vancouver Island Rail 23 April 2015 VANCOUVER ISLAND RAIL CORRIDOR 2 23 April 2015 Presentation to
SLIDE 2
SLIDE 3
Railway Infrastructure Improvement Funding Total $20.9M Project - Update
Regional Districts Railway Bridge Improvements – 10 Year Passenger Rail
- 1. Immediate &10 Year Structural and Immediate Bridge
Tie Renewal Requirements –Regional Districts - $3.115M
- 2. 10 Year Bridge Tie Renewal Requirements – ICF -
$2.285M
- 3. 10 Year Bridge Maintenance – SVI - $0.5M
Total Bridge Repairs & Improvements = $5.9M Approved
23 April 2015
Presentation to ICF Annual General Meeting 3
SLIDE 4
Provincial / Federal Track Upgrade Plan
- 1. MoTI Bridge Assessment $500,000 (Complete 2012)
- 2. Track Tie Renewal – 110,300 ties (25%) - $11.216M
- 3. Rail Joint Renewal – 9000 Pair c/w Fastenings - $0.92M
- 4. Track Re-Ballast & Surface – Complete Line - $2.364M
Total Track Improvements = $15M Under ongoing review > Province
23 April 2015
Presentation to ICF Annual General Meeting 4
Railway Infrastructure Improvement Funding
SLIDE 5
Reports & Studies 2006 to date
MNP Report on E&N Railway - 2005 BC MoTI / IBI Group - Evaluation of the E & N Railway Corridor – Foundation Paper – 2009 ICF / SVI - Potential for Tourism Service on Vancouver Island - 2009 ICF / SVI – Potential for Freight Expansion – 2009 SVI – The Advantages of Rail vs. Truck Transportation of Coal on Vancouver Island – 2010 BC MoTI / Associated Engineering / Benesch – Bridge Inspection and Assessment – E&N Railway, Vancouver Island, BC, Canada – 2012 Island Explorer Excursion Train Feasibility Study – SVI - Sept/2014
23 April 2015
Presentation to ICF Annual General Meeting 5
SLIDE 6
VIA Rail Passenger Service
6
23 April 2015
Presentation to ICF Annual General Meeting
SLIDE 7
VIA Rail – Train Service Agreement
Approval – 2014 – VIA Rail to provide:
- Deficit Funding – $1.45M (Year 1)
- Liability Insurance
- Refurbished Bike-Friendly Rail Cars
Improved Serviced – Based in Nanaimo Local control of schedule and service - (SVI/ICF) Revenue / Ridership Risk with Operator (SVI):
- Need to Respond to Market Demand and Optimum Business
Model
- Inter-operability with other transportation modes –eg. bus / ferry
- Key Connections
- Courtenay > Powell River > Campbell River
- Qualicum Beach > Port Alberni > Tofino / Ucluelet
23 April 2015
Presentation to ICF Annual General Meeting 7
SLIDE 8
Freight Business – Current
2014 Freight Business Rail Service – Direct #Carloads Feed Grain - Top Shelf Feeds – Duncan 158 (direct service suspended – 31 October 2014) Superior Propane – Nanaimo 206 National Silicates –Parksville (service suspended Oct) 9 Total – Direct Rail Service 373 Transload Service – Wellcox Yard #Carloads Top Shelf Feeds (commenced Dec) 14 Poles – NPTW & Stella-Jones (from Courtenay) 52 Latex – Catalyst Paper (to Port Alberni) 95 Fly Ash – Lafarge Cement 25 Other 28 Total – Transload Service 214
23 April 2015
Presentation to ICF Annual General Meeting 8
SLIDE 9
SVI Operations
Current Active Staff Levels # Employees Management / Administration 3 Operations 2 Maintenance 7 Total Active Staff 12
23 April 2015
Presentation to ICF Annual General Meeting 9
SLIDE 10
SVI Operations
Ongoing Maintenance Activities
Track and bridge inspections Crossing & signal system inspection / maintenance Vegetation control Annual track geometry testing Surfacing and re-ballasting as required by visual inspection and by annual track geometry testing Re-gauging of track as required by visual inspection and by annual track geometry testing Tie renewals as determined by visual inspect and by annual track geometry testing
23 April 2015
Presentation to ICF Annual General Meeting 10
SLIDE 11
SVI Operations
Ongoing Maintenance Activities (cont’d)
Tie renewals (as determined by visual inspect and by annual track geometry testing): Total – 2006 to 2009 inclusive...= 16,086 Total – 2010 to 2013 inclusive...= 6,498 Total – 2014...............................= 790 Total – 2006 to 2014 inclusive........= 23,374 Replacement of defective rails as determined by visual inspection and annual ultrasonic rail testing Renewal of defective steel components as determined by visual inspection and annual ultrasonic rail testing Drainage re-ditching and culvert replacement as required to maintain track drainage systems
23 April 2015
Presentation to ICF Annual General Meeting 11
SLIDE 12
12
23 April 2015
Presentation to ICF Annual General Meeting
Freight Opportunities
SLIDE 13
13
23 April 2015
Presentation to ICF Annual General Meeting
Freight Connections
Wellcox Rail Yard
SLIDE 14
14
23 April 2015
Presentation to ICF Annual General Meeting
Freight Connections
Wellcox Rail Marine Ramp, Nanaimo
SLIDE 15
15
23 April 2015
Presentation to ICF Annual General Meeting
Freight Connections
(to North American Markets)
SLIDE 16
23 April 2015
Freight Connections
Annacis Rail Marine Terminal
Presentation to ICF Annual General Meeting 16
SLIDE 17
23 April 2015
Freight Opportunities
North American Market Connections
Presentation to ICF Annual General Meeting 17
SLIDE 18
Tourism / Excursion Rail Cruise Ship Industry Support
23 April 2015
Presentation to ICF Annual General Meeting 18
SLIDE 19
Tourism / Excursion Rail
Island Explorer – Feasibility Study (September 2014) Conclusions Feasible / Positive Bottom Line Dual Purpose Positive synergy with Nanaimo Cruise Ship Calls Island Local “Rolling Special Events” Break-even – 15 Excursion / Events per season High quality hospitality service Local “Themed” events Excess capacity – ie. add more equipment (coaches) Synergy with Island businesses / communities / tourism
23 April 2015
Presentation to ICF Annual General Meeting 19
SLIDE 20
Tourism / Excursion Rail
23 April 2015
Presentation to ICF Annual General Meeting 20
SLIDE 21
Tourism / Excursion Rail
23 April 2015
Presentation to ICF Annual General Meeting 21
SLIDE 22
Tourism / Excursion Opportunities
23 April 2015
Presentation to ICF Annual General Meeting 22
Alberni Pacific – Port Alberni Successful Model
SLIDE 23
Commuter Services
(Future Option available to communities
- eg. CRD and Victoria Western Communities)
23 April 2015
Presentation to ICF Annual General Meeting 23
SLIDE 24
Historic Stations – Heritage Canada Restoration & Development
23 April 2015
Presentation to ICF Annual General Meeting 24
Courtenay Alberni Qualicum Nanaimo Duncan
Nanaimo Train Station
SLIDE 25
Rail Trail Development
Synergy with bike
- friendly rail cars
23 April 2015
Presentation to ICF Annual General Meeting 25
SLIDE 26
Rail Trail Development
23 April 2015
Presentation to ICF Annual General Meeting 26
SLIDE 27
27
23 April 2015
Presentation to ICF Annual General Meeting
