UML2 et ses profils pour le temps-rel COLE D'T TEMPS REL 2005 GdR - - PowerPoint PPT Presentation

UML2 & Real-Time UML2 et ses profils pour le temps-rel COLE D'T TEMPS REL 2005 GdR ARP Thme StrQdS Nancy, 13 - 16 Septembre 2005 Sbastien Grard CEA-LIST Saclay Sebastien.Gerard@cea.fr Dtsi/Sol/L-LSP Sbastien


slide-1

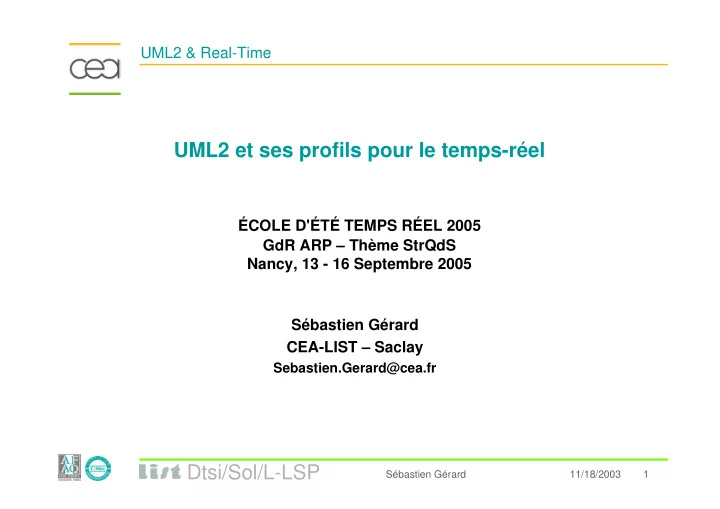

SLIDE 1

Dtsi/Sol/L-LSP

Sébastien Gérard 1 11/18/2003

UML2 & Real-Time

UML2 et ses profils pour le temps-réel

ÉCOLE D'ÉTÉ TEMPS RÉEL 2005 GdR ARP – Thème StrQdS Nancy, 13 - 16 Septembre 2005 Sébastien Gérard CEA-LIST – Saclay

Sebastien.Gerard@cea.fr

slide-2
SLIDE 2

Dtsi/Sol/L-LSP

Sébastien Gérard 2 11/18/2003

UML2 & Real-Time

Agenda Introduction on MDE and UML2 Native concepts for RT in UML2 The UML profile for SPT specification Conclusions and perspectives

slide-3
SLIDE 3

Dtsi/Sol/L-LSP

Sébastien Gérard 3 11/18/2003

UML2 & Real-Time

Engineering Models

Engineering model A reduced representation of some system that highlights the properties of interest from a given viewpoint We don’t see everything at once We use a representation (notation) that is easily understood for the purpose on hand Functional Model Modeled system

Extracted from B. Selic presentation during Summer School MDD For DRES 2004 (Brest, September 2004)

slide-4
SLIDE 4

Dtsi/Sol/L-LSP

Sébastien Gérard 4 11/18/2003

UML2 & Real-Time

Expected benefits for modeling

To deal with complexity Concrete representation of knowledge and ideas about a system being developed improve communication around a problem Abstract a problem (omits some aspects) to focus on some particular points of interest improve understability of a problem To increase control of complexity Via a set of nearly independent views of a model

Separation of concerns (e.g. “Aspect Oriented Modeling”)

A model may be expressed at different level of fidelity (abstraction) To improve communication to foster information sharing and reuse! A model is often best suited than a long speech ! Graphical notation is often better suited than textual one To have seamless of process based on a pivot model paradigm

slide-5
SLIDE 5

Dtsi/Sol/L-LSP

Sébastien Gérard 5 11/18/2003

UML2 & Real-Time

Characteristics of Useful Models

Abstract Emphasize important aspects while removing irrelevant ones Understandable Expressed in a form that is readily understood by observers Accurate Faithfully represents the modeled system Predictive Can be used to answer questions about the modeled system Inexpensive Much cheaper to construct and study than the modeled system

To be useful, engineering models must satisfy all of these characteristics! To be useful, engineering models must satisfy all of these characteristics!

Extracted from B. Selic presentation during Summer School MDD For DRES 2004 (Brest, September 2004)

slide-6
SLIDE 6

Dtsi/Sol/L-LSP

Sébastien Gérard 6 11/18/2003

UML2 & Real-Time

The OMG organism (www.omg.org)

Initially centered on CORBA around the “Object Driven Architecture” Takes UML standardization becomes more and more important Introduction of the MOF to unify all object concepts for CORBA, UML, etc. 6 technical meetings by years (US, Europe, Asia) Work orientation is presented during the meeting Only one vote by legal entity …

slide-7
SLIDE 7

Dtsi/Sol/L-LSP

Sébastien Gérard 7 11/18/2003

UML2 & Real-Time

Use of a « universal » modeling standard

We must go from craft practices … … to industrial production solutions

High level modeling and component based development Idea integration of complementary/concurrent modeling notations proposed for OO methods

OOSE

(Jacobson et al.)

UML 0.9 UML 0.9

1996

etc. ROOM Catalysis

OMG OMG

UML 1.1 UML 1.1

  • Nov. 1997
  • Nov. 1997

UML 1.3 UML 1.3 UML 1.4 UML 1.4 UML 2.0 UML 2.0

Jun June e 1999 1999 End of End of 200 2001 1 … …

ROOM Classe-Relation Fusion HOOD etc... OMT Booch OOSE

> 150 End of 1990 OMT

(Rumbaugh et al.)

Booch

Unified Method Unified Method

0.8

1995

Rational Rational

slide-8
SLIDE 8

Dtsi/Sol/L-LSP

Sébastien Gérard 8 11/18/2003

UML2 & Real-Time

Unified Modeling Language UML is a language syntax + semantics

syntax = rules by which language elements (e.g., words) are assembled into expressions (e.g., phrases, clauses) semantics = rules by which syntactic expressions are assigned meanings

slide-9
SLIDE 9

Dtsi/Sol/L-LSP

Sébastien Gérard 9 11/18/2003

UML2 & Real-Time

Four RFPs for a new UML standard UML2

UML 2.0 Infrastructure RFP Improve UML alignment with other OMG modeling standards

E.g. MOF and XMI

Make the UML easier to understand, implement and extend Improve extenssibiity mechanisms of the UML UML 2.0 Superstructure RFP Support Component-Based Software Engineering Clarify the semantics of the generalization, dependency, and association relationships Support encapsulation and scalability in behavioral modeling

E.g. for state machines and interactions

Remove restrictions on activity graph modeling UML 2.0 OCL RFP It solicits proposals for defining an OCL metamodel consistent with the UML UML 2.0 Diagram Interchange RFP It focuses on the problem of UML diagram interchange

slide-10
SLIDE 10

Dtsi/Sol/L-LSP

Sébastien Gérard 10 11/18/2003

UML2 & Real-Time

Outlines of the infrastructure

Main purpouse Align UML foundation and MOF

UML 2.0 MOF 2.0 I nfrastructureLibrary

  • The Infrastructure Library

Core package defines basic meta-languages for other MMs (eg. UML, CWM, …) Profiles package specifies metamodel extension mechanisms for UML

  • UML can be extended in two ways:

Using Profiles for UML dialect definition

Specialisation of the existing UML meta-model

Reusing part of the InfrastructureLibrary for defining a new language of the UML families

New meta-models related to the UML

slide-11
SLIDE 11

Dtsi/Sol/L-LSP

Sébastien Gérard 11 11/18/2003

UML2 & Real-Time

Language formalism for the UML2

The UML specification is defined using a meta-modeling approach Less formal, but more intuitive & pragmatic The specification consists of different packages Focussed on a particular aspects of the language (12 chapters)

Classes, Actions, …

Package organization in the document Overview Abstract syntax

Defines the syntax in a notation independent way

Class descriptions

Informal description Attributes & Associations Semantics (using natural language) Semantic Variation Points* Notation Presentation Options* Style Guidelines*, Examples*, Rationale, Changes from UML 1.4

Diagrams

* Optional parts

slide-12
SLIDE 12

Dtsi/Sol/L-LSP

Sébastien Gérard 12 11/18/2003

UML2 & Real-Time

Agenda Introduction on MDE and UML2

Native concepts for RT in UML2

The UML profile for SPT specification Conclusions and perspectives

slide-13
SLIDE 13

Dtsi/Sol/L-LSP

Sébastien Gérard 13 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

  • Chapter

Chapter 8.

  • 8. Components

Components

Chapter 9. Deployments Part II: Behavior Chapter 11. Actions Chapter 12. Activities Chapter 14. Interactions Chapter 15. State Machines

slide-14
SLIDE 14

Dtsi/Sol/L-LSP

Sébastien Gérard 14 11/18/2003

UML2 & Real-Time

Outlines of the Component concept

Self contained unit that encapsulates the state and behavior

  • f a number of classifiers by specifying:

Interfaces

Provided interfaces

Formal contract of the services available for clients.

Required interfaces

Requirements from other components or services in the system.

Or ports

Typed by required or/and provided interfaces

Substitutable unit that can be replaced at design time or run- time by a component that offers equivalent functionality based on compatibility of its interfaces.

slide-15
SLIDE 15

Dtsi/Sol/L-LSP

Sébastien Gérard 15 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

Chapter 8. Components

  • Chapter

Chapter 9.

  • 9. Deployments

Deployments

Part II: Behavior Chapter 11. Actions Chapter 12. Activities Chapter 14. Interactions Chapter 15. State Machines

slide-16
SLIDE 16

Dtsi/Sol/L-LSP

Sébastien Gérard 16 11/18/2003

UML2 & Real-Time

Details of the deployments concepts

Define the execution architecture of systems that represent the assignment of software artifacts to nodes Main related concepts Artifact

Specifies a physical piece of information E.g. model files, source files, binary, …

Device

Model physical computational resource with processing capability May support artifacts deployment for execution May consist of other devices

ExecutionEnvironment

Implements a standard set of services that Components require at execution E.g. «OS», «workflow engine», «database system»

DeploymentSpecification

General mechanism to parameterize a Deployment relationship

slide-17
SLIDE 17

Dtsi/Sol/L-LSP

Sébastien Gérard 17 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

Chapter 8. Components Chapter 9. Deployments

  • Part II: Behavior

Part II: Behavior

Chapter 11. Actions Chapter 12. Activities Chapter 14. Interactions Chapter 15. State Machines

slide-18
SLIDE 18

Dtsi/Sol/L-LSP

Sébastien Gérard 18 11/18/2003

UML2 & Real-Time

Run-time semantics premisses Assumption 1

All behavior in a modeled system is ultimately caused by actions executed by so-called “active” objects.

It includes behaviors that are also objects in UML2.

Assumption 2

UML2 behaviors are either event-driven or discrete.

slide-19
SLIDE 19

Dtsi/Sol/L-LSP

Sébastien Gérard 19 11/18/2003

UML2 & Real-Time

Architecture of the UML semantics areas

Dependency level

Deals with how structural entities communicate with each other. Deals with behavior occuring within structural entities. Deals with semantics of individual actions that basic units of behavior. All behavior is the consequence of a structural entity action! Semantics definition of the highter-level behavioral formalisms of the UML.

slide-20
SLIDE 20

Dtsi/Sol/L-LSP

Sébastien Gérard 20 11/18/2003

UML2 & Real-Time

Activities, State Machines and Interactions Activities

Model sequence, conditions and inputs/ouputs for invoking other behaviors.

State Machines

Denote how events modify the state of objects and trigger other behaviors.

Interactions

Describe exchanges of messages between objects and triggering other behaviors.

slide-21
SLIDE 21

Dtsi/Sol/L-LSP

Sébastien Gérard 21 11/18/2003

UML2 & Real-Time

The Basic Causality Model

Specification of how things happen at run time. Principle Objects respond to messages that are generated by objects executing communication actions. When messages arrive, the receiving objects eventually respond by executing the behavior that is matched to that message. Whithin behavior execution, messages may be sent… Example

slide-22
SLIDE 22

Dtsi/Sol/L-LSP

Sébastien Gérard 22 11/18/2003

UML2 & Real-Time

Behavior invocation Two possibilities to call behaviors

Directly ( CallBehaviorAction)

Used to model call to libraries of usual functional programming language (e.g. the C language)

Indirectly via an operation call on a given object

Behavior describes the dynamic

  • f

the method implementing the called operation. Executed behavior is determined dynamically by the target object.

slide-23
SLIDE 23

Dtsi/Sol/L-LSP

Sébastien Gérard 23 11/18/2003

UML2 & Real-Time

Superstructure presentation agenda Part I: Structure

Chapter 8. Components Chapter 9. Deployments

Part II: Behavior

  • Chapter

Chapter 11. Actions

  • 11. Actions

Chapter 12. Activities Chapter 14. Interactions Chapter 15. State Machines

slide-24
SLIDE 24

Dtsi/Sol/L-LSP

Sébastien Gérard 24 11/18/2003

UML2 & Real-Time

The Action packages

The Actions chapter is concerned with the semantics of individual primitive actions Action = fundamental unit of behavior specification ensuring UML models to be fully executable Principle is that actions exchange control / data flows via input and output pins

slide-25
SLIDE 25

Dtsi/Sol/L-LSP

Sébastien Gérard 25 11/18/2003

UML2 & Real-Time

Several levels of action descriptions BasicActions

  • Basics of the action package:
  • Action and input/ouput Pins
  • Basic invocation actions (call op., …).

StructuredActions

«import»

Actions operating in the context of activities and structured nodes.

CompleteActions

«import»

  • Additonal read / write actions
  • Various actions such AcceptEventAction,

ReplyAction, …

IntermediateActions

«import»

  • Spec. of the primitive actions:
  • More incovation actions
  • Read / write actions
slide-26
SLIDE 26

Dtsi/Sol/L-LSP

Sébastien Gérard 26 11/18/2003

UML2 & Real-Time

Surface action language

About actions, the standard focussed in defining the abstract syntax and its semantics

Do not provide any concrete (or surface) language mapping with this proposed semantics! For depicting executable UML models, need to be defined!

Main features of the language definition

Necessary to choose/create a notation (textual or/and graphical)

Notation is also called the concrete syntax of the language or surface action language.

Necessary to define the mapping with elements of the abstract syntax defined in the various elements of the Action sub-packages Would encompass both primitive actions and the control mechanisms provided by behaviors (Statemachine, Activity, …). May define higher-level constructs to the basic actions of the standard.

e.g. creating an object

CreateObjectAction » Creates an object that conforms to a statically specified classifier and puts it on an output pin at runtime. » The action has no other effect (no behaviors are executed, no initial expressions are evaluated, …) The new object has no structural feature values and participates in no links. » It is equivalent to the default constructor of C++ for example. Possible definition of a higher-level construct providing object creation with initialization as a single unit as a shorthand for several actions.

slide-27
SLIDE 27

Dtsi/Sol/L-LSP

Sébastien Gérard 27 11/18/2003

UML2 & Real-Time

(BasicAction) – Action and Pins

Action

Abstract class

All action executions will be executions of specific kinds of actions.

e.g. CreateObjectAction, CallAction, …

Action context is setup by the classifier that owns the behavior containing the action and it determines:

When the action executes. And what actual inputs are.

InputPin

An action cannot start execution if an input pin has fewer values than the lower multiplicity. The upper multiplicity determines how many values are consumed by a single execution of the action.

OutputPin

Object nodes that deliver values to other actions through object flows.

slide-28
SLIDE 28

Dtsi/Sol/L-LSP

Sébastien Gérard 28 11/18/2003

UML2 & Real-Time

(BasicAction) - Invocation actions

  • InvocationAction [abstract]
  • Abstract class for the various actions that invoke behavior.
  • CallAction [abstract]
  • Two communication modes:

Synchronous call

The caller waits for completion of the invoked behavior. Possibility to manage exceptions that may be generated by the invoked behavior.

Asynchronous call

The caller proceeds immediately and does not expect a return value.

  • CallOperationAction

Operation call to a target object, where it may cause the invocation of associated behavior.

  • CallBehaviorAction

Invokes a behavior directly rather than invoking a behavioral feature that, in turn, results in the invocation of that behavior. Argument values of the action are available for the invoked behavior execution.

  • SendSignalAction
  • Action creating signal instance from its inputs, and transmits it to the target object.
  • Targetted object may then:

Either fire a state machine transition Or execute an activity.

  • Argument values are available to the execution of associated behaviors.
  • Asynchronous communication: caller does not wait any response.
slide-29
SLIDE 29

Dtsi/Sol/L-LSP

Sébastien Gérard 29 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

Chapter 8. Components Chapter 9. Deployments

Part II: Behavior

Chapter 11. Actions

  • Chapter

Chapter 12.

  • 12. Activities

Activities

Chapter 14. Interactions Chapter 15. State Machines

slide-30
SLIDE 30

Dtsi/Sol/L-LSP

Sébastien Gérard 30 11/18/2003

UML2 & Real-Time

Various levels of Activities

  • BasicActivities
  • Support for traditional

sequential flow charts modeling but without concurrency.

  • IntermediateActivities
  • Include concurrent control and data flow.
  • Support modeling similar to traditional Petri.
  • CompleteActivities
  • Add constructs that enhance the lower level models, such as edge weights

and streaming.

  • StructuredActivities
  • Support modeling of traditional structured programming constructs, such as

loops and conditionals.

  • CompleteStructuredActivities
  • Add support for data flow output pins of conditionals and loops.
  • ExtraStructuredActivities
  • Supports exception handling and invocation of behaviors on sets of values.
slide-31
SLIDE 31

Dtsi/Sol/L-LSP

Sébastien Gérard 31 11/18/2003

UML2 & Real-Time

Tenet of activity semantics Used a virtual machine style

More intuitive description for user point of view. Petri-nets like semantics, i.e.:

Based on routing of tokens (i.e. control and data values) through a graph of nodes connected by edges. Nodes and edges semantics defines rules for token movements.

Actions are executed because previous actions finish executing when:

Input objects and data become available. Or events occur external to the flow.

slide-32
SLIDE 32

Dtsi/Sol/L-LSP

Sébastien Gérard 32 11/18/2003

UML2 & Real-Time

Activity diagrams outlines

  • Oriented flow graph
  • Consists of nodes connected by edges.

Tokens flow along edges. Tokens are operated by nodes.

  • Node types
  • Action nodes

Transform input control/data values into output control/data values for other actions.

  • Control nodes

Route control/data values through the graph.

e.g. Fork, Join, …

  • Object nodes

Store temporarily object/data values.

  • Edge types
  • Control flow edges

Synchronize the target action starting with the completion of the source action. Support only control values.

  • Object flow edges

Support for data value passing between actions. Support only data values.

slide-33
SLIDE 33

Dtsi/Sol/L-LSP

Sébastien Gérard 33 11/18/2003

UML2 & Real-Time

(FundamentalActivities) – Activity semantics

  • The semantics of activities is based on token flow.
  • Flow = execution of one node affects and is affected by the execution of other

nodes, and such dependencies are represented by edges in the activity diagram.

  • Token
  • May contain object, data, or locus of control.
  • Is present in the activity diagram at a particular node.
  • Distinct from any other, even if it contains the same value as another token.
  • Node execution
  • Start

When specified conditions on the input tokens of a node are satisfied.

Conditions depend on the kind of node.

When a node begins execution, tokens are accepted from some or all of its input edges and a token is placed on the node.

  • Completion

A token is removed from the node and tokens are offered to some or all of its

  • utput edges.
  • Order

Nodes linked by edges execute sequentially. Two actions not directly or indirectly ordered by flow relationships execute concurrently.

slide-34
SLIDE 34

Dtsi/Sol/L-LSP

Sébastien Gérard 34 11/18/2003

UML2 & Real-Time

(FundamentalActivities) – Activity semantics (seq.): nodes and edges have token flow rules Rules Nodes rules

Control when tokens enter or leave nodes.

Edges rules

Define when a token may be taken from the source node and moved to the target node.

No specification of the order in which rules are applied on the various nodes and edges in an activity. Execution profiles may tighten the rules to enforce various kinds of semantics. Traverse-to-completion semantics A token traverses an edge when it satisfies the rules for target node, edge, and source node all at once. A source node can only offer tokens to the outgoing edges, rather than force them along the edge, because the tokens may be rejected by the edge or the target node on the other side.

slide-35
SLIDE 35

Dtsi/Sol/L-LSP

Sébastien Gérard 35 11/18/2003

UML2 & Real-Time

(FundamentalActivities) – Activity semantics (seq.) Activities context and parameters. Activities may be attached to Classifier.

Context = the Classifier. Access to the attributes and operations of its context object and any objects linked to the context object, transitively.

Activity as method of a behavioral feature.

Context = the classifier owing the behavioral feature. Access to the parameters of the behavioral feature.

Activity inputs are supplied by the invocation action of the calling activity. Activity invocation time. If depict a method of behavioral feature when the behavioral feature is invoked. If depict a classifier at classifier instantiation time. Or directly by other activities.

slide-36
SLIDE 36

Dtsi/Sol/L-LSP

Sébastien Gérard 36 11/18/2003

UML2 & Real-Time

(IntermediateActivities) – Activity semantics: Concurrency

Is single execution (isSingleExecution attribute) ?

True => only one execution for each call

Several tokens may flow concurrently in the same activity execution Possible interactions between token streams

e.g. some token may wait others e.g. one flow may abort all other because reaching a final sate first.

False => one execution per call

No possible problems between tokens, because no interactions in this case!

slide-37
SLIDE 37

Dtsi/Sol/L-LSP

Sébastien Gérard 37 11/18/2003

UML2 & Real-Time

Parallelism in UML2 activities vs. UML1.x

Parallelism in UML1 activities A, B||X, C||Y, Z Trace A, (B,C) || (X,Y), Z Trace

A B X C Z Y

Parallelism in UML2 activities

A B X C Z Y

A B X C Z Y

A Z Y X C B

slide-38
SLIDE 38

Dtsi/Sol/L-LSP

Sébastien Gérard 38 11/18/2003

UML2 & Real-Time

(FundamentalActivities) – Activity notation

calculateTorque in newSpeed : Speed = 0 return Integer Activity name Parameter list of the activity <DirectionKind> <paramName> : <Type> = <DefaultValue> Parameter «Precondition» newSpeed > 50 «Postcondition» return > 0 «singleExecution»

… … … … …

ActivityEdge ActivityNode «activity» calculateTorque

WCET: Integer getStartTime():Integer getStopTime(): Integer

Activity class notation for depicting reflexive features of activity.

activity calculateTorque (in newSpeed : Speed = 0): Integer

… … … … …

Usage of a frame representation for activity

slide-39
SLIDE 39

Dtsi/Sol/L-LSP

Sébastien Gérard 39 11/18/2003

UML2 & Real-Time

Abstract class for the steps of an activity

Executable nodes, control nodes and object nodes.

(BasicActivities) Nodes can be:

Replaced in generalization (BasicActivities). Contained in interruptible regions (CompleteActivities).

ActivityNode [abstract]

slide-40
SLIDE 40

Dtsi/Sol/L-LSP

Sébastien Gérard 40 11/18/2003

UML2 & Real-Time

ActivityEdge [abstract]

Abstract class for defining node connections Directed connections.

i.e. owns a source and a target ActivityNode.

Support for token flows. Rules for token flow depend on the kind of edge and characteristics of its source & target. Two kinds of edge: ControlFlow & ObjectFlow Weight of edges (CompleteActivities) Number of objects consumed from the source node on each traversal. Default value = 1. Notation

myEdge

Souce node Target node Regular activity edge Name of the edge (optional) «weight = 3» Edge weight: Integer or * C1 C1 Edge with connector

slide-41
SLIDE 41

Dtsi/Sol/L-LSP

Sébastien Gérard 41 11/18/2003

UML2 & Real-Time

Actions – semantics details

Owns incoming and outgoing activity edges that specify control flow and data flow from and to other nodes. Execution Start when all of its input conditions are satisfied. Completion may enable the execution of a set of successor nodes and actions that take their inputs from the outputs of the action. [CompleteActivities] Possible preconditions

Constraints that must be satisfied when execution is started.

Possible postconditions

Constraints that must be satisfied when executed is completed.

Semantics Variation Point

How local pre- and postconditions are enforced is determined by the implementation.

e.g. » Violation detection at runtime or compile time? » Violation triggers error, warning… ?

slide-42
SLIDE 42

Dtsi/Sol/L-LSP

Sébastien Gérard 42 11/18/2003

UML2 & Real-Time

Actions – notation

«localPrecondition» <ConstraintDescription> «localPostcondition» <ConstraintDescription>

<label>

Action name or a sentence that describes the action. Constraint description (pre/post-condition) or action label may be described using:

  • A natural language for informal modelling.
  • A tool-dependent action/constraint language for

formal and executable modelling. self.calculateTorque(in cSpeed: Integer, out newTq: Integer); «localPrecondition» cSpeed > 50 «localPostcondition» newTq > 0

slide-43
SLIDE 43

Dtsi/Sol/L-LSP

Sébastien Gérard 43 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

Chapter 8. Components Chapter 9. Deployments

Part II: Behavior

Chapter 11. Actions Chapter 12. Activities

  • Chapter

Chapter 14.

  • 14. Interactions

Interactions

Chapter 15. State Machines

slide-44
SLIDE 44

Dtsi/Sol/L-LSP

Sébastien Gérard 44 11/18/2003

UML2 & Real-Time

Interaction overview

Interactions focus on the communications between instances, using message passing to express operation invocation and signal sending Interactions are used during analysis, to improve individual or group understanding of inter-

  • bject behavior

during design, to precisely describe inter-process communication during testing, the traces can be compared with those described in the earlier phases. The core constructs in an Interaction include: lifeline, message, interaction occurrence, combined fragment, decomposition

slide-45
SLIDE 45

Dtsi/Sol/L-LSP

Sébastien Gérard 45 11/18/2003

UML2 & Real-Time

The kinds of Interaction diagrams

Sequence Diagrams (~MSC) most common kind of Interaction Diagram focus on the Message interchange between a number of Lifelines under the point of view of time progression note: May also be represented using a tabular natation Communication Diagrams (previous collaboration diag. of UML1) focus on the interaction under the structural point of view. The sequencing of messages is given through a sequence numbering scheme. Interaction Overview Diagrams (~HMSC) define Interactions through a variant of Activity Diagrams in a way that promotes overview of the control flow Timing Diagrams primary purpose of the diagram is to reason about time

slide-46
SLIDE 46

Dtsi/Sol/L-LSP

Sébastien Gérard 46 11/18/2003

UML2 & Real-Time

Timing Diagram

Interactions with focus on time Timing vs. Sequence diagrams Very similar diagrams More intuitive specification of state changes over time in timing diagrams Examples: Main defaults No implementation in current UML2 tools Very weak specification!

startRegulating mySRM :SpeedRegulationManager Start Stop start stop {t..t+3} 0 1 2 3 ... {d..d+1} startRegulating mySRM :SpeedRegulationManager Start 0 1 2 3 ... {d..d+1} Stop Stop

slide-47
SLIDE 47

Dtsi/Sol/L-LSP

Sébastien Gérard 47 11/18/2003

UML2 & Real-Time

Superstrucutre presentation agenda Part I: Structure

Chapter 8. Components Chapter 9. Deployments

Part II: Behavior

Chapter 11. Actions Chapter 12. Activities Chapter 14. Interactions

  • Chapter

Chapter 15.

  • 15. State Machines

State Machines

slide-48
SLIDE 48

Dtsi/Sol/L-LSP

Sébastien Gérard 48 11/18/2003

UML2 & Real-Time

Overview of State Machines package

Define the set of concepts required to model discrete behavior through finite state-transition systems Two kinds of state machine defined Behavioral state machine Protocol state machine The core constructs in statemachines include: States, Regions, Transitions, Events Typical applications of statemachines include: Object lifecycle (i.e. states an “order” object might be in) Event-driven behaviors of embedded controllers UI controllers …

slide-49
SLIDE 49

Dtsi/Sol/L-LSP

Sébastien Gérard 49 11/18/2003

UML2 & Real-Time ON ON ON

Automata

A machine whose output behavior is not only a direct consequence of the current input, but of some past history of its inputs Characterized by an internal state which represents this past experience

ON ON ON ON ON ON ON ON ON OFF OFF OFF

slide-50
SLIDE 50

Dtsi/Sol/L-LSP

Sébastien Gérard 50 11/18/2003

UML2 & Real-Time

Object Behavior and State Machines Direct mapping:

Handle Handle Event Event Initialize Initialize Object Object Terminate Terminate Object Object Wait for Wait for Event Event

  • n
  • ff

Lamp On Lamp Lamp On On Lamp Off Lamp Lamp Off Off

  • ff
  • n/print(”on”)

stop

slide-51
SLIDE 51

Dtsi/Sol/L-LSP

Sébastien Gérard 51 11/18/2003

UML2 & Real-Time

Run-To-Completion:

  • nly one event at a time

State machine semantics UML state machines = hypothetical machine that:

Queues events Dispatches events Processes events

Processor => Consumes selected event

– FIFO dequeuing (commonly used by OO tools)

Dispatcher => Selects and dequeues an event

a b a

incoming event

Queue => Saves incoming events

b

a

slide-52
SLIDE 52

Dtsi/Sol/L-LSP

Sébastien Gérard 52 11/18/2003

UML2 & Real-Time

State machine semantics variation points Event dequeuing policy has to be choosen

Most widespread = FIFO

RTC granularity

The only one defined = a single RTC for the whole state machine But, it is possible to have several…

e.g.: one for each orthogonal region but then « Just Do It !»

State machine inheritance issues: to be clarified

There are no default or usual rules

  • nly incomplete proposals (see later)
slide-53
SLIDE 53

Dtsi/Sol/L-LSP

Sébastien Gérard 53 11/18/2003

UML2 & Real-Time

Handle Request Handle Handle Request Request Initialize Object Initialize Initialize Object Object Terminate Object Terminate Terminate Object Object Wait for Request Wait for Wait for Request Request Handle Request Handle Handle Request Request Initialize Object Initialize Initialize Object Object Terminate Object Terminate Terminate Object Object Wait for Request Wait for Wait for Request Request

Object and Threads

Passive objects: depend on external power (i.e. execution resource) Active objects: self-powered (have their own execution resource )

slide-54
SLIDE 54

Dtsi/Sol/L-LSP

Sébastien Gérard 54 11/18/2003

UML2 & Real-Time

Active1 Active1 Active1 Active2 Active2 Active2

The Run-to-Completion Model A high priority event for (another) active object will preempt an active object that is handling a low- priority event

hi hi lo

slide-55
SLIDE 55

Dtsi/Sol/L-LSP

Sébastien Gérard 55 11/18/2003

UML2 & Real-Time

Off On

OnOff [speed>30] / startRegulating(); ++speed;

State diagram

state final state Initial state Trigger:

  • CallTrigger
  • SignalTrigger
  • ChangeTrigger
  • TimeTrigger

root state Activity transition guard

Regulator

group transition Running Suspended

/maintainSpeed() suspend resume

On

composite state simple state

OnOff

slide-56
SLIDE 56

Dtsi/Sol/L-LSP

Sébastien Gérard 56 11/18/2003

UML2 & Real-Time

Regulator Regulator regulating monitoring

Off

OnOff [speed>30] / startRegulating(); ++speed;

On no-developed composite state pseudo-state => Choice compound transition concurrent state concurrent states ( regions)

OnOff

[error] OK damaged scan reset [¬ error]

State diagram (seq.)

slide-57
SLIDE 57

Dtsi/Sol/L-LSP

Sébastien Gérard 57 11/18/2003

UML2 & Real-Time

Off On start / defer start() all

«EPSM» SpeedRegulator

start() stop() abort() regulate() SpeedRegulator regulate()

The AnyReceiveEvent

Any receipt of event trigger the transition firing expect those triggering explicitly transitions with same source vertex. Example:

“all” means for AnyReceivEvent In this case, either stop or abort event receipt may trigger the transition

slide-58
SLIDE 58

Dtsi/Sol/L-LSP

Sébastien Gérard 58 11/18/2003

UML2 & Real-Time

  • Drawbacks

Specification is performed through implementation mechanisms TimeEvent handled as other events ⇒ determinism issues ! after(10 ms) / ‘action-list’ S1 S2 S1

  • Timer setting on transitions of state machines

TimeEvent

after ⇒ relative moment in time when ⇒ absolute moment in time

Timing specification within state machine

A timer is set to fire 10ms later 10ms later, if no state change

S2 after(10 ms) / ‘action-list’ S1 evt S3 after(10 ms) / ‘action-list’ S1 S2 evt S3 S1 after(10 ms)

slide-59
SLIDE 59

Dtsi/Sol/L-LSP

Sébastien Gérard 59 11/18/2003

UML2 & Real-Time

Timing specification within state machine (seq.) Implicit priority rules between transitions …

S1 S11 … … e1/m

1()

e1/m

2()

t2 t1

… but possible non determinism models

t1 have priority over t2 because S11 is a substate of S1

S1

… … e1/m

1()

e1/m

2()

t2 t1

non determinism situation !

slide-60
SLIDE 60

Dtsi/Sol/L-LSP

Sébastien Gérard 60 11/18/2003

UML2 & Real-Time

Details of the Protocol Statemachines

Specialization of Statemachine concept Used to express usage protocols life cycle of objects, legal usage of operation… May be linked to interface/port to specify behavioral contract Protocol transition Specifies legal transitions for an operation

"It specifies that the referred operation can be called for an instance in the origin state under the initial condition (guard), and that at the end of the transition, the destination state will be reached under the final condition (post)."

May have pre- (i.e. guard) and post conditions

  • No "effect" action

implicit operation linked with the call trigger

slide-61
SLIDE 61

Dtsi/Sol/L-LSP

Sébastien Gérard 61 11/18/2003

UML2 & Real-Time

Details of the Protocol Statemachines (seq.)

Unexpected event reception Semantic Variation Point: "the event can be ignored, rejected or deferred, an exception can be raised, or the application can stop on an error. (i.e. pre-condition violation)" Equivalences to pre and post conditions of operations Unreferred Operations May be executed whatever the state of the object Do not change statemachine state Possible to use other triggers on protocol transition No action effects specified, but post-condition Example Off Regulating

[currentSpeed > 30] start() [currentSpeed > 30] regulate() /[currentSpeed > 30] stop()

Post-condition Pre-condition

slide-62
SLIDE 62

Dtsi/Sol/L-LSP

Sébastien Gérard 62 11/18/2003

UML2 & Real-Time

Time domain definition

TimeExpression

Denote a time value Notation

Implementation specific textual format Example: RTtimeVaulue in SPT (see later)

Duration

Denote the difference between two points in time Notation: implementation specific textual format

Interval

Range between two value specifications Notation: <interval> ::= <min-value> ‘..’ <max-value> TimeInterval

Denote a range between two TimeExpression element Notation: interval notation with values typed TimeExpression

DurationInterval

Denote a range between two Duration elements Notation: interval notation with values typed Duration

slide-63
SLIDE 63

Dtsi/Sol/L-LSP

Sébastien Gérard 63 11/18/2003

UML2 & Real-Time

Specific actions related time characteristics

  • DurationObservationAction
  • Action that measures an identified duration in the context in which it is

executing and writes the obtained value to the given structural feature

  • Notation: <durationobservation> ::= <write-once-attribute> ‘= duration’
  • TimeObservationAction
  • Action that obtains the current value of time in the context in which it is

executing and writes this value to the given structural feature

  • Notation: <timeobservation> ::= <write-once-attribute> ‘= now’

Examples

startRegulating « interface » rs:SpeedRegStarter mySRM :SpeedRegulationManager ssm :SpeedSensorManager start getSpeed currentSpeed upDateSpeedTarget (currentSpeed) d =duration t = now

t is assigned with the current time value when the getSpeed message is received. d = difference of time between reception and posting of the start message.

slide-64
SLIDE 64

Dtsi/Sol/L-LSP

Sébastien Gérard 64 11/18/2003

UML2 & Real-Time

Specific constraints related time characteristics

  • Constraint (from Kernel)
  • Additional semantic information attached to an element
  • Condition or restriction expressed in natural language text (or in a machine

readable language) put under brackets

e.g. OCL is often used for constraint description

  • TimeConstraint
  • Constraint referring to one TimeInterval
  • DurationConstraint
  • Constraint referring to one DurationInterval

startRegulating « interface » rs:SpeedRegStarter mySRM :SpeedRegulationManager ssm :SpeedSensorManager start getSpeed currentSpeed upDateSpeedTarget (currentSpeed) d1=duration t1 = now {d1..d1-d2} {t1..t1+3} d2=duration

The duration of this activity has to be between d1 and d1-d2 The return value currentSpeed has to be received between t1 and t1+3

slide-65
SLIDE 65

Dtsi/Sol/L-LSP

Sébastien Gérard 65 11/18/2003

UML2 & Real-Time

Agenda Introduction on MDE and UML2 Native concepts for RT in UML2

The UML profile for SPT specification

Conclusions and perspectives

slide-66
SLIDE 66

Dtsi/Sol/L-LSP

Sébastien Gérard 66 11/18/2003

UML2 & Real-Time

Motivations Required modelling information for analysis

Add specific annotations to models for analysing

E.g. The UML profile for SPT

Model processing

  • Technological space

for analysis.

  • Tech. space for

UML modelling.

slide-67
SLIDE 67

Dtsi/Sol/L-LSP

Sébastien Gérard 67 11/18/2003

UML2 & Real-Time

Structure of the SPT

Infrastructure Models «modelLibrary» RealTimeCORBAModel General Resource Modeling Framework «profile» RTresourceModeling «profile» RTconcurrencyModeling «import» «import» «profile» RTtimeModeling Analysis Models «profile» PAprofile «import» «profile» RSAprofile «import» «profile» SAProfile «import» «import»

Generic framework for any kind of analysis: General Resource Modeling, General Concurrency Modeling and General Time Modeling Support for modeling a RT-CORBA platform for schedulability analysis Support for schedulability and performance analysis

slide-68
SLIDE 68

Dtsi/Sol/L-LSP

Sébastien Gérard 68 11/18/2003

UML2 & Real-Time

General Resource Modeling Main issue to solve by analysis methods:

Is offer enough for the demand ?

Principle of GRM relies on the client-server model Basics of the core resource model

Required and offered QoS on clients and servers QoS contract between clients and servers

slide-69
SLIDE 69

Dtsi/Sol/L-LSP

Sébastien Gérard 69 11/18/2003

UML2 & Real-Time

GRM – Causality & resource usage models

Causality model Basics for all dynamic descriptions of SPT Details

Based on 2 kinds of event occurrences

Stimulus generated by caller objects Stimulus received by called objects » Trigger a set of actions called scenario » Action executions may then generate stimulus…

Resource usage model Specifies how clients use resources Two types

Static

Structural relationships between clients and resources

Dynamic

Scenario (i.e. set of actions) following the predecessor-successor model with possibly multiple and concurrent pred./succ.

slide-70
SLIDE 70

Dtsi/Sol/L-LSP

Sébastien Gérard 70 11/18/2003

UML2 & Real-Time

GRM – Resource types

  • 3 taxonomies for resource types depending on:

Their goal

Processor resources (physical or virtual): can save & execute codes Communication resources: ensure information sharing Device resources: others

Their nature

Active resources: may manage stimuli on their own Passive resources: others

Their associated protection mechanism

Protected resource instances offer at least one exclusive service specifying one access policy. Non protected resources: Others

slide-71
SLIDE 71

Dtsi/Sol/L-LSP

Sébastien Gérard 71 11/18/2003

UML2 & Real-Time

GRM – Resource management Resource broker

Ensure allocation and release of a set of resource instances depending of an access control policy

Resource manager

Manage life cycle of resource instances

Creation, delete…

Based on a resource control policy

In OS, resource broker and manager are a same entity

slide-72
SLIDE 72

Dtsi/Sol/L-LSP

Sébastien Gérard 72 11/18/2003

UML2 & Real-Time

GRM – Realization model Related to the deployment issues Based on two layering models

Refinement-type layering

Sequel of models obtained by refinements

Models are more and more detailed

e.g. a UML model refined in a C++ model

Realization layering

An abstract layer is realized by a more concrete one e.g. application layer relying on an OS layer

slide-73
SLIDE 73

Dtsi/Sol/L-LSP

Sébastien Gérard 73 11/18/2003

UML2 & Real-Time

General Time Modeling

PhysicalTime Set of physical instants

Continuous and unbound Ordered and dense

Concret concepts TimeValue (concrete concept for physical instant)

Discret: represented as integers Dense: represented as floats

TimeInterval (concrete concept for duration)

Specialize TimeValue discret or dense Owns both start and end time values

Two mechanisms for time measurement Clock

Generate periodically a specific stimulus

Timer

Generate a stimulus at a given time instant Relative or absolute times May be periodic

slide-74
SLIDE 74

Dtsi/Sol/L-LSP

Sébastien Gérard 74 11/18/2003

UML2 & Real-Time

Concurrency model

ConccurentUnit (CU) Entity that may execute concurrently to others CU instantiation involves main scenario execution It executes until instance delete It may call stimulus reception action to accept them Accepted stimulus may trigger appropriate service execution During execution of services: Either the main scenario is blocked until service execution end

“Run-to-Completion” assumption

Or it may continue and for example accept other stimuli

Possible intra-concurrency

CU may have one or plus queues for saving incoming stimuli

slide-75
SLIDE 75

Dtsi/Sol/L-LSP

Sébastien Gérard 75 11/18/2003

UML2 & Real-Time

Structure of the SPT

Infrastructure Models «modelLibrary» RealTimeCORBAModel General Resource Modeling Framework «profile» RTresourceModeling «profile» RTconcurrencyModeling «import» «import» «profile» RTtimeModeling Analysis Models «profile» PAprofile «import» «profile» RSAprofile «import» «profile» SAProfile «import» «import»

slide-76
SLIDE 76

Dtsi/Sol/L-LSP

Sébastien Gérard 76 11/18/2003

UML2 & Real-Time

Main concepts of the SA sub-profile SchedulableRessource

Support for task Set of SAaction

Priority, WCET, Delay time…

Scheduler

Specify a scheduling policy

Rate monotonic, fixed priority…

ExecutionEngine

Allocated to the execution of a set of schedulable res. Owns features

Priority range, context switch time…

slide-77
SLIDE 77

Dtsi/Sol/L-LSP

Sébastien Gérard 77 11/18/2003

UML2 & Real-Time

Usage example in sequence diagrams

slide-78
SLIDE 78

Dtsi/Sol/L-LSP

Sébastien Gérard 78 11/18/2003

UML2 & Real-Time

Agenda Introduction on MDE and UML2 Native concepts for RT in UML2 The UML profile for SPT specification

Conclusions and perspectives

slide-79
SLIDE 79

Dtsi/Sol/L-LSP

Sébastien Gérard 79 11/18/2003

UML2 & Real-Time

Pro and con of the UML Profile for SPT

The SPT has carried out key challenges for RT modeling: A generic framework for modeling Resources and their QoS was proposed (general notions were adopted by the QoS & FT profile). A powerful mean to model metric Time and general Concurrence. Two temporal analysis modeling frameworks biased to RMA-based (Schedulability) & Queuing and Petri Nets (Performance) techniques. But, some lacks were reported since its adoption: Incoherencies between GRM, Schedulability, and Performance modeling elements show a need for a better top-level architecture. Certain drawbacks exist to model more complex systems (e.g. distributed systems, hierarchical schedulers, etc.). Specific semantics must be better defined. For instance, different kinds of deployment, properties of communication engines, etc. SPT does not support state machine-based modeling.

A new version: the UML profile for MARTE (Modeling and Analysis of Real-Time and Embedded systems)

slide-80
SLIDE 80

Dtsi/Sol/L-LSP

Sébastien Gérard 80 11/18/2003

UML2 & Real-Time

A Broader Scope of UML for MARTE

Furthermore, upcoming MARTE profile must support: Integrated modeling of both software and hardware aspects. Modeling

  • f

platform, platform-independent, and their allocation viewpoints in a MDA approach. Specification of not only RT constraints but also embedded QoS characteristics as power consumption and memory size. Modeling of embedded, reactive, control/command, and intensive data flow computational systems. Component-based architectures modeling and analysis. Capability to Asynchronous/Causal, Synchronous/Clocked, and Real/Continuous time modeling. Compliance with UML 2 and the QoS & FT profile.

slide-81
SLIDE 81

Dtsi/Sol/L-LSP

Sébastien Gérard 81 11/18/2003

UML2 & Real-Time

Schedule for the MARTE standard Initial submission

  • Dec. 2005

Final version

End of 2006

www.promarte.org Questions ?
