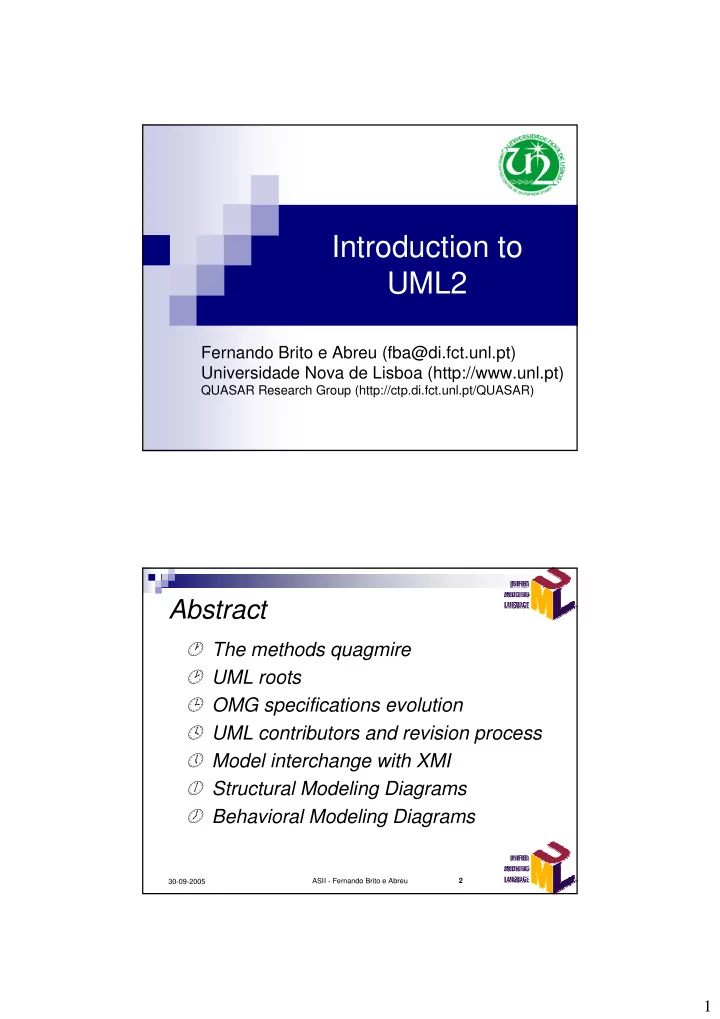

Introduction to UML2

Fernando Brito e Abreu (fba@di.fct.unl.pt) Universidade Nova de Lisboa (http://www.unl.pt)

QUASAR Research Group (http://ctp.di.fct.unl.pt/QUASAR)

ASII - Fernando Brito e Abreu 2 30-09-2005

Abstract

The methods quagmire UML roots OMG specifications evolution UML contributors and revision process Model interchange with XMI Structural Modeling Diagrams Behavioral Modeling Diagrams

2

ASII - Fernando Brito e Abreu 3 30-09-2005

By the mid-nineties …

The OOA&D methods proliferation was enormous Among those, 3 were particularly important and

formed indeed the basis for UML:

The Object Modelling Technique (OMT)

by James (Jim) Rumbaugh et al. @ General Electric

The Objectory method

by Ivar Jacobson @ Objectory Corporation (Sweden)

The Booch Method

by Grady Booch @ Rational Corporation ASII - Fernando Brito e Abreu 4 30-09-2005

Model interchange problem

Modeling tools had no provisions for

model interchange

??? ??? ???

Many methods, many tools, many formats.

3

ASII - Fernando Brito e Abreu 5 30-09-2005

By the mid-nineties

This situation was bad for:

Practitioners and other development

shareholders

Academia Tool vendors

Then, the Object Management Group

(OMG) laid out a standardization initiative to put an end to this situation!

ASII - Fernando Brito e Abreu 6 30-09-2005

The roots …

Booch'91 OMT-1 Objectory Other methods Booch'93 OMT-2 Unified Method 0.8 UML 0.9 UML Partners UML 1.1 Submission to OMG UML 1.0 UML 1.2 through UML 2

• Oct. 95
• Jun. 96
• Jan. 97
• Jul. 97
• Oct. 98

Maintenance by OMG

4

ASII - Fernando Brito e Abreu 7 30-09-2005

The Unified Modeling Language (UML)

UML is a graphical language for

visualizing specifying constructing documenting

the artifacts of software-intensive systems, using the Object-Oriented paradigm

ASII - Fernando Brito e Abreu 8 30-09-2005

OMG UML Contributors

Aonix Colorado State University Computer Associates Concept Five Data Access EDS Enea Data Hewlett-Packard IBM I-Logix Inline Software Intellicorp Klasse Objecten Lockheed Martin Microsoft ObjecTime Oracle Ptech OAO Technology Solutions Rational Software Reich SAP Softeam Sterling Software Sun Taskon Telelogic Unisys …

Contributors = Original Submitters + RTF1 + RTF2 + …

5

ASII - Fernando Brito e Abreu 9 30-09-2005

UML Revision Processes

UML Submission Team Analysis & Design Task Force UML Revision Task Force

Members submit proposal specifications in response to RFPs. This is the primary mechanism for major revisions to UML. Members issue Requests for Information (RFIs) and Requests for Proposals (RFPs) for major revisions to UML.

... ... ...

Members correct and clarify adopted technology

• specifications. This is

the primary mechanism for minor revisions to UML. A complete graphic and explanation of the major and minor revision processes is available in UML 2001: A Standardization Odyssey (Communications of ACM, Oct. 99), available in press kit.

Issue RFP Develop technology specification RFP [issued] Begin

ASII - Fernando Brito e Abreu 10 30-09-2005

UML specifications evolution

<<document>> UML 1.1 <<document>> UML 1.2 <<document>> UML 1.3 <<refine>> <<document>> UML 1.4 <<document>> UML 2.0 <<refine>> <<refine>> <<refine>> Q3 1997 (OMG Adopted Technology) Q2 1998 Q3 1999 Q3 2000 (minor revision) 2001 (minor revision) Editorial revision with no significant technical changes. ISO Publicly Available Specifications (PAS) <<formalLiaison>> <<document>> UML 1.5 <<refine>> 2003 (Major revision)

6

ASII - Fernando Brito e Abreu 11 30-09-2005

Relations to Other OMG Technologies

OMG UML

UML XMI Document Type Definition XML Metadata Interchange (XMI) Facility UML Profile for CORBA UML Profiles for Business Domains Meta Object Facility Specification Layer Metadata Layer Customization Layer Platform Technology profiles*** Domain Technology profiles*** *** In process, not yet adopted

ASII - Fernando Brito e Abreu 12 30-09-2005

Model Interchange with XMI

UML, with XMI, has partly solved the

model interchange problem

Model layout problem still pending

No loss of information

7

ASII - Fernando Brito e Abreu 17 30-09-2005

The UML 2 diagrams

UML 2 defines 13 basic diagram types, divided

into two general sets:

Structural Modeling Diagrams

define the static architecture of a model are used to model the 'things' that make up a model - the classes,

• bjects, interfaces and physical components

In addition they are used to model the relationships and

dependencies between elements.

Behavioral Modeling Diagrams

Behavior diagrams capture the varieties of interaction and

instantaneous state within a model as it 'executes' over time.

ASII - Fernando Brito e Abreu 18 30-09-2005

Structural Modeling Diagrams

Package diagrams are used to divide the model into logical

containers or 'packages' and describe the interactions between them at a high level

Class or Structural diagrams define the basic building

blocks of a model: the types, classes and general materials that are used to construct a full model

Object diagrams show how instances of structural

elements are related and used at run-time

Composite Structure diagrams provide a means of layering

an element's structure and focusing on inner detail, construction and relationships

Component diagrams are used to model higher level or

more complex structures, usually built up from one or more classes, and providing a well defined interface

Deployment diagrams show the physical disposition of

significant artefacts within a real-world setting

8

ASII - Fernando Brito e Abreu 19 30-09-2005

Behavioral Modeling Diagrams

Use Case diagrams are used to model user/system interactions. They

define behavior, requirements and constraints in the form of scripts or scenarios

Activity diagrams have a wide number of uses, from defining basic

program flow, to capturing the decision points and actions within any generalized process

State Machine diagrams are essential to understanding the instant to

intant condition or "run state" of a model when it executes

Communication diagrams show the network and sequence of

messages or communications between objects at run-time during a collaboration instance

Sequence diagrams are closely related to Communication diagrams

and show the sequence of messages passed between objects using a vertical timeline

Timing diagrams fuse Sequence and State diagrams to provide a view

• f an object's state over time and messages which modify that state

Interaction Overview diagrams fuse Activity and Sequence diagrams to

provide allow interaction fragments to be easily combined with decision points and flows
