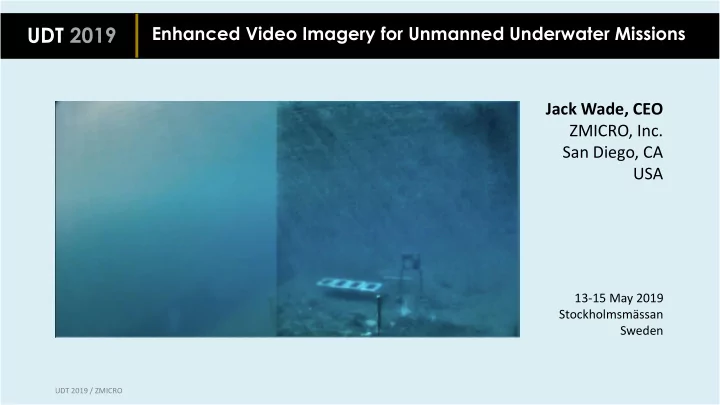

Enhanced Video Imagery for Unmanned Underwater Missions

UDT 2019

13-15 May 2019 Stockholmsmässan Sweden

UDT 2019 / ZMICRO

Jack Wade, CEO ZMICRO, Inc. San Diego, CA USA

slide-2
SLIDE 2

Insight Insight Vantage

Today s Focus

33 Years Serving Military Markets ZMICRO

Computers, Displays, Digital Video

UDT 2019 / ZMICRO

2

slide-3
SLIDE 3

EXPLOITING LIVE VIDEO FROM ROV’s SYSTEMS ARCHITECTURE

ZMICRO

Live Video Metadata Enhanced Video

UDT 2019 / ZMICRO

3

slide-4
SLIDE 4

REAL TIME PROCESSING IN AUV’s SYSTEMS ARCHITECTURE

Video Clips Metadata Enhanced Video

UDT 2019 / ZMICRO

4

slide-5
SLIDE 5

SEE, FIND, and REPORT MISSION

SEE — Enhanced Visual Acuity FIND — Locate, Classify, Identify REPORT — Publish, Share

UDT 2019 / ZMICRO

5

slide-6
SLIDE 6

RTEV (Real Time Enhanced Video) SEE ZMicro Enhancement Algorithms

60 fps with no added latency

Video In Video Out Snapshots/Clips

UDT 2019 / ZMICRO

6

slide-7
SLIDE 7

Global Dehaze (Underwater) RTEV ALGORITHMS

UDT 2019 / ZMICRO

7

slide-8
SLIDE 8

Pixel Stream Processor RTEV ALGORITHMS

Neighborhood

Pixel by Pixel Convolution

Low Pass Subtract High Frequency Amplify Blend

UDT 2019 / ZMICRO

8

slide-9
SLIDE 9

COMBINING ALGORITHMS RTEV

UDT 2019 / ZMICRO

9

slide-10
SLIDE 10

Very Large Convolutional Kernel ALGORITHMS

Globally Adaptive vs Locally Adaptive

400 x 400 Convolution Kernel Global Local

UDT 2019 / ZMICRO

10

slide-11
SLIDE 11

Moving Beyond Streams to Frames TOOLS

UDT 2019 / ZMICRO

11

slide-12
SLIDE 12

DIY (Do-It-Yourself) Algorithms GRAPH TOOL

Create new algorithms by connecting OpenCV functions

UDT 2019 / ZMICRO

12

slide-13
SLIDE 13

Build and Grow a Library of Algorithms GRAPH TOOL

Simple Contrast Enhancement

Still Images or Video

UDT 2019 / ZMICRO

13

slide-14
SLIDE 14

Rapid Prototyping of Complex Algorithms GRAPH TOOL

UDT 2019 / ZMICRO

14

slide-15
SLIDE 15

Deep Learning and Artificial Intelligence GPU

Potential exists to share mine identification algorithms and neural nets for continuous improvement

AI Neural Networks

UDT 2019 / ZMICRO

15

slide-16
SLIDE 16

“Bagging and Tagging”

REPORTING

Live Video & Metadata User Annotative Metadata H.26x Ripples Ship Wreck Vegatation Possible Mine

. . .

Key Word Selector Voice overs Header Audio Video Video Metadata Metadata CRC

MISB / STANAG Compliant Encoded IP Stream

Mission data can be re-encoded as H.26x video streams with metadata inserts, recorded

  • n removable media, and transmitted as an IP

stream to remote users in real time.

UDT 2019 / ZMICRO

16

slide-17
SLIDE 17

ZMICRO

Q & A

Email for copy of slides: jack.wade@zmicro.com

UDT 2019 / ZMICRO
