From lenses and mirrors to advanced cameras and image processing, the new optronic system for the Royal Swedish Submarines UDT 14 May 2019 Mr Anders Folbert, Dr Fredrik Hellstrm, Mr Roland Dehlin Agenda Objectives and Introduction

slide-1
SLIDE 1

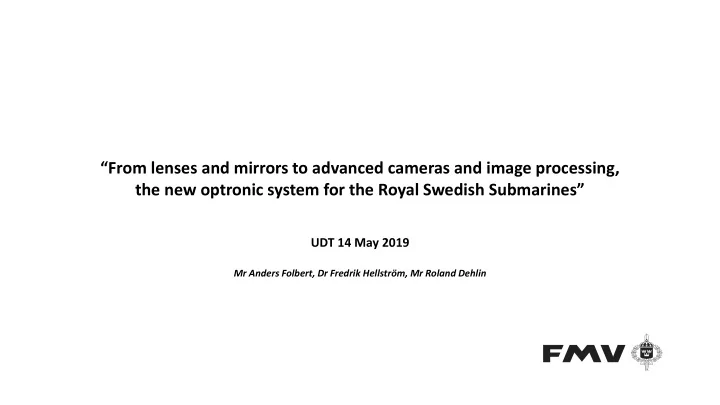

“From lenses and mirrors to advanced cameras and image processing, the new optronic system for the Royal Swedish Submarines”

UDT 14 May 2019

Mr Anders Folbert, Dr Fredrik Hellström, Mr Roland Dehlin

slide-2
SLIDE 2

Agenda

  • Objectives and Introduction
  • The Challenge
  • Coordinated acquisition
  • The Phases
  • Land Based Training Site
  • Conclusions
slide-3
SLIDE 3

Objectives and Introduction

  • Objectives
  • The different phases
  • Operator perspective
  • Introduction
  • Four Submarines – A26 & MLU GTD
  • System #1 MLU GTD – Sea Trials
  • System #2 MLU GTD – Installation
  • System #3 A26 – Verification Q4 2019
  • System #4 A26 – Verification Q4 2020
  • System #5 (LBTS) delivered Q4 2018
slide-4
SLIDE 4
  • Optronic System is nothing new, but…
  • The eye is such a unique and fantastic sensor
  • The eye's dynamics and spatial perception
  • Cover the Periscopes functionalities?
  • Navigation & Manoeuvring
  • Visual Intel
  • Ranging
  • Fast orientation and direction
  • Achieve a better combined functionality for visual gathering information
  • Multiple sensors
  • Enhanced Image Processing
  • Optimized HMI

The Challanges

slide-5
SLIDE 5

Coordinated Acquisition

5

| 2019-05-17

User Perspective Cost Perspective Coordinated acquisition

HMI Training & Education Integration Test & Evaluation Maintenance Sensors & Sensor Configuration

slide-6
SLIDE 6

The Phases

Close cooperation – the way to succed

  • Design Phase
  • Test and Evaluation Phase

| 2019-05-17

6

SAAB Kockums FMV

  • Requirements
  • Procurement
  • Evaluation

Utilize the common knowledge

  • Concept Phase
  • Procurement and

Evaluation Phase

Supplier End User

Optimize the System

  • Functions
  • HMI
  • Integration
slide-7
SLIDE 7

Procurement and Evaluation Phase

  • 4 suppliers
  • RFQ evaluation
  • 3 Suppliers
  • Conscept Presentation – Supplior visits
  • 2 Suppliers
  • Live Camera Tests / Tech- & Cost discussions / HMI
  • 1 Supplier
  • Contract
  • HDTV Live Camera Test

2011 2014 2012 2012 2015 2013

slide-8
SLIDE 8

Procurement and Evaluation Phase

  • Two remaining suppliers
  • SWIR or LLLTV?
  • SWIR Live Camera Test
  • Cost
  • Safety
slide-9
SLIDE 9

Procurement and Evaluation Phase

  • Two remaining suppliers
  • SWIR or LLLTV?
  • SWIR Live Camera Test
  • Cost
  • Safety
  • IR & HDTV Live Camera Tests
slide-10
SLIDE 10

Design Phase (Camera Selection)

  • Selected Supplier
  • HDTV Camera Selection
  • Pre-CDR
  • Three different Cameras
  • Compared recordings
  • Reflections
  • Dynamic
  • Colours
  • Performance in different light conditions
slide-11
SLIDE 11

Design Phase (Camera Selection)

  • Baseline 1; Nbr 1
  • Baseline 2 Nbr 3
  • Baseline 3 Nbr 2. (selected)
slide-12
SLIDE 12

Design Phase (Consoles)

  • Four “different” consoles
  • Modified Multi-Function Console (MFC) No2 MLU GTD
  • New MFC No6 MLU GTD
  • MFC A26
  • Officer of the Watch (OOW) MFC A26
  • Joystick position?
  • Work position?

| 2019-05-17

12

slide-13
SLIDE 13

Design Phase (Console ”direction”…)

slide-14
SLIDE 14

Design Phase (HMI)

  • HMI Workshops SK-FMV-Safran-Sub Reference Group
  • HMI-layout in general making it user friendly
  • Implementation of new functions
  • Optimize and align the HMI with other Combat Systems
  • Optimize the HMI for the new features
  • Auto Tracking
  • Alerts
  • Interval Track Management and Operator Support
  • Image Fusion
  • Safety
  • Live and Recorded Image/video
  • Avoid misguidance
slide-15
SLIDE 15

Redundancy

slide-16
SLIDE 16

System Overview

  • SENSORS
  • HDTV (dusk / dawn / daylight)
  • HDIR-camera
  • Medium Wave (3-5 µm)
  • LLLTV (to approx. 900 nm)
  • Laser Range Finder (LRF)
  • Mission Critical Camera (MCC)
  • Two OMS-consoles
  • Back-up Tool
  • RESM ANTENNA LOAD
  • Modular mechanical interface for

RESM Antenna (a “cover” when not mounted)

  • GPS
slide-17
SLIDE 17

System #5: The Land Based Training Site

  • Training & Education
  • Operators
  • Technicians
  • Reference System
  • ”Real systems”
  • New Optronic System
  • Based on MLU GTD configuration
  • Spare Parts
  • Risk Reduction
slide-18
SLIDE 18

System #5: The Land Based Training Site

slide-19
SLIDE 19

System #5: The Land Based Training Site

slide-20
SLIDE 20

Conclusions

  • Cooperation
  • Supplier / Sub supplier
  • FMV
  • End user
  • Live Camera Tests – Rapid camera technology development
  • Training facilities
  • Operator Perspective
  • Increased availability
  • Sensors – Functions - Options – Redundancy
  • Optimized HMI
  • Failure is not an option…QUESTIONS?
