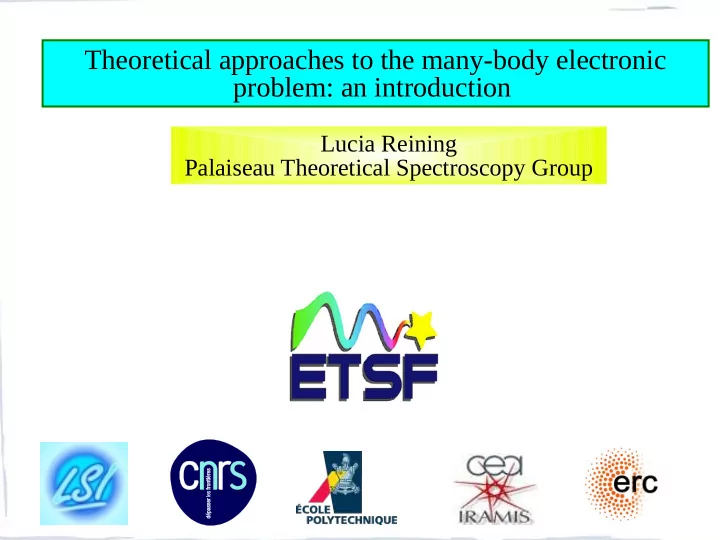

SLIDE 1
Theoretical approaches to the many-body electronic problem: an introduction
Lucia Reining Palaiseau Theoretical Spectroscopy Group
Theoretical approaches to the many-body electronic problem: an - - PowerPoint PPT Presentation
Theoretical approaches to the many-body electronic problem: an - - PowerPoint PPT Presentation
Theoretical approaches to the many-body electronic problem: an introduction Lucia Reining Palaiseau Theoretical Spectroscopy Group Theoretical approaches to the many-body electronic problem: an introduction Theoretical Spectroscopy: aims
SLIDE 2
SLIDE 3
→ Theoretical Spectroscopy: aims and observations
SLIDE 4
→ Theoretical Spectroscopy: aims and observations
550 600 650 700 704 708 712 716 720 724
Intensity
Photoelectron Kinetic Energy (eV) Photon Energy (eV)
?
SLIDE 5
→ Theoretical Spectroscopy: aims and observations
Hψ(x1,....xN) = E ψ(x1,....xN)
?
SLIDE 6
From Damascelli et al., RMP 75, 473 (2003)
and http://www.ieap.uni-kiel.de/surface/ag-kipp/arpes/arpes.htm
+......
→ Theoretical Spectroscopy: aims... and observations!
SLIDE 7
From Damascelli et al., RMP 75, 473 (2003)
and http://www.ieap.uni-kiel.de/surface/ag-kipp/arpes/arpes.htm
+......
→ Theoretical Spectroscopy: aims... and observations!
SLIDE 8
From Damascelli et al., RMP 75, 473 (2003)
and http://www.ieap.uni-kiel.de/surface/ag-kipp/arpes/arpes.htm
+......
This is not what we expect (in an i.p. picture)! → Theoretical Spectroscopy: aims... and observations!
SLIDE 9
Valence bands Satellites
EXPO
Exp.: F. Sirotti et al., TEMPO beamline SOLEIL
→ ARPES of simple bulk silicon:
Obviously far from an i.p. picture!
Cohen and Chelikowsky: “Electronic Structure and Optical Properties of Semiconductors” Solid-State Sciences 75, Springer-Verlag 1988)
SLIDE 10
Calculate only what you want,.....so that you can understand!
Hψn(x1,....xN) = En ψn(x1,....xN)
Want: → total energy E0 → expectation values like * density * spectral functions * dielectric function Do not want: → all many-body ψn(x1,....xN)
Vtot (ω)= ε-1(ω)Vext (ω) → Theoretical Spectroscopy: tools
SLIDE 11
Calculate only what you want,.....so that you can understand!
Hψn(x1,....xN) = En ψn(x1,....xN)
Want: → total energy E0 → expectation values like * density * spectral functions * dielectric function Do not want: → all many-body ψn(x1,....xN)
Small systems: CI Larger: Stochastic (QMC) → Theoretical Spectroscopy: tools Vtot (ω)= ε-1(ω)Vext (ω)
SLIDE 12
Effective quantities in an effective world A practical example, simulate zero gravity → Theoretical Spectroscopy: tools
SLIDE 13
→ The effective quantities:
SLIDE 14
SLIDE 15
→ The effective world:
LDA or so
Designed for density and top valence NOT for bandgaps, for example!!! Hohenberg-Kohn-Sham
SLIDE 16
Band structure of germanium
Rohlfing et al., PRB 48, 17791 (1993)
- A. Svane, PRB 35, 5496 (1987)
SLIDE 17
DFT: E[n] → δE /δn =0 → n0 → E0= E[n0] → F0 = F[n0] ???
SLIDE 18
(TD)DFT point of view: moving density Change of potentials
ρ hν ρ + δρ VH+VXC VH+ δVH+VXC+δVXC
Vtot (ω)= ε-1(ω)Vext (ω)
SLIDE 19
Excitation ? Change of potentials
RPA ρ hν ρ + δρ VH+VXC VH+ δVH+VXC+δVXC
→ Induced potentials
TDLDA, ….
SLIDE 20
SLIDE 21
SLIDE 22
Graphene, π plasmon
- R. Hambach, Diplomarbeit and PhD thesis
SLIDE 23
Graphene, π plasmon
- C. Kramberger et al., PRL 100, 196803 (2008)
E,k E',k' = k-q
SLIDE 24
Graphene, π plasmon
- C. Kramberger et al., PRL 100, 196803 (2008)
U s u a l l y t h e r e i s s t r
- n
g c
- u
p l i n g i n s p e c t r
- s
c
- p
y
SLIDE 25
SLIDE 26
GG1 G1G2
SLIDE 27
→ Interaction leads to........... coupling
E,k E',k' = k-q Loss spectroscopy
SLIDE 28
Exp: Eberlein et al., Phys. Rev. B 77, 233406 (2008)
SLIDE 29
→ Interaction leads to........... coupling
SLIDE 30
→ Interaction leads to........... coupling
Why study this? * Unexpected effects! * Guideline for experiments
SLIDE 31
inelastic elastic inelastic Close to Bragg point
c Independent particles With induced potentials: Induced modes Ralf Hambach et al., Phys. Rev. Lett. 101, 266406 (2008)
SLIDE 32
Experimental verification, N. Hiraoka et al., Spring8 Taiwan/Japan
Strong changes close to Bragg reflex!
Ralf Hambach et al., Phys. Rev. Lett. 101, 266406 (2008)
SLIDE 33
→ Interaction leads to........... decay
Why study this? * Closer to experiment * Example carrier lifetime
SLIDE 34
GG1 G1G2 Dynamic coupling difficult in TDDFT (ω)
SLIDE 35
Effective quantities in an effective world How do we get this one? → Theoretical Spectroscopy: tools
SLIDE 36
→ The effective quantities: → Propagators
SLIDE 37
G(1,2) = -i <T[ψ(1)ψ†(2)]>
1=(r1,σ1,t1) Dyson equation: G =G0 + G0 Σ G
12-37
SLIDE 38
→ The effective world:
Σ(r,r',εi)
Designed for electron addition and removal spectra (bandstructure, lifetimes, satellites,....,density,...)
Other: DMFT Σιι(ω)
SLIDE 39
→ Σ ~ i WG “GW”
- L. Hedin (1965)
W = ε-1(ω) v
+ ….....
SLIDE 40
SLIDE 41
GW calculations, Rohlfing et al., PRB 48, 17791 (1993)
LDA GW HF
GW today: standard for bandstructures
Bandstructure of germanium, theory versus experiment
SLIDE 42
Inverse electron and hole lifetime in silicon
- A. Fleszar and W. Hanke, PRB 56, 10228 (1997)
SLIDE 43
E,k E',k' = k-Q
Effect of electron and hole decay on plasmon spectra
SLIDE 44
Effect of electron and hole decay on plasmon spectra
Cazzaniga et al;, Huotari et al.; PRB 84, 075108 and 075109 (2011)
SLIDE 45
→ The effective quantities: → Propagators
SLIDE 46
G(1,2) = -i <T[ψ(1)ψ†(2)]>
1=(r1,σ1,t1) Dyson equation: G =G0 + G0 Σ G
12-37
SLIDE 47
→ The effective world:
Σ(r,r',εi)
Designed for electron addition and removal spectra (bandstructure, lifetimes, satellites,....,density,...)
Other: DMFT Σιι(ω)
SLIDE 48
→ Σ ~ i WG “GW”
- L. Hedin (1965)
W = ε-1(ω) v
+ ….....
SLIDE 49
SLIDE 50
- A. Tkatchenko et al., Phys. Rev. Lett. 106:118102, 2011
alanine polypeptide
Van der Waals
SLIDE 51
P . Rinke, et al., Phys. Rev. A 70:063201, 2004.
Image states
SLIDE 52
Molecules on surfaces
SLIDE 53
Molecules on surfaces
SLIDE 54
Molecules on surfaces
- C. Freysoldt, et al., Phys. Rev. Lett. 103:056803, 2009.
- J. M. Garcia-Lastra, et al, Phys. Rev. B 80:245427, 2009.
SLIDE 55
From Damascelli et al., RMP 75, 473 (2003)
+......
Why study this? * More added value * Example multiple exciton generation
→ Interaction leads to........... additional excitations
SLIDE 56
Valence bands Satellites
EXPO
Cohen and Chelikowsky: “Electronic Structure and Optical Properties of Semiconductors” Solid-State Sciences 75, Springer-Verlag 1988)
- M. Guzzo et al., PRL 107, 166401 (2011)
→ Interaction leads to........... additional excitations
SLIDE 57
Valence bands Satellites
EXPO
Cohen and Chelikowsky: “Electronic Structure and Optical Properties of Semiconductors” Solid-State Sciences 75, Springer-Verlag 1988)
- M. Guzzo et al., PRL 107, 166401 (2011)
→ Interaction leads to........... additional excitations
GW not sufficient !!!
SLIDE 58
GW:
W(r,r',ω) → one efficient plasmon Cumulant: W(r,r',ω) →series of plasmons
SLIDE 59
Valence bands Satellites
EXPO
- M. Guzzo et al., PRL 107, 166401 (2011)
→ Interaction leads to many additional excitations
SLIDE 60
Exp: Eberlein et al., Phys. Rev. B 77, 233406 (2008)
SLIDE 61
McFeely et al., PRB 9, 5268 (1974)
XPS carbon 1s
SLIDE 62
- M. Guzzo et al., Phys. Rev. B 89, 085425 (2014)
Graphite valence double plasmon: shift + broadening
SLIDE 63
Coupling occupied and empty states: more correlation
Homogeneous Electron Gas Kas, Rehr, Reining (2014) http://arxiv.org/abs/1402.0022
SLIDE 64
Coupling occupied and empty states: more correlation
Homogeneous Electron Gas Kas, Rehr, Reining (2014) http://arxiv.org/abs/1402.0022
SLIDE 65
- Exp. Na, S. Huotari et al, PRL 105, 086402 (2010)
Homogeneous Electron Gas Kas, Rehr, Reining (2014) http://arxiv.org/abs/1402.0022
SLIDE 66
→ Understanding? Our theory is: decomposition into different experiments!
PES IXS
SLIDE 67
“Plasmon” contributions also interesting and accessible in TMOs: VO2 CuO GW gap 1.7 – 4.2 eV
- Exp. 1.3 +/- 0.3 eV
Gatti, Panaccione, Reining (PRL 2015) Roedl, Sottile, Reining (PRB 2015)
SLIDE 68
→ Gap theo. < ~ 2 eV; exp. 1.4 +/- 0.3 eV
- C. Roedl et al., 2016
SLIDE 69
→ Theory and Experiment
SLIDE 70
→ Theory and Experiment
SLIDE 71
→ Theory and Experiment
SLIDE 72
→ Theory and Experiment
SLIDE 73
e-h problem: Bethe-Salpeter equation Dressed hole Dressed electron e-h interaction → Electron-hole correlation
SLIDE 74
SLIDE 75
Larson et al., PRL 99, 026401 (2007) Exciton: Lee, Hsueh, Ku, PRB 82, 081106 (2010)
- V. Olevano et al. (2000)
(bulk silicon 1998)
SLIDE 76
SLIDE 77
SLIDE 78
SLIDE 79
SLIDE 80
SLIDE 81
Larson et al., PRL 99, 026401 (2007) Exciton: Lee, Hsueh, Ku, PRB 82, 081106 (2010)
- V. Olevano et al. (2000)
(bulk silicon 1998)
SLIDE 82
Hydrogen series in absorption spectrum of solid argon
SLIDE 83
- F. Sottile et al., Phys Rev. Lett 91, 056402 (2003).
SLIDE 84
Exciton dispersion in LiF
- M. Gatti and F. Sottile, Phys. Rev. B 88, 155113
- Exp. P. Abbamonte et al., Proc. Natl. Acad. Sci. USA 105, 12159 (2008).
SLIDE 85
Signifjcant excitonic efgect Very good agreement with experiment
PhD thesis Igor Reshetnyak (23.9.2015)
SLIDE 86
Rohlfing and Louie, PRL 81, 2312 (1998)
SLIDE 87
Strongly bound exciton visible
Mixed Dynamic Structure Factor
q=(0,0.25,0.25), G=(0,0,0), G’=(1,1,1)
87
PhD thesis Igor Reshetnyak (23.9.2015)
SLIDE 88
What can we do with it? For example, induced charges
In linear response:
88
Ralf Hambach Giulia Pegolotti Claudia Roedl Igor Reshetnyak (exchange)
SLIDE 89
Plane-wave external potential Excitonic efgects visible
Induced Charges
[1] P . Abbamonte et al. Phys. Rev. Lett. 2004. [2] P . Abbamonte et al. Advanced Materials 2010.
PhD thesis I. Reshetnyak
SLIDE 90
RPA BSE
Consequences of excitons?
At 14.1 eV PhD thesis I. Reshetnyak
The whole matrix follow excitations in real space and time →
SLIDE 91
Excitonic efgects in photoemission satellites
91
[1] Marisa Scrocco Phys. Rev. B, 1985.
SLIDE 92
Overall comparison to experiments
92
[1] S. P . Kowalczyk et al. Phys. Rev. B, 1974
Li1s F2s F2p
SLIDE 93
93
Analysis
[1] Marisa Scrocco Phys. Rev. B, 1985.
SLIDE 94
94
Analysis
[1] Marisa Scrocco Phys. Rev. B, 1985.
SLIDE 95
H2
+
Is life that simple?
SLIDE 96
H2
+
SLIDE 97
H2
+
SLIDE 98
H2
+
SLIDE 99
H2
+
SLIDE 100
H2
+
SLIDE 101
H2
+
SLIDE 102
H2
+
Romaniello, Guyot, Reining, J Chem Phys 131, 154111 (2009)
SLIDE 103
Correlation beyond mean field response
H2
+
gap
SLIDE 104
Is life that simple?
SLIDE 105
The GW image
SLIDE 106
The GW image
SLIDE 107
See also Romaniello, Guyot, Reining, J Chem Phys 131, 154111 (2009) And Romaniello, Bechstedt, Reining, PRB 85, 155131 (2012)
The T-matrix image
SLIDE 108
Springer, Aryasetiawan, Karlsson, PRL 80, 2389 (1998)
More than academic: 6 eV satellite in Ni = hole-hole
SLIDE 109
Effective quantities in an effective world A practical example, simulate zero gravity → Theoretical Spectroscopy: tools
SLIDE 110
Suggested Reading
Onida, G., Reining, L., and Rubio, A., “Electronic excitations: density-functional versus many-body Greens-function approaches,” Rev. Mod. Phys. 74, 601, 2002. Review of ab initio calculations
- f electronic excitations with accent on optical properties and a comparison between Bethe–
Salpeter and TDDFT Strinati, G., “Application of the Green’s function method to the study of the optical-properties of semiconductors,” Rivista del Nuovo Cimento 11, 1, 1988. Pedagogical review of the theoretical framework underlying today’s Bethe–Salpeter calculations. Derivation of the main equations and link to spectroscopy. R.M. Martin, L. Reining, D.M. Ceperley, “Interacting Electrons: Theory and Computational Approaches, Cambridge May 2016 New book containing many-body perturbation theory, DMFT and QMC
- L. Hedin, “On correlation effects in electron spectroscopies and the GW approximation,”
- J. Phys. C 11:R489–528, 1999. Short review, very good for photoemission!
- F. Aryasetiawan and O. Gunnarsson, “The GW method,” Rep. Prog. Phys. 61:237–312,
1998; and:
- W. G. Aulbur, L. Jonsson, and J. W. Wilkins, “Quasiparticle calculations in solids,” Solid
State Phys. 54:1–218, 2000; Two nice and quite complete reviews on GW
SLIDE 111
Palaiseau Theoretical Spectroscopy Group & friends
Matteo Guzzo, Ralf Hambach, Igor Reshetnyak, Claudia Roedl, Lorenzo Sponza, Sky (Jianqiang) Zhou, Francesco Sottile, Matteo Gatti, Christine Giorgetti, Hansi Weissker, Lucia Reining Toulouse: Pina Romaniello, Arjan Berger
- U. Washington: John Rehr, Joshua Kas
Synchrotron SOLEIL: Fausto Sirotti, Matthieu Silly Synchrotron ESRF: Simo Huotari, Giulio Monaco Synchrotron ELETTRA: Giancarlo Panaccione
