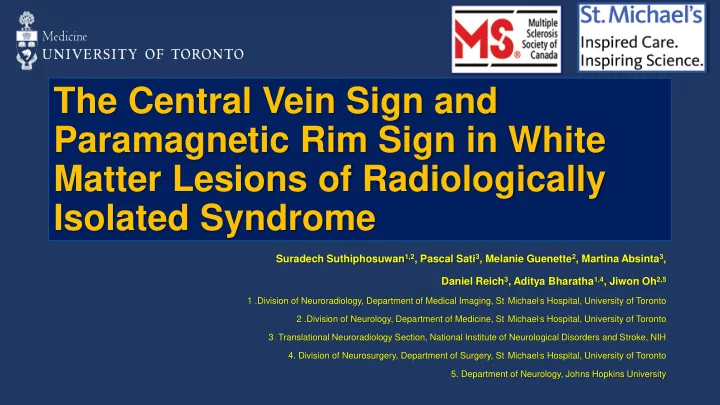

The Central Vein Sign and Paramagnetic Rim Sign in White Matter Lesions of Radiologically Isolated Syndrome

Suradech Suthiphosuwan1,2, Pascal Sati3, Melanie Guenette2, Martina Absinta3, Daniel Reich3, Aditya Bharatha1,4, Jiwon Oh2,5

1 .Division of Neuroradiology, Department of Medical Imaging, St. Michael’s Hospital, University of Toronto 2 .Division of Neurology, Department of Medicine, St. Michael’s Hospital, University of Toronto 3 . Translational Neuroradiology Section, National Institute of Neurological Disorders and Stroke, NIH

• 4. Division of Neurosurgery, Department of Surgery, St. Michael’s Hospital, University of Toronto
• 5. Department of Neurology, Johns Hopkins University

• No disclosures

Disclosures

Background: Multiple Sclerosis (MS)

Tallantyre et al, Neurology 2011

MS lesions: perivenular inflammatory infiltrates MRI: Central vein inside white matter lesion (WML) = “Central Vein Sign” (CVS)

MS: A high proportion of WML with CVS+ A cut-off threshold of 40% has been propose to distinguish MS vs. non-MS

Mistry et al, MSJ 2015 Popescu et al, Multiple sclerosis, Elsevier 2016

Background: Multiple Sclerosis (MS)

MRI: “Paramagnetic rim sign (PRS)” = Chronic active inflammation attributed to paramagnetic effects from iron-laden microglia macrophages at the lesions edge.

Absinta M, JCI 2016

Background: Radiologically Isolated Syndrome (RIS)

• RIS cases are at increased risk
• f developing MS.
• One-third of RIS cases

developed clinical definite MS within 5 years.

• Risk factors of developing MS
• Young age (<37 years)
• Being Male
• Presence of Spinal cord lesion

Asymptomatic cases with incidental MRI findings suggestive

• f MS

Objective

To assess for the presence of the CVS and PRS in WMLs of RIS.

Methods: Subjects

• IRB Approved
• RIS cases were prospectively

recruited from the St Michael’s Hospital MS clinic from July 2017 to December 2017.

• Inclusion criteria: adult subjects

meeting previously published clinical and MRI criteria for RIS

(Okuda et al, Neurology 2009)

Barkhof’s criteria (at least 3 out of 4) Number of T2 lesions ≥ 9 T2 hyperintense

• r ≥ 1 Gd enhancing

Infratentorial or cord lesions ≥ 1 Juxtacortical lesions ≥ 1 Periventricular lesions ≥ 3

Methods: MRI Protocol

• 3.0T MRI scanner: Siemens

Skyra, Erlangen, Germany.

• 20-channel head-neck

coil

• 3D FLAIR: lesion

detections, lesion count, and location

• 3D T2* EPI:
• Magnitude: CVS

assessment

• Phase: PRS assessment

3D T2* EPI Magnitude 3D FLAIR 3D T2* EPI Phase

Methods: CVS assessment

Central Vein Sign on 3D T2* EPI

(Sati et al, Nrneurol, 2016)

• Thin hypointense line or small dot
• Visualized in at least two

perpendicular planes, and appears as a thin line in at least one plane

• Small apparent vein diameter
• Runs through the lesion
• Positioned centrally in the lesion

Ax Cor Sg

Methods: CVS assessment

Exclusion criteria for lesions

(Sati et al, Nrneurol, 2016)

• Lesion is <3 mm in diameter
• Confluent lesions
• Lesion has multiple veins
• Lesion is poorly visible

FLAIR T2* EPI

PRS positive lesion

• WML >3 mm in size
• Presence complete/incomplete

hypointense rim on Phase image

Exclusion

• WML <3 mm in size
• Poorly visible lesion due to artifact

Methods: PRS assessment

3D T2* EPI Magnitude 3D T2* EPI Phase

Demographics Participants, n 15 Age, mean (SD) 45 (11.5) Female, n (%) 11 (73%) Reasons for Performing Initial Brain MRI Headaches 7 (46%) Transient paraphasic symptoms atypical for demyelinating disease 2 (13%) Intermittent subjective cognitive symptoms 1 (7%) Intermittent nocturnal tremor 1 (7%) Pars planitis 1 (7%) Back pain 1 (7%) Dental pain 1 (7%) Tinnitus 1 (7%)

Radiological Characteristics Total brain lesion count, n 680

• No. brain lesion per subject, meadian (range)

31 (9-165)

• No. Brain lesion per location

Cortical/Juxtacortical 147 (22%) Subcortical/Deep white matter 342 (50%) Periventricular white matter 160 (23%) Infratentorial 31 (5%) Cervical spinal cord lesion

• No. of Participants with cervical spinal cord lesions

10 Total cervical spinal cord lesions 22

• No. of Cervical spinal cord lesions per subjects, median (range)

1 (0-4)

Clinical and MRI Characteristics of RIS subjects

Results:

Results:

Total WML 680 Exclusion 424 (62%) Inclusion 256 (38%) CVS- 39 (15%) CVS+ 217 (85%)

Proportion of WML with CVS + per Subject

Median %CVS+ per RIS case 83% (range 31% – 100%)

%CVS+ >40% 14 cases (93%) %CVS+ < 40% 1 cases (7%)

Results:

Total WML 680 Exclusion 231 (34%) Inclusion 449 (66%) PRS - 368 (82%) PRS + 81 (18%)

• The PRS was present in 11 cases

(73%)

• The mean proportion of PRS

+ WMLs per case was 19% (range:8-44%).

• PRS were absent in 4 cases

(27%):

• 3 had low total lesion loads

(9-25 WMLs per case)

• 1 had the lowest proportion
• f CVS+ WML (31%)

Figures: High %CVS = 92% PRS+ = 30%

Figures: Low %CVS = 31% No PRS

Results:

Regression Analyses Evaluating the Association of Baseline Characteristics with the Proportion of CVS+ WMLs

Univariable model Multivariable model p - value p - value Age 0.584 0.830 Sex 0.907 0.920 Total No. Brain lesion 0.970 0.049

• No. Cervical spinal cord lesion

0.096 0.027 Proportion of PRS+WML 0.015 0.015 Variable

Discussion:

• A large number of WMLs in RIS demonstrates CVS.
• The majority of RIS cases had > 40% CVS+ per case.
• Meets 40% threshold that has been proposed to distinguish MS from Non-

MS.

• A large (though smaller) proportion of WMLs in RIS also had PRS+
• RIS without PRS had low WML load and/or low proportion of

CVS+WML

• %CVS+WML had significant correlation with %PRS+WML
• Number of total brain lesions and cervical spinal cord lesions are also

associated with %CVS+.

Conclusions

• Most RIS cases had a large proportion of CVS+ WMLs and also had

PRS+WMLs

• RIS subjects harbor both perivenular inflammation and subclinical

chronic active demyelination similar to MS

• RIS with high %CVS+ and PRS+ may be at risk of eventually

developing progressive clinical symptoms

• Both CVS and PRS could potentially be useful to differentiate true RIS

(i.e. subclinical inflammatory demyelination) from mimickers.

• Prospective follow-up of this cohort is planned
• Better understanding of the differential diagnostic and predictive

value of the CVS in RIS.

References

• Okuda DT, Mowry EM, Beheshtian A, et al. Incidental MRI anomalies suggestive of

multiple sclerosis: the radiologically isolated syndrome. Neurology 2009;72:800-805

• Maggi P, Absinta M, Grammatico M, et al. Central vein sign differentiates Multiple

Sclerosis from central nervous system inflammatory vasculopathies. Ann Neurol. 2018;83(2):283-294.

• Absinta M et al., Persistent 7-tesla phase rim predicts poor outcome in new multiple

sclerosis patient lesions. JCI 2016;126(7):2597-609

• Absinta M, Sati P, Fechner A, et al. Identification of Chronic Active Multiple Sclerosis

Lesions on 3T MRI. Am J Neuroradiol. 2018; Advance online publication.

• Sati P, Oh J, Constable RT, et al. The central vein sign and its clinical evaluation for the

diagnosis of multiple sclerosis: a consensus statement from the North American Imaging in Multiple Sclerosis Cooperative. Nat Rev Neurol. 2016;12(12):714-722.

• Tallantyre EC, Dixon JE, Donaldson I, et al. Ultra-high-field imaging distinguishes MS

lesions from asymptomatic white matter lesions. Neurology 2011;76:534-539
