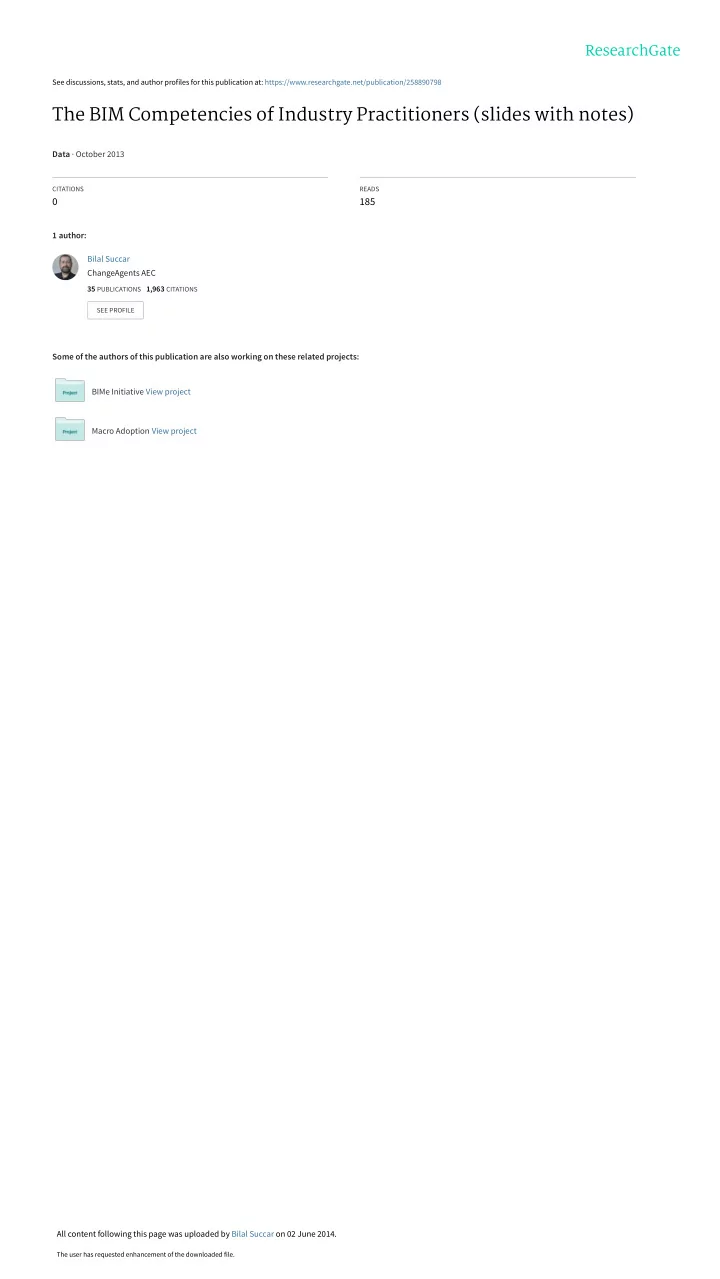

The BIM Competencies of Industry Practitioners (slides with notes)

Data · October 2013

CITATIONS READS

185

1 author: Some of the authors of this publication are also working on these related projects: BIMe Initiative View project Macro Adoption View project Bilal Succar ChangeAgents AEC

35 PUBLICATIONS 1,963 CITATIONS SEE PROFILE

All content following this page was uploaded by Bilal Succar on 02 June 2014.

The user has requested enhancement of the downloaded file.
slide-2
SLIDE 2

As competências necessárias para o profissional que atua no processo BIM

The BIM Competencies of Industry Practitioners Bilal Succar Sócio-diretor da Change Agents, Australia

24 de outubro de 2013

Realização: Coordenação:

slide-3
SLIDE 3

a definition

Building Information Modelling

slide-4
SLIDE 4

Building Information Modelling is a set of technologies, processes and policies enabling multiple stakeholders to collaboratively design, construct and operate a facility

slide-5
SLIDE 5

mu l ti p l e u s es of i n for ma ti on

understanding BIM

slide-6
SLIDE 6

d i g i ta l r ep r es enta ti on s

understanding BIM

slide-7
SLIDE 7
  • b j ects a n d d a ta b a s es

understanding BIM

slide-8
SLIDE 8

f i ve b a s i c ty p es of d el i ver a b les

understanding BIM

slide-9
SLIDE 9
  • 1. Representation
  • 2. Laser scanning
  • 3. Specifications
  • 4. Wind studies
  • 5. Quantities
  • 6. Prototyping
  • 7. Energy simulation
  • 8. Geo-studies
  • 9. Spatial clashes

…and many other uses

understanding BIM

mod el u s es - p a r ti a l

especs enovaya.c

  • m

cener.c

  • m

granuland hbp.usm. my cener.c

  • m

SJB Architects relex / PTC be magazine

1 2 3 4 5 6 7 8 9

slide-10
SLIDE 10

lonely BIM

Pablo Rodarte Castells, Archive Photo EFE

social BIM

2 ty p es – 5 sta g es

BIM Stages

slide-11
SLIDE 11

p r e BIM p ost BIM

1 2 3

slide-12
SLIDE 12

1 2 3

  • b j ect- b a s ed

modelling

n etw or k- b a s ed

integration

mod el - b a s ed

collaboration

p r e BIM p ost BIM

slide-13
SLIDE 13

p r e BIM

Frank Gehry

h a n d-d raw i n g 2 D ca d

slide-14
SLIDE 14
  • b j ect- b a s ed

modelling

f i ve ty pe s o f mo de l - b a s e d d e l i vera b les

slide-15
SLIDE 15
  • b j ect- b a s ed

modelling

n o mo d e l i nte rc ha nge s mo de l - b a s e d ca d 2 D+ 3 D

slide-16
SLIDE 16

mod el - b a s ed

collaboration

mo de l i nte rc ha nge s mo de l - l i n k i n g

  • r fe de rati o n
slide-17
SLIDE 17

mod el - b a s ed

collaboration

images: Autodesk

a r c h i t e c t e n g i n e e r

  • w n e r

c o n t r a c t o r

slide-18
SLIDE 18

mod el -b a s ed exchanges

slide-19
SLIDE 19

n etw or k- b a s ed

integration

i nte grate d mo de l s

( n o t n e c e s s a r i l y a s i n g l e m o d e l )

slide-20
SLIDE 20

co mp o n e nt a n d mate r i a l s co sts i nte grate d ma i nte na nc e syste ms

  • pe rati o ns

b u s i n e s s l o g i c ge o g ra p h i c i nfo r mati o n syste ms ( G IS ) s e r v i c e s g r i d b u i l d i ng ma na ge me nt syste ms ( BMS )

slide-21
SLIDE 21

and its many faces

understanding BIM wash

slide-22
SLIDE 22

Absolutely, we use BIM all the time!

r ea l BIM vs . fa ke BIM

BIM wash

BIM C l a i m > C omp eten cy

Well, at least we bought the software...

Dear Wendy Film Stage – All Things FOE

slide-23
SLIDE 23

BIM Wash

1.

  • 1. confusion
  • 2. inexperience
  • 3. exaggeration
  • 4. illusion

different levels of

slide-24
SLIDE 24

LEVEL 1 confusion

slide-25
SLIDE 25

LEVEL 2 inexperience

slide-26
SLIDE 26

LEVEL 3 exaggeration

slide-27
SLIDE 27

LEVEL 4 illusion

slide-28
SLIDE 28

BIM performance

what is it?

slide-29
SLIDE 29
  • unique outcomes:
  • clash detection
  • code checking
  • constructability of complex geometries
  • coordinated drawings
  • improved prefabrication
  • more accurate costs…
  • improved outcomes:

 It’s the ability to deliver BIM- enabled outcomes (2 types):

What is BIM performance?

slide-30
SLIDE 30
  • increase productivity:
  • better design
  • better quality
  • better service…
  • less rework
  • less physical waste
  • less conflict  waste of time…
  • reduce waste:

 It’ s the a b ility to g e ne ra te m o re

  • utp ut w ith the sa m e inp ut:

What is BIM performance?

slide-31
SLIDE 31
  • cost certainty

the a b ility to imp ro ve c e rta inty

What is BIM performance?

Ena b le fa st tra c king

  • time certainty…
  • construction sequencing

Re d uc e e nviro nme nta l imp a c t

  • collaborative workflows…
  • thermal analysis
  • carbon footprint…
slide-32
SLIDE 32

BIM performance

understanding the complementary scales of

slide-33
SLIDE 33

Individuals

and groups

Organizations

and org. units

Teams

all types

competency capability & maturity capability & compatibility for education & professional development

performance types what’s measured results used for

for developing implementation strategies for matching team capability to projects requirements practitioners, students & educators

who most benefits

managers, BIM leaders & HR clients & employers

Markets

and sub-markets

maturity for developing guides, protocols & mandates government, academia & industry bodies

BIM Pe rfo rm a n c e

d if f e re n t m e a su re m e n t sc a le s

slide-34
SLIDE 34

BIM performance

  • f practitioners and organizations
slide-35
SLIDE 35

the number and types of projects involved in

SKILL

the software tools that individuals know how to use

  • construction knowledge
  • collaborative processes
  • model-based workflows
  • team dynamics
  • applicable standards
  • data exchange protocols

EASY TO MEASURE

KNOWLEDGE EXPERIENCE

DIFFICULT TO MEASURE EASY TO MEASURE

individual competency

slide-36
SLIDE 36

competency index

five levels

slide-37
SLIDE 37

BIM Performance

8 Sets + 5 5 top i cs

image: BIMexcellence.net

slide-38
SLIDE 38

Co mpo ne nt De ve lo pme nt L ib ra ry Ma na g e me nt Sta nda rdiza tio n & T e mpla te s T e c hnic a l T ra ining Syste m a nd Pro c e ss T e sting Guide s a nd Ma nua ls

BIM Performance

8 Sets + 5 5 top i cs

image: BIMexcellence.net

slide-39
SLIDE 39

Co lla b o ra tio n F a c ilita tio n Pro je c t Ma na g e me nt T e a m Ma na g e me nt Wo rkflo w Ma na g e me nt

BIM Performance

8 Sets + 5 5 top i cs

image: BIMexcellence.net

slide-40
SLIDE 40

L e a de rship Stra te g ic Pla nning Org a niza tio na l Ma na g e me nt Busine ss De ve lo pme nt Clie nt Ma na g e me nt Pa rtne rship a nd Allia nc ing

BIM Performance

8 Sets + 5 5 top i cs

image: BIMexcellence.net

slide-41
SLIDE 41

M01 General Management

Defining and communicating overall managerial goals from adopting new systems and workflows

M02 Leadership

Leading and guiding others throughout the process of implementing new systems and workflows

M03 Strategic Planning

Identifying strategic objectives and developing implementation strategies

M04 Organizational Management

Identifying the organizational changes necessary for instigating, monitoring and improving BIM adoption

M05 Business Development and Client Management

Maximizing the value achieved by the organization and its clients from BIM tools and workflows

M06 Partnership and Alliancing

Initiating partnerships and alliances with other organizations based on BIM deliverables and workflows

BIM Performance

ma n a g er i a l top i cs

BIMexcellence.net

slide-42
SLIDE 42

O01 General model use

Using model-based deliverables to improve design, construction and operation of facilities

O02 Capturing and Representing

Using software tools and specialized equipment to capture and represent physical spaces and environments

O03 Planning and Designing

Using software tools for conceptualization, planning and design

O04 Simulating and Quantifying

Using software tools to conduct various types of model-based simulations and estimations

O05 Constructing and Fabricating

Using BIModels for the specific purposes of construction and fabrication

O06 Operating and Maintaining

Using models to operate, manage and maintain a facility

BIM Performance

  • p er a ti on s top i cs

BIMexcellence.net

slide-43
SLIDE 43

T01 General IT

Installing, managing and maintaining general IT infrastructure

T02 Software Systems

Selecting, deploying and maintaining software systems in a multi-user environment

T03 Hardware and Equipment

Specifying, recommending or procuring computer hardware and equipment

T04 Modelling

Generating BIModels based on pre-defined Modelling Standards and protocols

T05 Documentation

Generating drawings and construction documents using standardized details and workflows

T06 Presentation and Animation

Generating professional-quality renderings or 3D animation using Specialized Software Tools

BIM Performance

tech n i ca l top i cs

BIMexcellence.net

slide-44
SLIDE 44

Competency Matrix Competency Web

slide-45
SLIDE 45
slide-46
SLIDE 46

P HA SE 1 P HA SE 2 P HA SE 3

p ro je c t re so u rc e re q u ire m e n ts

v a ry a c ro ss p h a se s

slide-47
SLIDE 47

Organizational Performance

  • rganizational systems and project abilities
slide-48
SLIDE 48

MO DEL USES

t h e BIM W h e e l

no BIM uto p ia n BIM

slide-49
SLIDE 49
slide-50
SLIDE 50

COMPARING 3 PROJECTS

C ERTA INTY

a c ro ss p ro je c t s

slide-51
SLIDE 51

COMPARING

5 ORGANI ZAT I ONS

C ERTA INTY

a c ro ss o rg a n iza t io n s

slide-52
SLIDE 52

w it h in a n o rg a n iz a t io n

BIM p e rfo rm a n c e p y ra m id

slide-53
SLIDE 53

how to measure it and why it’s important

BIM maturity of countries

slide-54
SLIDE 54

64% 43% 57% 67% 40% 57% 53% 43% 0% 20% 40% 60% 80% 100%

Austra lia De nma rk F inla nd No rwa y Sing a po re Ne the rla nds Unite d K ing do m Unite d Sta te s

Guide s

Pro to c o ls

Ma nda te s

9 5 9 6 2 18 10 14

G UIDES PRO TO C O LS MA NDA TES

Austra lia De nma rk F inla nd No rwa y Sing a po re Ne the rla nds Unite d K ing do m Unite d Sta te s

BIM knowledge distribution

(Kassem, Succar & Dawood, 2013)

comparing 8 countries

slide-55
SLIDE 55

Owners seem to lag behind other stakeholders in BIM adoption

BIM effort distribution

s n a p s h o t f r o m A u s t r a l i a i n 2 0 1 0

slide-56
SLIDE 56

consecutive phases

low team capability and/or low market maturity

slide-57
SLIDE 57
  • verlapping phases

higher team capability and/or maturing market maturity

slide-58
SLIDE 58

concurrent phases

high team capability and/or mature BIM market

slide-59
SLIDE 59

components of BIM maturity

country-wide

slide-60
SLIDE 60
slide-61
SLIDE 61
slide-62
SLIDE 62

in te g ra te d p e rf o rm a n c e im p ro v e m e n t th ro u g h fo u r

c o m p le m e n ta ry p rin c ip le s

En v iro n m e n t c o n sc io u s p ro c e sse s, m a te ria ls a n d d e liv e ra b le s th ro u g h

s u s ta in a b ility p rin c ip le s

Le ss w a ste a n d m o re e ffic ie n t c o n stru c tio n th ro u g h le a n

c o n s tru c tio n p rin c ip le s

Be tte r b u sin e ss m o d e ls fo r sh a rin g risks a n d b e n e fits th ro u g h

In te g ra te d Pro je c t De liv e ry ( IPD)

p rin c ip le s C o lla b o ra tiv e w o rkflo w s a n d ric h d a ta th ro u g h BIM p rin c ip le s

A final word

slide-63
SLIDE 63

THA NKYO U

b s u c c a r@ b i m e x c e l l e n c e . n e t
